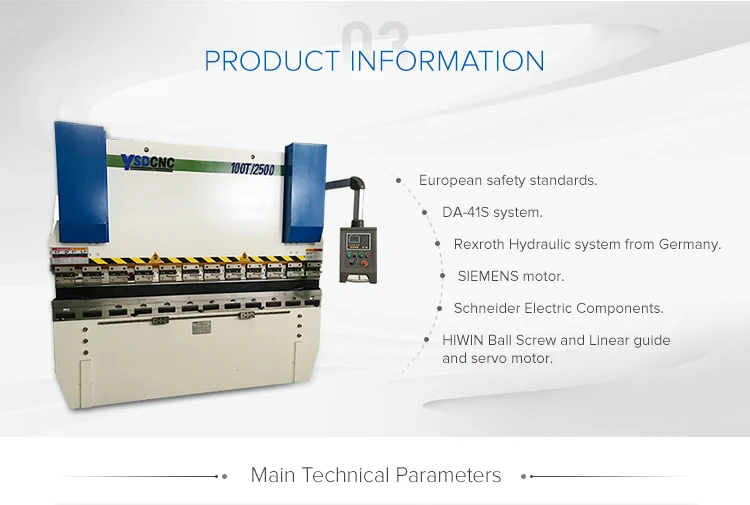

1. Main Features: Streamlined design originated from EU, heat treatment of machine frame, high rigidity workbench, optional mechanical compensation device, to ensure the precision of bending Hydraulic synchronous control and CNC programmable controller guarantee precise repeatability and easy use. Integrated hydraulic system ( Germany Bosch Rexroth ) can be automatically switched to slow bending status. X ,Y-axis realize accurate positioning function through CNC CybTouch 6 controller programming and servo motor. Latest servo response hydraulic control technology, the machine tool is more stable and reliable. Optimal parameter ratio, best core configuration guarantee stable performance and more convenient for operation PBT series machine is equipped with single-axis backgauge system, single-axis bending angle system and V-axis compensation function combining with customized dies, any type irregular workpieces can be done

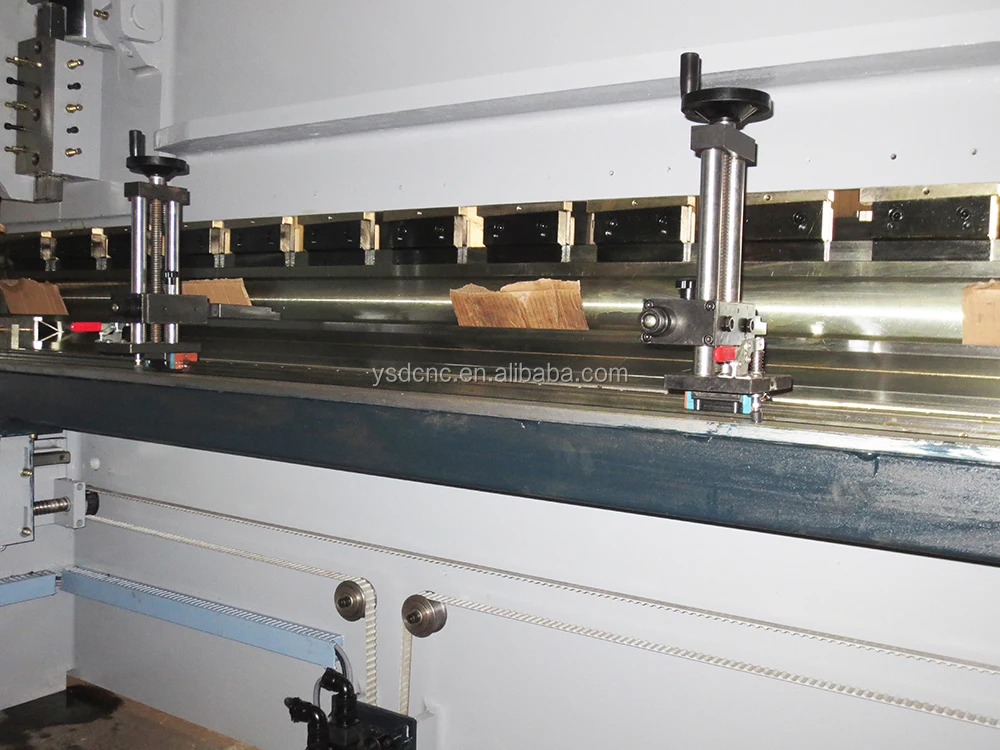

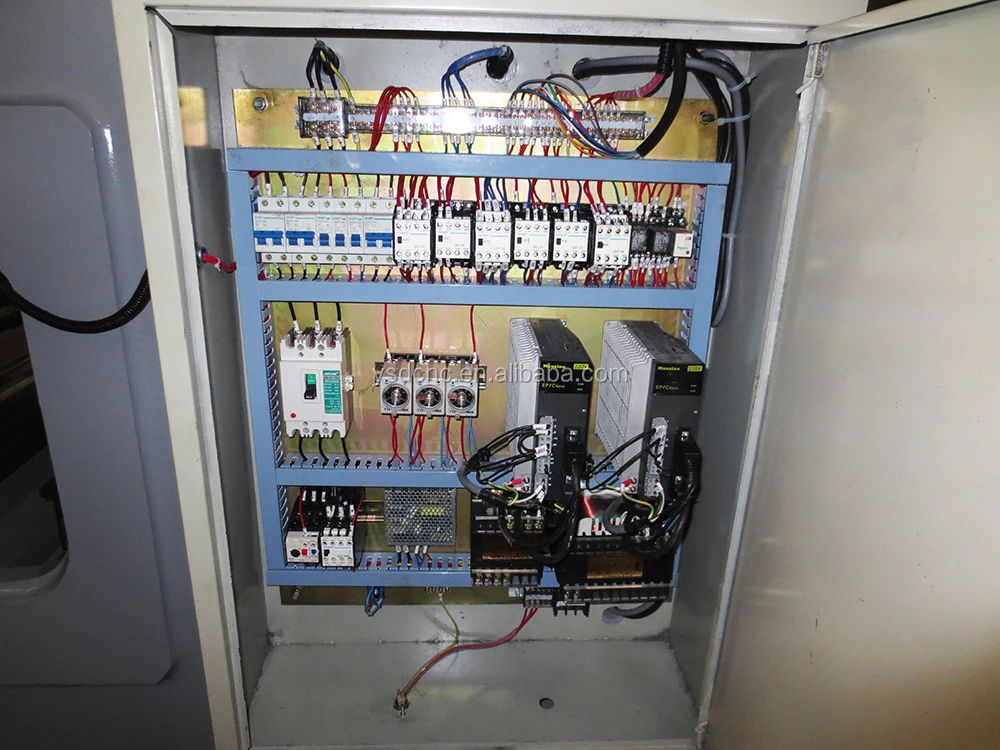

2. Main Configuration Touch 6 controller Controller controls and adjusts Y-axis and X-axis Servo drive and control positioning of X-axis and Y-axis Adopting HIWIN ball screw and linear guide rail, accuracy 0.05mm Front supporter bracket Germany Bosch Rexroth hydraulic valve block Germany EMB oil tube connector Germany Siemens main motor France Schneider electrics Hydraulic & electrical overload protection Upper and lower dies(86°, R0.6mm, material: 42CrMo)
Front Finger protection ( safety light curtain ) South Korea KACON pedal switch ( safety grade 4 ) Back metal safeguard, CE standard Safety relay monitor pedal switch, safety protection Safety standard ( 2006/42/EC)
4. CybTouch6 controller
Large, vivid and high-contrast fully touch screen. Simple pages, clear display, large keys. Very simple single bends with EasyBend page. Complete programming allows efficient mass-production of parts with multiple bends. Online help and warning pop-ups make it a very user-friendly software. Available in many languages. Comfortable wireless software updating and data backup using PC or Notebook.
