cheapest price woodworking cnc router machine/wood engraving carving machine

FOB Reference Price:Get Latest Price
$1,990.00 - $8,888.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SKW-1325
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 14 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Building Material Shops, Advertising Company
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China (Mainland)
Brand Name:
senke
Voltage:
220V/380V
Dimension(L*W*H):
1300*2500*200mm
Certification:
CE ISO
Warranty:
2 Years
After-sales Service Provided:
Online support
rails:
Taiwan TBI ball screw
Control system:
DSP A11
Body structure:
Thicken steel made
Motor:
Stepper Motors(servo motors and driers optiona)
Spindle power:
3.0KW water cooling
Max Moving Speed:
60000mm/min
Guide:
Taiwan HIEIN/PMI 20 square rails
Spindle speed:
18000-24000rmp
XYZ traveling positioning accuracy:
±0.01mm
XYZ repositioning accuracy:
±0.01mm
Power(W):
3.0KW/4.5kw/optional
Weight:
accoriding to model
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
package: Export wooden box
Port
qingdao/shanghai/can optional
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 14 To be negotiated
Video Description
Product Description

         cheapest price woodworking cnc router                                 machine/wood engraving

                      carving machine


Features

1. X,Y axes transmission with gear rack, Z Germany ball screws, ensures stable and smooth movement of the machine.

2. High power spindle, water cooling/air cooling, working vigorously with low noise.

3. The Vacuum Adsorption Woodworking Machine Series: adopt vacuum system, configured with vacuum pump of strong adsorption which can adsorb materials with different size.

4. Automatic lubrication system fulfills the periodic lubrication maintenance just by a slight press

5.double motors and drivers of Y axis ensure steady movement.

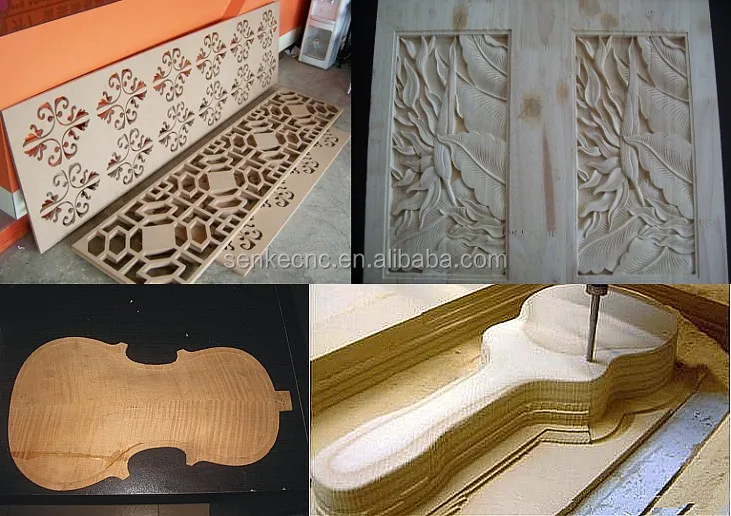

1.Product Application

SenKe CNC Router machine adopt different parts,which suitable for different materials work,according to the parts choice,the machine use to engraving,carving,cutting,milling,drilling etc for all kinds of materials,as for the models which you concerned,details please find below.

2.TECHNICAL PARAMETERS
senke cnc router -woodworking the best selling cnc router woodworking machine
Model
SKW-1325
Working area (X*Y*Z)
1300*2500*300mm
Table size
1750*3050*1740mm
Body structure
Thicken steel made
X, Y Structure
rack and pinion
rails
Taiwan hiwin square rails
Z Structure
Taiwan TBI ball screw
X, Y Resolution
<0.01mm
Max Moving Speed
60000mm/min
Max Engraving Speed
40000mm/min
XYZ traveling positioning accuracy
±0.01mm
XYZ repositioning accuracy
±0.01mm
Spindle power
3.0KW HSD brand air cooling
collect
ER25
Spindle Speed
0-18,000rpm
Voltage
220v/single or 380v/3phase or as customer needed
Drive type
Stepper motors(450B)
Driver
Yako2811MA
Working Dictate
G Code
Operating system
NC-STUDIO control system
Flash memory
512M
software
Artcam
Tool sensor
Yes,included
Auto oil lubricator
Yes,included
Wire protect
Yes,included
Running Environment
Temperature: 0℃~45℃
package
Export wooden box
After packed size
According to size
G.W
According to size

3.samples*shipment
wood cnc parts show

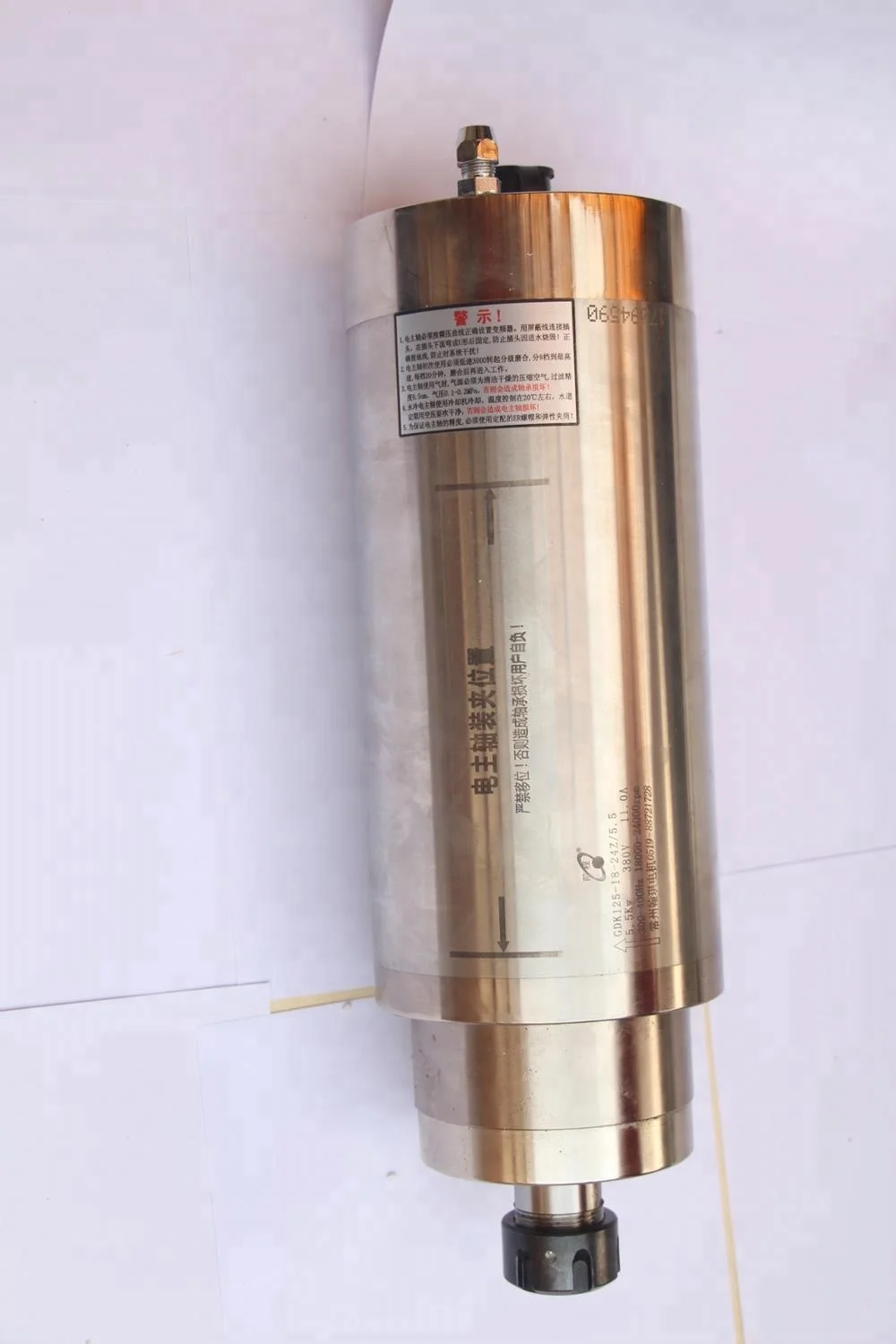

3kw water coling spindle

3.2kw HQD brand watercooling spindle,one of the best brand,years use

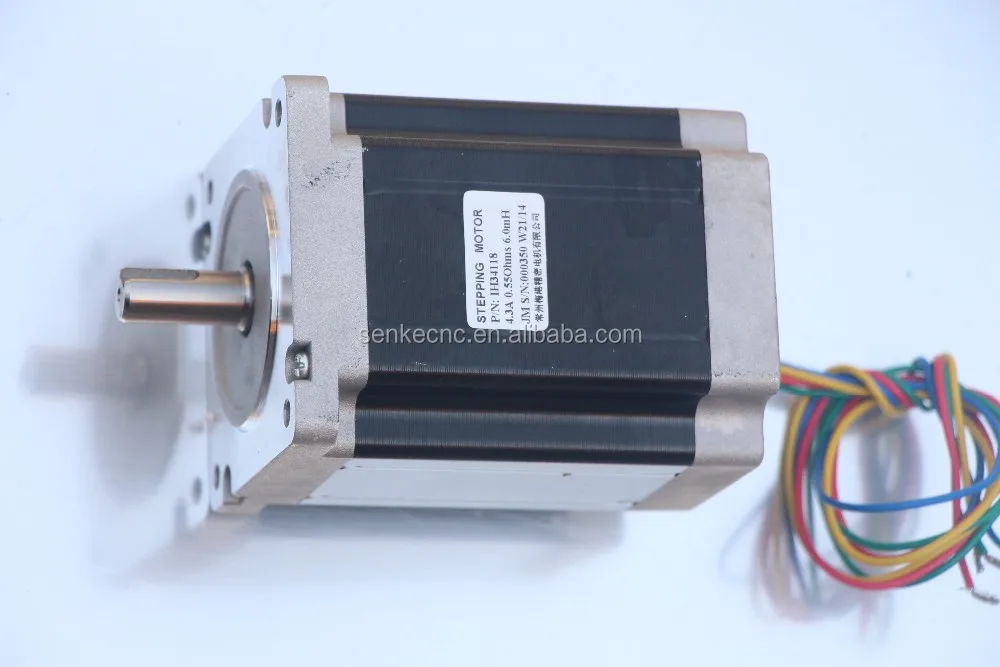

stepper motors

one of the best motor,years use

Taiwan hiwin squarea rails

Taiwan imported hiwin squarea rails with Taiwan miko brand black colour-harden gear rack.

    T-support heavy body

T-support heavy body,keep the machine more stability

              gantry

thicken steel-made gantry and frame

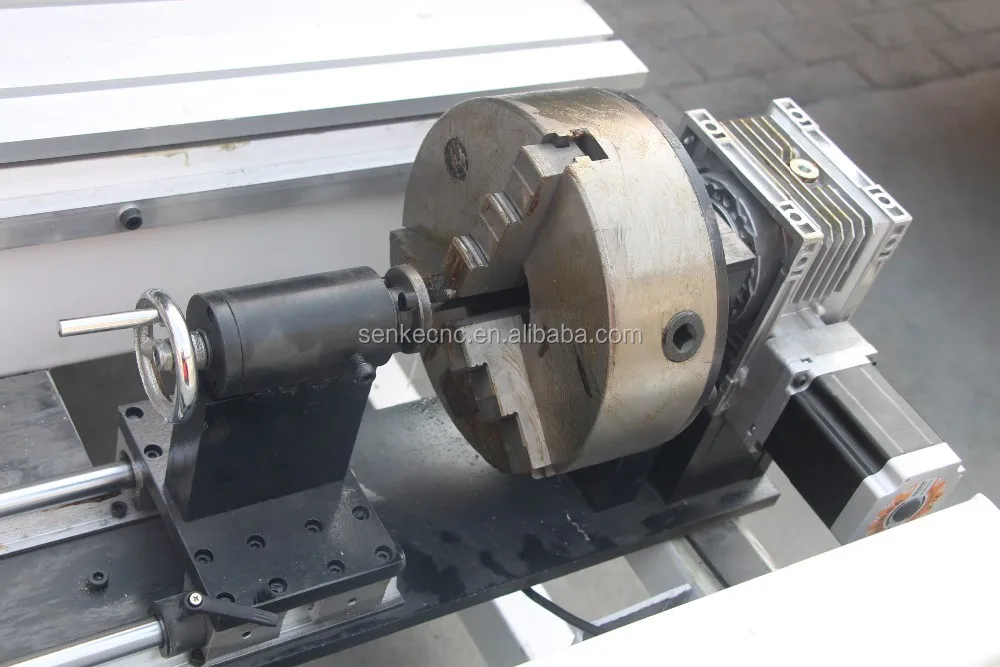

      Rotary device

Use to hold the cylinder materials, 360 degree rotate,finish the 3D jobs

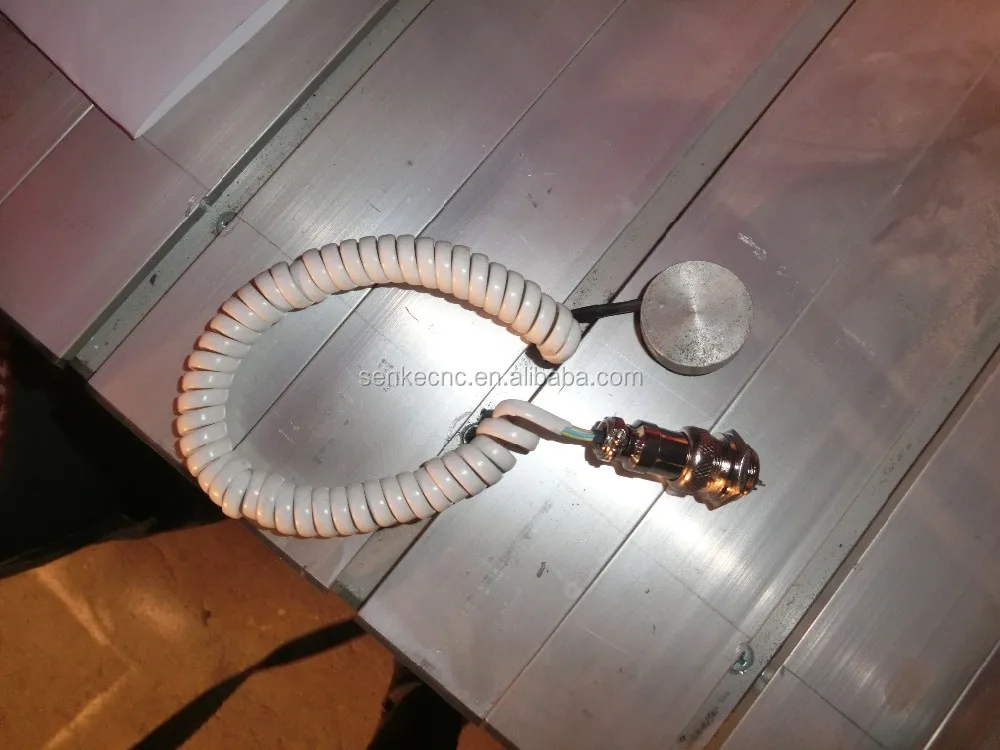

              Tool sensor

Tool sensor(Calibration system)

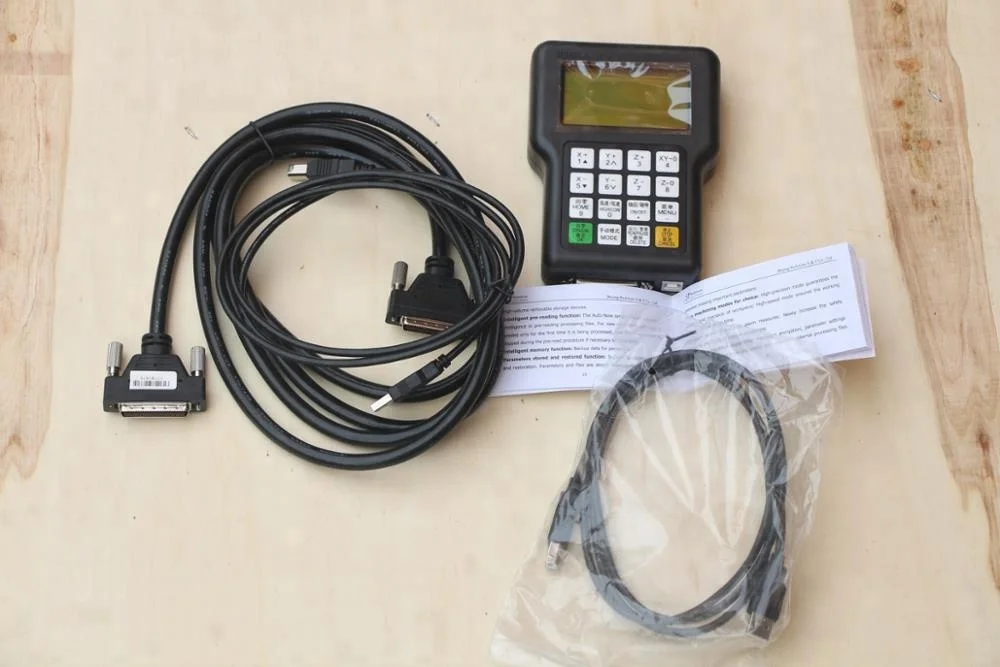

       DSP(A11 model)controller

DSP(A11 model)controller,full functions than common models,Clearly check the DSP handheld,easy learn and operate

          Clamps

Clamps use for the t-slot table


optional parts

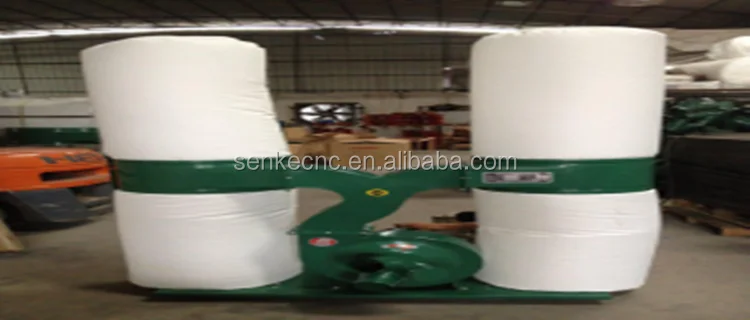

Dust collection

When working,there is scrap brings,the dust collection clean them,keep the working process clearly and working environment clean

Aircooling spindle

Different brand(HQD/HSD),working good ,different prices,please check with senke

Senke Certifications

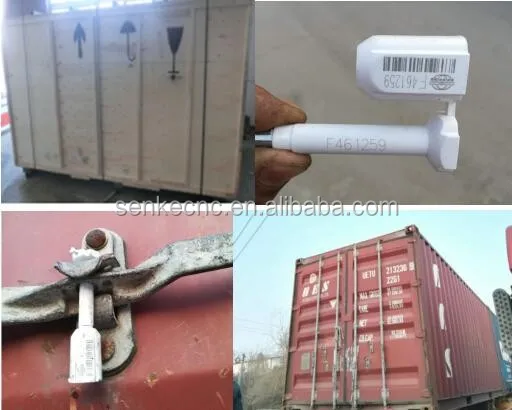

Packing and Delivery
Our Service


                 chose us best choice

WARRANTY AND AFTER-SELL SERVICE

1) SenKe supplied 2 years warranty for their machine.
2) come with the machine,there is teaching video and detailed manual,easy for user to lean.
3) Skype,MSN,TM etc,24H online,anything we may help just contact us

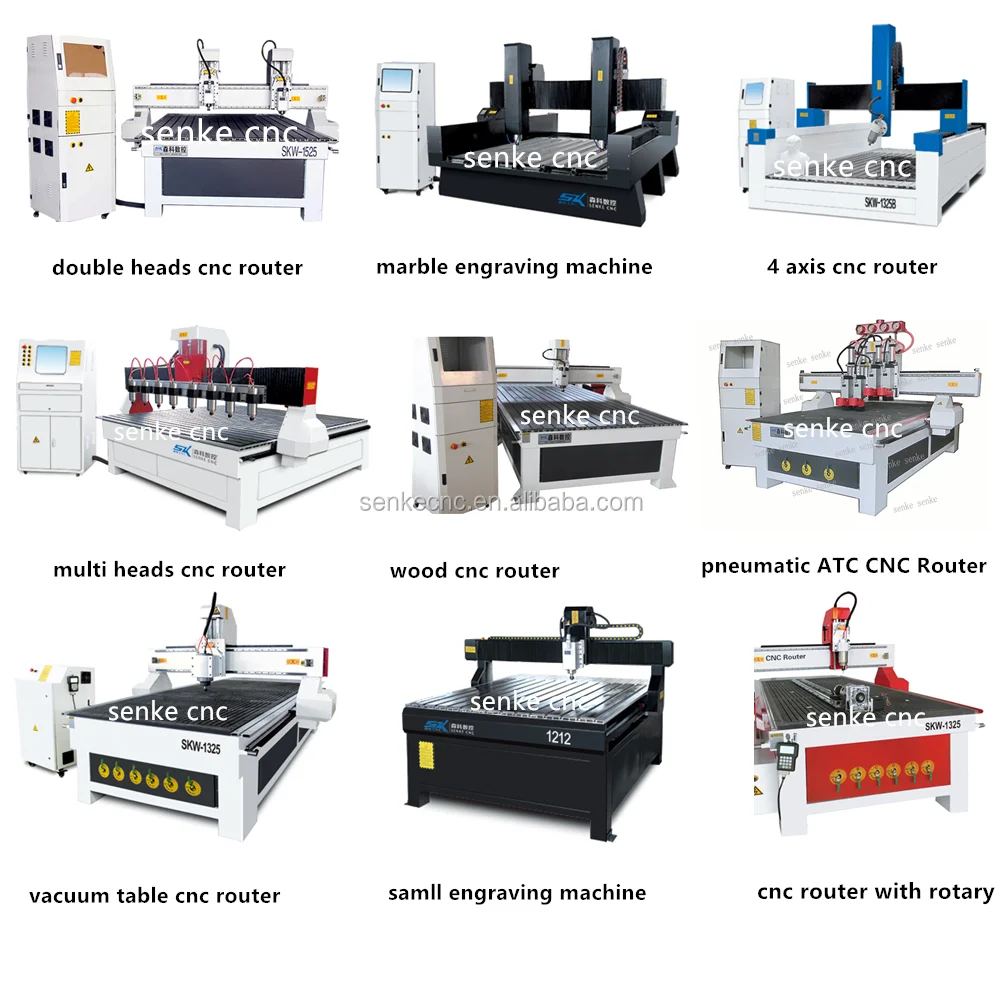

senke more machine

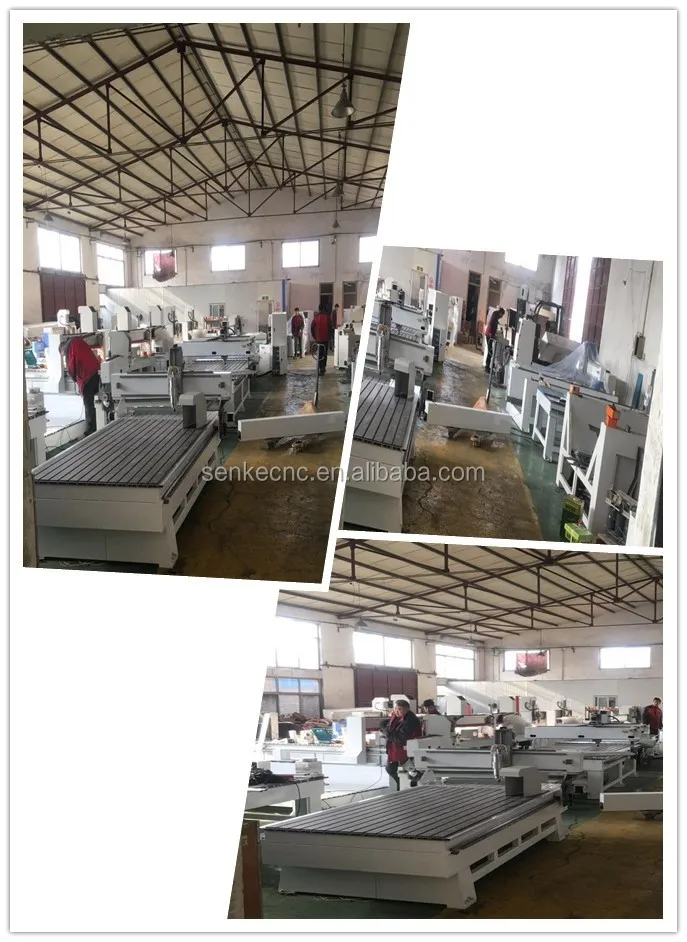

Our Company


                                                                      contact luna


*********************************************************************************************
thnaks for your time reading our machine,hope what we supplied can help in your work,anything                                 more needed,just let us know,senke always here:-)
*********************************************************************************************
