china factory 30ton bulk gas tank pressure vessel 60m3 lpg storage tank price

FOB Reference Price:Get Latest Price
$17,700.00 - $25,560.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
WG1.77-2600-60
Lead Time:
Quantity(Sets) 1 - 10 11 - 20 >20
Est. Time(days) 30 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

lpg tank (Min. Order: 1 Sets)
lpg storage tank price (Min. Order: 1 Sets)
lpg storage tank (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
HEGUO LPG TANK
Dimension(L*W*H):
DN2600 x 10360 x 14/16mm
Capacity:
60m3
Weight:
12335KGS
Name of lpg tank:
lpg tank
Working pressure:
1.63MPa
Design pressure:
1.77MPa
Material:
Carbon Steel Q345R
Type:
Horizontal LPG Storage Tank
Filling medium:
Liquid Petroleum Gas (propane)
Color:
Silvery Grey
Application:
Lpg Storage
Certification:
ISO9001 ISO14001
Design life:
20 years
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Month

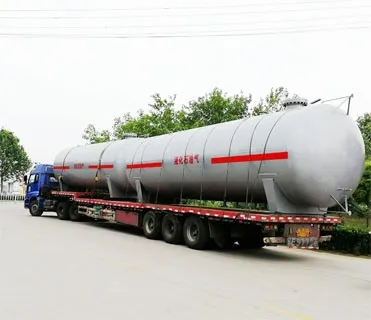

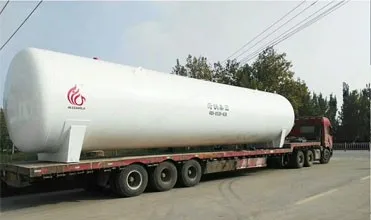

Packaging & Delivery
Packaging Details
Packing: Nude Packing;
one set 5m3 LPG Tank load in one 20GP ;
one set 10m3 (DN1600) load in one 20GP;
one set 15m3 load in one 40HQ;
one set 20m3 load in one 40HQ;
one set 30m3 load in one 40HQ;
40m3,50m3, 60m3 should be load in 40FR;
more than 80m3 lpg tank should be load in bulk vessel .
also according to customers special request.
Port
Qingdao, Tianjin, Shanghai Port
Lead Time :
Quantity(Sets) 1 - 10 11 - 20 >20
Est. Time(days) 30 35 To be negotiated
Video Description
Product Description

china factory 30ton bulk gas tank pressure vessel 60m3 lpg storage tank pricehttps://www.alibaba.com/product-detail/China-5-10-15-20-ton_60794445710.html?spm=a2700.7724838.2017115.31.3e3d48db8hF9cT

Product Application


50m3 lpg storage tank propane tank lpg gas tank
Our Comapny is the  largest manufacturer of above-ground liquefied gas storage tanks and underground LPG Tank in China, has standardized pipeline production, possesses one or two or three pressure vessel design and manufacturing qualifications, and supplies large quantities of 5 cubic meters, 10 cubic meters, and 20 cubic meters. 30 cubic meters, 49 cubic meters of liquefied gas storage tanks, 50 cubic meters, 60 cubic meters, 80 cubic meters, 100 cubic meters, 120 cubic meters, 150 cubic meters, 200 cubic meters of liquefied gas storage tanks, and can be customized according to user needs 5 - 200 cubic liquefied gas storage tanks.
Model
Specifications
 (mm)
Weight in theory
           (KG)
LPG Tank Length
(mm)
WG1.77-1200-5
DN1200 x 3980 x 8/8
1580
4676
WG1.77-1400-5
DN1400 x 2750 x 10/10
1770
3545
WG1.77-1400-10
DN1400 x 5980 x 10/10
2910
6789
WG1.77-1600-10
DN1600 x 4400 x 10/10
2750
5303
WG1.771800-15
DN1800 x 5250 x 12/12
4215
6247
WG1.77-2000-20
DN2000 x 5650 x 12/12
4965
6747
WG1.77-2000-25
DN2000 x 7250 x 12/12
5915
8347
WG1.77-2000-30
DN2000 x 8850 x 12/12
6870
9947
WG1.77-2400-40
DN2400 x 8000 x 14/14
9010
9334
WG1.77-2600-40
DN2600 x 6600 x 14/16
8910
8036
WG1.77-2600-50
DN2600 x 8500 x 14/14
10525
9934
WG1.77-2600-60
DN2600 x 10360 x14/14
12335
11796
WG1.77-3000-80
DN3000 x 10250 x 16/18
16800
11888
WG1.77-3000-100
DN3000 x 13200 x16/18
19970
14838
Note:
 1. Design Pressure: 1.77MPa                                                     2. Working Pressure: 1.63MPa
 3. Design temperature: -20~+54℃                                             4. Materials of LPG Tank: Q345R carbon steel
 5. Design using life: 20 years                                                       6.Integral post welding heat treatment

Advantages of LPG Storage Tank

1)Our company conducts quality evaluation for all suppliers every year to ensure the quality of suppliers;
2)The main pressure materials are all made of custom steel plates from Jinan Steel and Ansteel. The thickness deviations of the steel plates are all higher than the national standards.
3)100% ultrasonic retest of steel plate
4)product line production, standardization operations.
5)Welding of the main body of the product adopts internal and external automatic welding to ensure welding forming and internal quality.
6)All pressure-welded parts are welded with full penetration structure to ensure welding strength.
7)All liquefied petroleum gas storage tanks are relieved of stress heat treatment as a whole.
8)100% X-ray inspection of all main welds, 100% surface inspection of the joints, flanges C, D welding to ensure the welding quality.
9)Hydrostatic pressure test for each unit to ensure the safety and strength of the equipment;
10)Air tightness test step by step to ensure the sealing performance of the equipment.

11)All tanks adopt pneumatic sand blasting rust removal technology, and the appearance quality and paint quality are guaranteed.

Main Products

LPG Storage Tank

Aboveground type: 5000L to 200,000 L

Underground type: 5000 L to 100,000 L

LPG Tank type: Horizontal Elliptical head


Skid LPG Filling Station

Capacity: 5m3 10m3 15m3 20m3 30m3 and 50m3

Standard configuration:

LPG Tank x 1pc. Valves  x 1 set,

Hydrocarbon Pump  x 2 pcs, Universal crane tube hose x 1 pc,

Gas alarm x 1 pc, Anti-static x 1pc, Skid base x 1 pc, ,Electricity x 1set, If need other machine, will need additional fee.

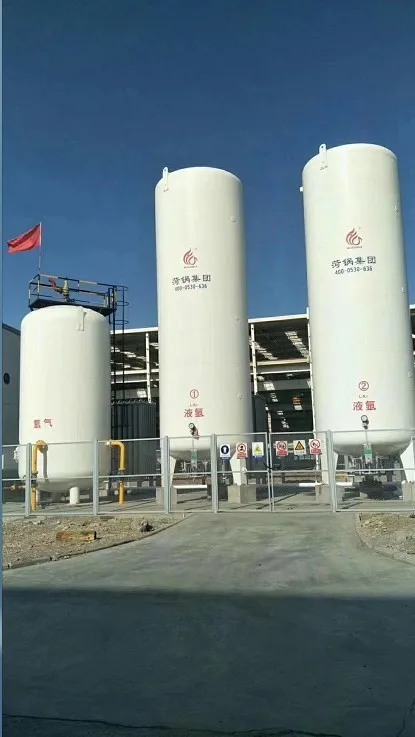

Cryogenic Oxygen /Nitrogen/Argon/Carbon Dioxide Tank

LO2/LN2/LAR Tank

Capacity: 5000L to 50,000 L with 8bar and 16bar pressure

Inner materials: SS30408 Stainless Steel

Shell materials: Q345R Carbon Steel

LCO2 Tank

Capacity: 5000L to 100,000 L with 22bar  pressure

Inner Materials: 16MnDR

Shell materials: Q345R

LNG TANK

Capacity: 5m3 10m3 15m3 20m3 30m3 50m3 60m3 100m3

LNG Tank type: Horizontal or Vertical

Inner Materials: SS30408 Stainless Steel

Shell Materials: Q345R Carbon Steel


Packing & Delivery
Packaging




Packaging Details
Packing: Nude Packing;
one set 5m3 LPG Tank load in one 20GP ;
one set 10m3 (DN1600) load in one 20GP;
one set 15m3 load in one 40HQ;
one set 20m3 load in one 40HQ;
one set 30m3 load in one 40HQ;
40m3,50m3, 60m3 should be load in 40FR;
more than 80m3 lpg tank should be load in bulk vessel .
also according to customers special request.

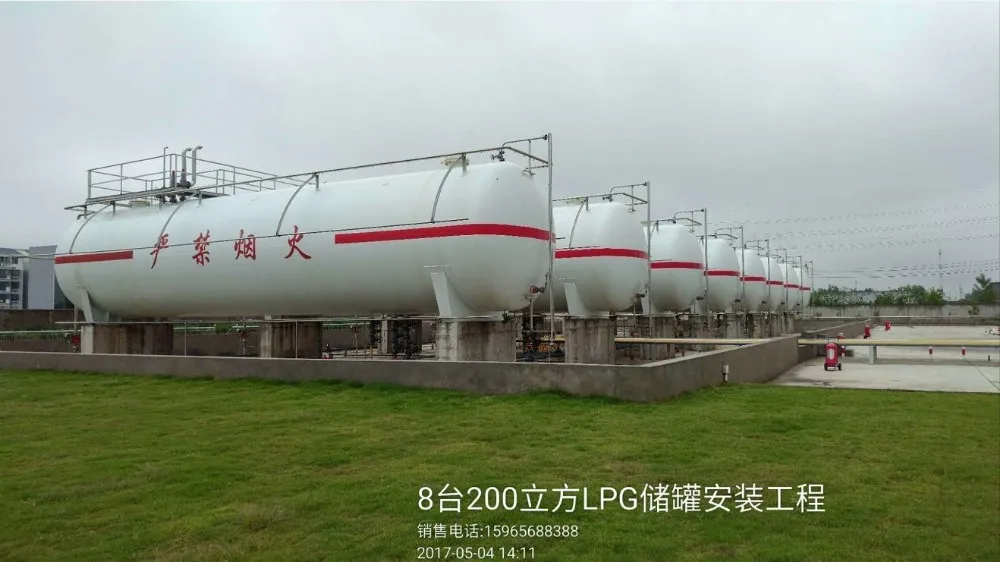

Our Projects
