chip tantalum capacitor 1uf 35v split ac capacitor

FOB Reference Price:Get Latest Price
$0.02 - $0.20 / Pieces | 2000 Piece/Pieces Case A 2000pcs/reel (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shanghai, China
Brand Name:
GTCAP
Model Number:
CA45 chip tantalun capacitor
Type:
Tantalum Capacitor
Application:
General Purpose
Package Type:
Surface Mount
Rated Voltage:
35V
Operating Temperature:
-55C~+125C
Case size:
A 3216 B3528
Color:
Yellow
Capacitance:
1uF
Supply Ability
Supply Ability:
50000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details

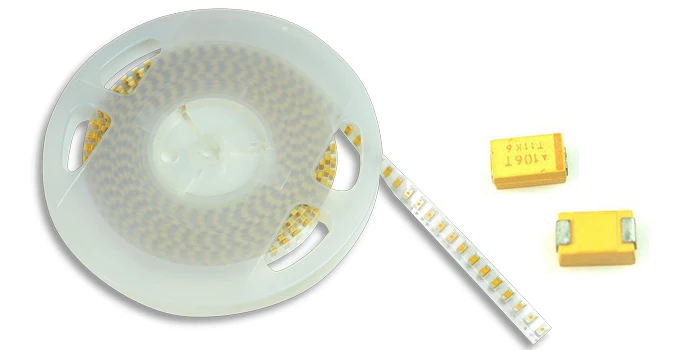

chip tantalum capacitor is packaged in reel, tape
Port
Shanghai
Lead Time :
7~30days
Product Description

GTCAP solid tantalum chip capacitors are designed and manufactured with the demanding requirements of SMT in mind.



Brief Introduction:

  •  CA45 Series are designed and manufactured with the demanding requirements of SMT in mind.
  •  There are P, A, B, C, D, E six case codes.
  • They have lower ESR Comparing with the dipped tantalum capacitors .
  • The product is compatible with automatic pick and place equipment.
  • Suitable for computer, cell telephone,camera and other electronic SMT products .
  • Meets the requirements of GB/T14122-93 and Q/PWV601-2003 standard.
General Characteristics:
  • Operating temperature: -55℃ ~ +125℃ ( >85℃,use derated voltage)
  • Capacitance Tolerance: M=±20%, K=±10%,J=±5%
  • DC leakage current(25℃): I0 ≤0.01CRUR or 0.5μA (whichever is greater )
Technical Parameter

GTCAP chip tantalum capacitor 1uf 35v split ac capacitor size

For CA45 this series products, there are P, A, B, C, D and E 6 case codes.

Code

EIA Code

L

W

H

P

Tw

P

2012

2.0+/-0.2

1.25+/-0.2

1.2+/-0.2

0.55+/-0.3

1.1+/-0.1

A

3216

3.2+/-0.2

1.6+/-0.2

1.6+/-0.2

0.8+/-0.3

1.2+/-0.1

B

3528

3.5+/-0.2

2.8+/-0.2

1.9+/-0.2

0.8+/-0.3

2.2+/-0.1

C

6032

6.0+/-0.3

3.2+/-0.3

2.5+/-0.3

1.3+/-0.3

2.2+/-0.1

D

7343

7.3+/-0.3

4.3+/-0.3

2.8+/-0.3

1.3+/-0.3

2.4+/-0.1

E

7343

7.3+/-0.3

4.3+/-0.3

4.1+/-0.3

1.3+/-0.3

2.4+/-0.1

Main Application



GTCAP chip tantalum capacitor 1uf 35v split ac capacitor application:

  • Smart water meter, Smart electricity meter,Smart energy meter,
  • VCR, RAM, Radio,TV set,DVD,Electric toy, LED-lighting device
  • Telephone, intelligent door lock,electric cooker,cell phone,electric water heater
  • Self-powered super flashlight,Intelligent instrument etc.

Packaging & Shipping

GTCAP chip tantalum capacitor 1uf 35v split ac capacitor packing and shipping.

Packing Details : Tape and reel or bulk.
Delivery Details : 7-20days after order  by air, express, see per your requirements.



100% On-time shiping.

1. All goods can be ship out by Air, Sea, Express(DHL, FeDex, TNT, UPS, EMS, SF)

2. Super capacitors got products certification from authority.
