christmas color changing dmx rgb outdoor 30w 50 watts led flood light

FOB Reference Price:Get Latest Price
$70.20 - $81.00 / Pieces | 8 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Input Voltage(V):
AC100-240V
CRI (Ra>):
89
Beam Angle(°):
25/35/45
Working Lifetime(Hour):
50000
Lamp Body Material:
Die cast Al.-ADC12
IP Rating:
IP68
Certification:
CE, ETL, RoHS
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TPK
Model Number:
SP-F120A-30P
Light Source:
LED
Lamp Luminous Flux(lm):
882.2
Working Temperature(℃):
-20 - 45
Size:
L265*W120*H167mm
Rotary Angle:
150°
Main Body:
Die cast Al.-ADC12
Weight:
2.0kgs±5%
Beam Angle(℃):
25°/35°/45°
Shape:
square led wall washer
Projection Distance:
20 meters
Control Mode:
Independent mode,Master/Slave mode,DMX mode
Power:
Meanwell
ODM/OEM:
Available
Item Type:
Flood Lights
LED Light Source:
CREE/EPISTAR
Lamp Power(W):
30
Lamp Luminous Efficiency(lm/w):
29.79
Color Temperature(CCT):
RGB or Steady Color
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard packing: packing belt and carton and inner carton and filler (pearl cotton + bubble)
Special packing: wooden box, wooden frame, aviation box
Size:64*30*47CM 8pcs/ctn 21KG
Small orders for 3 to 7 days, big order for 15 to 25 days
Port
Ex Works
Lead Time :
Shipped in 15 days after payment
Product Description
Model Info & Specificaitons
Model
SP-F120A
Size
L265×W120×H167mm
Main Body
Die cast Al.-ADC12
Weight
2.0kgs±5%
LED Quantity
30×1W
Color
RGB or Steady Color
Input Volt
100V-240VAC
Power(Max)
30W
LENs
25°/35°/45°
Control Mode
Steady or DMX

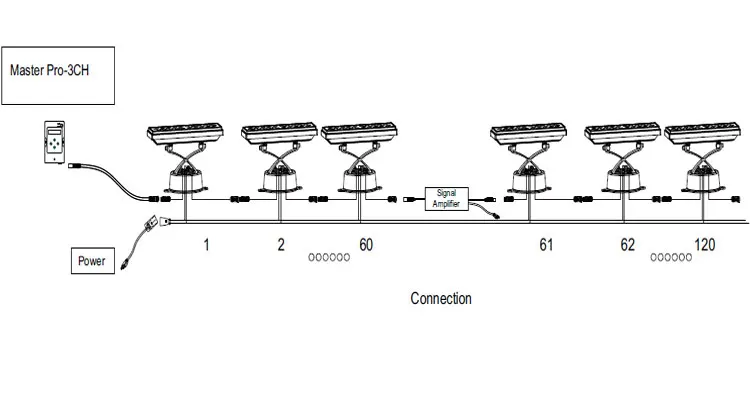

Connection

1.Signal max connection is 100m,every 100m or 60pcs fixtures needs a signal amplifier.
2.Optional controller:Master Pro-3CH,Sunlite,DMX-192C,Madrix and other DMX controllers.

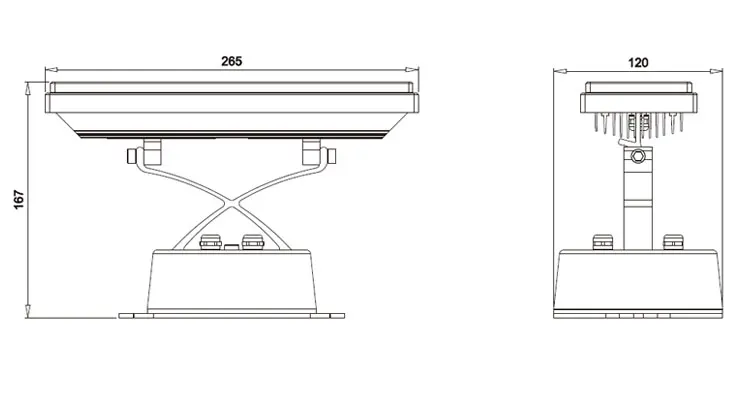

Dimension Drawing

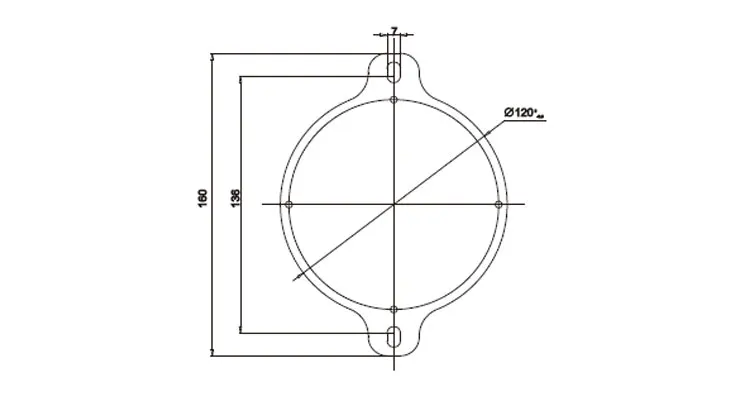

Installation Drawing

Fix the brackets via M6 tapping screw,mounting size as below:

Control Mode

-1.Independent mode
1)Buid-in 11 programs optional
2)1-9 class gray degree dimmer


-2. DMX mode
1)Support the international standard DMX 512 signal
2)(R,G,B )3 channels available
3)DMX 256 class gray degree dimmer.
4)DMX programable


-3.Master-Slave mode
Set any fixture’s DMX address of master as 001,others are set as slave(address can be anyone except 001),change function on 001,all the lights will work synchronously.

Applications

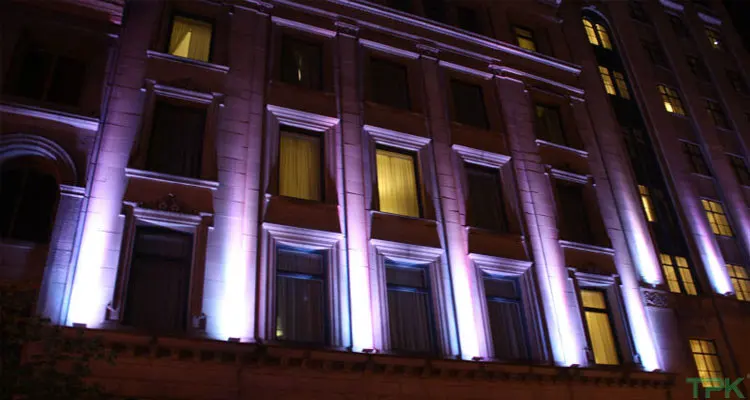

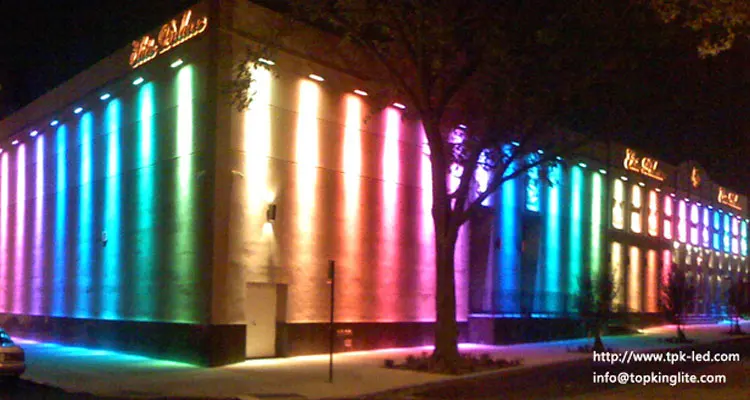

Architecture

Individual,historical buildings exterior lighting.

Outside building and indoor local lighting.

Bars, dance halls and other entertainment atmosphere lighting

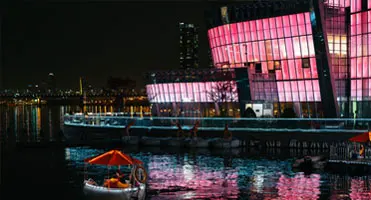

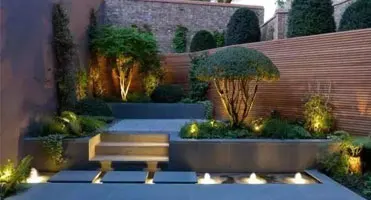

Landscape,Outdoor

Landscape lighting, advertising lighting.

Health, culture and other specialized facilities lighting .

Packing & Delivery
Packing Details:
Standard packing: packing belt and carton and inner carton and filler (pearl cotton + bubble)
Special packing: wooden box, wooden frame, aviation box
Size:64*30*47CM 8pcs/ctn 21KG
Small orders for 3 to 7 days, big order for 15 to 25 days
Delivery Time
Shipped in 15 days after payment

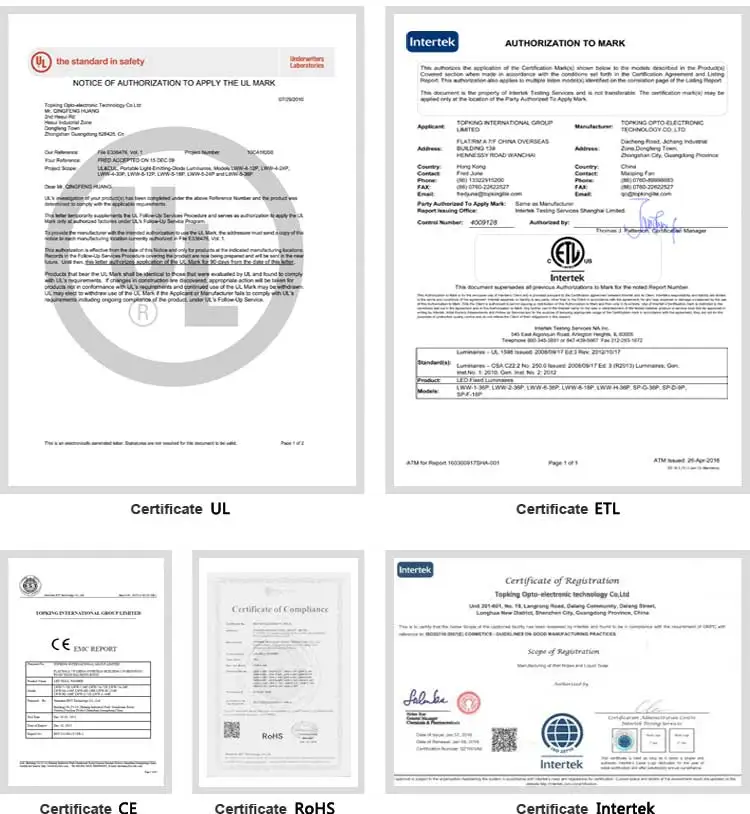

Certifications
