LY-USB200 USB to LPT Port Adapter CNC Router Controller for Mach3



Specifications:

LY-USB200 support Mach3 software and serial port MPG, through USB to communicate with computer.



LY-USB200 motion controller adopts the ARM design framework. The ARM design includes communication,codeanalytic, underlying algorithm and pulse gerneration. Rational design, reliablecontrol, convenient operation.



Manual introduces operation, connection and usage schedule of our professional

motion controller for engraving machine. Through a lot of the drawing the users can learn

quickly how to use this motion controller.(Please contact us if you need complete instruction.)

Products specification



Support USB;

5 ports input interface for ordinary digital data;

3 ports output interface for ordinary digital data;

1 port 0-10V spindle speed analog output interface(can change to PWM output);

can support 6 axis stepper systems,200KHz pulse output for every axis;

ARM motion control chip;

Compatible with MPG input, support the digital display MPG from our company.

Products Appearance and size

NC200 motion controller is with the plastic shell structure.

overall size is 56.8mm*54.1mm*22mm



Product connection define and method

The connection of the controller includes USB connection interface, MPG interface and LPT controller port.



1.USB Port

USB communication port, NC200 communicate with mach3 through it.



2.LPT Controller interface

It's PIN1 to PIN13; in the second row, from right to left, it's PIN14-PIN25.

PIN1-PIN9,PIN14,PIN16,PIN17 are output PINs, which can be set as PWM, usual output and stepper motor control port. and PIN10-PIN13,PIN15 are input PINs, which can be set as probe,limit, estop and home



Stepper driver control interface define

LY-USB200 can replace computer's LPT port, and performs better than computer's LPT port. This port connect to stepper driver board

3.MPG connection

As shown 2 of the location of the serial port MPG, the port type is RJ45, that is, the common standard network interface.



Serial pulse generator pulse generator is the standard pulse generator, the axis of choice, such as the choice of power through the serial port and host interaction.



Serial port hand pin, pin label reference figure 2-4, from left to right in order PIN1-PIN8. Serial port hand pulse pin definition reference table 2-2. serial port manual pulse using method reference serial port manual pulse user manua



1 x CNC MACH3 MPG USB to Parallel LPT Port Converter 6 Axis Motion Controller 200KHz

1 x USB cable







Package inside:

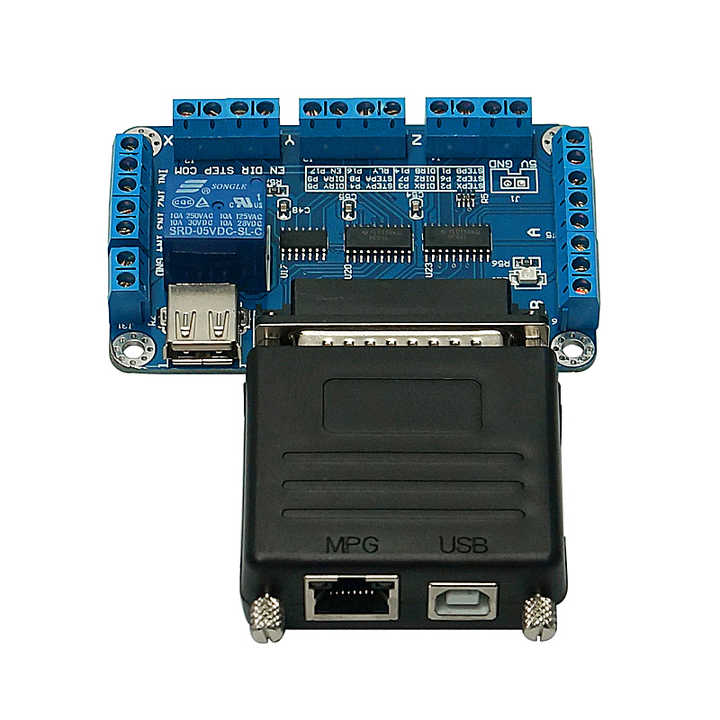

1 x USB to Parallel Adapter LY-USB200

1 x USB cable

1 x PCI Expansion Card
