cnc plasma cutter gantry cutting tool

FOB Reference Price:Get Latest Price
$5,000.00 - $6,500.00 / Set | 1 Set/Sets (Min. Order)
Effective Cutting Range (mm):
2000*2500
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Motor Type:
SERVO MOTOR
Condition:
New
Place of Origin:
China
Brand Name:
FyeBoon
Voltage:
220V/380V/415V
Rated Power:
500W
Dimension(L*W*H):
5400*2000*2000mm
Certification:
CE ISO
Weight (KG):
365
Warranty:
12 Months
Key Selling Points:
Competitive Price
Applicable Industries:
Manufacturing Plant, Energy & Mining, CNC Plasma Cutting Machine
After Warranty Service:
Video technical support, Online support
Local Service Location:
Saudi Arabia, Mexico
Showroom Location:
Saudi Arabia, Mexico
Cutting Mode:
Flame/Plasma/Both
Plasma THC:
Arc Voltage Auto THC with Anti-collision
Transversal Drive:
Mixed Mototr Driver
Longitudinal Drive:
Mixed Servo Motor Driver
Nesting Software:
FastCAM(Professional Ver.)
Cutting Speed:
0-6000mm/min
Gearbox Ratio:
1:6
Flame THC:
Capacitance Auto THC
Automatic Ignition:
Yes
Weight:
350Kg
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood box ( Don't need FUMIGATION or PHYTOSANITARY)
Main Machine: 5400 X 2000X 2000 mm
Net Weight: 3500kg Gross Weight: 3700kg
Port
Dalian Port, Liaoning
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Info




Main Feature

1
Crossbeam made of aluminum alloy, no deformation
2

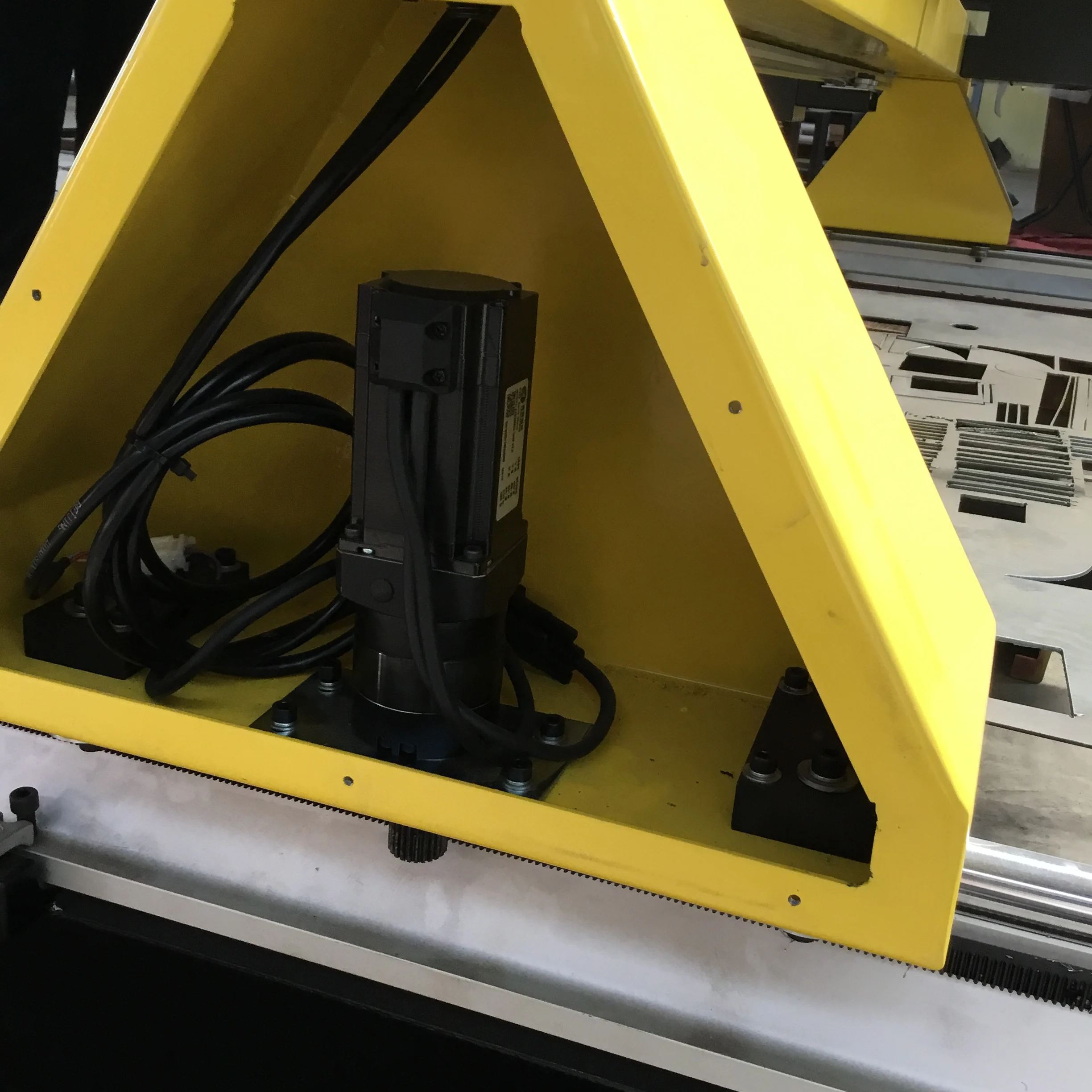

Mixed servo motor for low cost but high cutting speed
3
High precision plasma Arc Voltage THC and flame capacitance THC
4
Can be equipped with both plasma and flame
5
Cost of portable but fuction of gantry
Size
Troch Height Control
X-axis
2800mm
Plasma
Arc Voltage Auto THC with Anti-collision
Y-axis
3000mm/Even more
Flame
Capacitance THC
Effective Cut
Others
X-axis
2000mm
CNC
CHINA CNC System
Y-axis
2500mm/Even more
Transversal
Mixed Servo Motor Driver
Thickness
Longtitudinal
Mixed Servo Motor Driver
Plasma
Better below 30mm
Nesting
FAST CAM (Professional Ver)
Flame
6-200mm
LCD Screen
7.0 inches colorful LCD

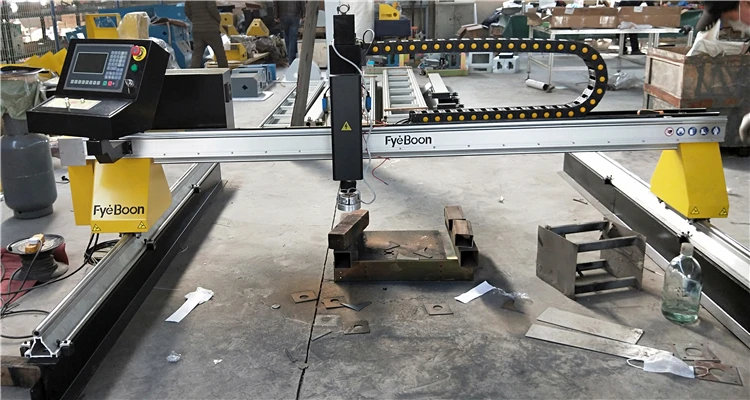

Economical Gantry Plasma CNC for Cutting Metal

Recommend Products
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Contact
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Exhibition & Feedback
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Packing & Delivery
Payment & Service

File Service

Instruction Manual
Installation Video
Video Teaching

Visual Service

Remotely diagnose problems
Reducing downtime and cost to send a field technician

Traning

Immense cumulative experience: machine operation, programming, and cutting, CAD/CAM software
Our Company
FAQ
Q1. How can I choose a suitable CNC cutting machine?
Just tell us the max cutting area, the material and its thickness, we can help you choose the best CNC cutting machine.

Q2. What shall we do if we don't know how to operate the machine after purchase?
We have detailed installation and operating instructions attached. It is very simple and we also have a 24-hour telephone and email support. And our engineers are also available for machinery service overseas but not for free.

Q3. What can we do if the machine has a problem?
24 hours timely response by email and phone calls or engineers overseas service but not for free.

Q4. What other things also need after we bought the machine?
For Flame Cutting: you just need to access to oxygen and fuel gas;
For Plasma Cutting: you need a plasma power source and air compressor. You can buy the plasma power supply by yourself or buy together with the cutting machine from us, it's optional. If you buy it from us, we will connect the wires of plasma power source and CNC cutting machine together, then it is more convenient to use.

Q5. Can I change input voltage to my local voltage and frequency?
Yes, we can supply frequency and voltage according to your local standard. Such as 110V/220V/380V/415V/440V, and 50HZ/60HZ.
