commercial carbonated soda sparkling water maker 5000bph

  • >=1 Sets
    $18,500.00
Power:
3.3KW
Model Number:
DCGF18-18-6
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Machinery Capacity:
5000BPH
Filling Accuracy:
≤5mm liquid level
Packaging Material:
plastic
Filling Material:
carbonated drink
Type:
Filling Machine
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Brazil, Thailand, Kenya
Showroom Location:
Kenya
Condition:
New
Application:
Beverage, Machinery & Hardware
Packaging Type:
Bottles
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
Customized
Place of Origin:
Jiangsu, China
Brand Name:
ZENITH
Dimension(L*W*H):
2700x1900x2500mm
Weight:
3500kg
Certification:
CE ISO
After-sales Service Provided:
Online support, Video technical support, Free spare parts, Field installation, commissioning and training
Warranty:
1 Year
Key Selling Points:
High Productivity
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor, Pressure vessel, Pump, PLC, Gear, Bearing, Gearbox, Engine
Name:
carbonated water maker
Processing Types:
Washing Filling Capping
Usage:
Beverage Packaging
Production capacity:
5000BPH
Bottle type:
PET Plastic Bottle
Filling material:
carbonated drink
Model:
DCGF18-18-6
Capacity:
Max.1500ml
Keywords:
soda sparkling water maker
Advantage:
Automatic Working
Supply Ability
Supply Ability:
500 Set/Sets per Year
Packaging & Delivery
Packaging Details
WOODEN WITH STRONG SEAWORTHY PACKING SUITALBE FOR EXPORT
Port
SHANGHAI,CHINA
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Video Description
Detailed Images
Main Specification
Model
DCGF18-18-6
Production Capacity (500ml)(BPH)
5000-6000
Washing head
18
Filling head
18
Capping head
6
Suitable PET Bottle Size
diameter φ50-φ100 height:150-320mm
Suitable cap type
Plastic screw cap
Filling Precision
≤5mm liquid level
Filling type
Balanced pressure filling
Total Power Supply(KW)
3.3
Overall Dimensions(mm)
2700x1900x2500
Weight(kg)
3500
Product Description

Product Application


commercial soda water maker is mainly used for filling carbonated beverage such as Coca cola, Pepsi-cola, Sprite drink, The machine is most applied for plastic PET bottle, it can be easily adjusted to fill various shape and volume of bottles,

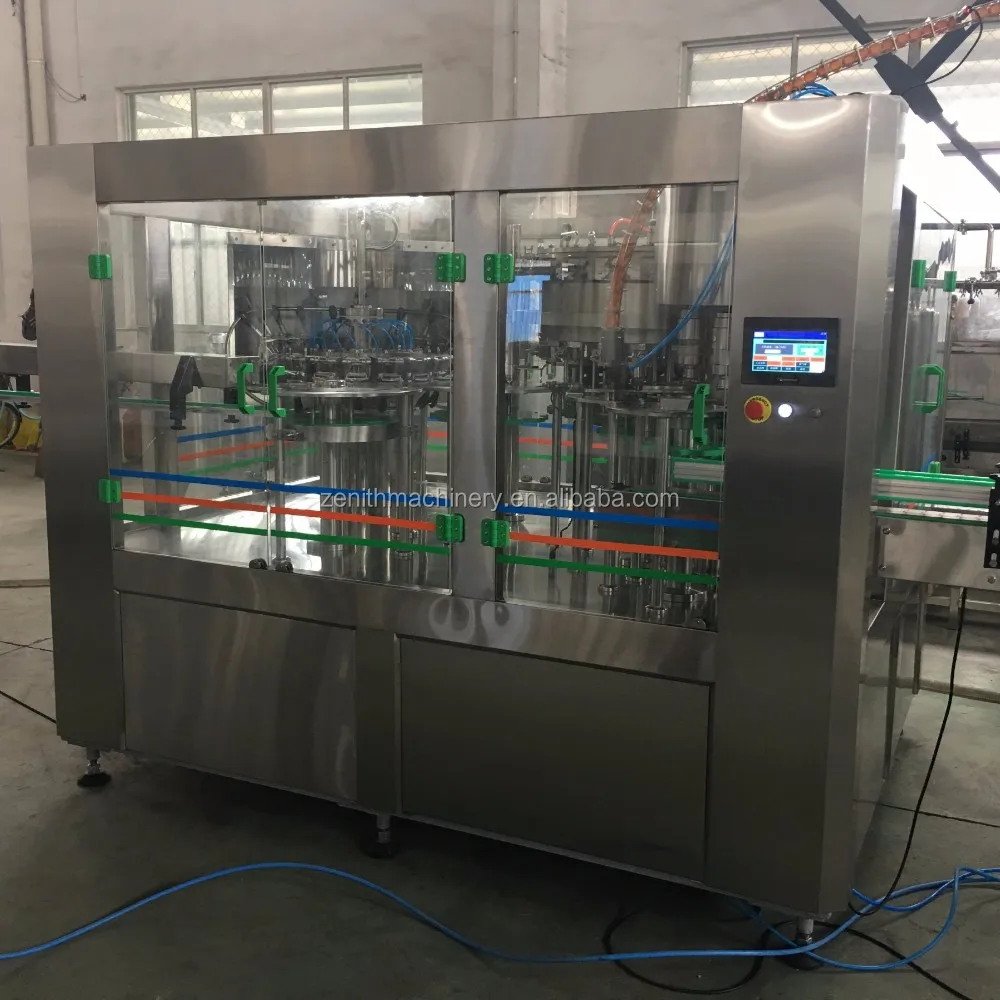

soda sparkling water maker combines washing unit, filling unit, capping unit in one machine, it can fulfill the washing, filling capping automatically, Bottles are fed into the washing machine in order by conveyor, then the bottles are turned over and washed inside by the nozzles. After dripping in line, bottles will be fed to the filling machine automatically to fill liquid with high speed and fixed quantity. After that, the filled bottles will be capped by the automatic capping machine and then be transported to the labeling and packing process,

carbonated water maker adopt balanced pressure filling, the filling operation is faster and liquid level is precise and accurate,

The machine use advanced technology and design from Italy and Germany, The appearance is beautiful and design of machine is scientific, its operation and maintenance is convenient, with high automation.

FEATURES

1. Air conveyor system is adopted in bottle entry section and belt conveyor system is adopted in bottle exit section, the two conveyor system speed can be adjusted to work in synchronization with transducer of the main machine to make the operations of moving bottle steadily and reliably,

2. It adopt hanging type conveying-bottle structure, The bottle neck is cramped and bottles are suspended during the operation process, this avoid many malfunctions caused by thinner bottle body and different height of bottles, the design also reduce the required number of changeable parts for changing between various bottle, make bottle change more convenient and with high efficiency,

3. Japanese and Italy technology is employed by balanced pressure filling, with liquid tank and bottle inside pressure balanced during filling, the filling is faster and liquid level is accurately controlled, and avoid leakage and dropping,

4. Spring cramps are used in the bottle washing process, the empty bottle can be turned over 180degree along the conveying rail, there are two times of internal and external washing to guarantee high efficiency for washing

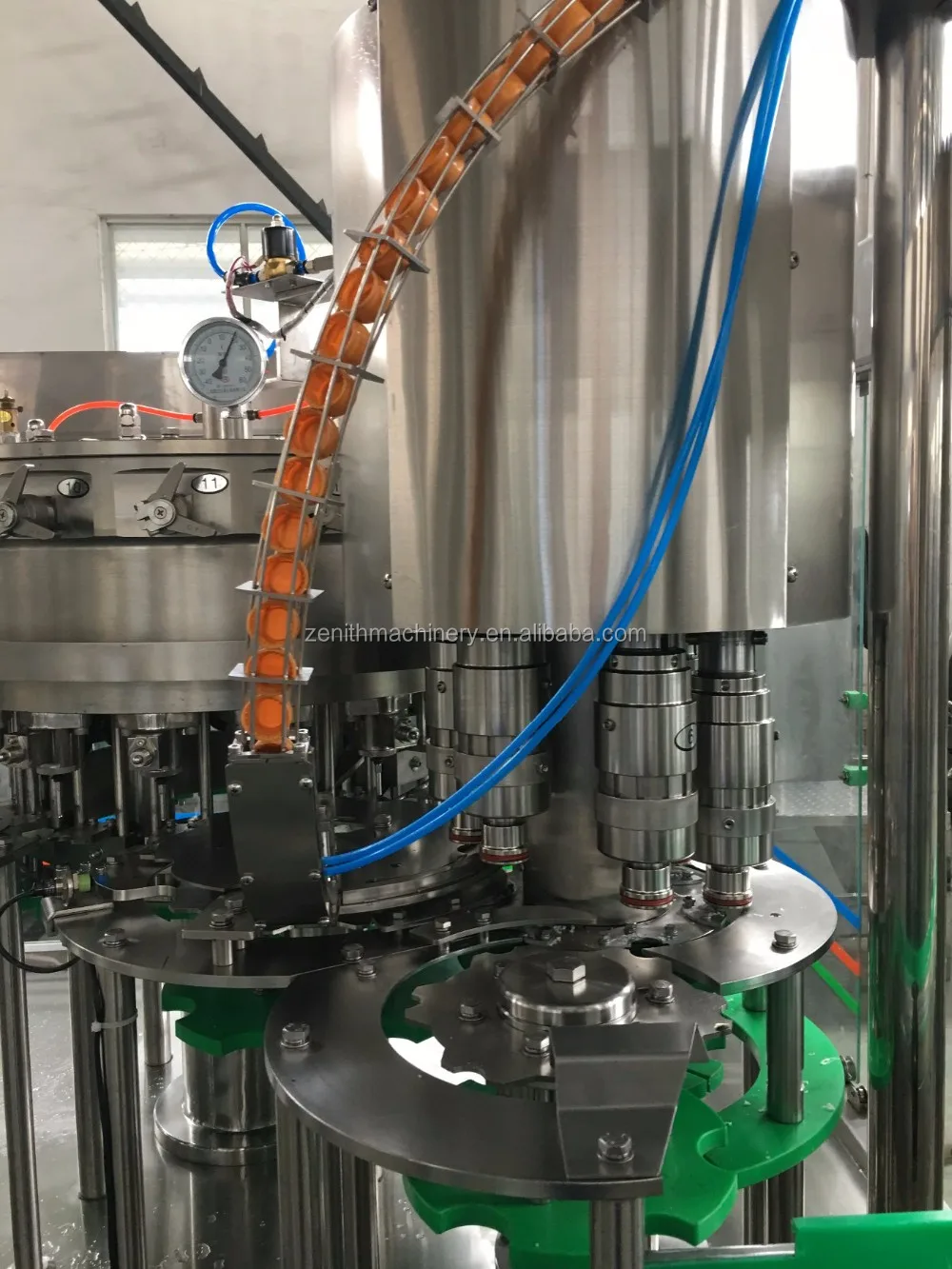

5. The magnetic torque is used for screw capping, the force of cap grabing, and screw capping can be adjusted steplessly, the force of the screw capping can also be fixed to avoid cap damaged and make sure reliable capping

6. The horizontal rotary pneumatic cap sorting device is used to avoid the damage to the surface of the caps, and when there is a shortage of caps in the cap storage tank, alarm signal will be generated and the caps will be fed automatically

7. The whole machine is controlled by PLC program with touch screen as the human-machine interface,The liquid level in the storage tank is automatically controlled, the filling and capping will automatically stop when there is no bottle, when the bottles are cramped wrongly or when caps not available, the machine will stop automatically,

8. Use Mitsubishi frequency changing technology to adjust the operation speed steplessly,the production capacity will be displayed digitally and easy for adjusting,

9. All parts that have direct contact with water are made in SUS304 stainless steel to reach the requirements of Food sanitation

10. Main components of the machine is adopting imported brands,PLC and touch screen from Mitsubishi, electronics from Schneider and Omron, pneumatic parts from Airtac or Festo,Main motor from Siemens, and Transducer from Mitsubishi, to guarantee heavy duty machine

Components List
No.
Item
Brand
1
PLC
Japan Mitsubishi
2
Touch screen
Japan Mitsubishi
3
Transducer
Japan Mitsubishi
4
Main motor
Germany Siemens
5
Main pneumatic piston
Taiwan AIRTAC
6
Small pneumatic piston
Taiwan AIRTAC
7
Other pneumatic elements
Taiwan AIRTAC
8
Solenoid valve
Taiwan AIRTAC
9
Relay
French Schneider
10
Button
French Schneider
11
Air switch
French Schneider
12
Photo Electricity
Japan Omron
13
Stainless steel
SUS304
Related Machines

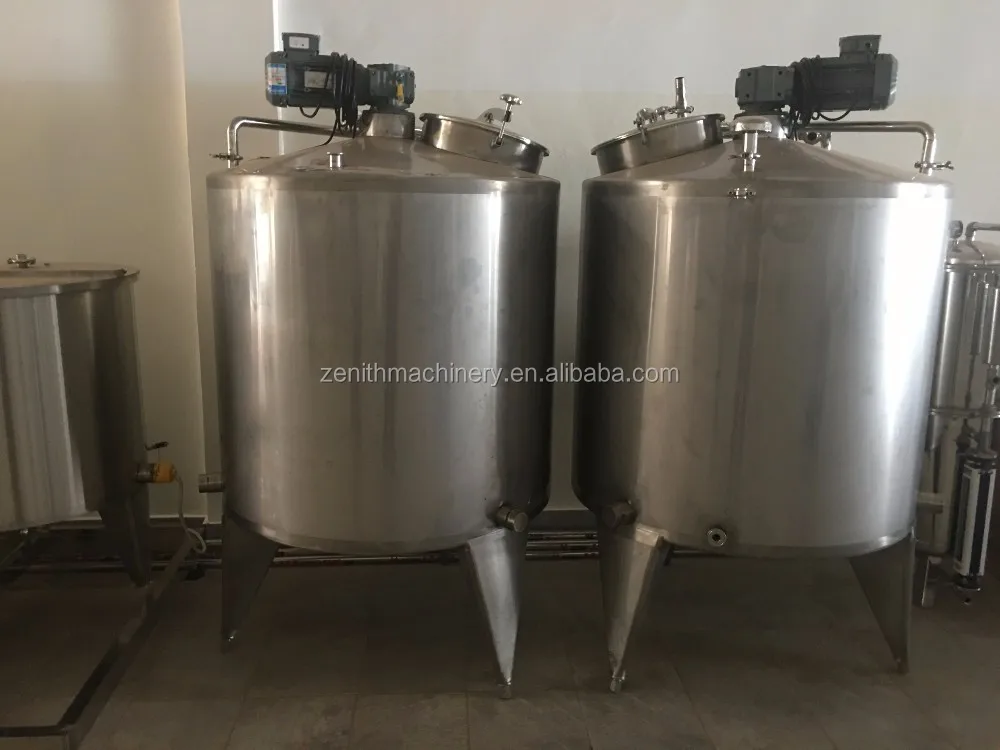

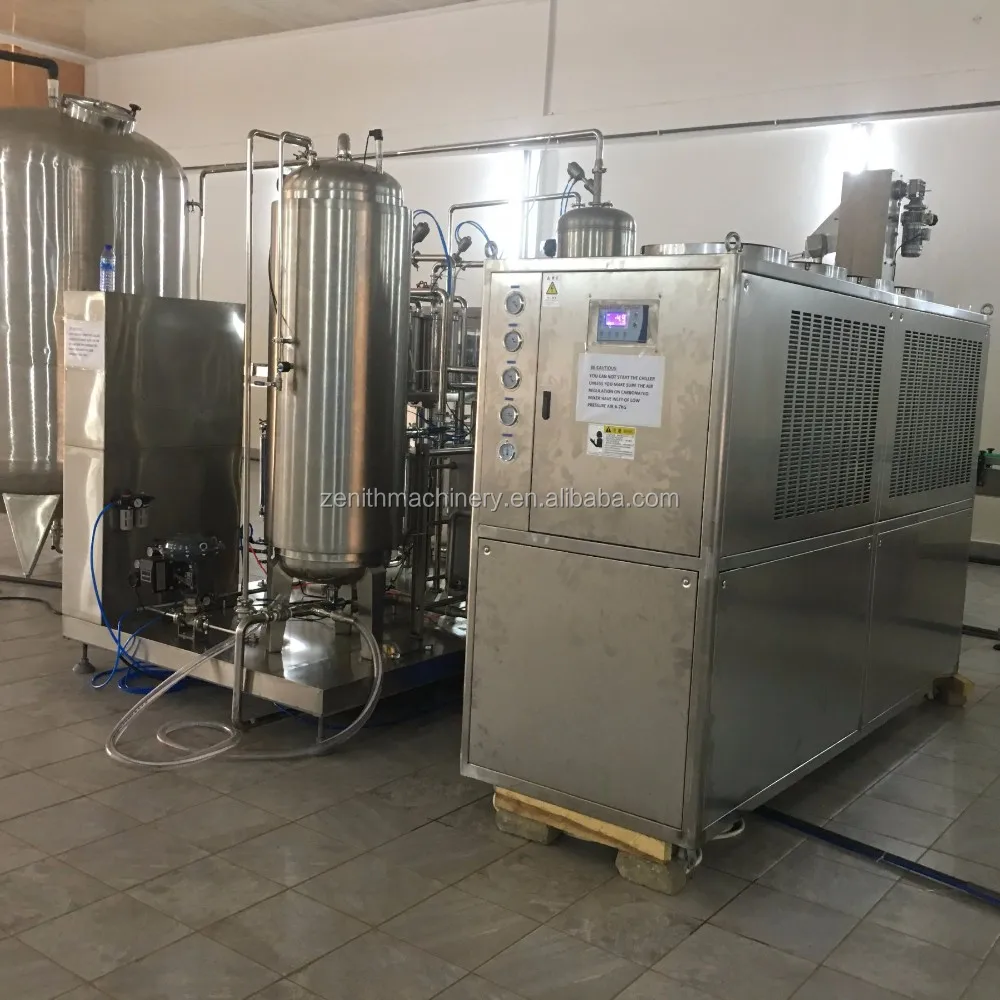

High density carbonated drink mixing system


Water treatment Plant

Semi-automatic bottle Unscrambler

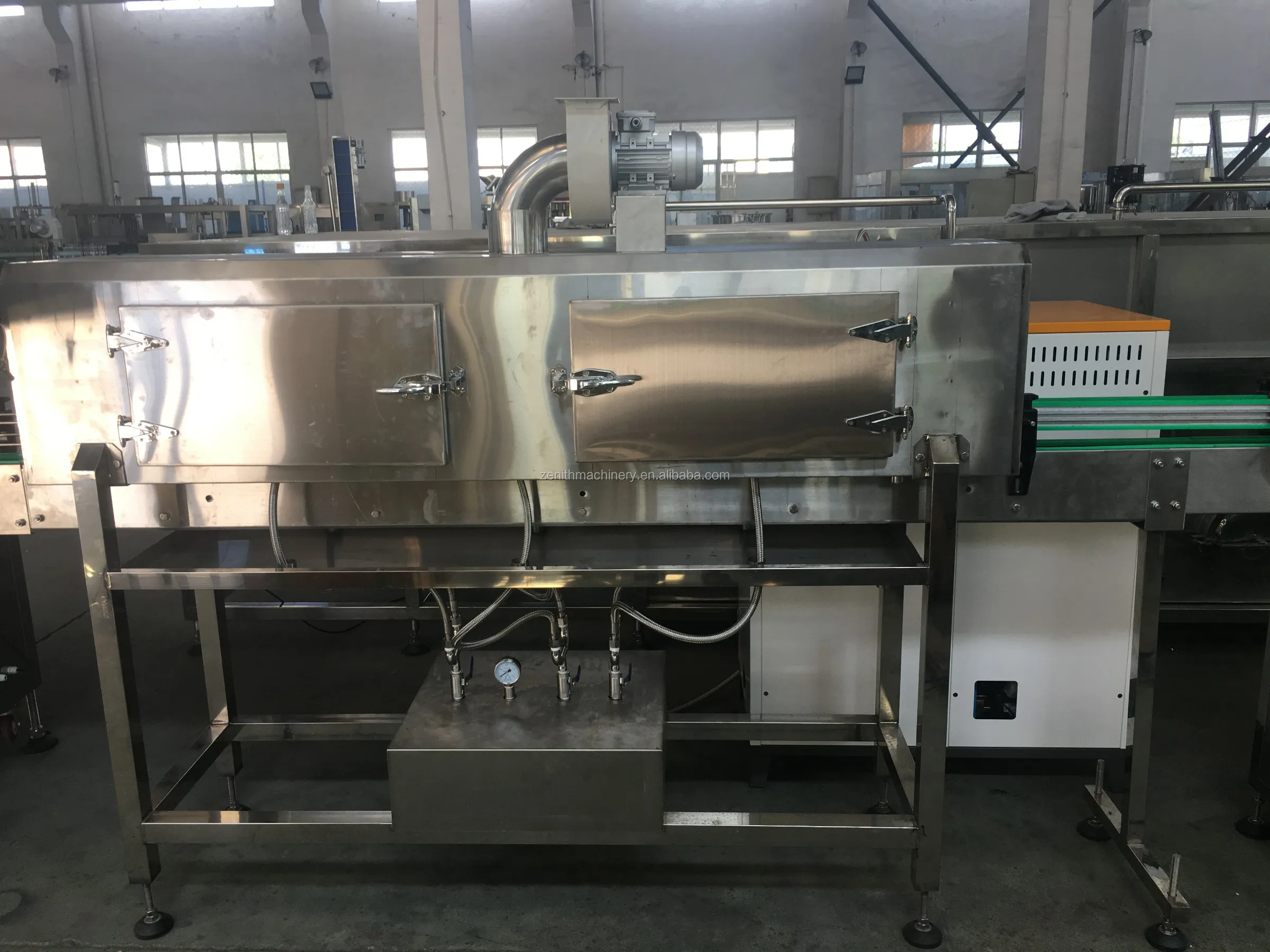

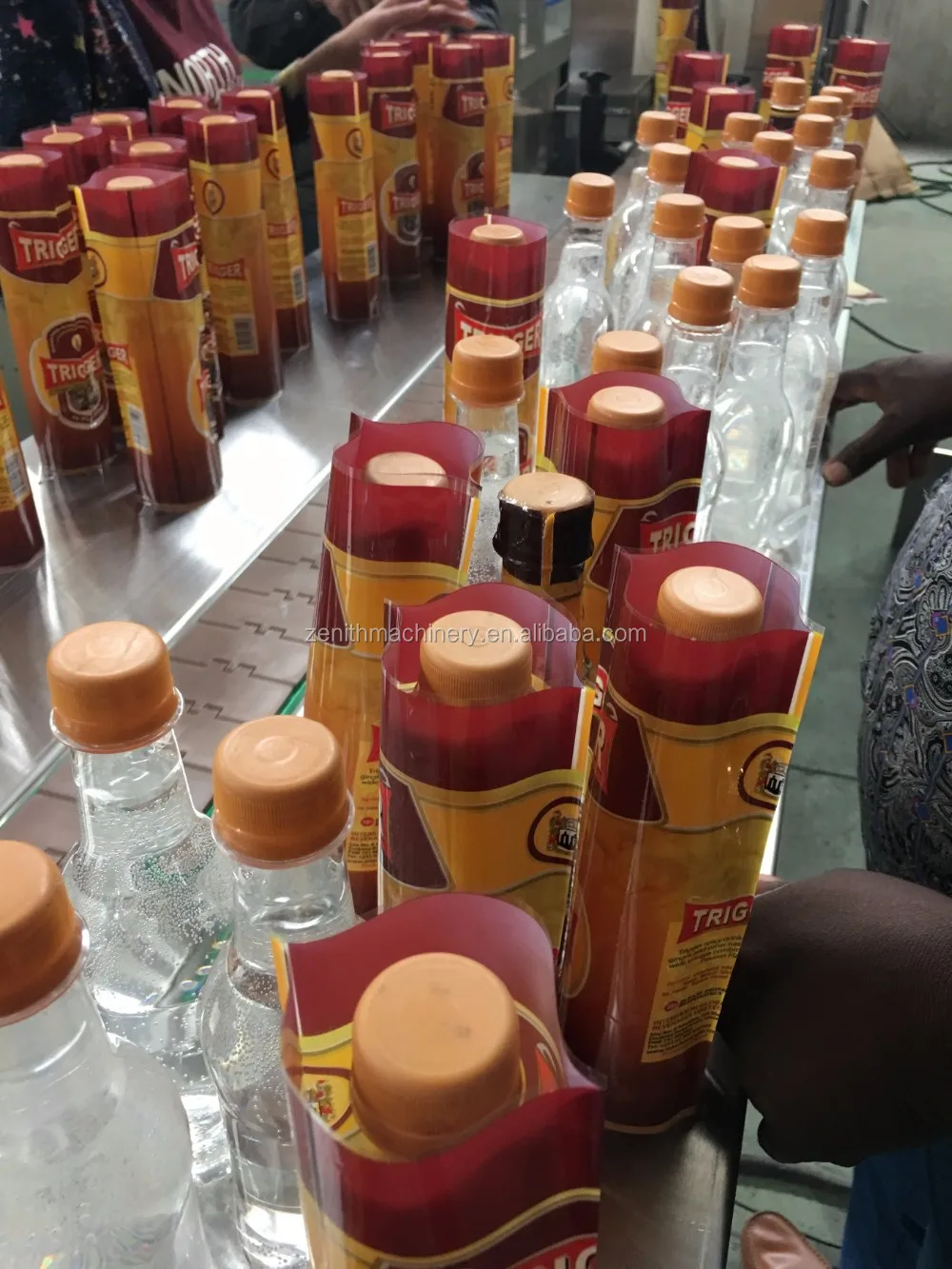

Semi-automatic shrink labeling tunnel

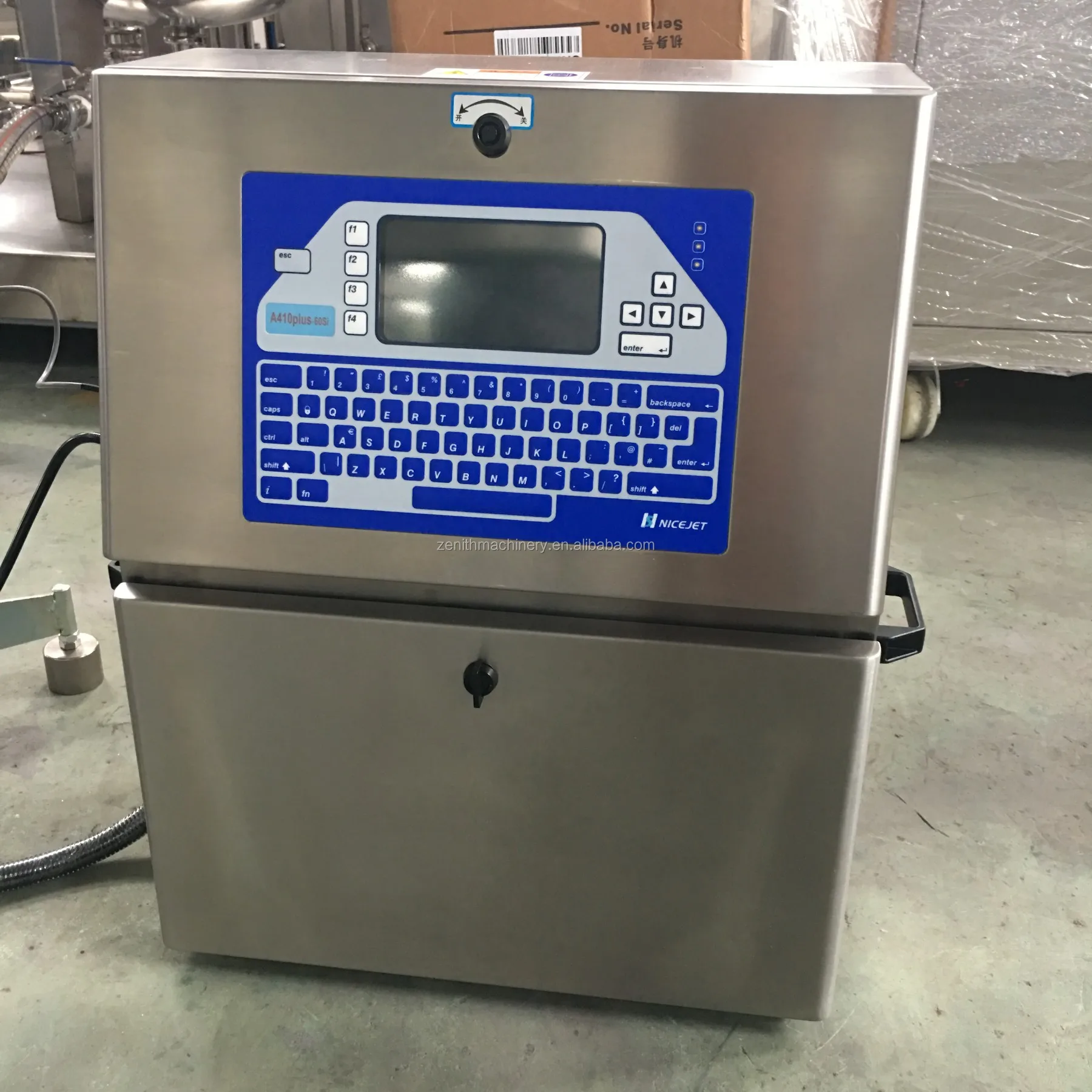

Inkjet printer

,

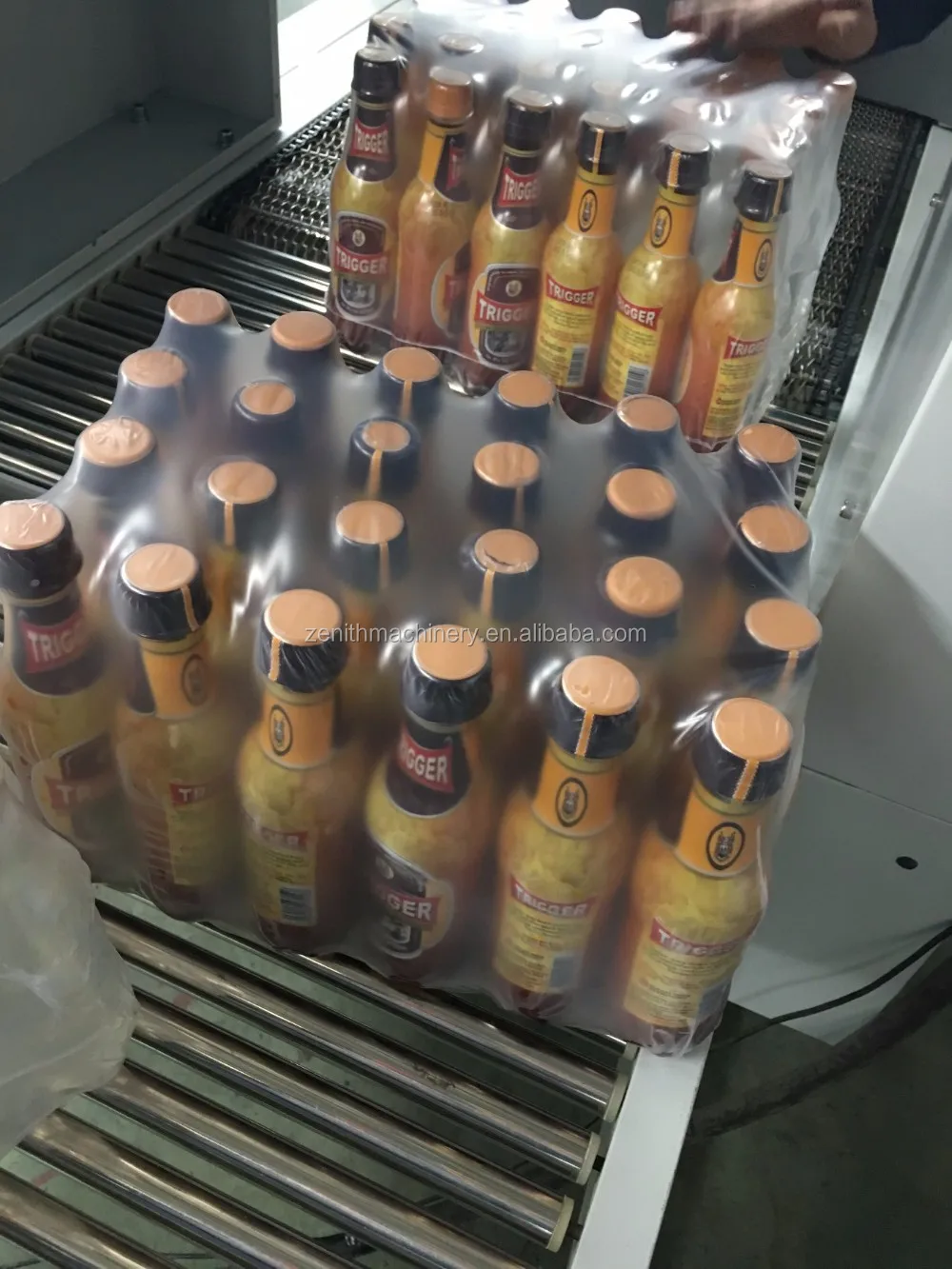

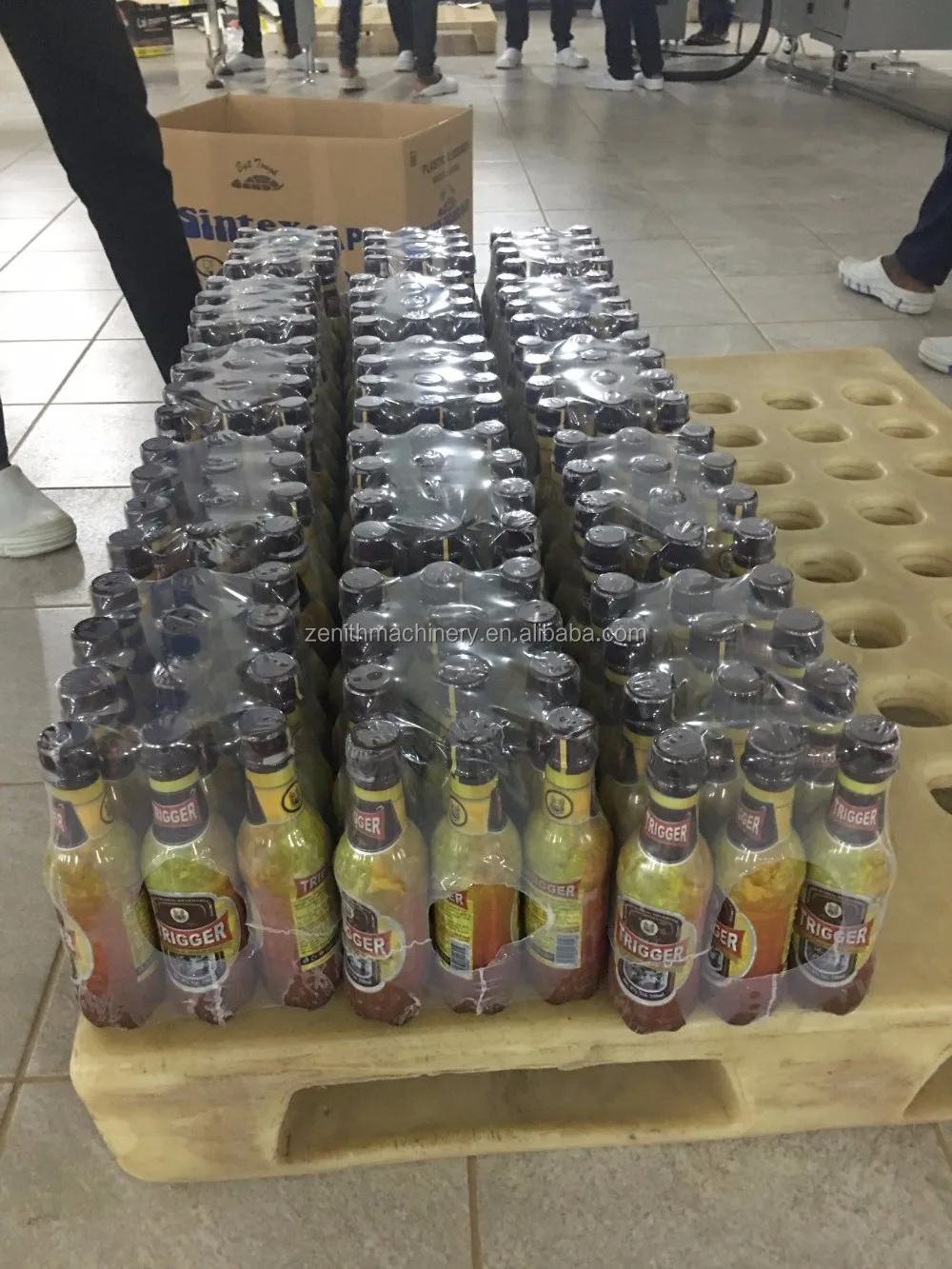

Automatic Shrink Film Packing Machine

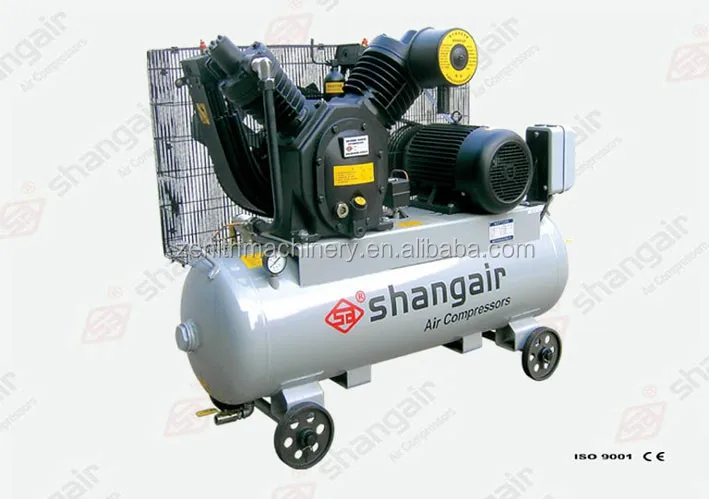

LOW PRESSURE AIR COMPRESSOR
