compact 3ton backhoe loader 600mm digging bucket for sale

  • 1 - 2 Units
    $19,800.00
  • >=3 Units
    $19,500.00
Rated Load:
2800kg
Model Number:
WZ40-28
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Dimension(Long * Breadth * High):
8000x2300x3769mm
Warranty:
12 Months
After-sales Service Provided:
Video technical support, Online support, Free spare parts, Overseas third-party support available
Condition:
New
Brand Name:
HERACLES
Place of Origin:
Shandong, China (Mainland)
Type:
Front Loader
Moving Type:
Wheel Loader
Certification:
CE ISO
Color:
Customize
Engine:
YUCHAI/CUMMINS/YUNNEI/YANMAR
Rated Power:
85KW
Operating weight:
7600KG
Bucket capacity:
1.6m3
Product name:
backhoe loader
Supply Ability
Supply Ability:
1000 Unit/Units per Year brand new backhoe loader
Packaging & Delivery
Packaging Details
nude
Port
Qingdao
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description
SPECIFICATIONS FOR compact 3ton backhoe loader 600mm digging bucket for sale
1.Main technical specification
Bucket Capacity(m³)
1.6
Operating Weight(kg)
7600
Bucket Width(mm)
2200
Bucket type
Heavy-duty bolt on teeth
Rated Load(kg)
2800kg
Wheel base(mm)
2250
Track(mm)
1640
Driving Mode
Hydraulic converter, four wheel drive
Min. Ground Clearance(mm)
300
Total Weight(kg)
7000
Maximum Grade ability Capacity
30°
Bucket Discharge Height(mm)
3500
Bucket Discharge Distance(mm)
1062
Backhoe Bucket Capacity(m³)
0.32
Backhoe Discharge Height(mm)
3500
Maximum Digging Depth(mm)
4300
Bucket Slewing Angle
180°
Bucket Stick Revolving Radian
180°
Length x Width x Height(mm)
8000 x 2300 x 3769
2.Engine Details
Model
YUCHAI Engine
Engine Type
In-line arrangement, water-cooled, four-cycle diesel Engine
Rated Power(kw)
85
Rated Speed (rpm)
2400r/p.min
Optional Engine
Weichai turbocharged engine(83KW)
Cummins engine 4BTA3.9-100(75KW)
3.Transmission System
Hydraulic converter + gearbox+drive shaft
Gear Shift: 2 forward shift 2 reverse shift
Torque: YJ-280
Drive Pump: CDXaf3016-IL
Flow: 16ML/R
Work Pump: CBGj2063
Flow: 63ML/R
4.Operating Specifications
Steering System
Articulated Frame with hydraulic power steering
Min Turning Radius(mm)
5018
Driving System
Hydraulic converter, four wheel drive
European,BOBCAT,CAT quick coupling system
Joystick control
5.Brake System
Service Brake
Four Wheel Hydraulic spread-shoed brake
Parking Brake
Hand operated(Disc brakes)
6.Tire
Model:
16/70-24
Optional Model
Certifications
Detailed Images

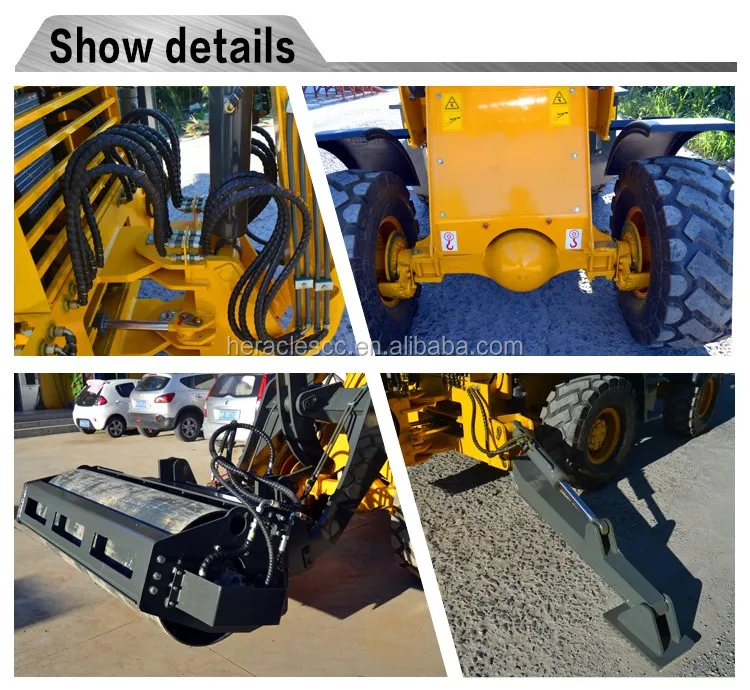

Heavy duty hinge joint and hydraulic pipe protection.

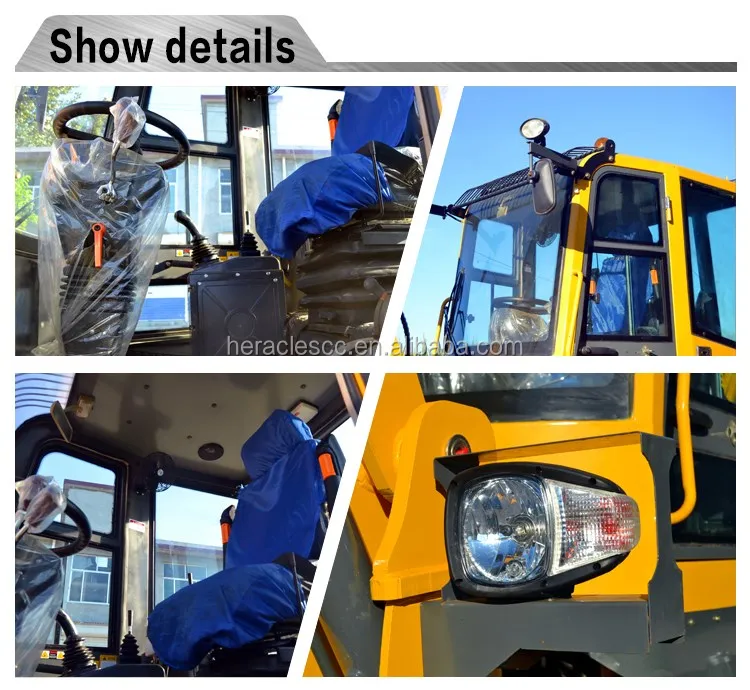

Comfortable operation environment.

Comfortable steering wheel,high quality seat and suitable joystick control,make a very comfortable operation environment for driver.

Luxury Cabin

Good design and have the broad field of vision,comfortable operation environment and safty drive.

Luxury Cabin

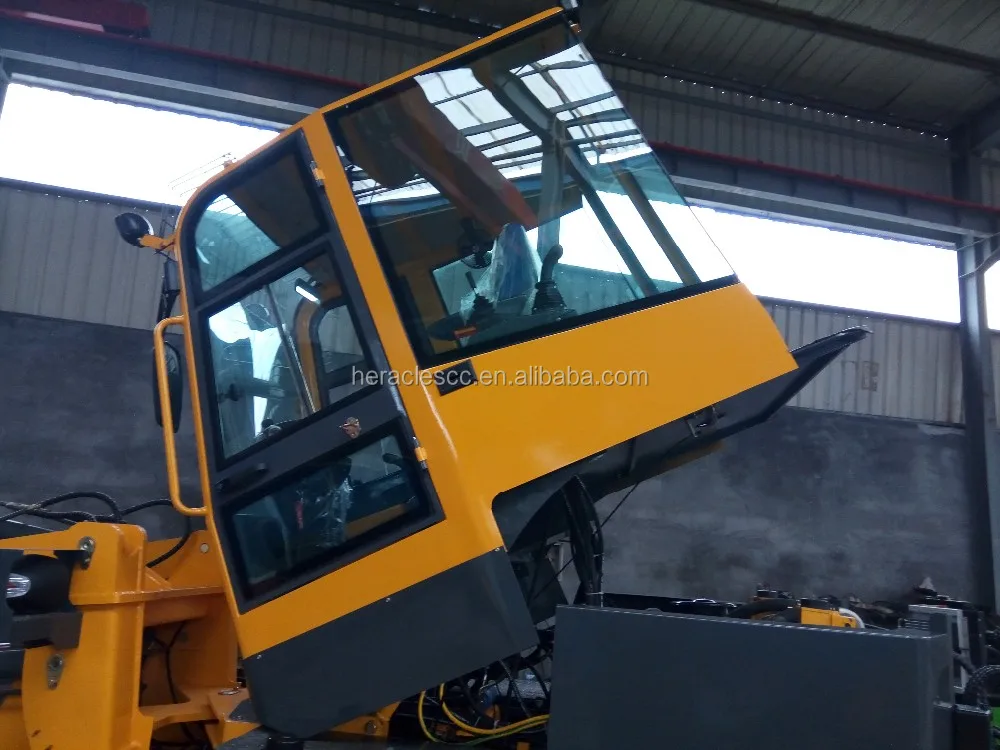

Cabin can open easily to service the engine.

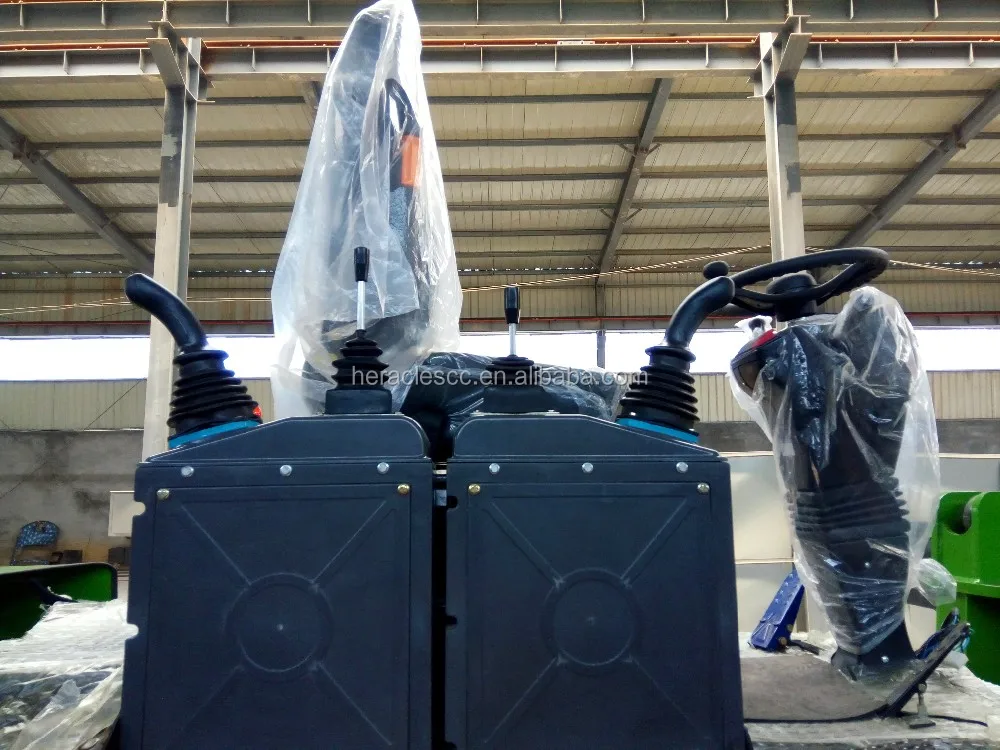

Hydraulic Joystick easy to control.

Main Features compact 3ton backhoe loader 600mm digging bucket for sale

1. Enlarged operator cabin, with secure glass, is capacious and bright some.

2. Working table, water temperature, oil temperature, current, work timing are all in sight.

3. Famous brand hydraulic components are adopted, two gear oil pump work together, the power is driving and loading     and dumping can change freely.

4. Adjustable seat, convenient and comfortable to use.

5. Rear and front body, with smell rotary radius, hydraulic steering, comfy and convenient to operate.

6. Hydraulic traction, the moving arm can leveled skid and expend digging range.

7. Completely have the all functions of mini type digging machines.

8. Ascendant performance of complete appliance, with extraordinary operation efficiency.

9.With which many kinds of optional components can be matched to meet requirements of different users.


Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
8000mm(L) * 2300mm(W) * 3769mm(H)
Weight
7.6 T



Packaging Details
1 unit nude need a 40HQ container
