computer servo control sofa back and armrest durability fatigue tester

FOB Reference Price:Get Latest Price
1 Set/Sets Sofa Durability Tester (Min. Order)
Supply Ability:
100 Set/Sets per Month Sofa Durability Tester
Port:
Xiamen
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
TST
Model Number:
TST-C1016
Power:
Electronic
Usage:
Sofa Durability Tester
test range:
Sofa back and armrest durability test
force sensor:
0-2KN
accuracy:
1/10000
seat model weight:
50+/-0.5kg
load pad:
250x300mm
armrest load force:
250N
back load force:
300N
test speed:
0.33Hz~0.42 Hz
max specimen size:
220x180x70CM(LxWxH)
sofa tester:
sofa test instrument,Sofa Durability Fatigue Tester
Packaging & Delivery
Packaging Details
wooden package
Delivery Time
30-45days







Product Description

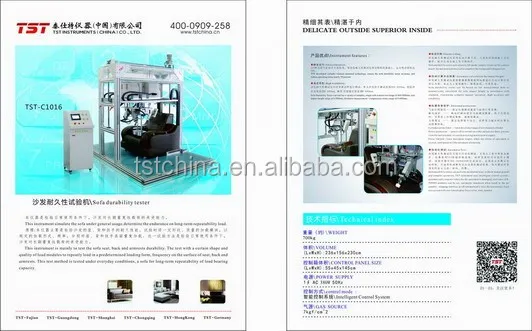

TST-C1016  computer servo control sofa back and armrest durability fatigue tester

Usage:It is used to test the seat,back and armrest durability for sofa,seat height,auto-test the relaxing amount of back,residual relaxing amount of back,relaxing amount of armrest and residual relaxing amount of armrest.





Principle: The instrument used to a certain shape and  weight of the load module to the horizontal surface of the sofa seat, backrest and armrest parts with a certain height, frequency, forces repeated load, in order to determine the long-term repeatability sofa load bearing capacity





Standards:

DIN 4551, EN 1335, NEN 1812,

BIFMA X5.1, BSI/BS 5459, EN 581-2







Technical Specification



Force sensor:0-2000N include Calibration data sheet;accuracy:1/10000
Servo electric :50*300mm,30*20mm
 System force accuracy:±1%(static)0-5%(dynamic)
seat  model weigh t :50±0.5Kg,load pad:250x300CM.
Armrest load force:250N,load pad material:white nylon
Back load force:300N,load pad material:white nylon
Test speed:0.33Hz~0.42 Hz(20time/min~25time/min).

Specimen size:max 220x180x70CM(LxWxH).
Armrest max wideth:500--900mm adjustable
Displacement : 100±20mm/min,range500m m.
Computer+labview soft auto servo control with force and displacment data

Stop / off memory and breakpoint detection shutdown.

Stop mode: reach the number of tests the shutdown, specimen damage or excessive deformation automatic stop and alarm.

Devices with self-diagnostic systems, video surveillance systems.
