concrete block making machine south korea/construction equipment

FOB Reference Price:Get Latest Price
$9,790.00 - $62,200.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
DL-1000-E
Lead Time:
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 30 50 50 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 Year
Brick Raw Material:
Gypsum, soil,cement,concrete,fly ash,clay
Capacity:
10-80pieces/5-7times/h, Over1000 PCS/DAY
Type:
Hollow Block Making Machine, Interlock Block Making Machine
Power:
15Kw
Certification:
ISO9001
Condition:
New
Processing:
Brick Production Line
Method:
Hydraulic Pressure
Automatic:
Yes
Place of Origin:
Shandong, China (Mainland)
Brand Name:
Dalu
Voltage:
380V
Dimension(L*W*H):
1500*2000*3000mm
Interlock Block Making Machine:
Brick Production Line
Quantity of block moulds:
Custom made
Cycle Time:
6-7min
Working Life:
Over 10 years
Production worker:
2People
Area covered:
30m2
Weight:
2-8t
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
100 Set/Sets per Year Pay attention to each concrete block making machine
Packaging & Delivery
Packaging Details
Plastic packaging and container transport,to make sure customer will receive the concrete block making machine south korea/construction equipment
Port
Qingdao
Lead Time :
Quantity(Sets) 1 - 1 2 - 2 3 - 3 >3
Est. Time(days) 30 50 50 To be negotiated
Video Description
Product Description
concrete block making machine south korea/construction

equipment

                                                                 -----High quality brick machine in China to produce provisions cross-section of ordinary solid bricks, hollow bricks, and other products.

Equipment specification for block production line:

Block thickness
80mm
100mm
120mm
150mm
200mm
Block thickness
(w*h)
666(600)*500mm
666(600)*500mm
666(600)*500mm
600*500mm
500*333mm
620(600/500)*400mm
Block height
300~500(mm)Adjustable
300~500(mm)Adjustable
300~500(mm)Adjustable
300~500(mm)Adjustable
200~400(mm)Adjustable
Solid/Hollow
Solid
Solid/Hollow
Hollow
Hollow
Hollow
Lifting for one time
10,15,30 Pieces
12,20,42 Pieces
10,18,36 Pieces
8,16,30 pieces
6,12,24 Pieces
Number of lifting
hydraulic cylinder
1,2,3
1,2,3
1,2,3
1,2,3
1,2,3
Number of sceraper hydraulic cylinder
2
2
2
2
2
Number of flip
hydraulic cylinder
2
2
2
2
2
cavity partition
material
Chrome-plated stainless
steel or 45 carbon steel
Chrome-plated stainless
steel or 45 carbon steel
Chrome-plated stainless
steel or 45 carbon steel
Chrome-plated stainless
steel or 45 carbon steel
Chrome-plated stainless
steel or 45 carbon steel
Agitated leaf number
2,2,3
2,4,4
2,4,4
2,4,4
2,4,4
Worker
1~2
1~2
1~2
1~2
1~2
Power
27.5, 27.5, 32.5KW
27.5, 32.5, 43.5KW
27.5, 32.5, 43.5KW
27.5, 32.5, 43.5KW
27.5, 32.5, 43.5KW

Standard Equipment:

Gypsum powder
measurement
Sensor
Brand
Water measurement
Storage tank
Control cabinet
CHINT or Delixi components
Mixer
Stainless barrel body
Operation box
Touch screen or button control
Forming machine
Chrome-plated stainless
steel
Clamping fixture walking
frame
Clamping fixture
Pneumatic or mechanical,
Frequency control
Field connection signal
cable
Central hydraulic
station
Independent embolism
pumpcontrol lifting cylinder

Process flow and configuration:

Start control cabinet -→ automatic water mixing machine → raw material → screw conveyor → automatic metering hopper → pneumatic valve unloading materiai, mixing machine → start the hydraulic pouring molding box → automatic scraping groove → gypsum block forming ejector → automatic telescopic clamp block, electric vehicle transportation site → mechanical hand block into the dry site or drying room → packing → storage or production.

Equipment characteristics:

1,Moulding block main engine: 1host by 8sets of 10blocks mould, 2hosts each 160,pulp cavity after initial setting, a complete   hydraulic control scraping,and then the top block, pushed by the host to send machine,mobile mainpulator will block      stacking,forklift transport site.The process has continuous-large-scale production.
2,Mixing system:1unit for mixing 280out of the host.The mixing box can be poured for two mian units.Above there are water   mearurement, raw materials and auxiliary materials mearurement system.stir the water and material evenly, then pour the    slurry into the mold cavity.
3,Hydraulic system:control main machine scraping, ejecting, transferring block function,water cooling oil temperature    system.
4,Control system:by the power supply instructions,voltage instructions,water    delivery,feeding,mixing,pouring,scraping,ejecting,transferring, stacking blocks functional composition.

Detailed Images



1,Equipped automatic residue recycling system (patent product): energy saving, environmental protection, labor and time. The project uses a number of advanced energy-saving technologies, energy production levels were significantly better than similar domestic enterprises. The process is compact, the kinetic energy consumption less. Combined with simple, low repair rate, clever use of the potential energy.



2,Equipped with hydraulic stirring device (patent product): energy saving, environmental protection, high mixing efficiency, never burn the motor.

3, Equipped with sealed stirring dust removal system (patent product): reduce pollution, energy saving, environmental protection, and effectively collecting dust.



4, Automatic spray release agent system (patent product): reduce manual, uniform the spraying material saving and high precision.


5,Stainless steel and 45 steel polished hard chrome plated die block: to ensure smooth, Heisei, wear resistance, not easy to rust.




6,Hopper discharge, homogenizer system: to prevent uneven material feeding, slow and not Material.

7, Equipment installation and left and right walking: reduce walking time, save time for car trial, reduce the safety hidden danger of running and running.

Hot products:

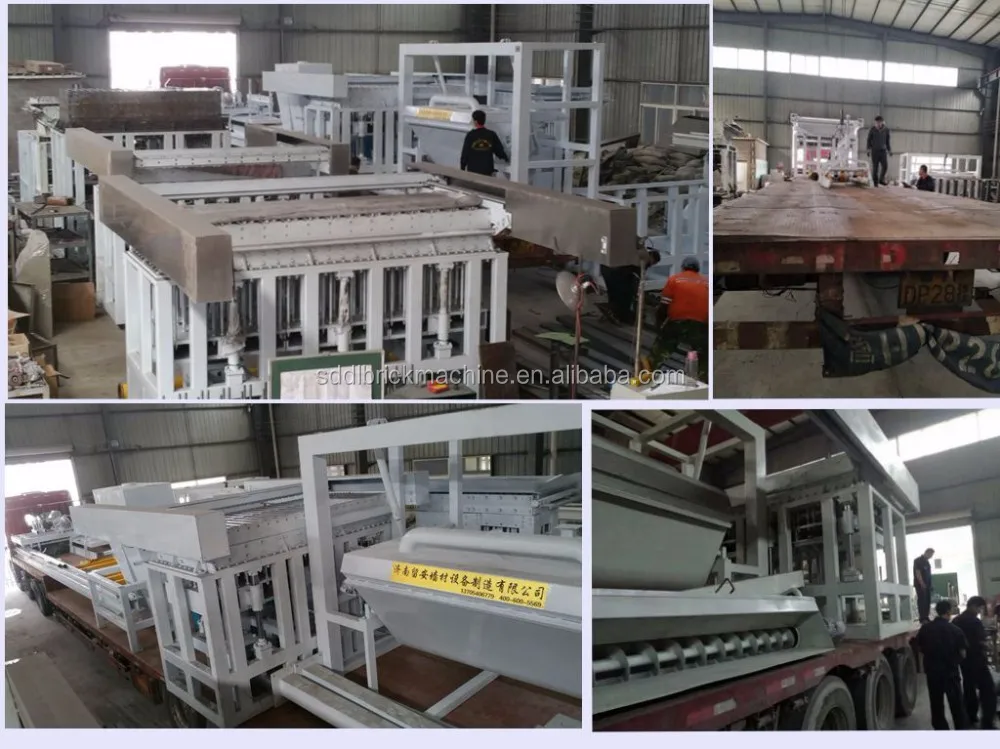

Packing & Delivery

DALU INTERNATIONAL selected each part carefully , we are strive to quality first when machine production and test each machine before delivery,pay attention to package,container transport,to make sure customer will receive the machines they ordered Intact.

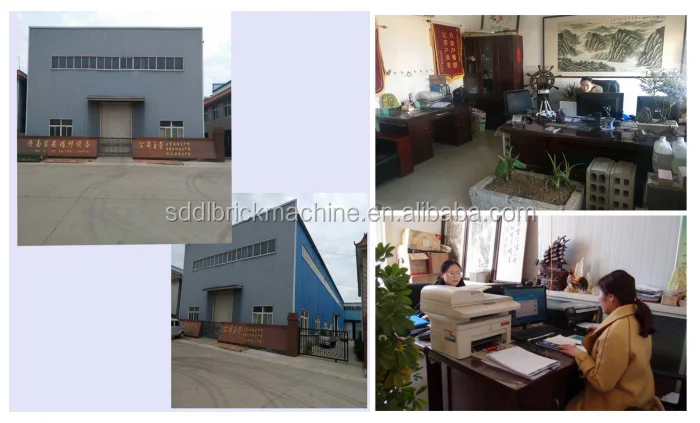

Our Company

Our factory is a leading professional mechanical equipment manufacturers, production of energy conservation and environmental protection wall materials has been fully implemented lSO9001 quality standard system certification, flexible mode of operation, can be customized according to customer needs all kinds of gypsum block production line, composite insulation bricks block production line.Has been awarded many patent certificate.



Our company is a manufacturer and trading company which have rich experience in machine making and export. Our main products is brick making machine. Our company have passed CE certification and so on. Specialize in cement block making machine, hydraulic gypsum brick making machine, sand, concrete and other material blocks making machine. Hope we can cooperate with you.



Our customers got much pleasure in cooperation, experience our local cultural characteristics, taste local special food, visit local scenery.



Certifications
Our Service


Before payment
Free contact for the most suitable machine
Free professional design, including plant layout; machinery diagram, equipment list, ect for each customer especially.
After sale service
arrangement suggestions
we supply all surports for raw material supplier information.
our process/ installation/ electricity engineers will stay at your plant until your workers know how to produce good products.
after installation, we will test your production, and sign agreement with your workers after succesfully testing.
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment
L/C, 30% deposit by T/T,70% spare payment L/C.
T/T, 30% deposit by T/T,70% spare payment before shipment.
Western Union or Paypal.



FAQ



1. When can we arrange shippment?

We usually arrange shippment within 20days after getting deopsit,
but customized machines should be more than 30days.

2.What you can do if my machines have problems?

1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
