container house recuperator air to heat recovery ventilation system

  • >=2 Sets
    $606.00
Type:
Ventilation
Lead Time:
Quantity(Sets) 1 - 30 >30
Est. Time(days) 25 Negotiable
Samples:
$606.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China
Brand Name:
HOLTOP
Model Number:
XHBQ-D1.5-20DCTPA
Product name:
recuperator air to air
heat exchanger:
cross counterflow heat exchanger
airflow:
800cmh
speed:
10 speeds control
filter:
G3
filter alarm:
timer filter alram
motor:
BLDC
efficiency:
up to 90%
Application:
residential and commercial
control:
intelligent, BMS, CO2 control, humidity control
Supply Ability
Supply Ability:
5000 Unit/Units per Month
Packaging & Delivery
Packaging Details
plywood
Port
Tianjin
Lead Time :
Quantity(Sets) 1 - 30 >30
Est. Time(days) 25 To be negotiated



Product Description

 container house recuperator air to heat recovery ventilation system

 Energy recovery ventilation (ERV) is the energy recovery process of exchanging the energy contained in normally exhausted building or space air and using it to treat (precondition) the incoming outdoor ventilation air in residential and commercial HVAC systems. During the warmer seasons, the system pre-cools and dehumidifies while humidifying and pre-heating in the cooler seasons. The benefit of using energy recovery is the ability to meet the ASHRAE ventilation & energy standards, while improving indoor air quality and reducing total HVAC equipment capacity.



Fresh air + Energy recovery, reducing running cost of cooling or heating system







New Eco-smart Plus Energy Recovery Ventilator is upgraded to comply with ERP2018.

The fans built-in are more efficient, energy consumption reduces by up to 50%. The intelligent controller is improved for more reliable and user friendly operation. Ideal ventilation solutions for energy efficient buildings to
reduce energy consumption while achieving comfort indoor climate.







Feature:

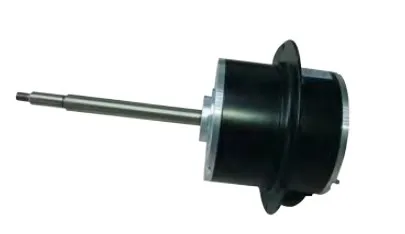

1)Energy saving BLDC motor, 10 speeds control
2)High eficiency enthalpy heat recovery, more comfortable indoor climate
3) Innovative high efficiency counterflow heat exchanger
4) Intelligent control system, optional CO 2 and humidity control function, external control and BMS control available
5)Multiple auto defrosting mode, outdoor operation temperature down to -15 oC
6) Auto bypass, intelligent controlled by outdoor temperature

Selection Guide

1. Choose the proper installation types based on the building structure

2. Determine the fresh airflow required according to the use, size and number of persons

3. Select the right specifications and quantity according to the determined fresh airflow







Example

The area of a computer room is 60 sq. meters (S=60), the net height is 3 meters (H=3), and there are 10 per-sons (N=10) in it.

If it is calculated according to “Personal fresh air consumption”, and assume that: Q=70, the result is

Q1 =N*Q=10*70=700(m3/h)

If it is calculated according to “Air changes per hour”, and assume that: P=5, the result is

Q2 =P*S*H=5*60*3=900(m3)

Since Q2 > Q1 , Q2 is better for selecting the unit.



As to special industry such as hospitals (surgery and the special nursing rooms), labs, workshops, airflow re-quired should be determined in conformity with regulations concerned.

Model

Rated Air Flow

 (m3/h)

Rated E.S.P

 (Pa)

Enthaply efficiency %TemperatureNoise dB(A)Voltage (V)

Power Input

(W)

Weight (kg)
CoolingHeating
XHBQ-D1.5DCTPA1507563-7070-7675-8231.52202625
XHBQ-D2.5DCTPA2508563-7370-7575-8234.52204629
XHBQ-D3.5DCTPA3509066-7269-7575-8437.52206037
XHBQ-D5DCTPA50010062-7467-7575-86392208843
XHBQ-D6.5DCTPA6508562-7068-7375-8439.522011464
XHBQ-D8DCTPA80013065-7471-7775-844222018671
XHBQ-D10DCTPA100011065-7471-7875-854322024383
XHBQ-D15DCTPA15007565-7471-7775-8450220372165
XHBQ-D20DCTPA20006065-7471-7875-8551.5220486189
