cupola furnace fused cast block refractory castable material for aluminum casting furnace

FOB Reference Price:Get Latest Price
  • 1 - 9 Tons
    $422.00
  • >=10 Tons
    $305.00
Shipping:
Support Sea freight
Lead Time:
Quantity(Tons) 1 - 5 6 - 10 11 - 20 >20
Est. Time(days) 10 20 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Henan, China
Brand Name:
HONGDA
Model Number:
FHA
Shape:
Powder
Material:
Alumina Block
SiO2 Content (%):
23
Al2O3 Content (%):
68
MgO Content (%):
4
CaO Content (%):
2
Refractoriness (Degree):
Common (1580°< Refractoriness< 1770°)
CrO Content (%):
3
SiC Content (%):
3
Product Name:
refractory castable material for aluminum casting furnace
Bulk density(g/cm3):
2.1-2.4
Cold Crushing Strength(MPa):
18-25
Refractoriness under Load (0.2MPa):
1760
Thermal conductivity:
7-12
Working temperature:
≤1850
Bend Strength(MPa):
160-184
Application:
Industrial Furnace
True porosity %:
<13.5
Granulometric class:
5-12mm
Supply Ability
Supply Ability:
50000 Ton/Tons per Year
Packaging & Delivery
Packaging Details
refractory castable material for aluminum casting furnace with standard export package:
1. 25 or 50 kg per bag with moisture proof lining.
2. Standard marine packing or as your requirement.
Port
Tianjin port, Qingdao port, Shanghai port
Lead Time :
Quantity(Tons) 1 - 5 6 - 10 11 - 20 >20
Est. Time(days) 10 20 30 To be negotiated

cupola furnace fused cast block refractory castable material for aluminum casting furnace

siliceous castable

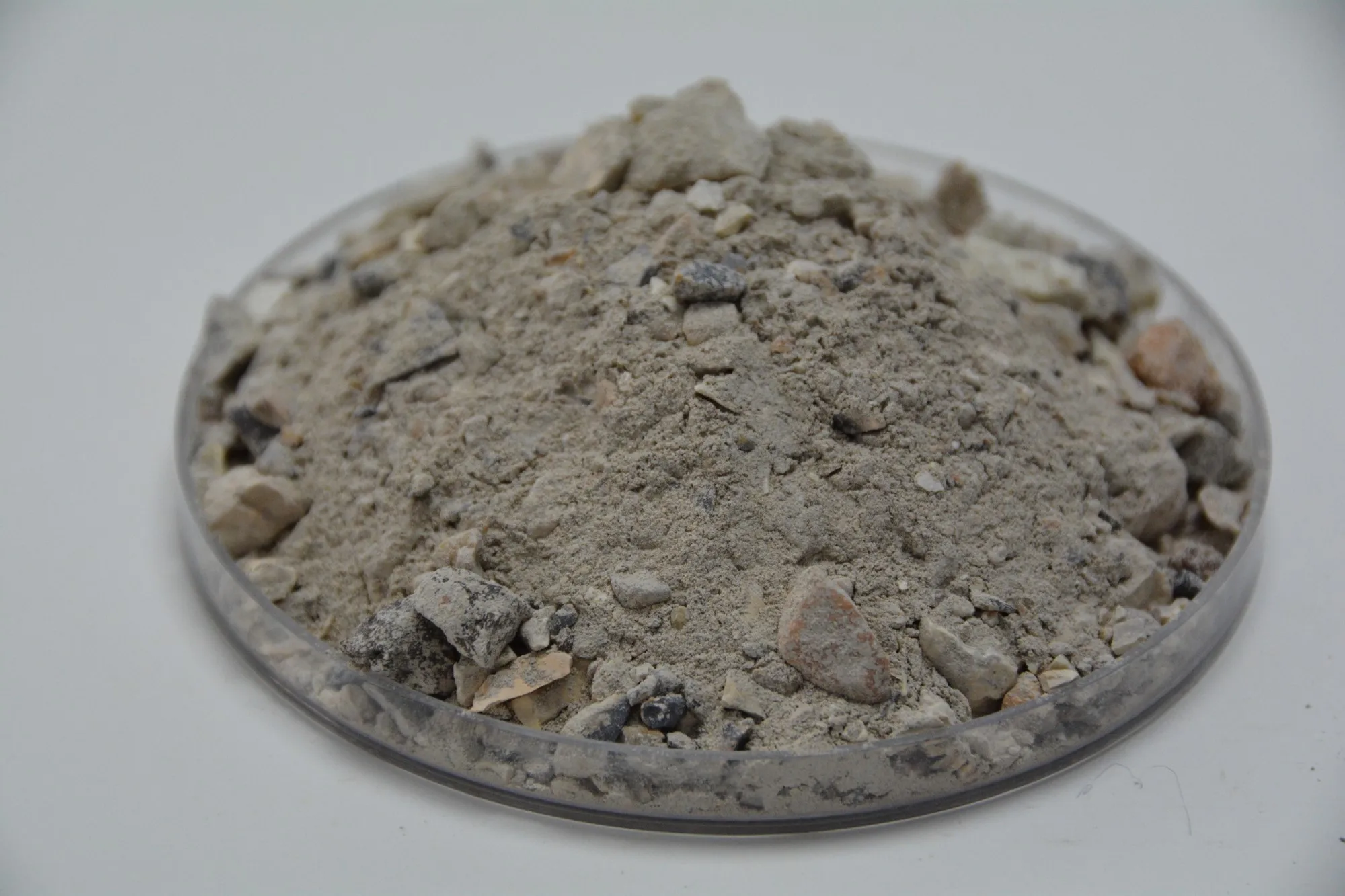

Product Description







Definition                   cupola furnace                 fused cast alumina block

refractory castable material for aluminum casting furnace is a dry-mix material,which when mixed with water, chemically sets as hard as a brick. Properly cast and dried, it withstands 2200°F temperatures.It can be used to fill large hole in the stove.or cast it into custom shapes tailored to the exact needs of the fireplace or stove.

10



 Feature                   cupola furnace                 fused cast alumina block

Once set, refractory castable material for aluminum casting furnace has very similar physical characteristics to fire brick. It has almost the same density, thermal conductivity and compressive strength as the fire brick,  it can be poured or trowelled into place, filling awkward gaps that would be very difficult to fill with bricks.

2

Data                   cupola furnace                 fused cast alumina block

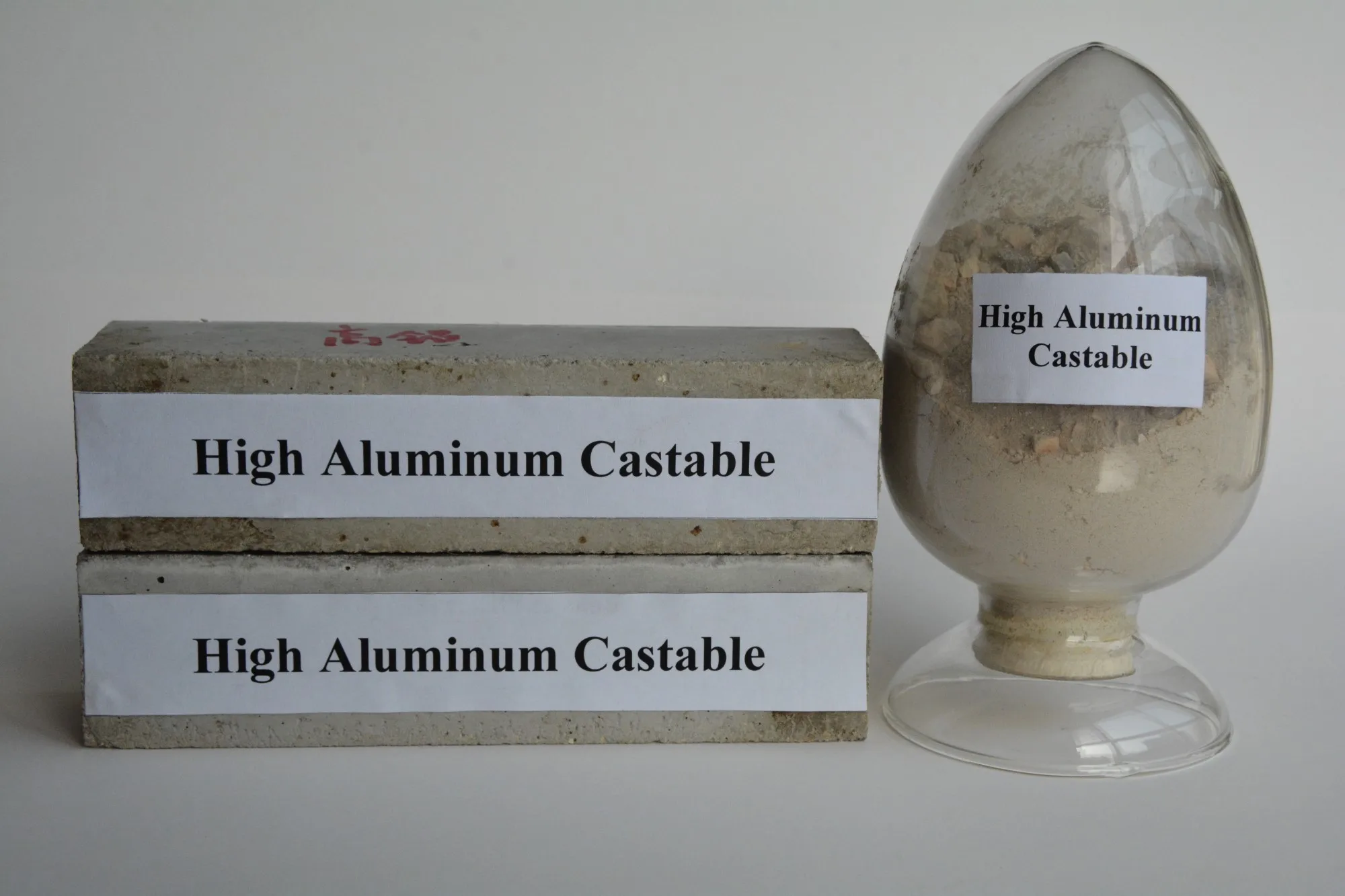

 High aluminum castable
Working temperature /°C1600-1800
Bulk density g/m32.3
Ture porosity %<11.5
Granulometric class /mm<3
ComponentAl2O3, %81
SiO2, %12
Cold crushing strength /Mpa110°C * 24h89
1000°C * 3h82
Rupture strength /Mpa110°C * 24h10.5
1000°C * 3h9.6

 packing & shipping

Packaging & Shipping

1565339524(1)

refractory castable material for aluminum casting furnace with standard marine ton packing Or at the request of the customer.

Customer Interaction

Customers Visit

 company

With the company healthy and fast development,refractory castable material for aluminum casting furnace had been sold to all over the country, such as Vietnam, India, Korea, Pakistan, kazakhstan, Iran and other southeast Asian countries and regions.

Application

 application

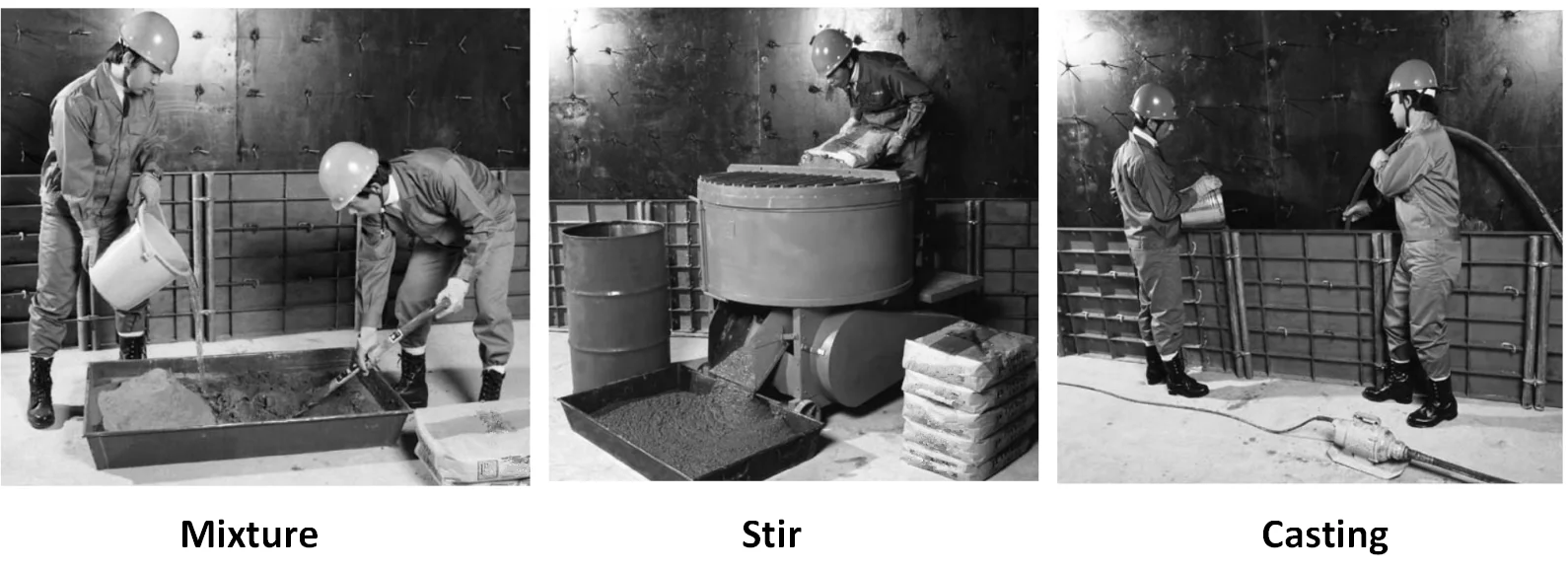

Castable Work Progress                     cupola furnace                 fused cast alumina block

0



Castable Construction Case                    cupola furnace                 fused cast alumina block

application_2



refractory castable material for aluminum casting furnace can be used to create the monolithic linings within all types of furnaces and kilns.



Company Information

 company information

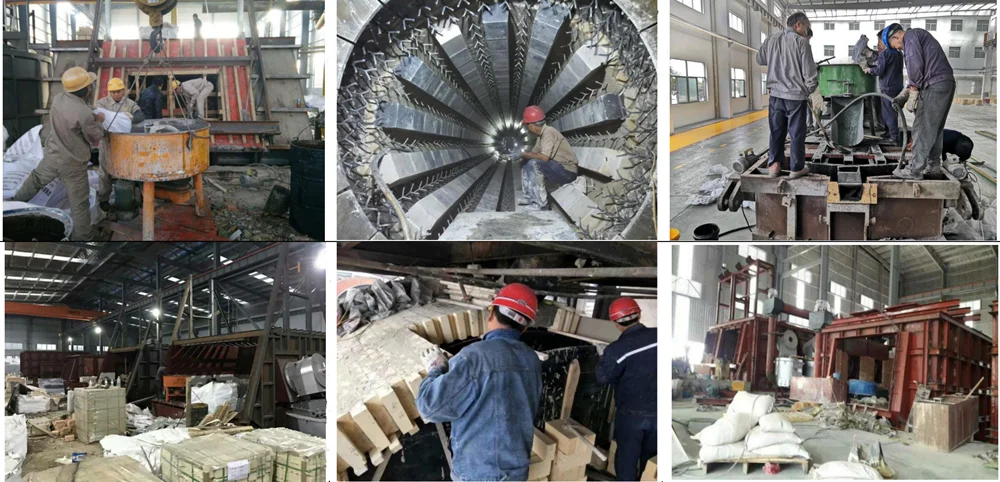

factory





Company Introduction                    cupola furnace                 fused cast alumina block

     Gongyi Hongda Furnace Charge Co., Ltd. is a comprehensive refractory enterprise integrating r&d, production and trade. The company mainly produces refractory castable material for aluminum casting furnace , ramming materials, plastic and other unshaped refractory materials, fired bricks and insulation materials. Products are widely used in steel, nonferrous metals, building materials and power industry.

     Hongda company has two produtction lines for refractory castables and respective production lines for shaped refractories, plastic refractory, three production lines for thermal insulation products. With annual capacity of 15000 tons of various castables, 30000 tons of shaped precast products, and 10000 tons of moldable refractory, thermal insulation products 50000 tons.

Qualification                     cupola furnace                 fused cast alumina block

certification





Our Team

 TEAM



    Hongda has a technical service team of more than 300 people, and has developed more than 80 patent products. The company can undertake projects from designing to development of new products in accordance with construction conditions and customers' specific requirements.
