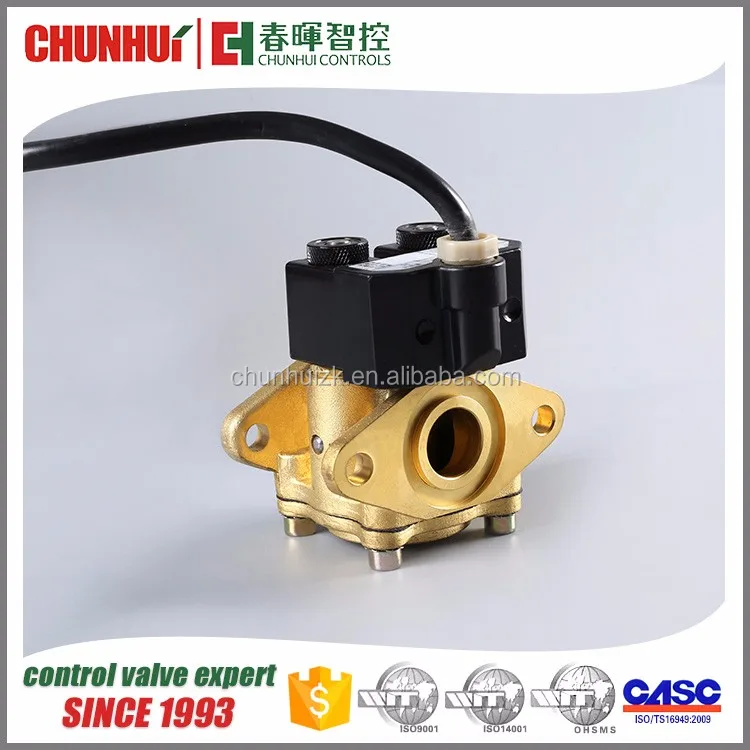

diaphragm diesel fuel dual-flow solenoid valve for fuel dispenser

FOB Reference Price:Get Latest Price
US $26-38 / Set | 50 Set/Sets valve (Min. Order)
Supply Ability:
10000 Set/Sets per Month valve
Port:
Shanghai / Ningbo, China
Report Suspicious Activity
Overview
Quick Details
Standard or Nonstandard:
Standard
Structure:
Diaphragm
Pressure:
for solenoid valve
Power:
Solenoid, 2x5.5W
Material:
Brass
Temperature of Media:
Medium Temperature
Media:
Oil
Port Size:
Flange connection
Place of Origin:
Zhejiang, China (Mainland)
Model Number:
DV1050BF-06
Brand Name:
Chunhui
Application:
fuel dispenser
Key words:
valve
current customers:
Gilbarco,Tokheim, Wayne, Tatsuno, Sinopec
Ambient Temperature:
-40℃~+55℃
Medium Temperature:
-40℃~+55℃
Pressure Range:
0.035~0.35MPa
Ration 5L:
Preact 0.5L
Voltage Input:
AC230V 50HZ
Voltage deviation:
-10%~+15%
Relative humidity:
≤95%
Packaging & Delivery
Packaging Details
valve
Carton box, wooden package For Solenoid valve
Delivery Time
Shipped in 15 days after payment

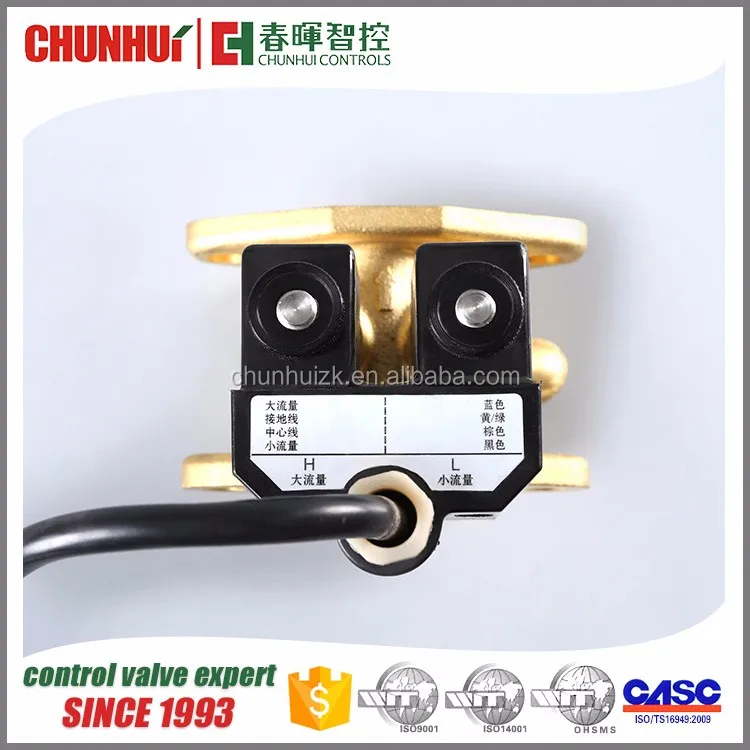

diaphragm diesel fuel dual-flow solenoid valve for fuel dispenser



Model:DV1050 BF-06
ItemParameterItemParameter
MediumPetrol,diesel,kerosene etcRation 5L

Preact 0.5L

Ambient Temperature

-40℃~+55℃

Displayed Value when main Valve Closed

≤4.85L
Medium Temperature

-40℃~+55℃

Voltage Input

AC220V 50/60HZ,AC110V 50/60HZ
DC12V,DC24V etc.
Pressure Range

0.035~0.35MPa

Voltage deviation-10%~+15%
Lead Length1.5m(standard)Relative humidity≤95%

Flow DN20(3/4”)

>40L/min(Big Flow) 3~4.5L/min(Small Flow)Insulating Strength≥20MΩ
Working Mode100%Power2x5.5W
Anti-Explosion MarkEx mb II T3Coil ClassH
Material of valve body and valve coverCopper or Aluminum AlloyLife cycleUnder nomal working condition, the continuous cycle time is above 800,000
Other description
Product featuresHigh quality, cost-effective
Market share80% in China market
Cooperation caseHengshan, Gilbarco,Censtar, Furen, Dresser, Jia Li Jia
Approvaldomestic explosion-proof certification
Shortlisted in the suppliers of sinopec or notYes
Planstablize existing main customers, develop international market, try to be the international leading brand in the industry
Brief introductio it is used to control the high and low flow of the computerized fuel dispenser to achieve rapid fueling with high efficiency and give a precise measuring of the fueled amount, the suitable media are including petroleum, diesel, kerosene
