digital tv receiver HD DVB-T2 sunplus 1509c set top box dvb t2

Feedback Ratings
  • 1-999 Pieces
    US $10.00
  • >=1000 Pieces
    US $8.00
RAM:
1GB
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Customization:
Customized logo (Min. Order:: 1000 Pieces)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
OEM
Model Number:
DVB-T2-168NA
Support Resolution:
1920 x 1080
Features:
HD TV
Chipset:
Sunplus 1509c
HDMI:
HDMI 1.4
Input and Output:
USB,CVBS,L/R AUDIO,YUV,Coaxial
Video decoder ::
MPEG 2/4 H.264 SD&HD Indicators
Supports:
scart output, coaxial, RF in and output
Support:
MPEG-1,MPEG-2, MPEG-4 and H.264 decoder
Auto and manually scan:
all available TV and radio channels
Advanced audio processor supporting:
USB2.0 host support upgrade,PVR,time shifting and media play
Frequency Range:
VHF 174~230MHZ, UHF 470~862MHZ
Compatible with:
576i/576p/720p/1,080i/1080P video formats

Packaging & Delivery

Selling Units:
Single item
Single package size:
41X33X31 cm
Single gross weight:
9.8 kg
Lead Time :
Quantity(Piece) 1 - 10000 >10000
Est. Time(day) 2 To be negotiated
Product Specif
FULL HD 1080P DVB-T2 TV RECEIVER MEPG4 SET TOP BOX
1.DVB-T2/DVB-T compatible, supports MPEG 4
2. Compatible with 576i/576p/720p/1,080i/1080P video formats
3. Mstar 7816 and Ali3812 chipset solution
4. Fully compliant with DVB-T2 standard
5. Supports HDMI 1.3 (1080P)
6. Auto and manually scan all available TV and radio channels,Parental guidance locking
7. Auto/manual program search, multi-language supported
8. Supports MPEG-1, MPEG-2, MPEG-4 and H.264 decoder (up to 1,920 x 1,080 pixels)
9. Advanced audio processor supporting Dolby Digital and Dolby Digital Plus (optional)
10. USB2.0 host support upgrade, PVR, time shifting and media play with U-Flash or HDD
11. Supports HDMI output, scart output, coaxial, RF in and output
12. Frequency Range: VHF 174~230MHZ, UHF 470~862MHZ
13.Powerful and highly effective 7days EPG function
Tuner:
*Input Frequency: VHF 174~230 MHZ, UFH 470~ 862 MHZ
*RF input level: -78~20 dBm
*RF Bandwidth: 7MHZ and 8MHZ
*Signal input: IEC-type female
*QPSK, 16QAM,64QAM, 256QAM
*FEC: 1/2, 2/3, 3/4, 4/5, 5/6

Multimedia format :
*Decoder format: MPEG 4 AVC/H.264 HP @L4MPEG2 MP@ MP.HL
*Output format:480i/480p/567i/567p/720i/720p/1080p/1080i
*Output port: HDMI,AV/Scart(optional)
*Decoder fomat: MPEG-1(layer 1&2&3),WMA.AC3,AAC
*Audio output: Coaxial, L/R(AV or Scart)

Power :
*Maximum power consumption:< 10w *Standby power: <1w
Packing :

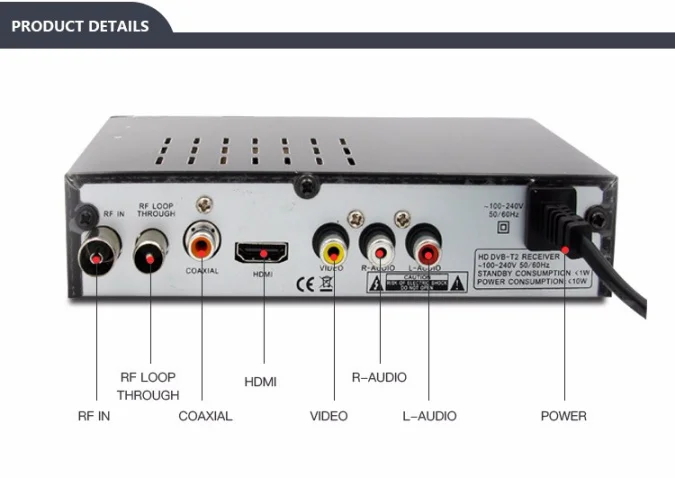

Hardware Interface :
packing : 1pc/gift box
Gift box : 198*155*58mm
Qty per export carton : 20pcs
Meas. per export carton : 410*330*310mm

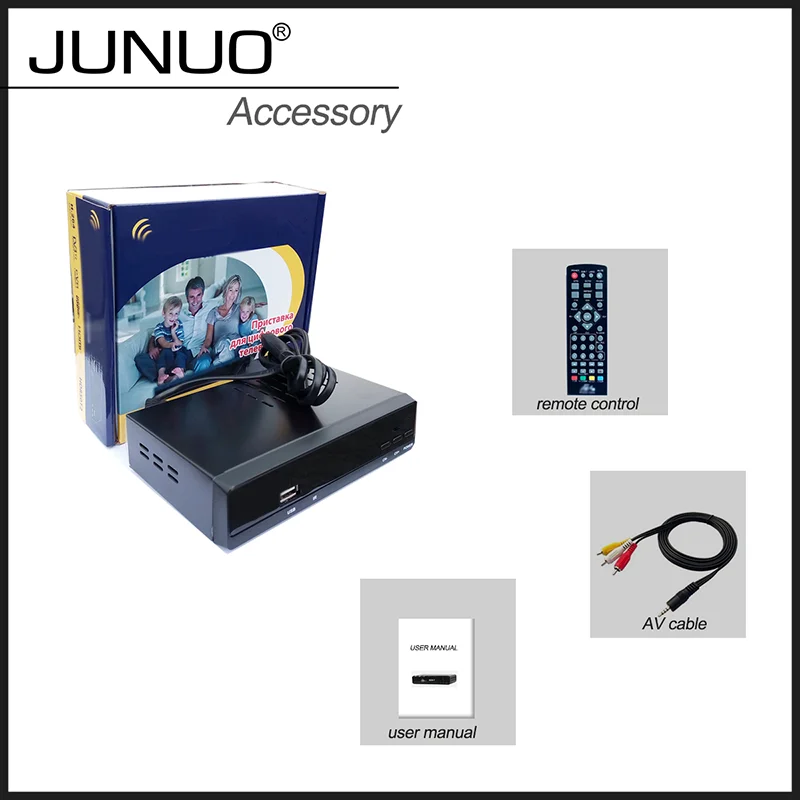

One Color box include: 1* DVB-T2 HD Receiver 1* Remote Controler   1* AV Cable     1* User Manual
*Indicators: Power, signal lock
*IR Receiver: 38KHZ
*LED Display *HDMI 1.3
*Loop through output: IEC- type, connector,single tuner
*Coaxial output *USB2.0
*RCA Output(optional) *Scart Output
How to Use Youtube

1.  Insert the wifi dongle

Model: MTK7601

Setting

to connect the DVB t2 decoder with wifi

select the workable wifi

Input the password


link successfully

Play youtube

Detailed Images
Advantage

                         Team

   There are 12 sales person with two teams could serve for you online for any questions whenever.

                        Trade

To provide samples, place order, make production, and shipping, we could provide the one-line sevices for you.

               Trade Assrance

With the transaction line $186,000 of trade assurance, we could ensure your money transaction safety 100%.

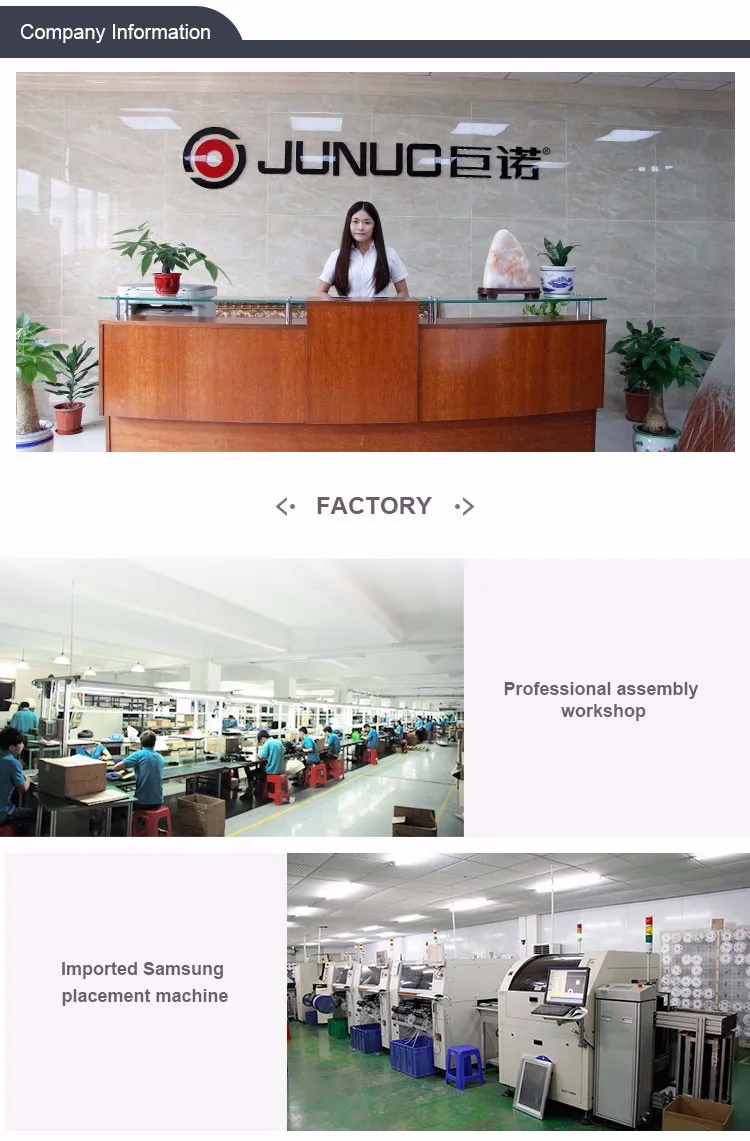

Company Information


Why you choose?


We give you five reason:


1  The Powerful Factory

Company Instruction: Shenzhen Junuo Electronics Co. Ltd. is professional for all kinds tv boxes nearly 10 years. The products contain DVB-T2 receiver, DVB-C receiver, DVB-S2 receiver, ATSC, ISDB-T, and Android Tv Box. With factory area 200 square meters and 150 employees, Junuo Factory could produce more than 10,000 pieces every day.

2  The Advanced Equipments



 Our factory has introduced the newest SAMSUNG & SM471 and Panasonic AMT equipments. With 3 producing lines, the error rates will be most reduced, then we could provide you the high quality products.



3  The Strict Quality Standers

There is a series of complete strict producing standers in the period of producing goods. During the whole producing process, there are 5 times different tests to insure that we could provide customers with the most perfect products.


4  The Strong Producing Capacity


Our factory could produce more than 10,000 pieces products every day with 3 SMT producing lines, 2 DIP inserting lines and 2 assembling lines.


5 The Perfect Services


Team Service

Our company has set different sectors, sales department, purchase department, factory department, engineering department, all could provide you with professional answers.

Guarantee Service

 About the guarantee service,  We  provide you One Year warranty.

Trade Assurance Service

With $186,000 Trade Assurance Credit, we could make customers more confident and make the orders more safe.

FAQ
1.Will you provide samples?
 -------Yes, we have ready sample to test quality and signal, and you can contact us to get the price.
2.what is your MOQ?
 --------It’s 1000pcs for OEM orders .
3.How about the OEM/ODM service ?
  We provide all kinds of OEM/ODM service,eg:Logo printing on housing、Customized packag、 Software  Customization.

4. What is your payment ways?
   We would like T/T(30% deposit before production,and the rest 70% must be paid before shipment).
5.What is your method to deliver goods ?
 Normally, we ship goods by sea,air and express.
. By sea to your nearest sea port for 10~15 days
. By air to your nearest air port for 5~10 days
. By express(UPS,DHL.FEDEX,TNT...) to your door for 3~6 days
Contact Now
Sona Liang

QQ : 3191608761
Skype : sales09.juno
Email : sales09@cnjuno.com
TEL/Whatsapp : +86 135 4423 6515
Contact me for the Best Price

and further information !!
