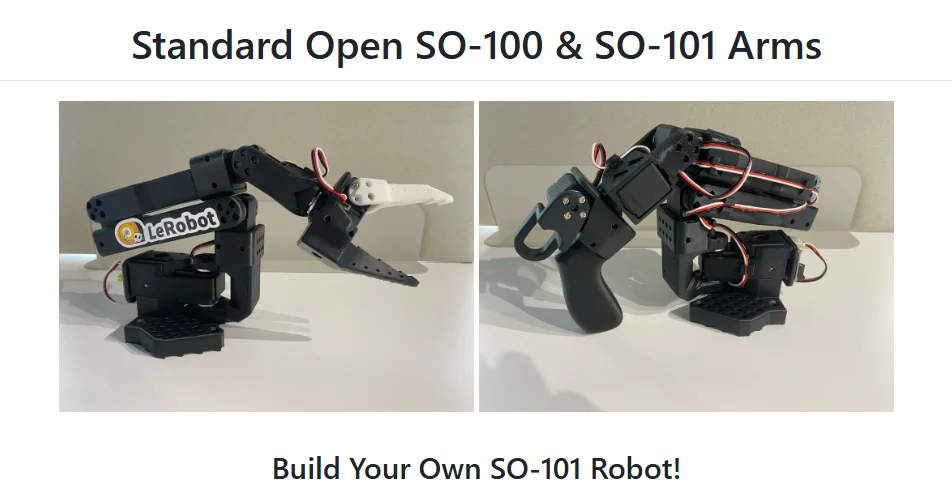

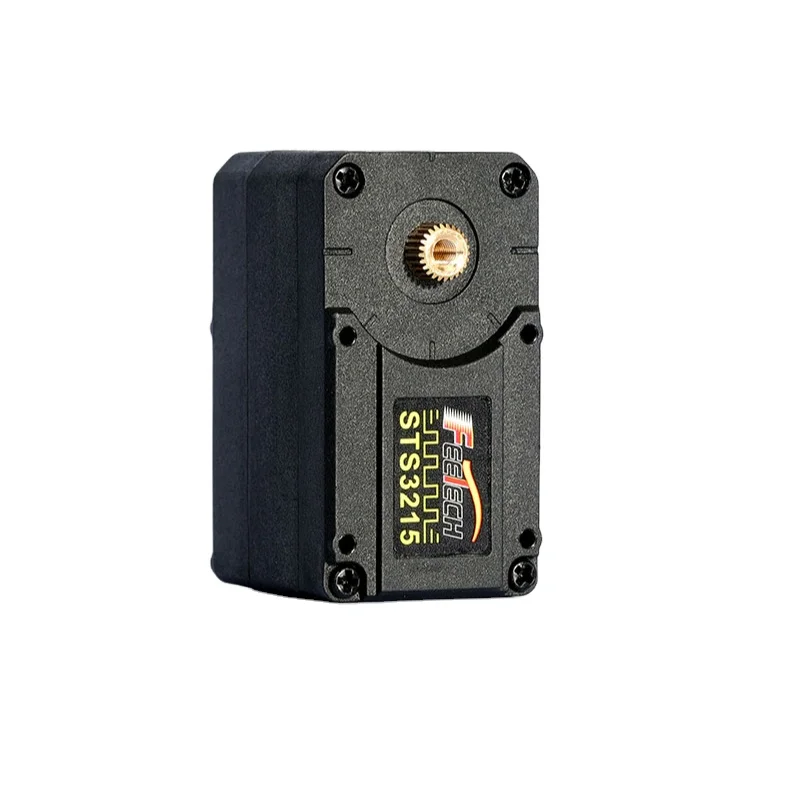

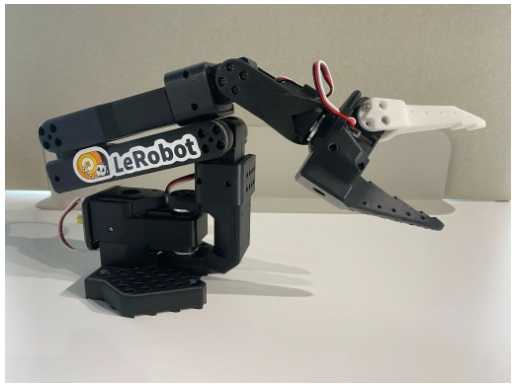

Gear Ratio 1/191 Feetech STS3215-C044 7.4V Standard Smart Serial Bus Servo for SO-101 LeRobot Arm

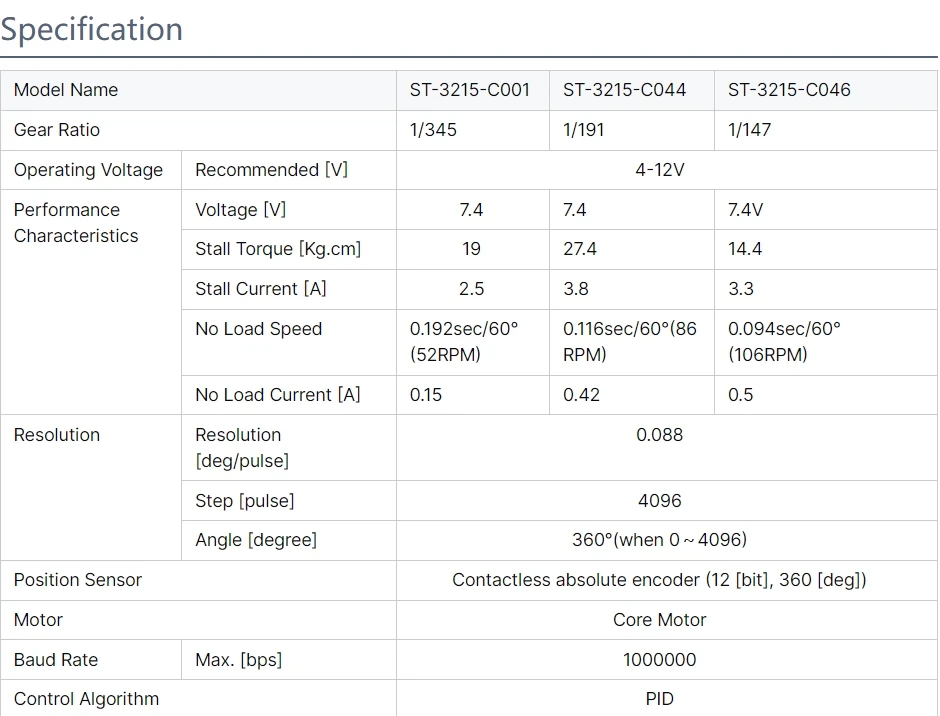

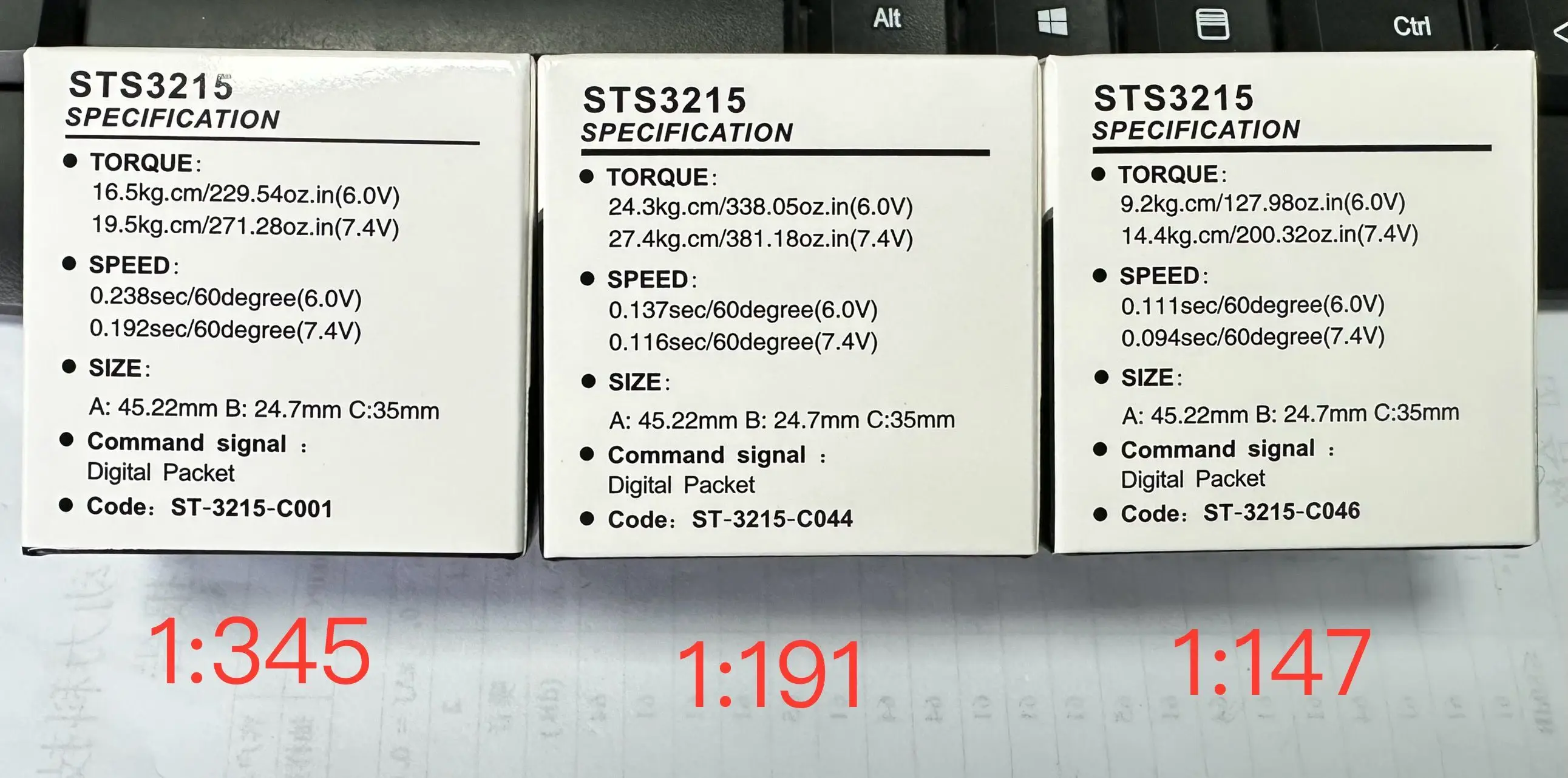

SKU：STS3215-C044 Product Name：7.4V 19KG.CM Plastic Case Metal Gear Magnetic Encoder Double shaft TTL Serial Bus Servo Appearance size：45.2X24.7X35mm（See the blueprint） Stall Torque：19.5kg.cm@7.4V Stall Speed：52RPM@7.4V Feedback: load / position / speed / voltage / current / temperature Electronic protection: overheat / overcurrent / overvoltage / overload protection Structural Features: The shell adopts engineering plastic shell with higher strength，Optimize the center distance，More compact overall structure， The servo gear adopts 1:345 copper Gear combination，higher torque；At the same Torque，compare with the standrd servo size，it looks lower profile（5mm），The body adopts double axis structure design，The structural characteristics of the circle lined solid，Wiring mode of double outgoing cables with metal Principal deputy servo horns，It is suitable for application in quadruped robot, snake robot, desktop robot, humanoid robot and mechanical arm. Electronic control Function： 1.Acceleration start stop function: speed and acceleration value can be set, motion effect is more gentle. 2.High precision, 360 degree absolute position 4096 bit precision, the highest position resolution is 0.088 degrees, if the control is 90 degrees, input 4096 / 360 * 90 = 1024, if the control is 180 degrees, input 4096 / 360 * 180 = 2048, so as to calculate. 3.There are four working mode switching (mode 0 position servo, mode 1 speed closed-loop, mode 2 speed open-loop, mode 3 step servo). 1)、Mode 0：Location mode, the default mode. In this mode, 360 degree absolute angle control can be realized. Support acceleration movement. 2)、Mode 1：Speed closed-loop, in the programming interface, the operation mode is set to 1, switch to speed closed-loop mode, and enter the corresponding speed in the speed column to run. 3)、Mode 2：Speed open-loop, in the programming interface, the operation mode is set to 2, switch to speed open-loop mode, and enter the corresponding time in the time column to run. 4)、Mode3：Step mode: in the programming interface, the maximum / minimum angle limit is set to 0, and the operation mode is set to 3. Switch to step mode. Enter the position in the position bar to step towards the target position. Click the position again to continue to step in the same direction. 4、Multi turn mode, 360 degree absolute control and feedback, under the highest accuracy, the absolute position control can be plus or minus 7 turns, but the number of power cycles is not saved, only the absolute position feedback value is retained. 5、One key calibration, 360 degree angle installation at any position, (40 (decimal) address input 128 (decimal)) one key correction current position is the middle (2048 (decimal)). 6、TTL communication level, half duplex asynchronous communication, bus protocol support to adjust read and write parameters, and add synchronous read function (send an instruction to receive the read back instruction from each servo on the bus in turn.) 7、Multiple protections, (overload, overcurrent, overvoltage, overheating, switch setting, condition parameter changing) 1)、Overload protection: through position detection, during the movement from the starting position to the target position, when the current position is detected to be not the target position after encountering the blocking of obstacles, the unloading force lasts for 2S (20% of the default blocking force). Until a new command is triggered, Release protection 2)、Overcurrent protection: through the set current value, check whether the current reaches the set current value. When it reaches the set current value, release the force (the default torque is 0). Until a new command is triggered, Release protection 3)、Over voltage protection: detect the current voltage value. If it exceeds the set voltage value, the alarm will display over-voltage. 4)、Overheat protection: detect the current motor temperature. If the temperature exceeds the set value, the alarm will display overheat. 8：Multiple feedback: 1)Load feedback: the current control output drives the voltage duty cycle of the motor, and the full scale is 1000 = 100% torque output. 2)Current feedback: The servo working current, 1 = 6.5mA 3)Voltage feedback: The servo working voltage,70=7V，0.1V 4)Temperature feedback: internal working temperature of current servo(measuring temperature)。 5)Speed feedback: feedback the speed of current motor rotation, and the number of steps in unit time (per second) 50steps/second=0.732RPM 1 step=0.088° 88 °/second=1000 steps/second=About 15RPM 1RPM=6°/second。 0.1Sec/60°=10/0.10RPM=100RPM 9、Open PID parameters.

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

1. who are we?
We are based in Guangdong, China, start from 2011,sell to North America(30.00%),Domestic Market(30.00%),Western Europe(8.00%),Eastern Europe(8.00%),Eastern Asia(5.00%),Oceania(5.00%),Africa(4.00%),South America(2.00%),Southern Europe(2.00%),Southeast Asia(2.00%),South Asia(1.00%),Central America(1.00%),Northern Europe(1.00%),Mid East(1.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
PWM Servo; Serial Bus Smart Servo; Servo Spare Parts; DIY Robot Chassis

4. why should you buy from us not from other suppliers?
Dear friend, Good day! "Quality is our culture." Welcome know more about FEETECH 1.Our regular products can be customized in various colors, 2.We provide one-year warranty and lifetime service for customers. 3. Accept third-party inspection se
