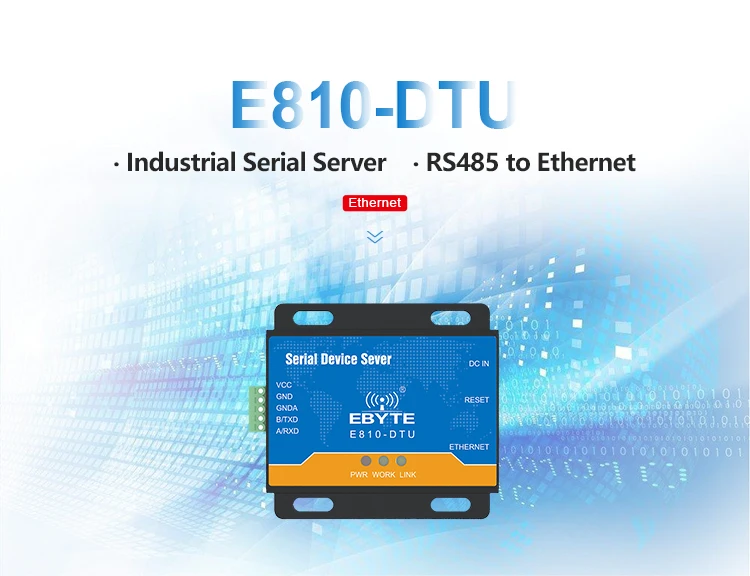

Ebyte Multi Purpose E810-DTU(RS485)-V2.0 Ethernet to RS485 and RS485 to Ethernet Converter Transparent Transmission Serial Serve
| Serial No. | parameter name | Parameter value |

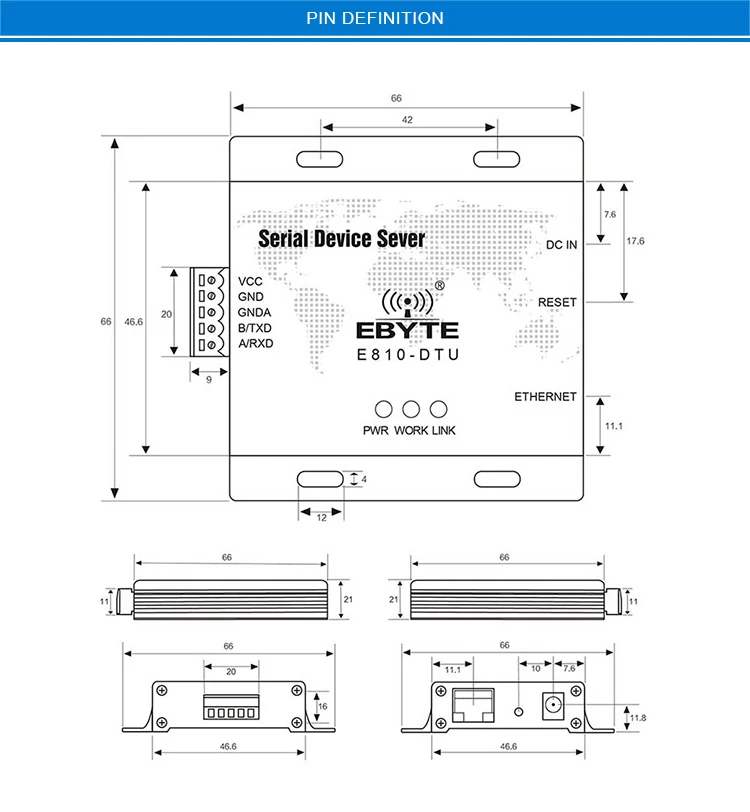

| 1 | Module size | 66 * 66 * 21.6mm |
| 2 | Average weight | 79 ± 1g |
| 3 | PCB process | 2-layer board, lead-free process, machine sticker |
| 4 | Interface method | RS485 / RS232: 1 * 5 * 3.81mm, crimping method |
| 5 | Supply voltage | 8 ~ 28V DC, note: higher than 28V will cause permanent damage to the module |
| 6 | Serial standard | 1200 ~ 256000bps |
| 7 | Serial communication level | 3.3V, if connected to 5V, level conversion is required |
| 8 | Network port specifications | RJ45, 10 / 100Mbps |
| 9 | Network protocol | IP, TCP / UDP, ARP, ICMP, IPV4 |
| 10 | How to obtain IP | Static IP, DHCP |
| 11 | DNS | stand by |
| 12 | User configuration | PC software configuration, AT instruction configuration |

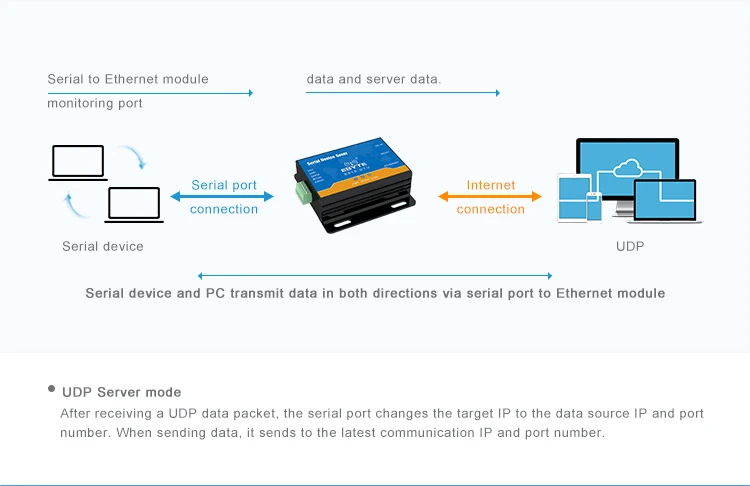

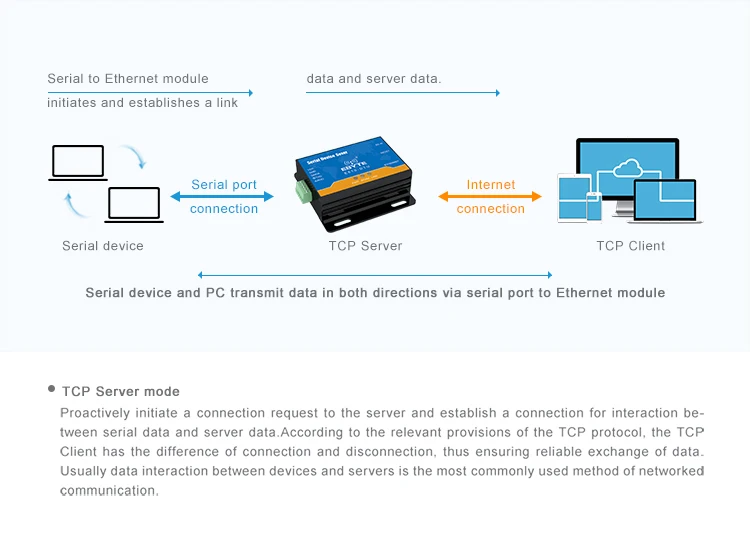

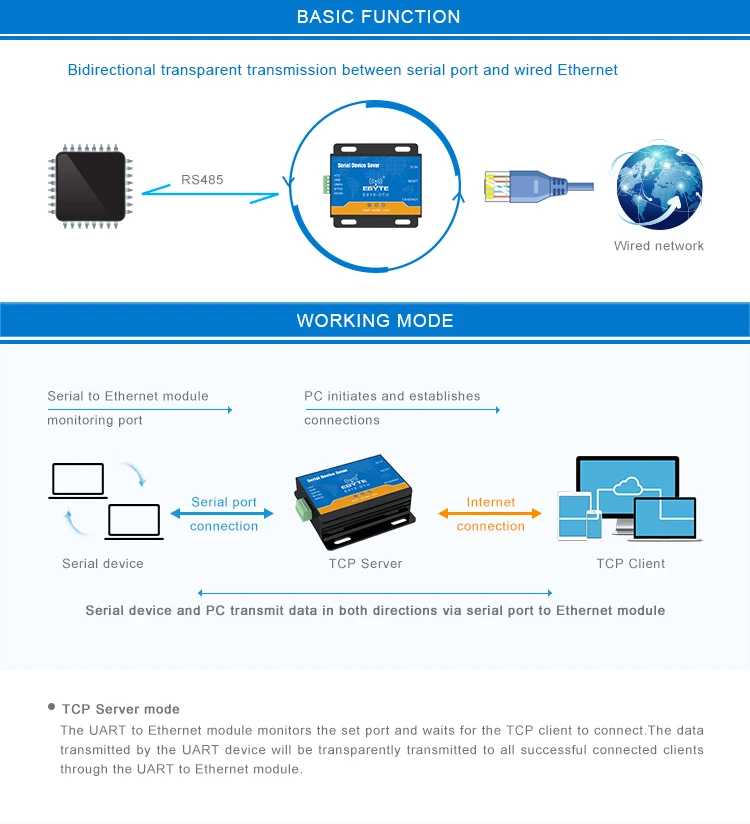

| 13 | Simple transparent transmission method | TCP Server, TCP Client, UDP Server, UDP Client |
| 14 | TCP Server connection | It supports up to 6-way TCP connection |
| 15 | Supporting software | Parameter configuration software |
| 16 | Packaging mechanism | 200-byte packed length |
| 17 | Working current | 77.0314mA@12V (RS485), 74.5635mA@12V (RS232) |
| 18 | Operating temperature | -40 ~ + 85 ℃, industrial |
| 19 | Working humidity | 10% to 90% relative humidity without condensation |
| 20 | Storage temperature | -40 ~ + 125 ℃, industrial |
