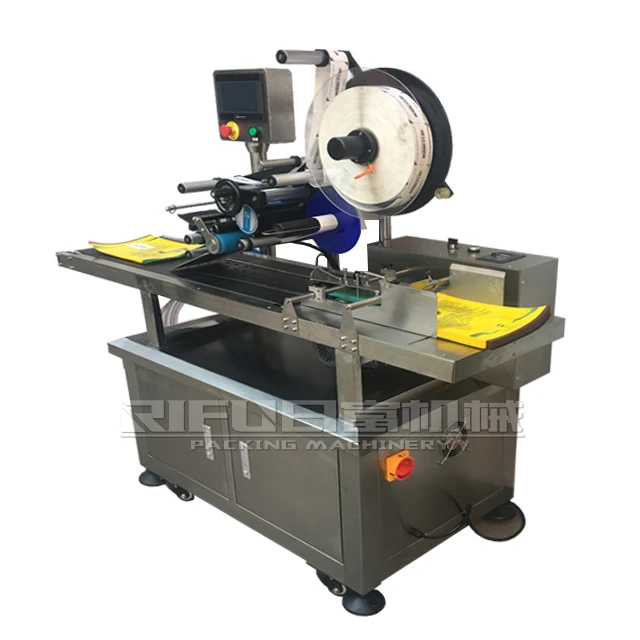

egg carton label applicator top three sides labeling machine

FOB Reference Price:Get Latest Price
$4,000.00 - $8,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
300B
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Packaging Type:
Cartons
Packaging Material:
Plastic, Wood
Type:
Labeling Machine
Condition:
New
Application:
Food, Beverage, Commodity, Medical, Chemical, Machinery & Hardware, Apparel, Textiles, bottles
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/50HZ
Power:
1.5KW
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
RIFU
Dimension(L*W*H):
2000*800*1600 L*W*H (mm)
Weight:
230kg
Certification:
CE ISO
Name:
Easy operating labeler machine for round square bottle
Other name:
label applicator
Product name:
round and square bottle labeler
Usage:
Adhesive Labels Bottles
Function:
Ahesive Sticker Labeling
Bottle type:
Round Square Flat Pet Bottle
Labeling speed:
60-200pcs/min
Material:
Stainless Steel
Advantage:
Economy Labeling Machine
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.outside package:Standard export wooden cases
2.Inner package:Stretch film
Port
GuangZhou Port
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Product Description

3 sides labeling machine automatic vertical label applicator for square bottles cosmetic shampoo

1.can be applied to the round and square bottle labeling of industries such as pharmacy , food , daily chemical and the like.

2.Optional automatic rotary bottle uncrambler machine, can be directly connected to the front production line, automatic bottle feeding into the labeling machine, increase efficiency

3.It can be equipped with ribbon printer machine, which can print production date and batch number on line, reduce the packaging process of bottle and improve production efficiency.

Model
RF-300B
Label length
10mm~300mm
Label width
10mm~150mm
Bottle diameter
20mm~φ100mm
Bottle height
20mm~250mm
Roll Label outer diameter
300mm~350mm
Roll Label inner diameter
70mm~75mm
Accuracy
±1mm
Label speed
30~120pcs/min
Conveyor speed
5~25m/min
Suitable label type
Adhesive sticker label(Transparent lable is available)
Working air pressure
0.4-0.6Mpa
Voltage
220VAC ±10 50HZ
Power
1500W
Weight
230KG
Overall dimension
2000mm×800mm×1500mm

Main Features

1) Wide application range, can meet the needs of all round bottle labeling or sqaure bottle labeling, labeling switching between the bottle is simple, easy to adjust

2) The label accuaracy is good, the label detour adopts the rectifying mechanism, the tape does not deviate, the labeling position and the inclination are adjustable, and the adjustment has no dead angle.

3) The label quality is excellent, adopt the elastic press cover belt, the label is flat, no wrinkle, improve the packing quality.

4) The application is flexible , the bottle standing type labeling machine is provided with an automatic bottle separating function , can be produced in a single machine , and also can be connected with the production line.

5) Intelligent control , automatic photoelectric tracking , non - labeling , non - standard automatic correction and label auto - detection , prevention of leakage and label waste.

6)High stability, The supporting equipment runs 7 × 24 hour,Mitsubishi PLC,Weinview tochscreen,KEYENCE bottle sensor,Leuze high accuracy label sensor.

7)The adjustment is simple , the labeling speed , the conveying speed and the bottle separating speed can realize stepless speed regulation , and the adjustment is carried out according to the requirement.

8)Strong and durable, adopt three bar adjusting mechanism, make full use of the stability of triangle, the whole machine is solid and durable. It is made of full ss304 stainless steel,which is in line with the requirements of GMP production.

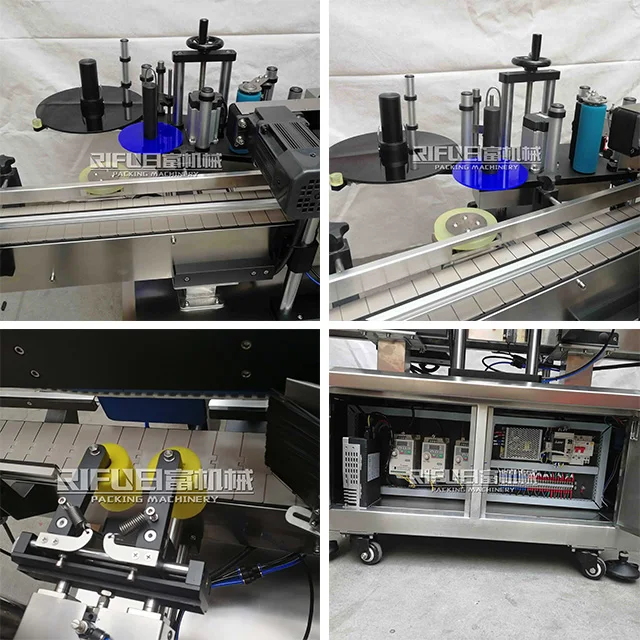

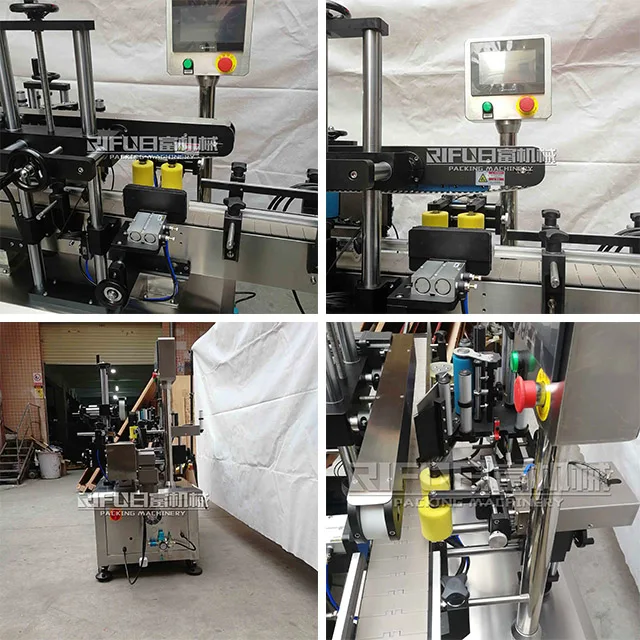

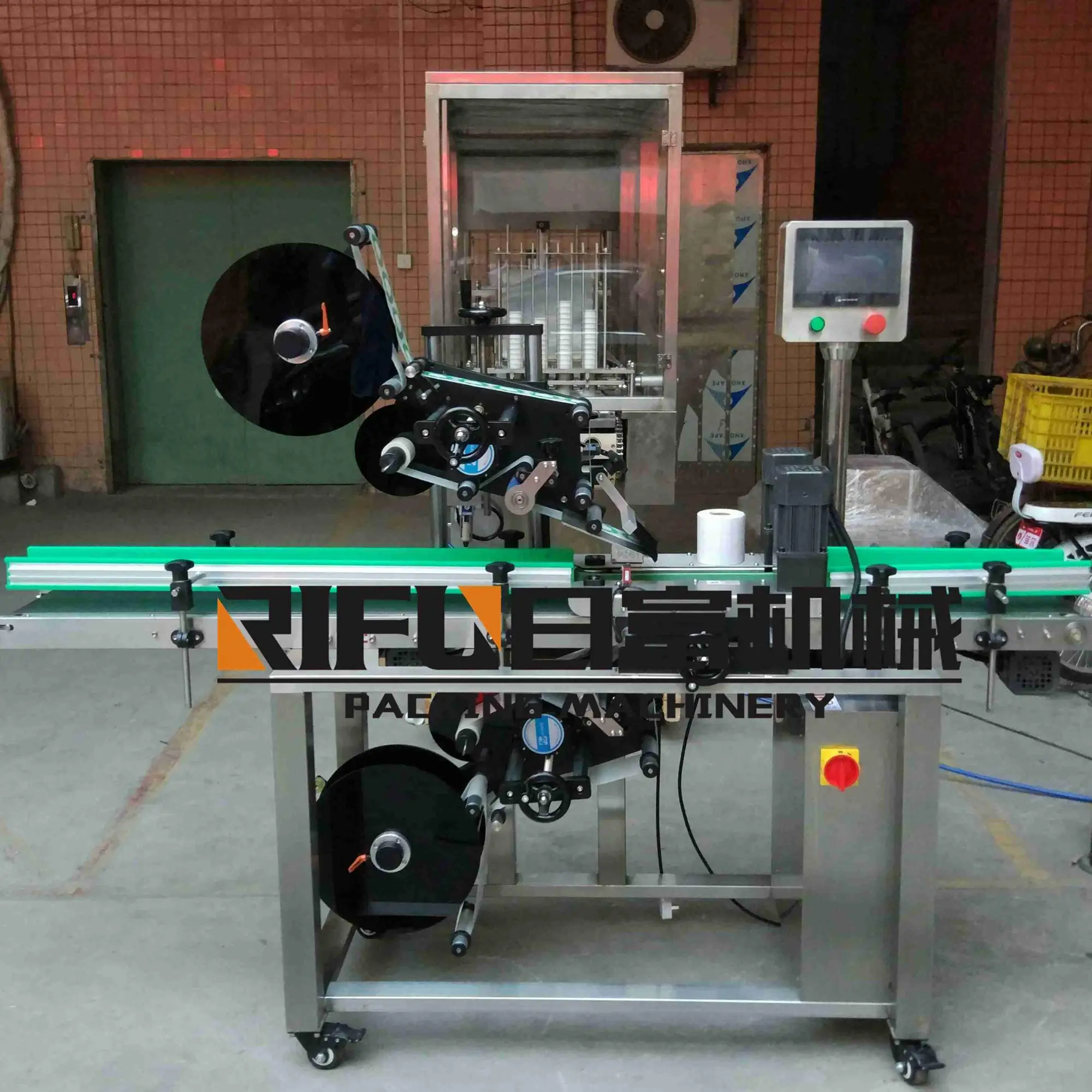

Detailed Images
Packing & Delivery
Certifications
Our Company
Our Service
Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

FAQ

Q1: Are you a trading company or a manufactory?

A1: We are a manufactory, we supply the factory price with good quality, welcome to visit !

Q2: What's your guarantee or the warranty of the quality if we buy your machines?

A2: We offer you high quality machines with 1 year guarantee and supply life-long technical support.

Q3: When can I get my machine after I paid?

A3: The delivet time is based on the exact machine you confirmed.

Q4: How do you offer technical support?

A4: 1.Technical support by phone, email or MSN/Skype around the clock

2. Friendly English version manual and operation video CD disk

3. Engineer available to service machinery overseas

Q5:How do you work your after sales service?

A5:Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.

And You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.

Q6: How about the spare parts?

A6: After we deal down all the things , we will offer you a spare parts list for your reference.
