exported to Europe good quality high technique hydraulic cnc manual sheet bending machine

FOB Reference Price:Get Latest Price
$29,900.00 - $30,500.00 / Pieces | 1 Piece/Pieces (Min. Order)
Model Number:
KCN-16040 DA52S
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
KINGBALL
Machine Type:
Beading Machine
Raw Material:
Steel Bar
Material / Metal Processed:
Stainless Steel
Power:
CNC
Automation:
Automatic
Extra Services:
Machining
Certification:
ce
Year:
2019
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Warranty:
2 Years
Key Selling Points:
Competitive Price
Color:
Customer Choose
Packing:
plastic
Usage:
Metal/Aluminum/SS Sheet Bending
Type:
Cnc Auto Bending Machine
Size:
4500x1920x2700
Product name:
electro hydraulic Synchronous cnc Bending Machine
Control system:
DA52S
Motor power:
11Kw
Material thickness:
4.9mm
Bending material:
metal plate
Weight:
12000 kgs
Supply Ability
Supply Ability:
100 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
press brake machine is normally packaged by plastic,toolings are packaged by wooden case.
Port
shanghai port
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Product Description

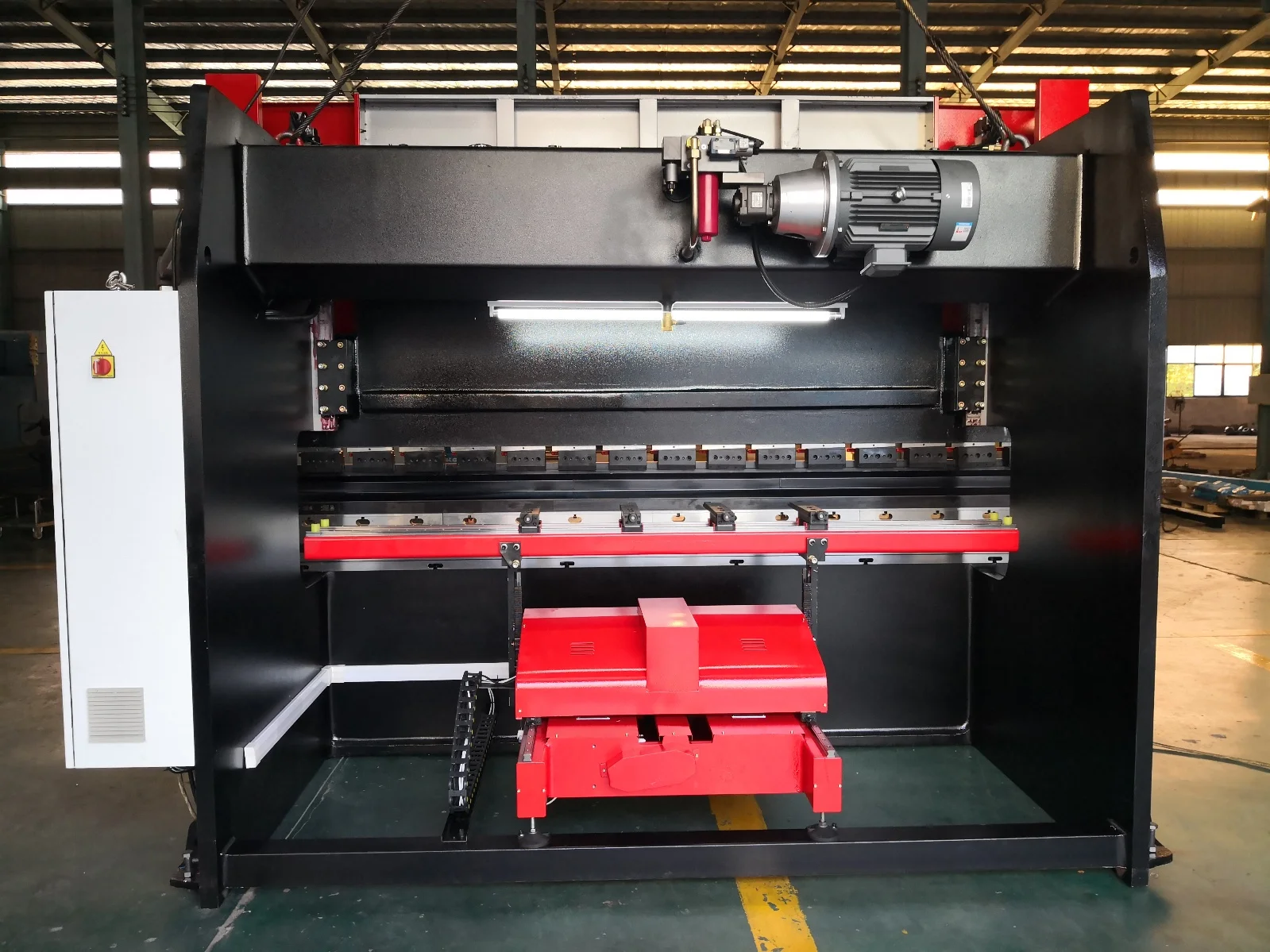

exported to Europe good quality high technique hydraulic cnc manual sheet bending machine

Model: KCN-16040

4+1 Axis CNC Control(X,Y1,Y2,R,W)

X: Backgauge front and back; Y1,Y2, : Left and right oil cylinder stroke

R : Backgauge up and down; W: Worktable crowning

Main functions and features


●Overall welded and processed structure.

●Electric hydraulic proportional servo synchronization, ensuring repeated accuracy.

● Within one stroke, bending pressure can be controlled at random point, repeatability precision±0.01, parallelism 0.02.

● Lower worktable has crowning device to anti deflection & upper tool has wedge compensation device.

●Netherlands Delem CNC control system, grating ruler, Rexroth hydraulics, servo motors and other accessories of famous brand are installed for perfect machine performance.

● Ram stroke(Y1, Y2),backgauge (X, R) are controlled by CNC controller while ball screw and linear guide rail installed for high repeatability precision.

●Imported ball screw and linear guide are used for rear stopper, to ensure the positioning precision of rear stopper, for processing precision of machine to be higher.

Technical Parameters
Items of press brake machine
Parameter
Unit
Nominal pressure
1600
KN
Table length
4000
mm
Max.Slider stroke
200
mm
Max.Shut height
460
mm
Between columns
3200
mm
Throat depth
400
mm
Main motor power
11
KW
Down Speed
180
mm/s
Pressing Speed
12
mm/s
Return Speed
160
mm/s
Control axis
X+Y1+Y2+R +W
/
X axis Stroke
500
mm
X axis Speed
300
mm/s
R axis Stroke
150
mm
R axis Speed
50
mm/s
Backgauge Stoppers
2
/
Overall dimension (LxWxH)
4500x1920x2700
mm
Machine weight
12000
KGS

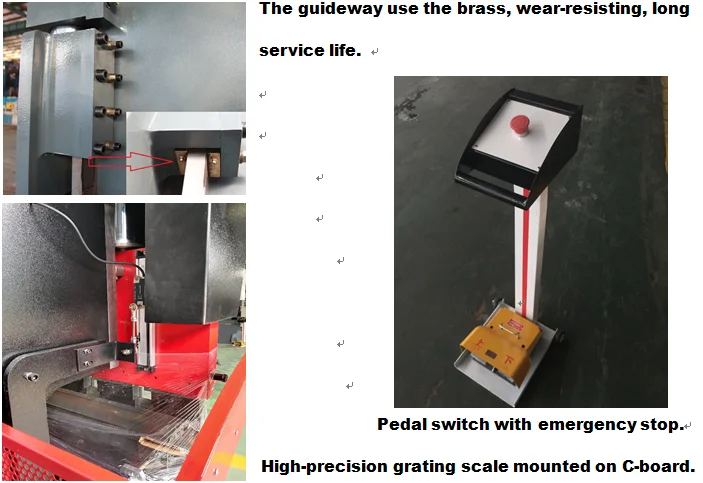

Detailed Images

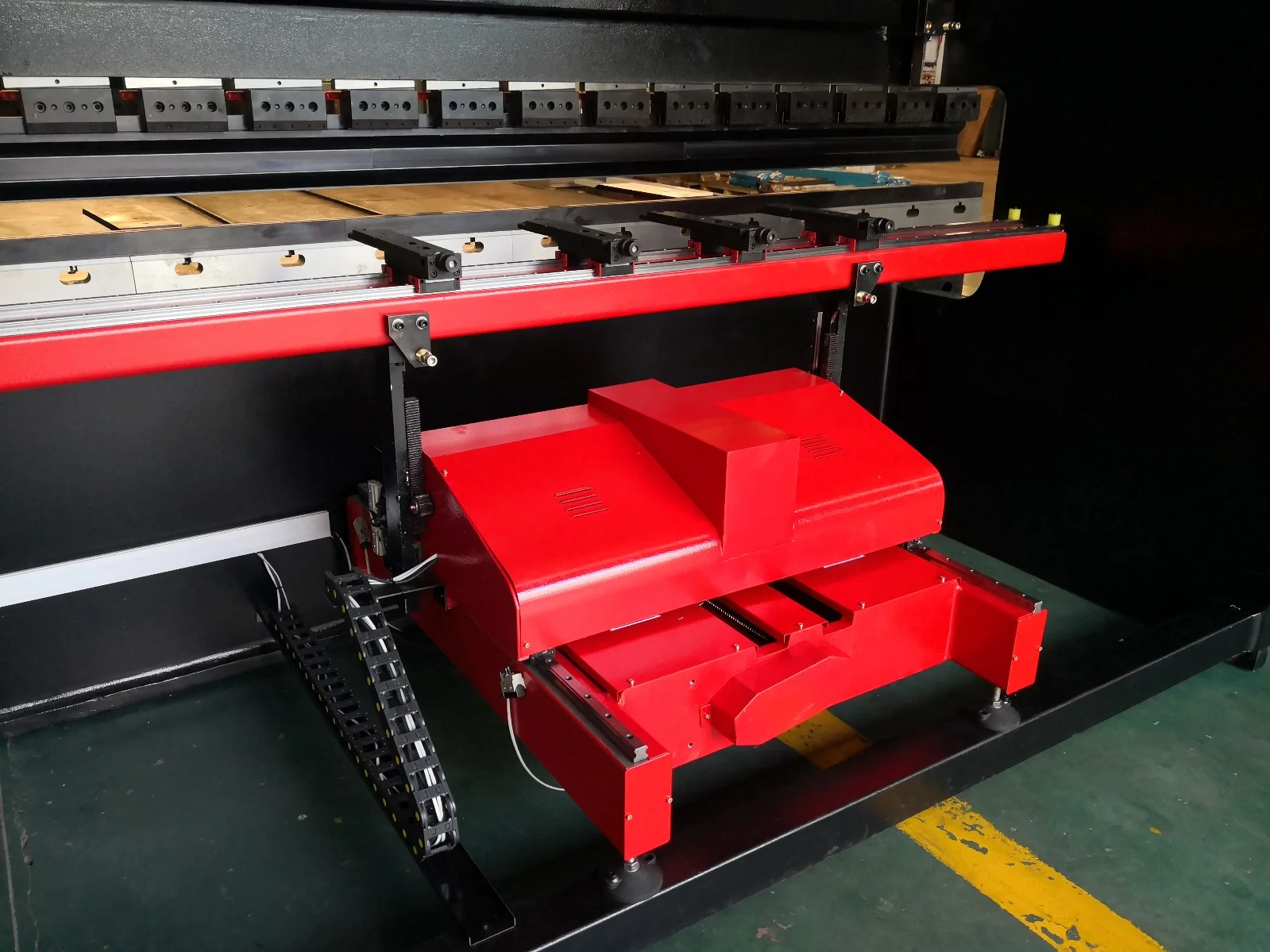

Backgauge with ball screw and linear guide, high precision, fast speed and low noise.

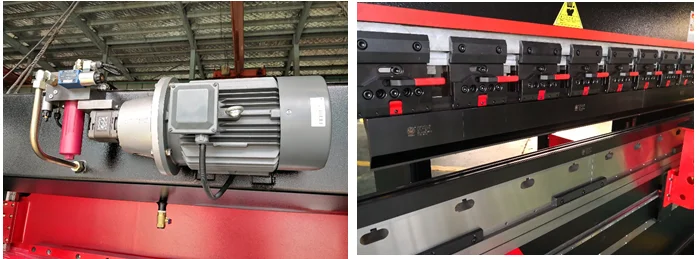

Siemens main motor German brand.                                                        European style quick release clamping
Sunny pump USA brand.
Rexroth valve German brand.

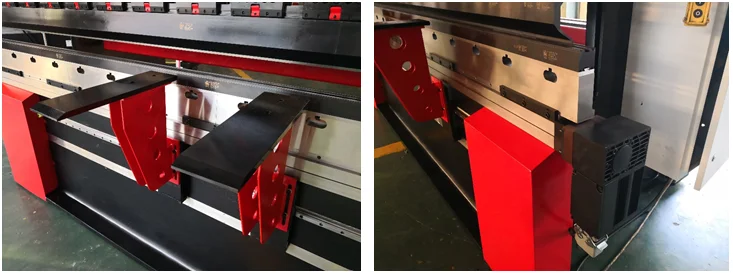

Double sliding front support arm installed High precision electric table crowning.

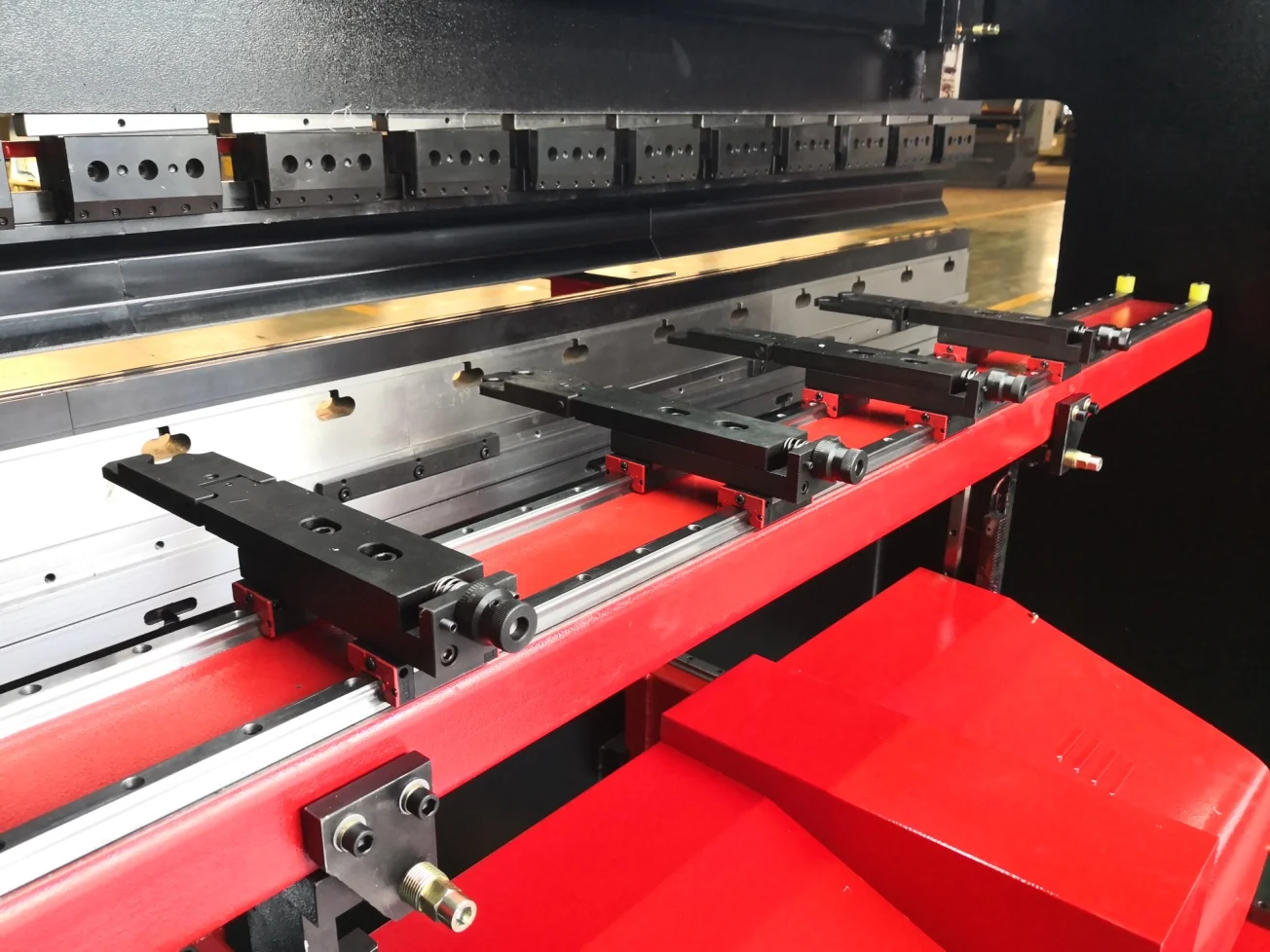

The stopper move left and right on two linear guides.

Main configuration
Name
Producer
CNC controller
DA52S           Netherlands                               brand
Main motor
Siemens  Germany brand
Electrical components
Schneider   France brand
Gear pump
Sunny             USA brand
Seal ring
NOK              Japan brand
Hydraulic system
Boschrexroth     Germany                                  brand
Ball screw ,Linear guide
HIWIN          Taiwan brand
Grating ruler
GIVI                   Italy brand
Tubing connector
EMB          Germany Brand
Servo Motor and drive
Thinkvo          China brand
Controller

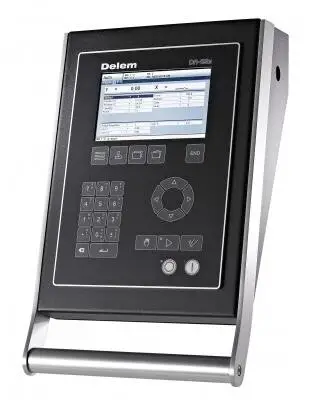

DA52s CNC Controller:

1,Quick, one page programming

2,Hotkey navigation

3, 3.7" VGA colour TFT

4,Up to 4 axes (Y1, Y2, and 2 auxiliary axes) Crowning control

5,Tool/material/product library

6,USB, peripheral interfacing

7,Advanced Y-axis control algorithms for closed loop as well as open loop valves

The standard accessories are in the below:

Anchor bolt

Hex nut

Seal ring

Gasket

Grease gun

Allen wrench

Foot switch

Front support arms

Electrical box key, control panel key

Operation manuals

Our Customers
Our Certificate
Our Service

Pre-sales services:

1. inquiry and consulting support

2. sample testing support

3. visit our factory



After-sales services:

1. 2 years warranty period

2. training how to install and use the hydraulic cnc press brake machine

3. engineers available to service machinery overseas
