ezcap284 1080P HD HDMI Video Capture, Game Recorder with remote control support video streaming

FOB Reference Price:Get Latest Price
US $42-50 / Unit | 50 Unit/Units HD 1080P Video Capture (Min. Order)
Supply Ability:
60000 Unit/Units per Month HD 1080P Video Capture
Port:
Shenzhen
Overview
Quick Details
Brand Name:
ezcap
Model Number:
ezcap284
Place of Origin:
Guangdong, China (Mainland)
Interface:
USB 2.0 Host, SD Card
Video Input:
HDMI,Component Video, Composite Video
Audio Input:
HDMI,RCA L/R, 3.5mm MicroPhone In
Video Output:
HDMI (Pass-through from HDMI or Component or Composite Input)
Audio Output:
HDMI,3.5mm Stereo
Storage Media:
USB Flash Disk, Portable Hard Disk, SD Card
Max Capacity:
USB / 2T, SD / 64G
Max Resolution:
Input / Pass-through:1920 x 1080 (60p),Capture: 1920 x 1080 (30p)
Record Format:
Video: MP4, Audio: AAC Stereo
Name:
HD 1080P Video Capture
Packaging & Delivery
Packaging Details
20 units/Carton,
Carton size:42.5*24*32.5cm
G.W.:10KG.
Color box:15.4*10.7*8.1cm 450g
Delivery Time
Samples:1day, Below 1000pcs:15days, below5K:25-35days

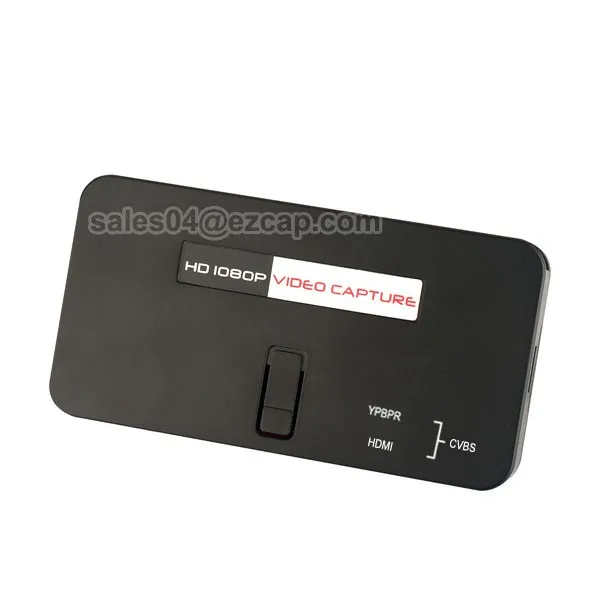

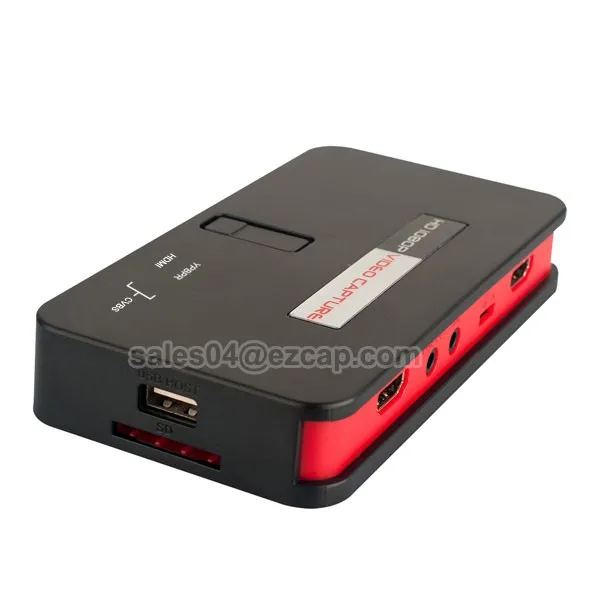

ezcap284 HD 1080P Video Capture Box with remote control;

Support video streaming



Overview:
The ezcap284  HD 1080P Video Capture is a box that records and streams your gameplay up to 1080P. Designed specifically for game lovers, this size capture device comes with on-board H.264 hardware encoder, which guarantees lower CPU usage and smaller file size even for full HD footages, not to mention the file format is extremely easy to work with for post-editing and uploading. The HDMI pass-through function guarantees smooth HD gaming experience even while recording. On top of that, it can be directly connected to streaming platforms; you can even add live commentary when streaming up. From now on, sharing your legendary matches is no longer a dream.

It provides the flexible connectivity with HDMI,Component and Composite  inputs, which makes it applicable to all the mainstream gaming platforms, including Xbox 360 & One, PlayStation 3 & 4 Wii U. Even better, it's no PC enquired, Simply One click on the Record Button, 1080p recording is done right away.



Can get more functions with Remote Control: Select Video Source, Record/Stop, Select 720P/1080P recording quality for 1080 video input,SnapShot.



Suppor streaming your HD Video to Twitch, YouTube, Bitbox, beam, Facebook Liv etc when you record the video.

Features:

- 1080P recording with one click, no PC required. Easy to use, no any set-up. You just click RECORD button to record your gameplay.

- More video input choice: HDMI, Component Video(YPBPR), Composite Video(AV). With 1080P HDMI Passthrough, you can playing HD gameplay when you're recording it. Also with MIC in, can record voice with game together.



- Both USB Flash Disk and SD Card - more memories choice!

Can get more functions with Remote Control: Select Video Source, Record/Stop, Select 720P/1080P recording quality for 1080 video input,SnapShot.

Good Heat-dissipation design: the large areas of tiny holes ensure the stability of device for long-term operation and greater the raliability and longer service life.



- Portable design - 140(L) × 74(W) × 23(H) mm,bring it out of your room and share the gameplay and fun with your friends anywhere.


- With 1080P HDMI pass through, you can play HD gameplay when you're recording it.

- With RTC(Real Time Clock) function, manage recording files easily.

- Included video editing software, you can do editing and converting easily!






Specifications:

Connections
Interface USB 2.0 Host, SD Card
Video Input Digital: HDMI
Analog: Component Video, Composite Video
Audio Input Digital: HDMI
Analog: RCA L/R, 3.5mm MicroPhone In
Note: Microphone without pass through fo HDMI input
Video Output Digital: HDMI (Pass-through from HDMI or Component or Composite Input)
Audio Output Digital: HDMI (Pass-through from HDMI or RCA L/R Input)
Analog: 3.5mm Stereo (Pass-through from HDMI or RCA L/R Input)

Applicable Connections with Game Consoles
HDMI WiiU, Xbox 360, Xbox One, PS4
Component WiiU, Xbox 360, PS3
Composite WiiU, Xbox 360, PS3
Note: HDCP contents cannot be recorded.

Hardware Extra
Codec Hardware H.264 encoder
User Interface On-board Hot Button for one-click recording
LED indicator for working status
Dimensions 140(L) × 74(W) × 23(H) mm
Weight 115g

Package Contents
Device ezcap284 HD Video Capture W/Remote
Others AV cable adapter, MINI USB Power Supply, Remote Control, Software CD, Manual

Standards
Storage Media USB Flash Disk, Portable Hard Disk, SD Card
Max Capacity: USB / 2T, SD / 64G
Note: The exFAT format is not supported.
Resolution

Input / Pass-through:

720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p),

1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p),

1920 x 1080 (30p), 1920 x 1080 (50p), 1920 x 1080 (60p)

Capture:

720 x 480 (60p), 720 x 576 (50p), 1280 x 720p (50p), 1280 x 720p(60p),

1920 x 1080 (50i), 1920 x 1080 (60i), 1920 x 1080 (24p), 1920 x 1080 (25p),

1920 x 1080 (30p), 1920 x 1080 (25p), 1920 x 1080 (30p)

Note: Upscaling is not supported.
Record Format Video: MP4, Audio: AAC Stereo
Record Quality Max: 18Mbps@1080P 30fps
Record File Max: 2GB / Per File, With RTC (Real Time Clock)
Record Place Max: 140MB / Minute, 8.4GB / Hour
Power Supply USB DC 5V / 2A
Applications

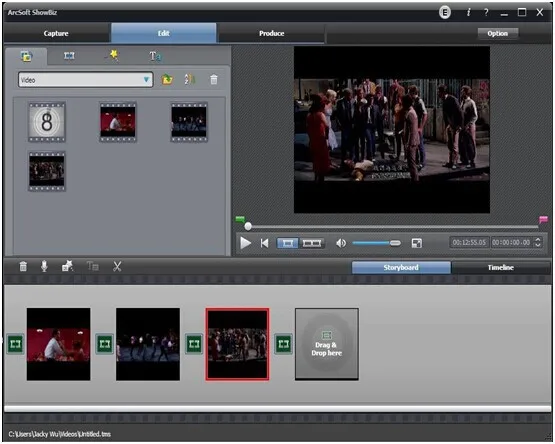

Software Arcsoft Showbiz
Video Editing Timeline / Storyboard edit, Split / Divide Scenes, Multi Trim Scenes …
Video Export Upload to YouTube
Portable Device: iPod, iPhone, iPod Touch, Apple TV, PSP, PS3, Xbox
File: MPEG 1 / 2 / 4, WMV HD, Quicktime (MOV) …
Operating System Windows 8 (32 / 64 bit), Windows 7 (32 / 64 bit), Windows Vista (32 / 64 bit)
CPU Intel Core 2 Duo 2.8GHz, AMD Athlon 64X2 Dual Core 3.0GHz
Memory 4 GB RAM
Graphics Card VGA card with support for DirectX 10.0c or above



Package Contents:
- ezcap284 HD 1080P Video Capture
- Component/Composite video audio connection adapter
- Power supply adapter - Mini USB, 5V/2A
- Manual
- Video editing software CD

- Remote Control
