factory price Marble mosaic waterjet cutting machine

  • 1 - 4 Sets
    $37,900.00
  • >=5 Sets
    $33,800.00
Model Number:
WMT2515-AL marble cutting machine
Working Area:
2500*1500mm marble cutting machine
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
marble cutting machine (Min. Order: 1 Sets) Less
Samples:
$33,800.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, restaurant, HOME USE, Retail, Food Shop, Printing Shops, Construction works , Food & Beverage Shops, Advertising Company, marble cutting machine
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
UNITED KINGDOM, United States, VIET NAM, Mexico, RUSSIA, malaysia, Australia, Morocco, south africa
Showroom Location:
UNITED KINGDOM, United States, VIET NAM, indonesia, Mexico, RUSSIA, Morocco, CHILE, south africa, malaysia, Australia
Condition:
New
Type:
Stone cutting machine
Use:
stone
Production Capacity:
30sets/month
Place of Origin:
Shandong, China, Shandong, China (Mainland)
Brand Name:
WAMIT
Voltage:
220V/380V/415V
Dimension(L*W*H):
2700*1700mm
Weight:
3500kg
Certification:
CE ISO
Warranty:
2 years
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Key Selling Points:
Easy to operate
Product Name:
marble mosaic waterjet cutting machine
Continuous Working Pressure:
350-380mpa
Working area:
2500*1500mm
Cutting accuracy:
±0.1mm
Max pressure:
420mpa
Power Requirement:
(415v/50hz), 380V/50HZ, ( 220v/60hz), 3 phrase
linear guider:
imported from TAIWAN HIWIN
Way of drive:
servo motor and driver
Color:
Green and white
Power:
42kw
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
soft packing or wooden case in 20'FCL
Port
Qingdao port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
Video Description
Product Description


China top quality Marble Mosaic waterjet cutting machine

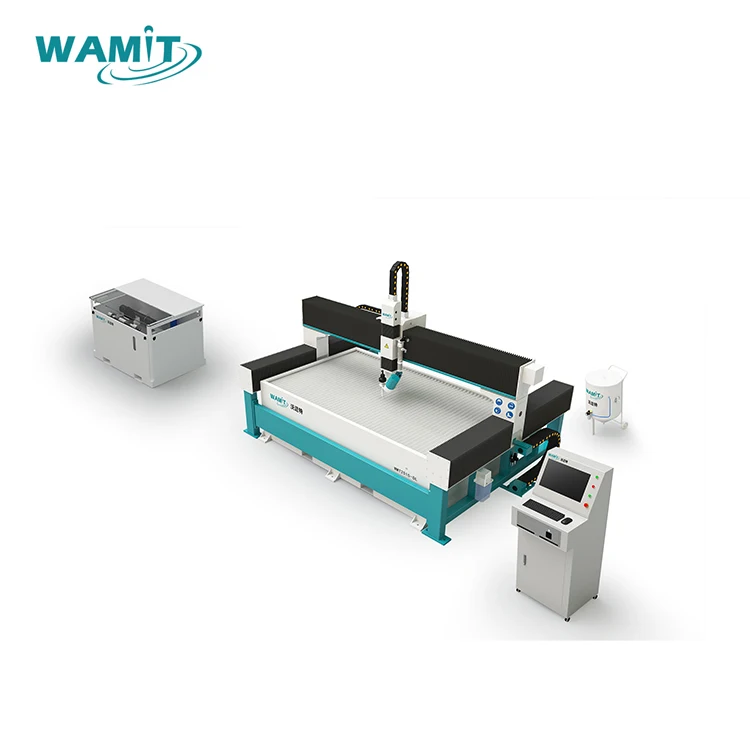

A full set of abrasive waterjet cutting machine includes work table, pump,CNC controller, High pressure system with cooling system, Auto abrasive feeder, Water treatment and Abrasive removal system,etc.
Equipment framework adopts supper heavy support system. The heavy-duty support of the equipment is rigid enough to ensure the stability under long-span and high-speed operation. With a multi-point fixing method in the length direction of the frame, there is no any deformation displacement during operation, which ensure the cutting accuracy.

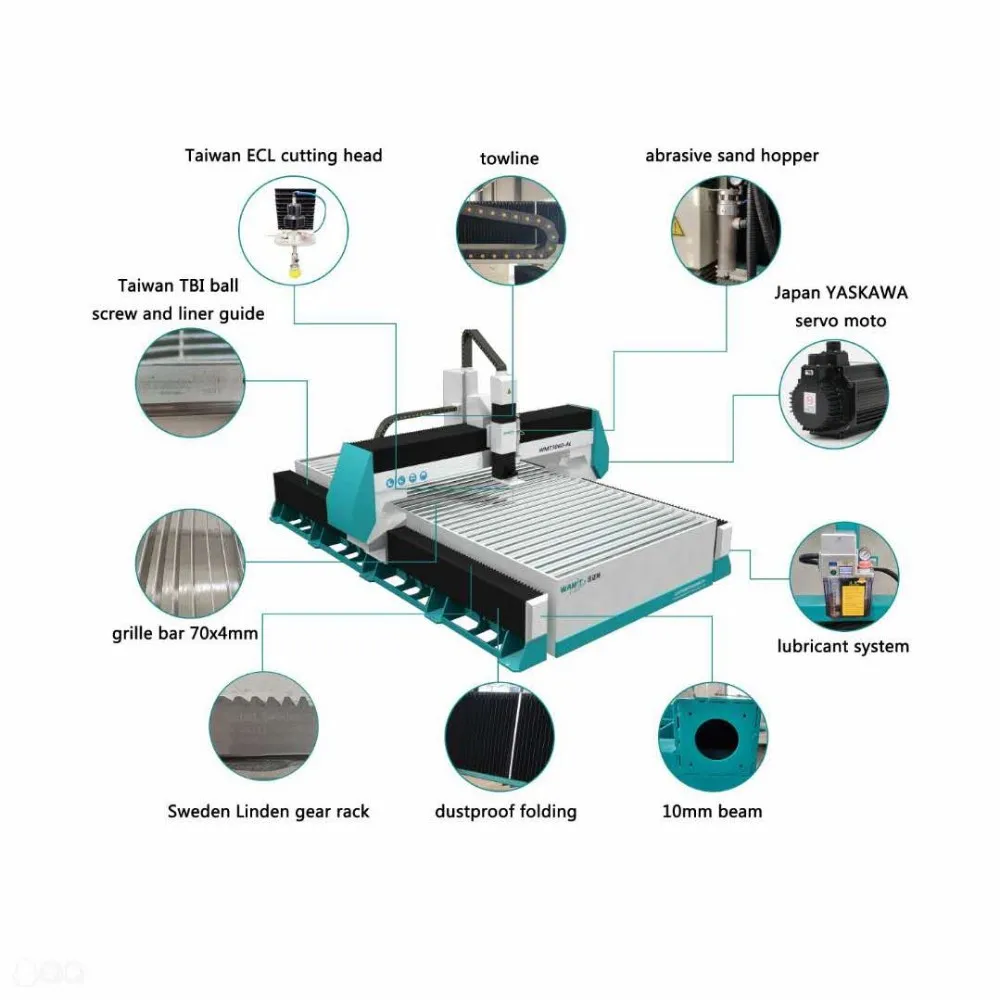

Main Features

1. Gantry type balanced design work table, solid and stable, higher strength
2. Work table of CNC motion mechanism and workpiece supporting adopts a split structure, which eliminates the influence of water gushing on cutting precision during cutting
3. X-axis,Y- axis use high quality LINDEN SWEDEN rack and pinion, HIWIN rail, which ensure the accuracy of bearing parts, stable conveying, hard-wearing quality. During cutting, it causes splashing sand and water. Fully enclosed lifting structure design in Z-axis prevents corrosion of lead screws and guides.
4. Integrated automatic lubrication system make the maintenance more automatic and easier.
5. All electric components are Schneider brand
6. Equipped with YASKAWA AC servo drive power and motor ( Japan brand), high accuracy, long service life.

Size
Can be customized to any size, mini platform or ultra-large platform or other size can be customized.
SPECIFICATIONS FOR WATER JET CUTTING MACHINE
Model
WMT 1010
WMT 2050
WMT 3020
WMT 3080
WMT 5030
Cutting table
X axis(mm)
1200
2200
3200
3200
5200
Y axis(mm)
1200
5200
2200
8200
3200
Max.cutting range(mm)
X axis(mm)
1000
2000
3000
3000
5000
Y axis(mm)
1000
5000
2000
8000
3000
Z axis(mm)
250
250
250
250
250

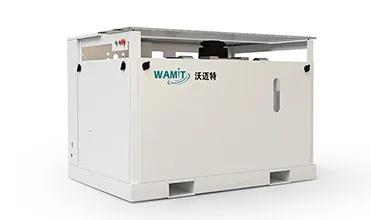

Intenisfier pump


Maintenance free accumulator is imported from TAIWAN.
Intensifier assembly are imported from USA.
 With SIEMENS motor and SIEMENS PLC and the motor is variable pump so that can reduce using cost.
All electric components are Schneider brand.

                                                 SPECIFICATIONS FOR HYRAULIC INTENISFIER PUMP
Max. Oil Flow Rate
90 L/min
Max. Water Flow Rate
3.7L/min
Max. Diameter Of Orifice
0.33mm
Max. Operating Pressure
420MPa(60000 psi)
Continuous Operating Pressure
350-380MPa
Power
37KW(50HP)
Type of shift
Electronic
Accessory equipment

CNC control system

CNC control, apply 21 inch LCD
 Adopt specialized NCStudio water jet cutting software, have autosave function for next operation.
Apply SIEMENS PLC instead of relay, buttons are Schneider


Abrasive feeding system

 No need electronic control, simple operation, reliable, maintenance-free
Can supply the cutting sand quantity
Need less than 0.2Mpa compressed gas pressure

Desanding system

Optional equipment.The desanding system provides a solution for the problem of removing waste sand of water jet cutters for users all over the world.

Production Process

Heat treatment

620 degrees in the furnace for 5 hours, down to 300 degrees for 3 hours, then naturally cooled in the furnace.eliminate internal stress in the welded frame.no deformation occurs during frame use,guarantee better cutting precision.

Shot blasting and powder coating

Remove impurities such as surface oxide scale to improve appearance quality.it can improve the fatigue fracture resistance of materials, prevent fatigue failure, plastic deformation and brittle fracture, and improve fatigue life.

Test

Test the straightness and parallelism of linear guide rail with precision measuring instruments.

Guaranteed higher precision when the equipment is running after the linear guide rail is installed.

Calibration

Calibrating equipment precision with a laser interferometer.guaranteed more accurate cutting precision.

Cutting Speed
                                 Material
                                Specification
Speed(mm/min)
Servo direct drive pump
Hydraulic intensifier pump
                                                                                                                                                                                     Carbon steel plate
10mm
330
270
12mm
280
220
14mm
240
180
16mm
200
140
20mm
170
110
22mm
140
85
                                          Aluminum plate
12mm
800
600
30mm
200
160
                                                                                                                                      Glass
5mm
2000
1600
8mm
1800
1400
10mm
1500
1100
12mm
1200
900
14mm
1000
700
                                   Ceramic tile
12mm
2000
1500
14mm
1400
900
Microcrystal stone
16mm
1200
900
                                            Marble
25mm
1000
800
30mm
800
600
Our Customer
Packaging & Shipping
FAQ

1. Are you manufacturer or trading company?

We are manufacturer of water jet cutting machine in JINAN city, Shandong, China.

2. What kind of material does your water jet cutting machine can cut?

There are plenty materials our water jet cutting machine can cut, such as stone, ceramic, quartz, glass, foam, plastic, rubber, copper, brass, aluminum, mild steel, pre-hardened steel, titanium, inconel and cast alloy.

3. What's your CNC water jet cutting machine's max. cutting thickness?

Generally speaking, if cut steel the max thickness of our water jet cutting machine can be up to 240mm, but we suggest cut no more than 150mm for smooth cutting. Now our Z axis distance is 170mm, we can customize for customers. Regular thickness please refer to: Marble is 0-120mm; granite is 0-110mm; tiles are 0-40mm; glass and mosaic is 0-80mm; steel, stainless steel, copper is 0-60mm; aluminum is 0-80mm; plastic, acrylic, foam is 0-200mm.

4. How we supply after-service?

Some countries we have after-service department, we will provide local service, if have no local service, we will arrange engineer for overseas installation and training. The installation and training time is generally 7-10 days. And we also can provide installation videos.

5. What's your delivery time?

Generally speaking is 30 days. if have stock, 7-15 days.
