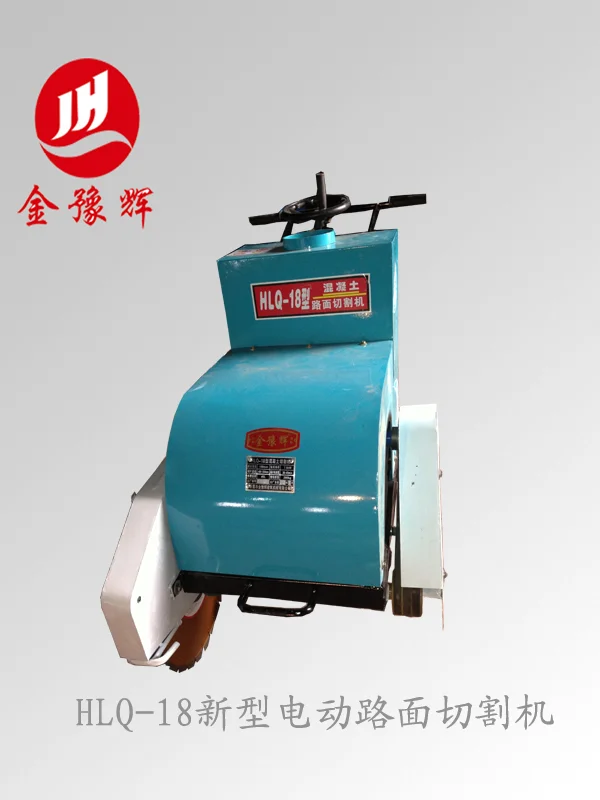

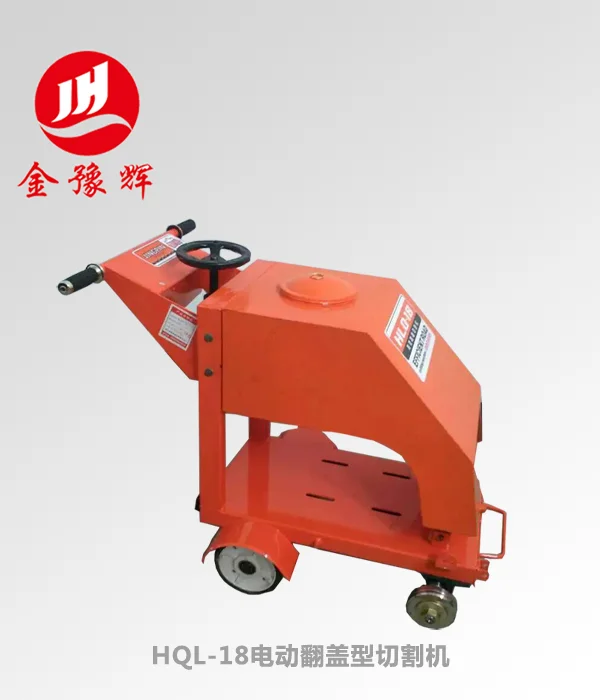

factory price road cutting machine

FOB Reference Price:Get Latest Price
$250.00 - $300.00 / Pieces | 1 Piece/Pieces road cutting machine (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Cutting Depth:
180mm
Power(W):
7.5kw
Rotary Speed:
36--49(rpm)
Power Source:
Electric
After-sales Service Provided:
Engineers available to service machinery overseas
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Jinyuhui
Model Number:
HLQ-18
Diameter of Blade:
400-550mm
Voltage:
380V
Weight:
110KG
Dimension(L*W*H):
1500mm*700mm*1000mm
Certification:
ISO9001
Running Speed:
1.5-2M/min
Product name:
Pavement cutting machine
Application:
Pavement cutting
COLOR:
Customized
Water Tank capacity:
45L
Max Cutting Depth:
180mm
Type:
Asphalt Concrete Road Cutter
Milling width:
420(mm)
milling depth:
120--180(mm)
Do you provide processing customization:
Yes
Roll shaft diameter:
25--30(mm)
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month road cutting machine
Packaging & Delivery
Packaging Details
Standard wooden box packing
Port
Coastal ports such as Shanghai, Qingdao
Lead Time :
Delivery within three days after payment
Product Description

Product Application

Road cutting machine is also called road cutting machine or road slit sewing machine. With diamond cutting film, it is mainly used for repairing cracks on municipal concrete asphalt pavement. The main function is a slit on the road and a depth of 100mm-320mm.
The road cutting machine provides professional cutting for municipal construction, pavement maintenance, road surface cutting, communication engineering burial, floor and lane work. This machine is mainly used for cutting concrete, cement, floor and stone road surface, cutting road surface contraction joint or damaged road surface.

Parameters of electric pavement cutting machine
Model
Motor power
Blade Diameter
Cutting depth
Tank volume
size
Weight
HQL18
7.5KW
400/500mm
180mm
45L
1450*610*930mm
180KG
HQL700
11KW
600/700mm
270mm
55L
1500*800*1200mm
280KG
HQL1000
11KW
1000mm
320mm
58L
320KG

Operation method

The electric road cutting machine adopts hand to carry forward cutting. Diamond saw blade is installed on the spindle of the machine head, and the saw blade is driven by the motor through the triangle belt. The front end of the push bar is equipped with a hand wheel capable of adjusting the cutting depth, and the handwheel is rotated to make the advance wheel wheel lift, thereby adjusting the height of the saw blade; and the upper part of the fuselage is provided with a water tank. The cutting machine, unscrew the pipe should switch the pipe head to the blade on both sides of water to cool and clear cut mud.

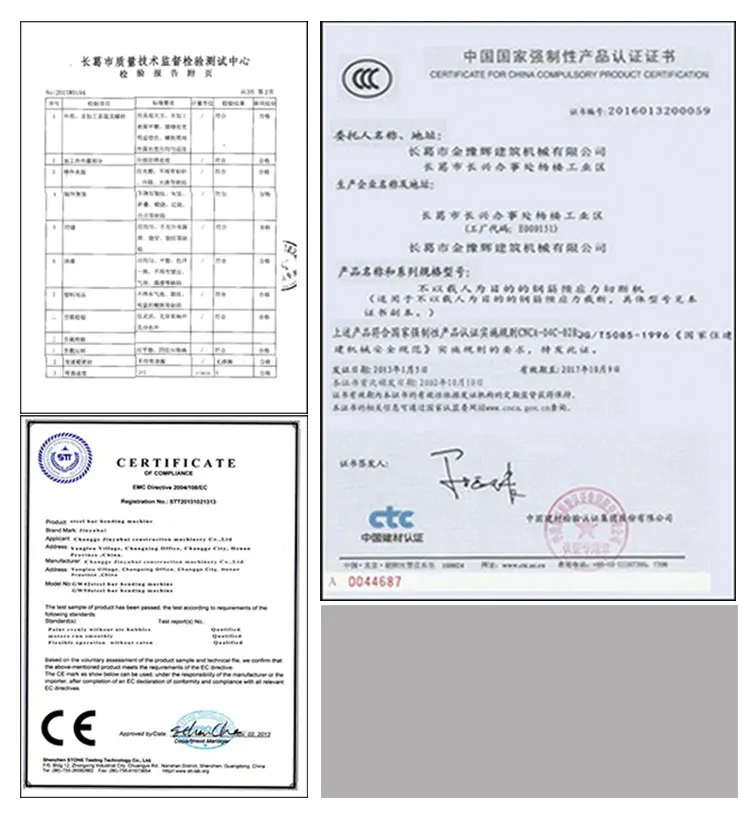

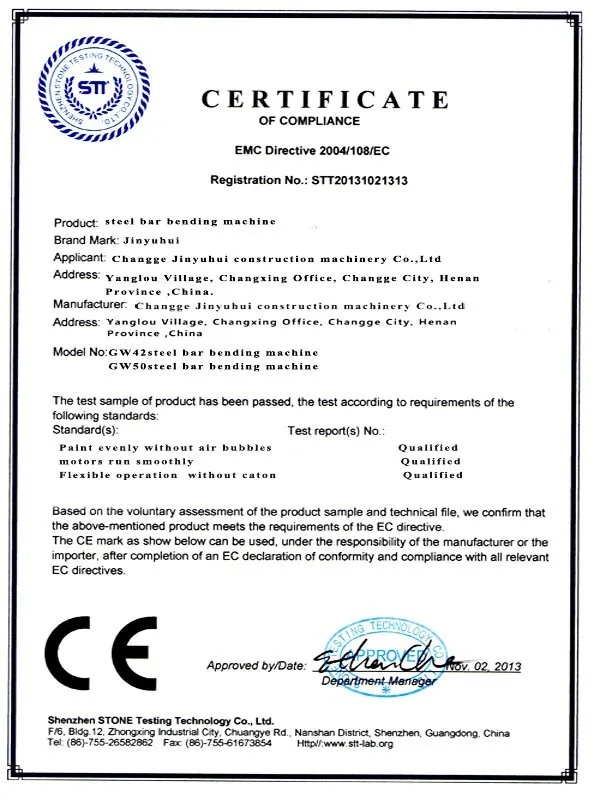

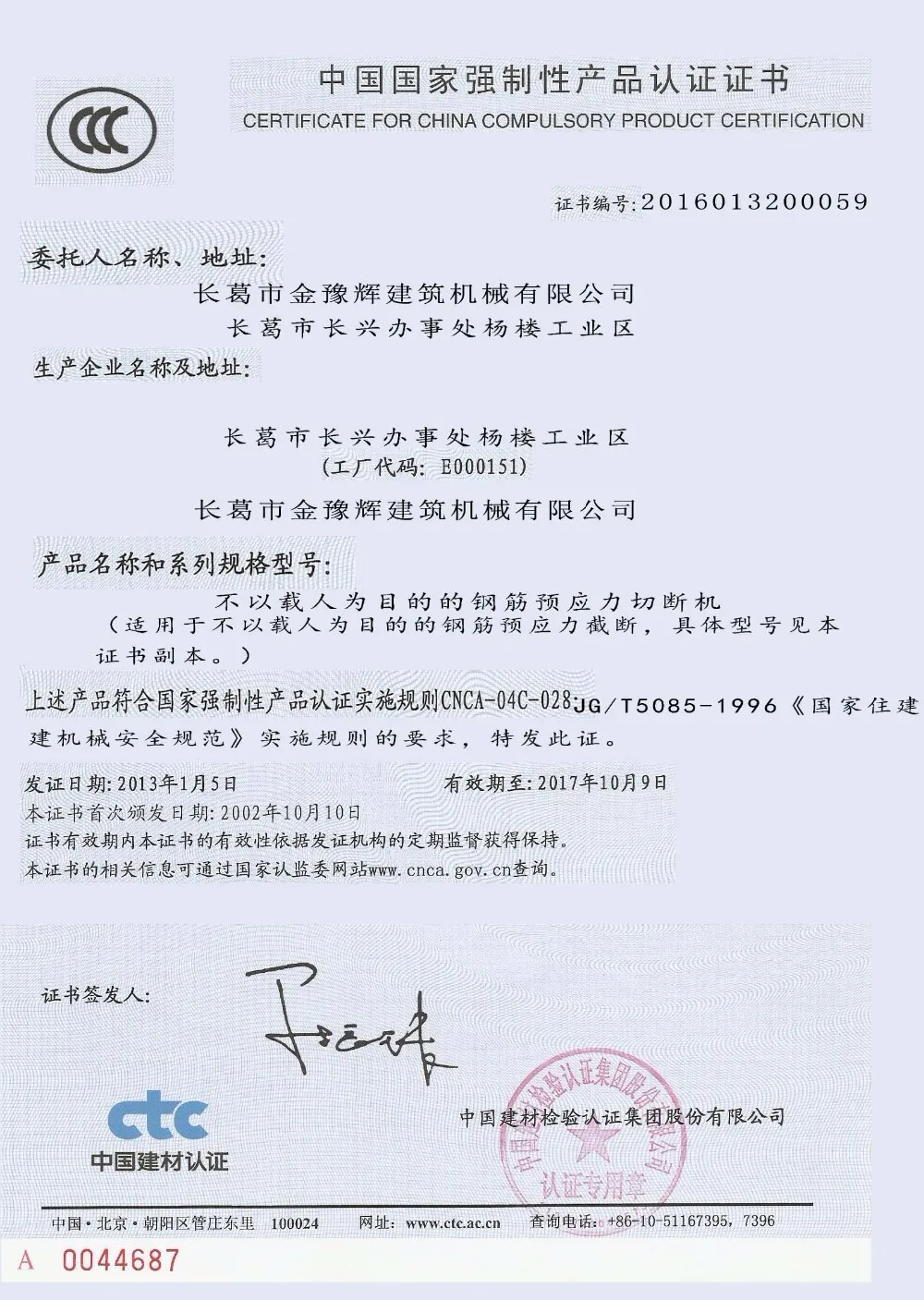

Certifications

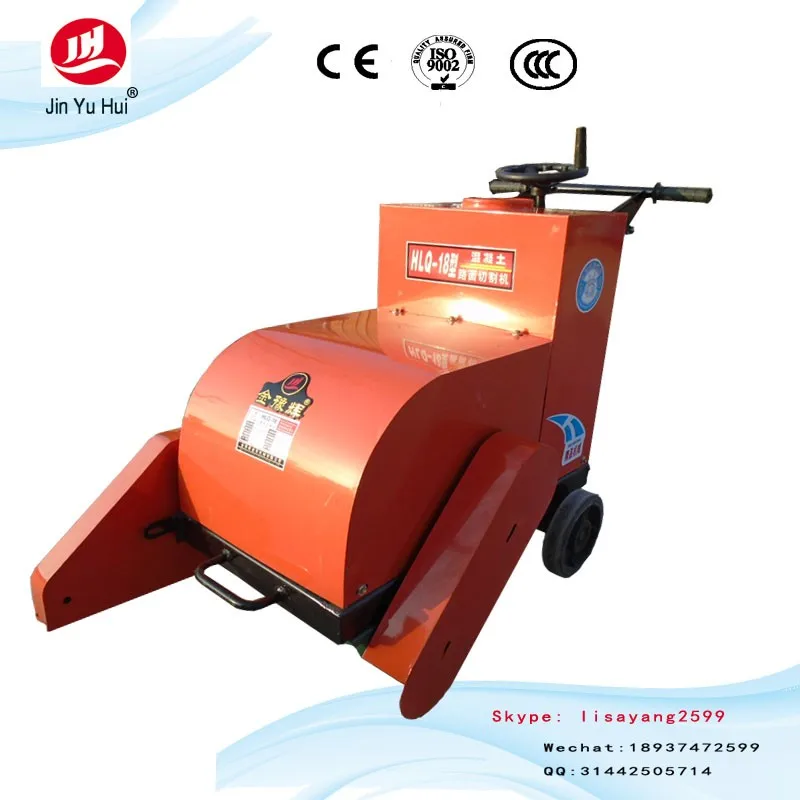

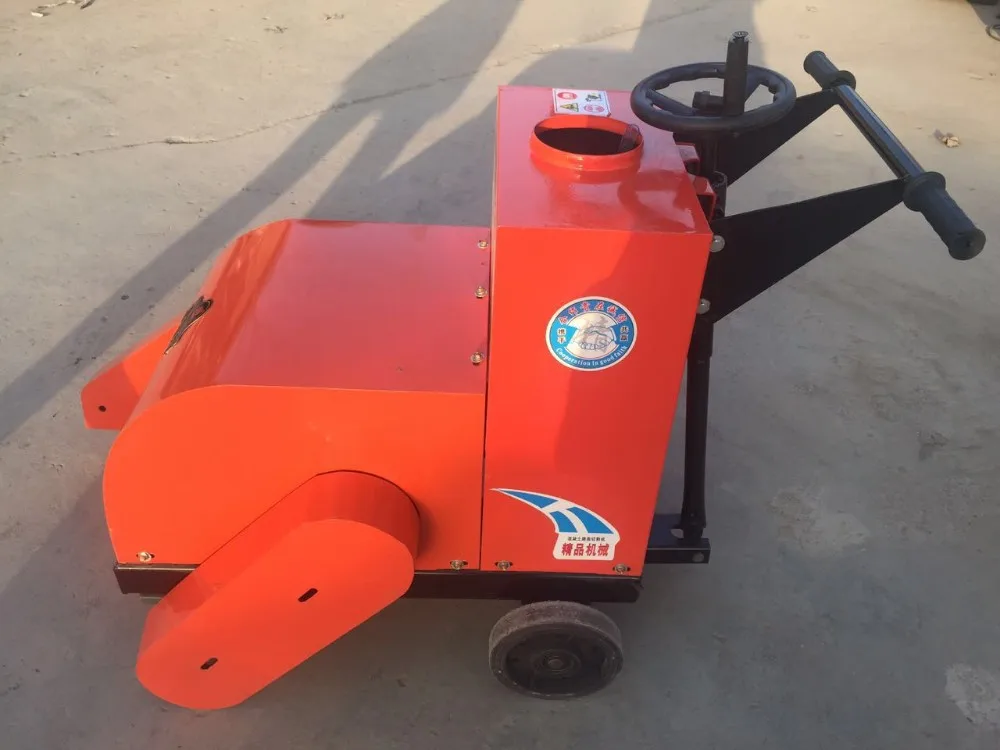

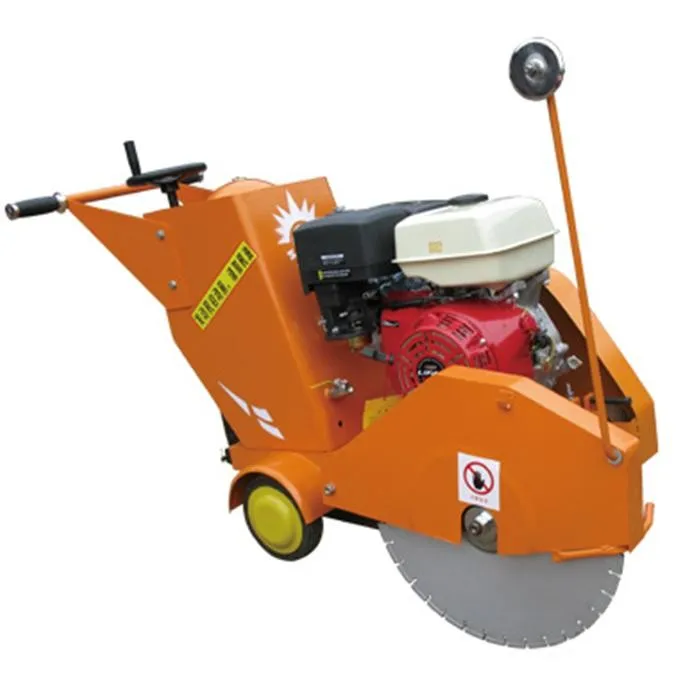

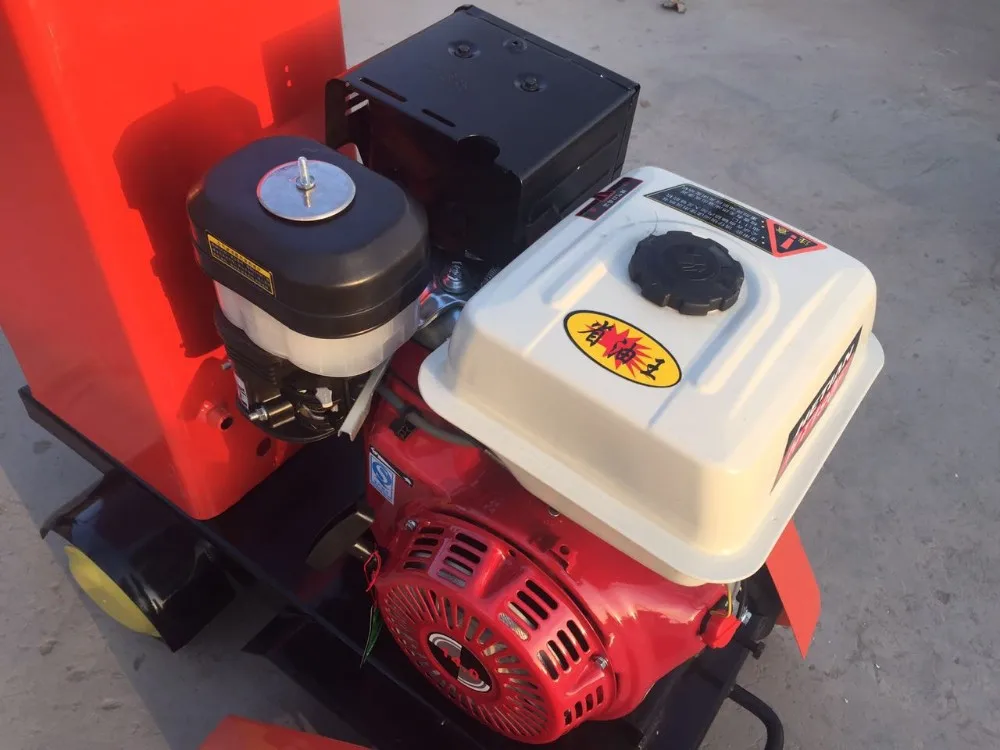

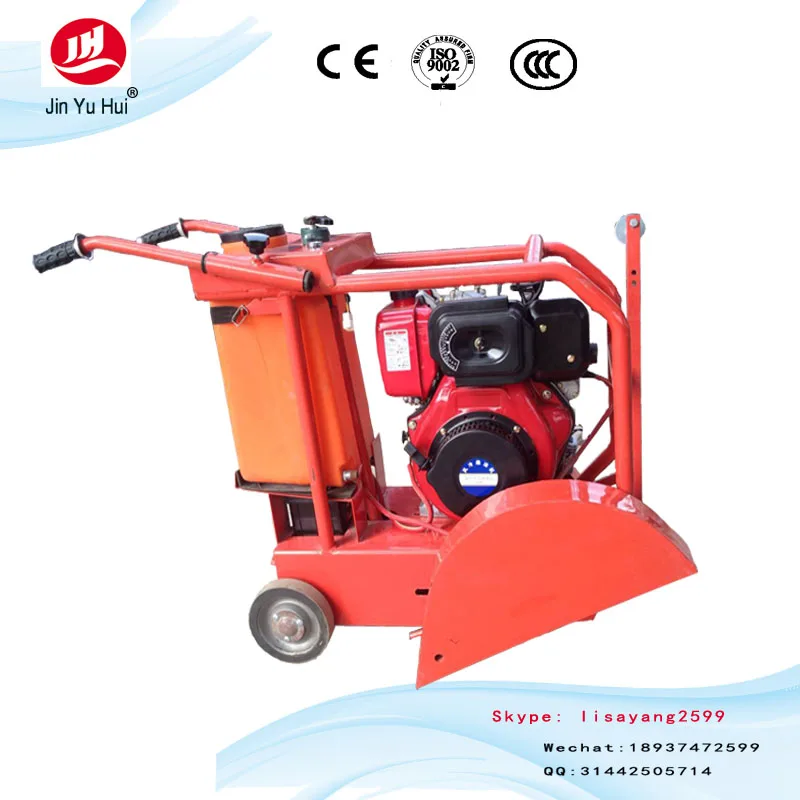

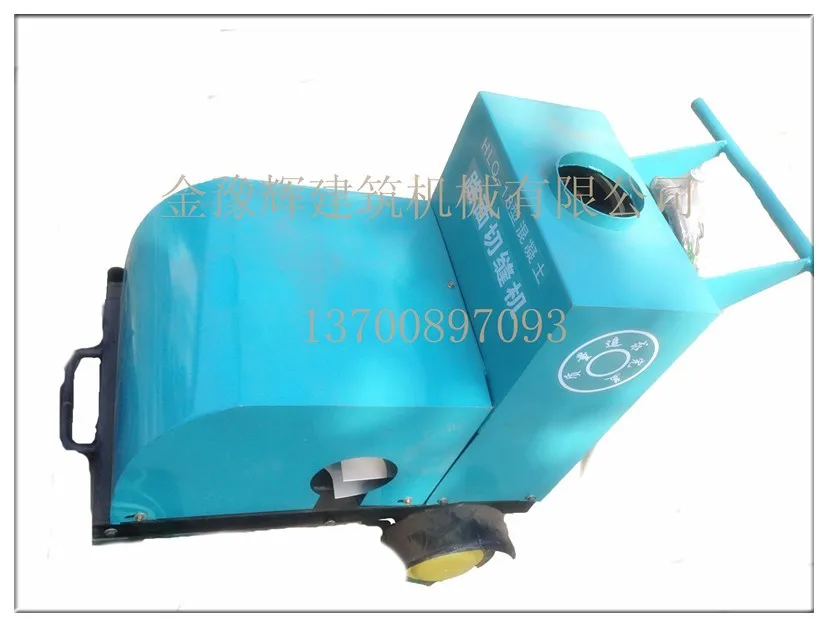

Detailed Images

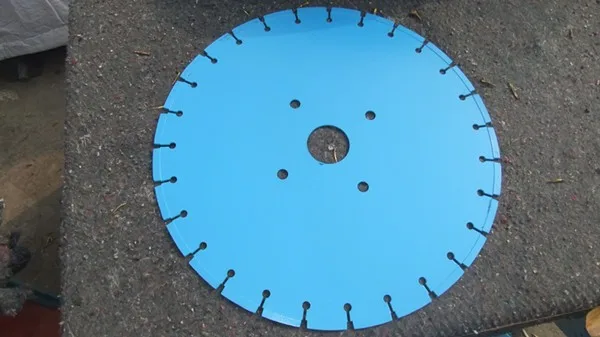

The price of the product does not include the saw price




Our Service

Our Service

1.Pre-sale Service, we can manufacture machines according to your requirement with your design, logo, color, material and brand information.
2.Trail order is accepted, your design, color and size is welcome.
3.Constantly service before and after sales. Our sales and engineers will provide constantly service for you.(hot line:86-374-6015988)
4.About Warranty, we offer 12 months warranty, free accessories are provided due to quality problem.

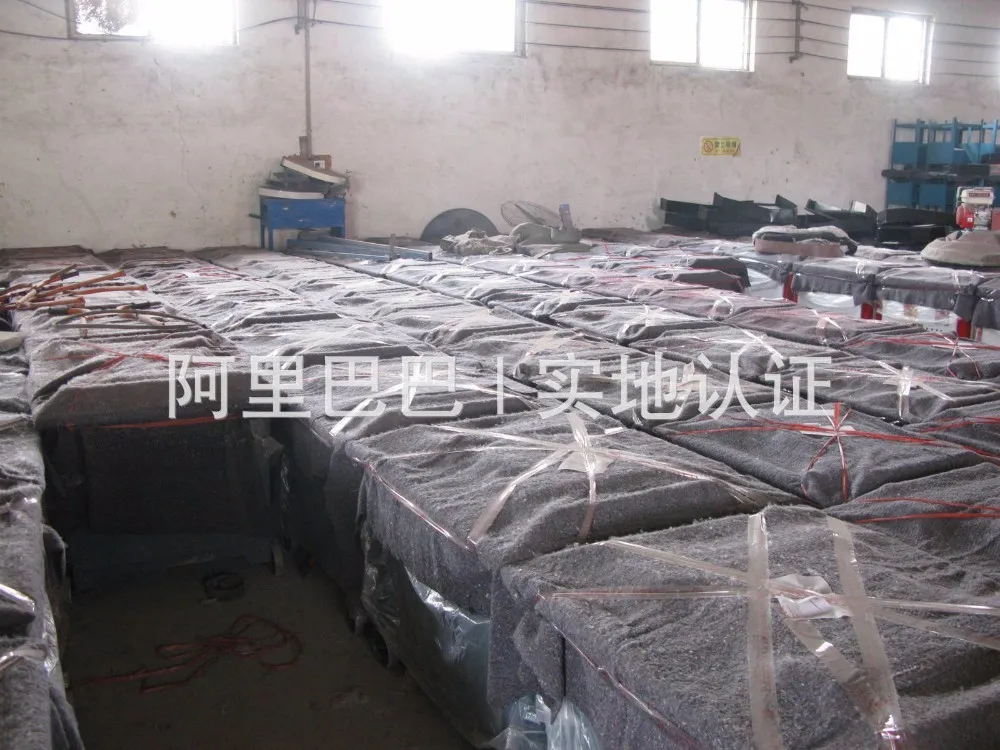

Packing & Delivery


The ordinary packing is a wooden case (size: L*W*H). If the container is too tight to be customized
