four post vertical car parking lift four post car lift

  • 1 - 4 Units
    $1,700.00
  • 5 - 19 Units
    $1,650.00
  • >=20 Units
    $1,600.00
Height (mm):
2126mm
Width (mm):
2670mm
Parking lot:
2
Shipping:
Support Sea freight
Lead Time:
Quantity(Units) 1 - 2 >2
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China
Brand Name:
NOSTEC
Model Number:
FPP401
Type:
Parking Lift
Warranty:
24 Months
Loading Capacity:
2700KG
Product name:
4 post car parking lift
Installation type:
Loading ramp
Lifting Height:
1800mm
Control type:
control box
Control mode:
Hold-to-run control
Color:
blue, yellow, black with powder coating
Drive mode:
Hydraulic cylinder+ wire rope
Control voltage:
24V DC
Parking car size:
5000*1850*1550mm
Voltage:
380V/50HZ/3 phase
Packaging & Delivery
Packaging Details
Plywood case package
Lead Time :
Quantity(Units) 1 - 2 >2
Est. Time(days) 15 To be negotiated
Video Description

four post vertical car parking lift four post car lift

Product Description

The four post car parking lift adopt hydraulic cylinder driving and steel rope lifting system, it is ideal for the average home garage, which also means one or more units will easily fit in commercial shops. This parking lifts will hold many light trucks and SUVs, and their approach ramps are also well-suited for low-profile cars.
four post car parking lift

Product details

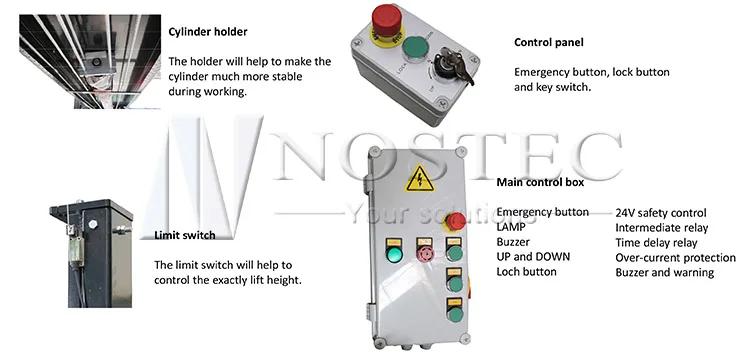

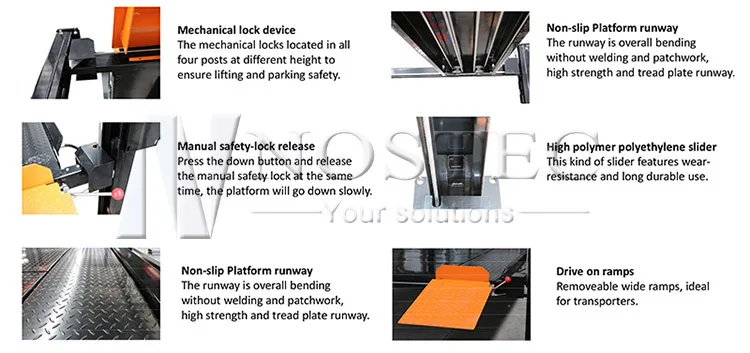

1.  Key features
CE Approved and Certified.
Up to 3600kg lifting capacity
Freestanding design
Electric-hydraulic power system
Runways feature non-skid surface
Oversized self-lubricating cable rollers
Push-button pneumatic safety release
Ramps feature non-skid surface
Rear and side protect plate
10 level safety mechanical locks in each column

 4 post car parking lift4 post car parking lift

four post car parking liftfour post car parking liftfour post car parking lift







2. Specifications





No.

Parameters

Model

FPP401

1. Lifting capacity

2700kgs

2. Lifting height

1800mm(Max car size: 5000*1850*1700mm)

3. Post height

2126mm

4. Distance between post

2350mm

5. Dimensions

4931*2670*2126mm

6. Lock Release Mode

Manual unlock

7. Lock Device

Dynamic lock in different level

8. Operation Mode

Button control

9. Transmission

Cylinder and steel wire rope

10. Control voltage

24V

11. Power

2.2kw

12. Rise/Drip time

50s/45s

13. Package

Weight:800kg/Size:4750 *800*650mm

14. Surface treatment:

Powder coating;

15. Loading

12 sets/20ft 24 sets/40ft

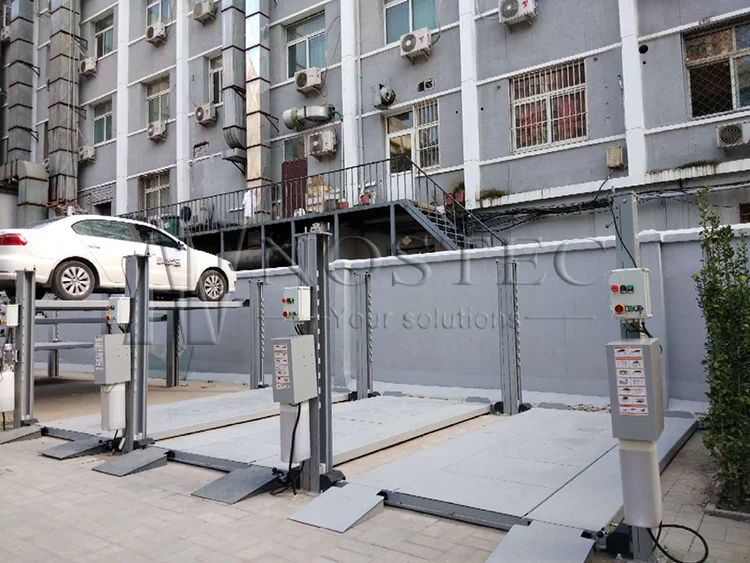

 4. Case Studies

4 post car parking lift

 4 post car parking lift

Company Information

Nostec Equipment Co., Ltd is established and engaged in the design, manufacturing, sales, installation and service of platform lift, car lift, cargo lift and parking equipment.

Nostec is committed to our customers and to carrying out our work to the highest standards. We continue to improve product quality by adopting advanced manufacturing processes and philosophies including robotic manufacturing and Lean Production.

Our missions
To bring the reliable parking solutions to customers
To provide simple and effective parking space to users4 post car parking lift
