fried snack food twisties nik naks corn curls cheetos extruder making machine from Jinan

FOB Reference Price:Get Latest Price
$2,000.00 - $35,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 30 >30
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Place of Origin:
Shandong, China (Mainland)
Brand Name:
sunward
Model Number:
EXT76
Voltage:
380v/ 50Hz
Power(W):
40-70kw
Weight:
1~5 ton
Dimension(L*W*H):
22000*1200*2200mm
Certification:
CE; ISO9001
Warranty:
1 Year
After-sales Service Provided:
Field maintenance and repair service, Engineers available to service machinery overseas
Output:
80-260kg/h
Packaging:
inside plastic film outside wooden case
Shipping:
15-35 working days after receiving deposit
Conditioner:
double shaft
Machine name:
kurkure machine
Raw material:
corn grits/water
Color:
Silver
Keywords:
kurkure making machine
Application:
nik naks, cheetos, kurkure
Supply Ability
Supply Ability:
30 Set/Sets per Month mini snack machine
Packaging & Delivery
Packaging Details
inside is covered in plastic film, outside is wooden case.
Port
Qingdao,Shandong province, China
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 30 >30
Est. Time(days) 30 To be negotiated
Video Description
Product Description

fried snack food twisties nik naks  corn curls  cheetos   extruder making machine from Jinan


1. Brief Introduction:

Kurkure/Cheetos are special extruded snakes with crunchy and great taste.They are made by a special extrusion process. The corn grits are moisturized in the flour mixer with water and fed to the Rotary Head Extruder. Due to the two rotary plates, corn grits are squeezed and twisted to curls shapes. The cutting knifes can cut into required lengths. The Kurkure/Cheetos can be fried in cooking oil or toasted in oven and then cooled before flavoring. Seasoning is sprayed on the surface to achieve different favorable tastes. Due to the delicious flavors and nutrition, it is quite popular with consumers.

2. Capacity: 100-500kg/h
3. Voltage in China:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers'local voltage according to different countries.
4. Machines Materials:
All the machines are made by stainless steel.

5. Flow chart:
Mixer--- Screw conveyor--- Kurkure machine--- Hoister ---Separating screen--- Vibrating feeder--- Continuous fryer--- Vibrating deoiling machine--- Flavoring line
6.Samples for your reference:

Detailed Images

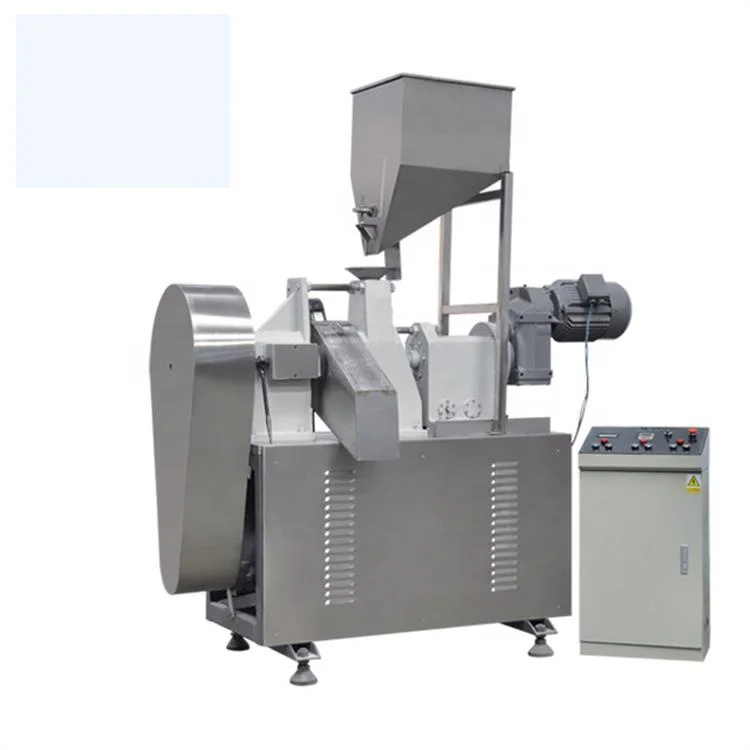

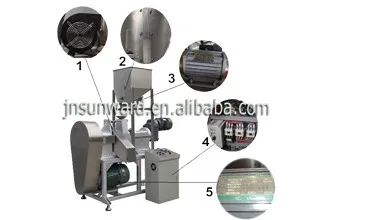

kurkure making machine


1. Adavced cooling system, can extend the machine using life.
2. Advanced feeding system, can set the feeding speed and time by self.

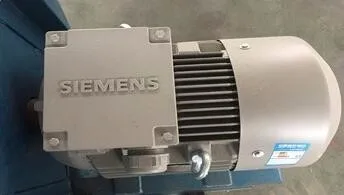

3. Siemens / China famould motor, have the after-sale service in most country.
4. ABB  /CHIT electric spare parts, Delta Inverter can gurantee the machine normal work even on electric shortage/not stable place.

Continuous Fryer


Installed Power: 84kw
Dimension: 4500*1800*2100
Main Features:
1. World-famous Brand Electronic Apparatus ensure the Excellent and Stable performance.
2. Controller Box made of Stainless Steel or Sprayed-plastic(optional), Allows adjust Frying Time by Variable Conveying Speed as required, Alarm Oil level.
3. Double Layer Stainless Steel Belt, Preventing Products Floating, Ensure complete and Perfect Frying Effect.

Mixer

Installed Power: 4kw
Consumption:3kw/h
Output: 30kg/batch-40kg/batch
Mixing Time:(2minutes-3minutes)/batch
Size: 1030*920*1350mm
Function: raw material with water, liquid chemical additive mix together fully.
Features of mixer:
1.This part that contacts mixer to material adopts the stainless steel material.
2.The discharge hole adopts the new handle-opened design, good seal
3.Motor is Chinese famous brand

Screening Machine


Model:GUS-I
Installed Power: 0.75kw
Consumption:0.5kw/h
Output: According to the popcorn machine
Size: 2000*1500*1600mm
Function: To separate popcorn from the corn skins
Main Features:1.Stainless steel material absolutely
2.Motor is Chinese famous brand

Vibrating Deoiling machine

Model:ZDS-I
Installed Power: 0.37kw
Real Consumption:0.2kw
Output:According to extruder
Size: 1300*600*700mm
Function:1.The sifter shakes to remove the oil.
2. Material touching the food is stainless steel. Motor is Chinese famous brand

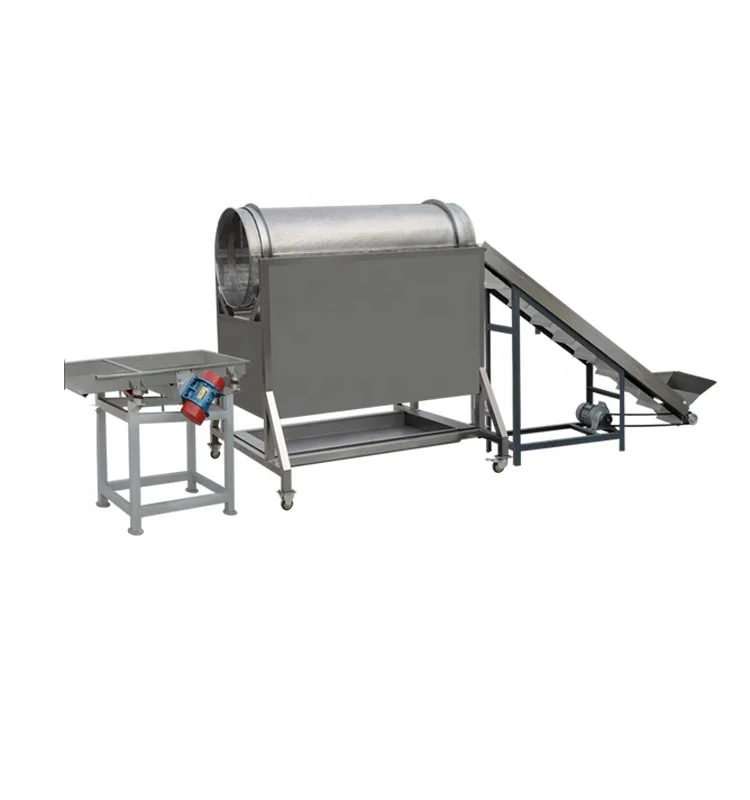

Single Roller Flavoring machine


Installed Power:0.75kw
Consumption Power:0.5kw/h
Dimension:2350*870*1780mm
Function:it is used to seasoning products with flavoring powder and liquid.

Technical Parameter
Model
Frying  Type
Roasting Type
Installed Power
85 kw
80 kw
Power Consumption
65 kw
65 kw
Production Capacity
100-200 kg/h
100-200kg/h
Dimension
21000*1800*2100mm
18000*1400*2200mm

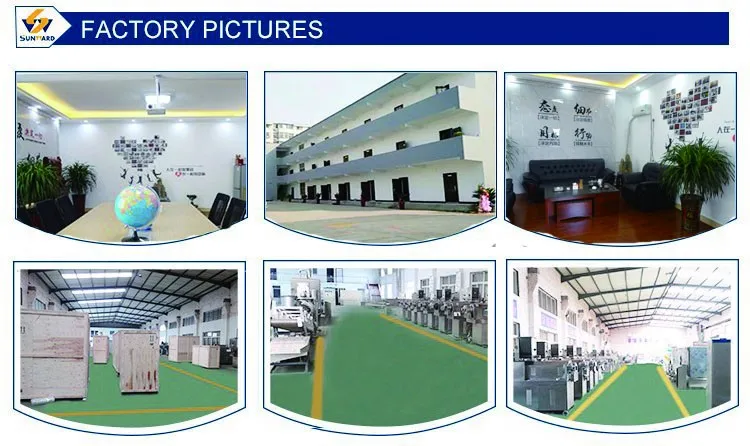

Our Company

Jinan Sunward Machinery Co., Ltd is an industry and trade integrated enterprise. The company is committed to R & D extrusion machinery and related ancillary equipments. It is covering mainly machinery and equipment for corn meal milling system, corn flakes/breakfast cereal system, baby food system, corn puff snacks system, pellets system, artificial rice system,soy nuggets system; as well as pet food/fish food system.

Certifications
Packing & Delivery

Packing and Shipping

1. Testing Machine before package.
2. Packaging: inside is covered in plastic film, outside is wooden case.
3. Shipping: 15-35 working days after receiving deposit.

4. Some photos about our packing for your reference.

FAQ

I. What's the pre-sale service of your company?
Related machines's technical parameter will be supplied to customer.
1. According to customer's factory size, factory layout can be provided in advance.
2. According to customer's material cost, general formulation can be prepared well.
3. Special machine can be supplied as customer's request.
4. Professional Advice about Market, machines, processing , materials, packing can be supplied.
5. Suggesting professional ship agent or helping book ship as customer request.
II. What's the after-sale service of your company?
1. Allocation chart as the buyer's request will be supplied.
2. Operation manual will be supplied after shipment.
3. One year warrantee, life time maintenance with cost price.
4. Free easy broken spare parts will be sent with container .
5. First installation can be done by engineer.
6. Training workers in customer's factory.
III. If machines wearing parts need changing, what should we do?
We can offer the wearing parts all the time, and offer video.
IV. What's the payment terms if we want to buy the machines?
L/C, T/T 30% down payment, 70% balance before delivery.
