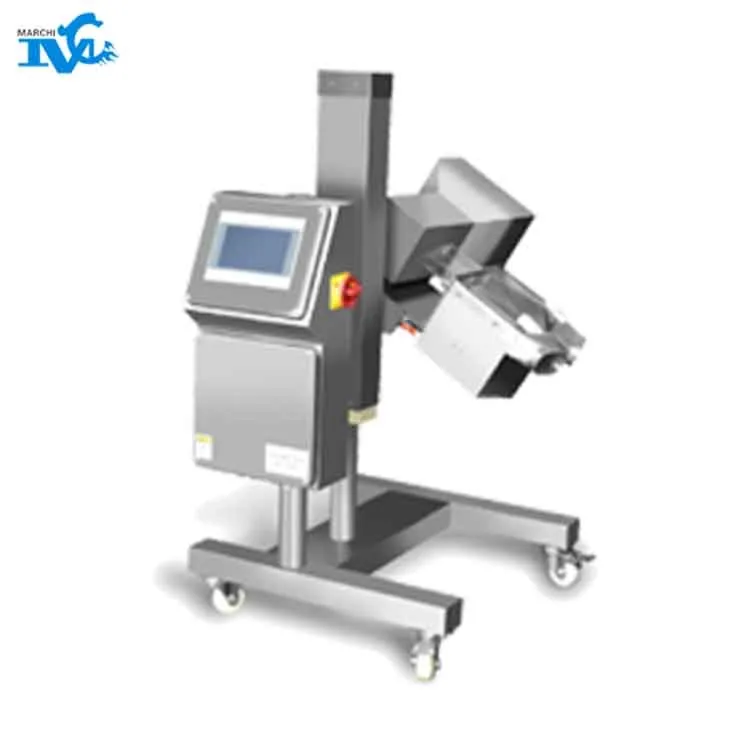

frozen fish metal detector machine

FOB Reference Price:Get Latest Price
$5,000.00 - $200,000.00 / Set | 1 Set/Sets (Min. Order)
Power:
3P 380v 50Hz
Model Number:
MCJST(4008,4012,4015,4018) MCJST(5020,5025)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Type:
Multi-Function Packaging Machine
Applicable Industries:
Manufacturing Plant, Retail
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Viet Nam
Showroom Location:
Viet Nam
Condition:
New
Function:
weighing,rejecting
Application:
Food, Beverage, Commodity, MEDICAL, Chemical, Machinery & Hardware, APPAREL, Textiles
Packaging Type:
Cartons, CANS, Bottles, Barrel, Stand-up Pouch, Bags, Foil, Pouch, case
Packaging Material:
Plastic, Paper, Glass, Wood
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
380V, 380V
Place of Origin:
Guangdong, China
Brand Name:
Marchi
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Video technical support, Online support
Key Selling Points:
Long Service Life
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
PLC
Capacity:
40-250 bags/min
Air Consumption:
0.6~0.8 MPa
Supply Ability
Supply Ability:
40 Set/Sets per Month
Packaging & Delivery
Packaging Details
International export standard
Port
Guangzhou,China
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 45 To be negotiated
Product Application
Food and beverage: aquatic products, canned products, frozen products, sweety products etc.
Medicine and raw materials: medicine table, herbals, and other related products etc.
Plastic and cullet: any products related to these industries.
Rubber and chemical: any products related to these industries.
Wood, coal, and mining: any products related to these industries.
Textile and sanitary: any products related to these industries.
Product Introduction
Specification
4008,4012,4015,4018
5020,5025
Detection width(mm)
400
500
Detection height
80/120/150/180
200/250
Sensitivity (Empty loading)
Fe 0.6-0.8
Fe 1.2-1.5
Sus304 1.0-1.5
Sus304 1.5-2.0
Belt width (mm)
360
460
Conveyor height (mm)
750±50(customized)
750±50(customized)
Loading capacity(kg)
Max 10
Max 100
Display mode
LED
Conveyor belt capacity( m/min)
(Speed inverter is optional)
Power supply
AC220V, 200w
Rejecting method
alarm and reject detected foreign objects by air blowing(buzzer and alarm light)
Production line direction
facing the operating side, from left to right

Technical Features

* Phase tracking function which maintains a stable and high-precision detection capability.
*  Product tracking function which can do adjustment and compensation according to the changes of the product effect automatically.
* Automatic balance calibration function,ensure the machine service and prolong service life.
* Adopt high-performance FPGA to implement DDS technology, combined with advanced DSP data processing technology, which further improves the digitization of the whole machine, and enhances the anti-jamming performance.


Machine Details


Pumped metal detector: high stability and sensitivity for fluid or semi-fluid products, sauces, paste, etc.

Biscuit special metal detector: this model is specially designed for the biscuit, bread, and dough products.

Medine metal detector: it is used in pharmaceutical process equipment and it is suitable for metal detection of tablets and capsules.

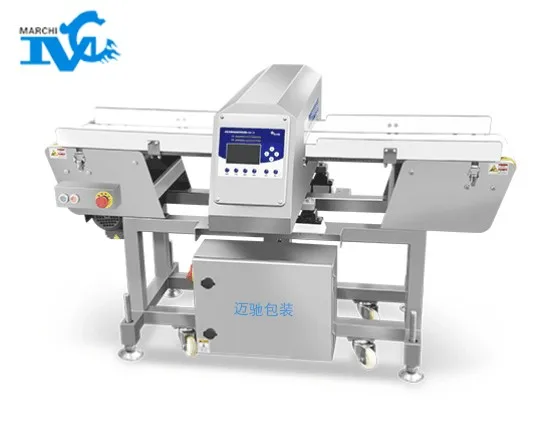

Standard type: detect metal foreign objects in packaging and non-packaging, ferrous, non-ferrous, stainless steel, and also detect foil film packaging.

Drop type: This model is suitable for powder, granular or other forms of material metal detection.

Multi-frequency type: it can switch between multiple working frequencies. It is suitable for the detection of different products.

Related Products

Premade Bag Packaging Machine

                    Check Weigher

               VFFS Packaging Machine

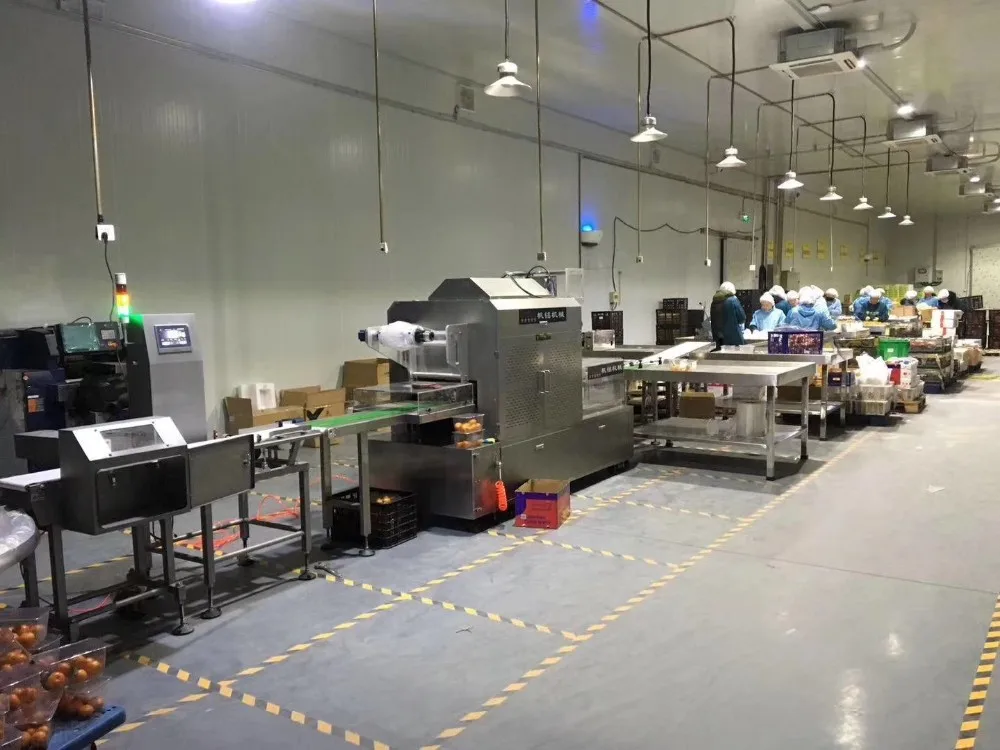

Customers Factories

                            Protein Metal Detector

                                   Duck Metal Detector

                           Chili Metal Detector

                               Fruit Metal Detector

                       Rice Metal Detector

                               Milk Metal Detector

Service &Certificate

1.Turnkey Solution Provider

Marchipack has the ability to be your turnkey solution provider, and we have a unique team of mechanical, electrical, program process engineers which allows us to deliver your solution smoothly.

2. Factory Acceptance Testing

The engineers available in the service team is also utilized for trial testing thoroughly as per the client's requirements before the dispatch.

3.Professional Technical Support

A board range of technical supports are provided aims at ensuring our customers experience the maximum up-time after-sale service, these services include:

▪  Installation and commissioning specification

▪  Telephone /video and online support

▪  Preventive maintenance programs design

▪  Equipment optimization services

▪  Trained engineer machine installation and commissioning paid service

4.Commissioning and Troubleshooting Training

Qualified training ensures machine effectiveness, minimize cost and reduce downtime, Marchi pack provide factory-based technical training that can be delivered either in our factory or customer's site.

5.High Availability Genuine Spare Parts

All critical spare parts are ready for instant dispatch to our customers, genuine spare parts guarantee to protect and maximize machine lifetime.

Our Company

Where we are?

Guangzhou city, Guangdong Province, China
Why choose us?
√ PepsiCo China preferred supplier
√ Turnkey solution provider
√ 25 years' working experiences
√ Several hundred customers cases
√ Research, design, manufacturing, selling, after sale service - complete and individual department
√ A young and ambitious team that keeps learning

While focusing on the development of the packaging equipment market, Marchipack has exchanged and cooperated with many scientific research institutions at home and abroad, and the capabilities of R&D, manufacturing, and engineering projects have been rapidly improved.

There are more than 300 varieties of products we have and various products are increasingly perfect.

>All the electrical control components are well-known brands with reliable performance.

>Do all the factory inspections, full testing, to ensure that the quality meets market demand.

What do we do?

> 1. Vertical packaging machine
> 2. Premade pouch packaging machine
> 3. Multilane stick pack packaging machine
> 4. Linear bottle filling machine
> 5. Secondary packaging machine
> 6. Vacuum packaging machine
> 7. Heavy bag packaging machine
> 8. Cartoning machine
> 9. Other ancillary machines

History Cooperation

Since its inception, Marchi has always been based on customer needs and has provided comprehensive overall design services for more than 100 large enterprises, and has won recognition and praise from the companies.

Packaging & Shipping

Firmly packed fumigation-free wooden carton, with shipping marks.Check packing list without
any missing

Packaging about protect the goods against damages during handling,storing and transportation.

World famous shipping company promise maritime safety.

[FAQ]

1.Payment Terms?
40% down payment at order against the invoice.
60% of the contract value shall be payable against presentation of shipping documents, invoice and Seller's draft drawn at sight on the opening bank.


2.Machine lead time?

45-60day base upon the receive of downpayment.


3. Installation and commissioning engineer fee?
100 USD/each day/one person, Board and lodging, visa and round trip tickets shall be born by buyer.


4. Are you a manufacturing or trading company?
We are a manufacturing company, have design, manufacturing, sale, aftersale service complete and individual departments.


5. What is the estimate machine lifetime?
 In the case of proper maintenance of equipment, according to past customer statistics, it can be used for 10-20 years.
