frozen pork skin duck meat national cold storage national cold storage modular freezer room

FOB Reference Price:Get Latest Price
$1,000.00 - $200,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
20 different models
Report Suspicious Activity
Overview
Quick Details
Temperature:
-5~+5, -5~-18, <=-18 °C
Power(W):
Up to different models
Dimension(L*W*H):
Up to you
Warranty:
3 years
After-sales Service Provided:
Video technical support, Online support
Condition:
New
Place of Origin:
Shanghai, China (Mainland)
Brand Name:
CRYO SYSTEMS
Voltage:
380V/3P/50Hz or 220V/1P/50Hz
Weight:
Up to different models
Certification:
CE
Compressor brand:
Bitzer, Copeland, Tecumseh, etc
Tem. range:
-5~+5, -5~-18, <=-18 °C
Panel thickness:
75, 100, 120, 150mm
Panel material:
Pu (polyurethane)
Cold room doors:
Returen door, Hinged door, Sliding door, etc
Refrigerant:
R404A
Temp controller:
Dixell
Usage:
Meat, Food, Sea Food, Fish, etc
Standard air cooler:
From one fan to four fans
Brand:
Cryo Systems
Supply Ability
Supply Ability:
35 Set/Sets per Day
Packaging & Delivery
Packaging Details
Plywood packing, 100% safe.
Port
Shanghai port or Guangzhou port
Product Description

We're one-stop refrigeration solution supplier, providing professional design, manufacturing, installation, testing and maintenance services. Not only we can provide high quality PU/PIR panels and XPS floor panels, but also we can provide complete refrigeration systems and all accessories parts. 10 years warranty, at least 20 years lifetime!




High quality PIR panels

Density: 42kg/m3
Color plate thickness: 0.5/0.6mm
Panels thickness: 50/75/100/120/150/200mm




Even forklift can run on the floor panels

Type: XPS panels
Thickness: 50mm
Compressive strength: 350KPA

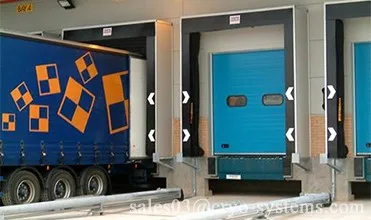

Loading dock for trucks frequent inlet/out

Automatic dock leveler
Automatic sectional overhead door
High quality dock sealing systems

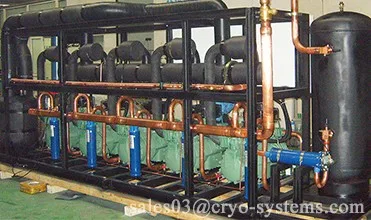

High quality Bitzer compressor rack

Original new Bitzer semi hermetic compressor
Danfoss/Schneider/Emerson refrigeration parts
High efficiency condenser and evaporators

Suitable temperature range for different cold room/cold storage

Use nature/Suitable for
Tempreture range
Processing room
12~19C
Fruit, vegetable, dry food
-5~+10C
Medicine, cake, pastry, chemical material
0C~-5C
Ice storage room
-5~-10C
Fish, meat storage
-18~-25C
Deep freezer, low temperature storage, quick-freeze, blast freezer
-25C~-40C

Panel for cold room

Panels thickness
Temperature difference inside and outside cold room
Suitable temperature for cold room
75mm
40℃
-5~25℃
100mm
50℃
-15~25℃
150mm
70℃
-25~25℃
180mm
80℃
-35~25℃
200mm
90℃
-50~25℃

Any size of cold room and requirements is acceptable, contact us to talk more.

Cold room size
Food&Temperature
Door type&Size
Compressor
2x2x2.5m
Fruit, +5C degree
Hinged door 0.8x1.8m
1HP Embraco
10x5x3m
Frozen meat, -20C degree
Sliding door 2.2x2.5m
28HP Bitzer
30x20x5m
Seafood, -25C degree
Sliding door 3x3.5m
4x23HP compressor rack

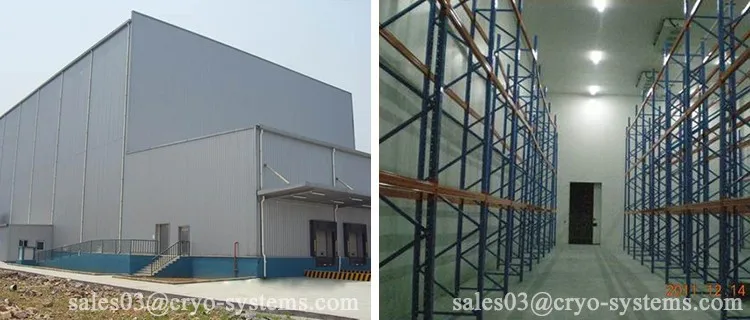

Successful Case

Ice cream storage, -25C~-30C

Customer info: This project is for an ice cream manufacturer & distributor. Ice cream inlet temperature is -22C and need strong cooling. Heavy loading shelving systems, with reach truck accesss.
Order info:
3x125HP Bitzer screw compressor rack, one compressor as back-up, water cooled condenser with cooling tower.
Cold room dimension 26x18x18meter with 2 chambers, 200mm PIR roof/wall panels, 4x50mm XPS floor panels
8 loading bays, so less leaking during the unloading from reefer container.

Contact Us

Email: sales03@ cryo-systems.com

Whatsapp: +86 13631384690
Skype: michael-cryo-systems
QQ: 1762782607

Website: www.cryo-systems.com
Facebook: Guangzhou Cryo Systems
Linked in: Guangzhou Cryo Systems

FAQ

What is the suitable height of cold room?

The height of room ceiling decides the maximum height of cold room. Small cold room we often suggest 2.3~2.8m. Big cold storage we suggest 3~5m.

If we use forklift, can the cold room floor use PU panel?

No. The compressive strength of PU panel is smaller than 200kpa, too weak to suffer heavy forklift. So we suggest XPS floor, with 350kpa compressive strength.

Could you arrange engineers to my country to install my big project?

Yes. We can appoint our engineer overseas. But you should provide accommodation, food and install equipment.

What is the daily power consumption?

Some factors such as environment temperature, entering temperature, products quantity are objective, hard to be changed. But we can provide you with good insulation panels and high quality refrigeration units. These will reduce your daily power consumption.

If we divide the big cold room into several small rooms, is it better?

Yes. Safer, less power consumption.
1) In peak period, you have large storage, then you can use all the small rooms. The food will not interact and better insulation.
2) In off-peak season, you have little storage, then you can only use one or two small cold rooms. It is better to save electricity.

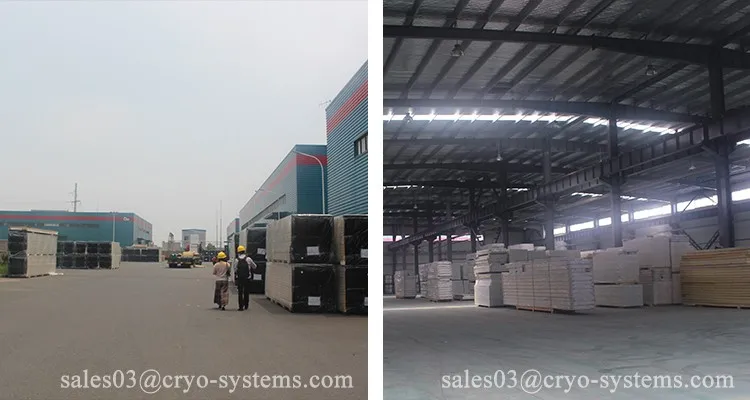

Factory Introduction

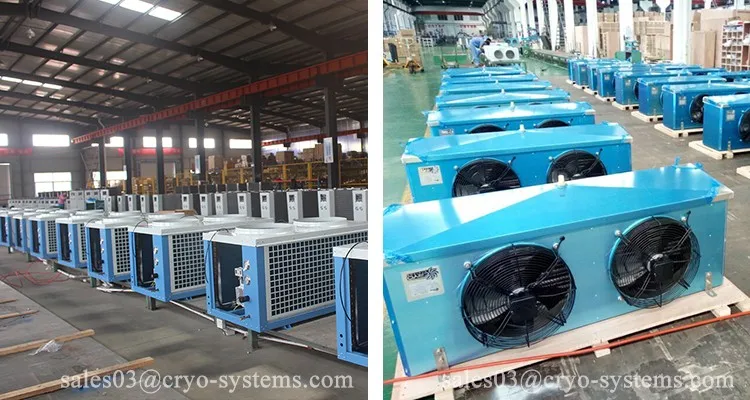

Our factory can design and produce all kinds of condensing unit, compressor rack, condenser, evaporator, etc. All these years, we're agent of Bitzer compressor and Danfoss, better price, shorter production time, less quality troubles.

We're the only one manufacturer in China who has two continuous PIR automated lines, one from German, the other from Italy. Annual output up to 2,800,000 sqm panel, 10,000 units cold room doors. We can ensure our panels lifetime 20 years at least.

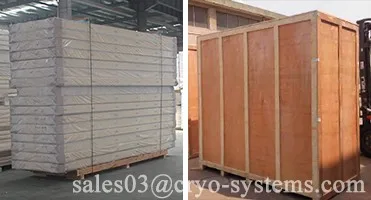

Package

For refrigeration unit

95% of the units are with standard plywood package. XQ series condensing unit, small evaporator and condensers are with carton package. Can be updated to plywood.

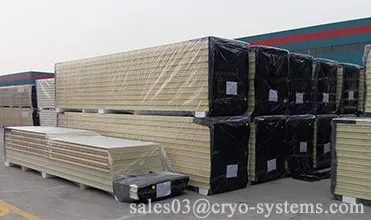

For PU panel

Each panel is well wrapped with plastic film respectively, For container shipping, dozen pieces is packed on one pallet. Very easy for container loading and unload. For LCL delivery, package can be updated to plywood package for better protection.
