fused silica quartz plane glass JGS2 with AR coating

FOB Reference Price:Get Latest Price
$5.00 - $99.00 / Piece | 10 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 10 Pieces)
Customized packaging (Min. Order: 10 Pieces)

More

SIZE (Min. Order: 10 Pieces) Less
Samples:
$10.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
INSUN, Yinxing
Model Number:
JGS1;JGS2;JGS3
Type:
Silica Quartz
Application:
Electrode
Name:
JGS1; JGS2; JGS3
thickness:
0.5---20mm
species:
clear fused quartz plate
Surface Quality:
40/20
Color:
clear
Supply Capacity:
100000
Delivery period:
2-7DAYS
size of the carton:
20*25*15cm;45*40*25cm; 60*50*35cm
MOQ:
10
Supply Ability
Supply Ability:
100000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Optical filters are flexible packaging in carton. There are several different size of the carton, 20*25*15cm;45*40*25cm; 60*50*35cm. We can make sure the safety of the optical filters during shipping
Port
SHANGHAI
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated
Product Description

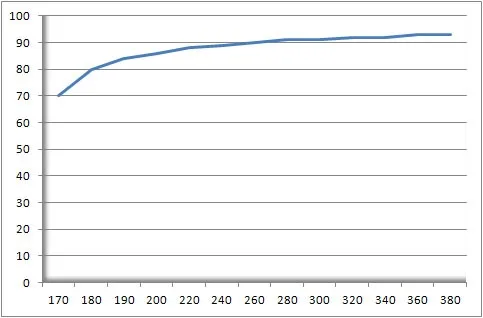

JGS1 Spectrum curve.



The JGS1 quartz glass is a kind of far ultraviolet quartz glass material.It has best transmission of ultraviolet rays in quartz glass.Extremely high purity of SiO2 which is over 99.9999%.It's also named synthetic quartz,specially used for water purification,ozone generation,chemical processing etc.

This JGS1 quartz glass is a high purity synthetic amorphous silicon dioxide manufactured by flame hydrolysis, which has properties such as high purity, exceptional transmittance, well homogeneity, very low birefringence, no straie, no granular structures, no bubbles, no inclusions, no fluorescence, outstanding laser injury resistant, and also it combines other quartz's thermal, electrical, mechanical and chemical properties. It is very applicable to use in the near-infrared, visible and deep UV spectral range of optical and various high-tech areas.


JGS2 quartz plates & quartz discs

The most popular high purity (SiO2 over 99.99%) quartz glass window is made of material JGS2 in China,this material is made by flame fusing.It is widely used in semiconductor and solar industry,for making optical quartz glass parts such as slides,quartz lens,prism,observation window etc.Another two kind of quartz material is JGS1-far ultraviolet opticla quartz glass and JGS3-infrared optical quartz glass.

Material: JGS2, equivalent to GE214,made by flame fused,small or none tiny gas bubbles,SiO2 over 99.99%,OH content around 120ppm,most common material for optical application,it's chemcial composition as below(only for reference)


Quartz Basic Characteristics:

A. The average thermal expansion coefficient at 0 ~ 1000℃ is 5.4 x 10-7/℃
B. Recrystallization temperature: Initial temperature is about 1000℃, while the dirty surface will cool down the recrystallizaion temperature and speed up the recrystallization process
C. Normal operating temperature:
   Continuous usage: About 1050℃
   Non-continuous usage: About 1250℃
D. Characteristic temperature:
    Strain temperature: About 1075℃
    Anneal temperature: About 1180℃
    Hot processing temperature: About 1700~2100℃



JGS3 quartz plates & quartz discs

The JGS3 quartz material is a kind of infrared optical quartz glass which is good transmission at far infrared range. the transmittance on 2700nm can over than 75%.


AR COATING

JGS1 without UV range AR coating



JGS2 WITH UV range AR coating. the transmittance can acchive 99.5% in 280nm.
