gas meter price g1.6 / g2.5 / g4 / g6 lpg gas meters

FOB Reference Price:Get Latest Price
$38.00 - $39.00 / Pieces | 10 Piece/Pieces (Min. Order)
Material:
Aluminum Case
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
OUKE
Model Number:
G1.6,G2.5,G4,G6
Name:
IC card gas meter
Case:
Aluminium
Standard:
GB/T6968-1997B
Material:
Aluminum Case
Function:
Prepaid Function
Payment system:
Prepaid System
Color:
Gray
Accuracy:
1.5
Certificate:
GB/T6968-1997B
Supply Ability
Supply Ability:
2000 Piece/Pieces per Week gas meter
Packaging & Delivery
Packaging Details
Customized package for gas meter
Port
any port in China
Specification

gas meter price g1.6 / g2.5 / g4 / g6 lpg gas meters

Description
This item is developed on base model JG1.6, JG2.5 aluminum shell film type gas meter through adding electronic controller on them and the composition of handsome, accurate measurement, stable error, prompt information directly, control function complete, safe and reliable, long life, good anti-theft performance, corrosion resistance is strong, suitable for natural gas, liquefied petroleum gas such as gas flow metering.

Main function and characteristics
1, the remaining lack of gas, battery under pressure and other information to the English prompt, intuitive interface.
2, the sensor count dual mechanism coexist, to avoid loss of gas measurement.
3, over-flow off valve protection.
4, sensor fault detection.
5, abnormal information records and feedback.
6, optional overdraft with gas function.
7, optional monthly accumulation of statistical functions.
8, data access through multiple authentication safe and reliable.
9, static function is low, the voltage life is long, up to more than a year.
10, the control module sealed processing, which can effectively prevent the kitchen water vapor, the impact of fumes.

Product Introduction
Product Parameter

Item

Unit
Model Specification and Parameters
JB1.6-1
JB2.5-1
Nominal Current Capacity(Qn)
m³/h
1.6
2.5
Max.Current Capacity(Qmax)
m³/h
2.5
4
Min.Current Capacity(Qmin)
m³/h
0.016
0.025
Working Pressure Scope
kPa
0.5~20

Intrinstic Error
0.1Qmin≤Q≤Qmax
%
±1.5
Qmin≤Q<0.1Qmax
%
±3
Rotation Volume
dm³
0.9
Biggest Reading
9999.999
Least Count
0.0001
Working Voltage
V
DC6V
Pulse Constant
m³/pluse
0.1 or 0.01
Quiescent Operation Electric Current
μA
<10
Most Greatly Instaneous Electric Current
mA
<300
Total Pressure Loss
Pa
<250
Weight
kg
2

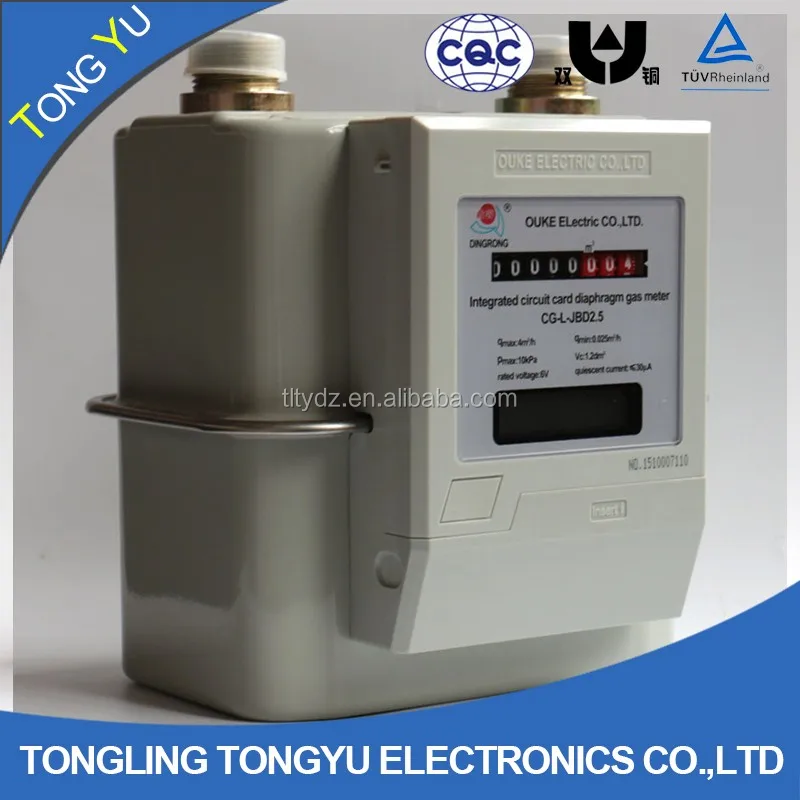

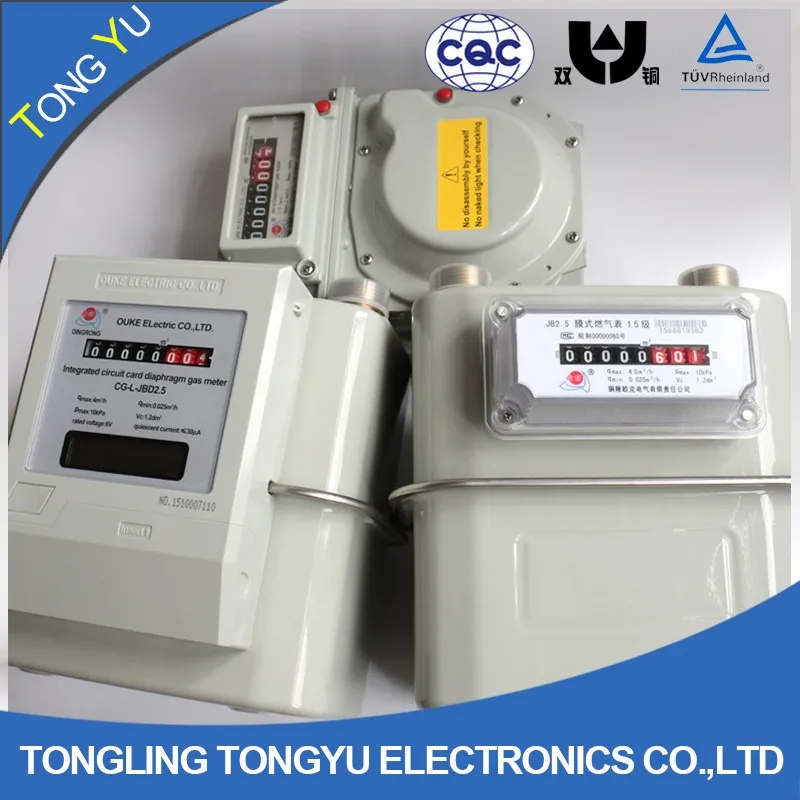

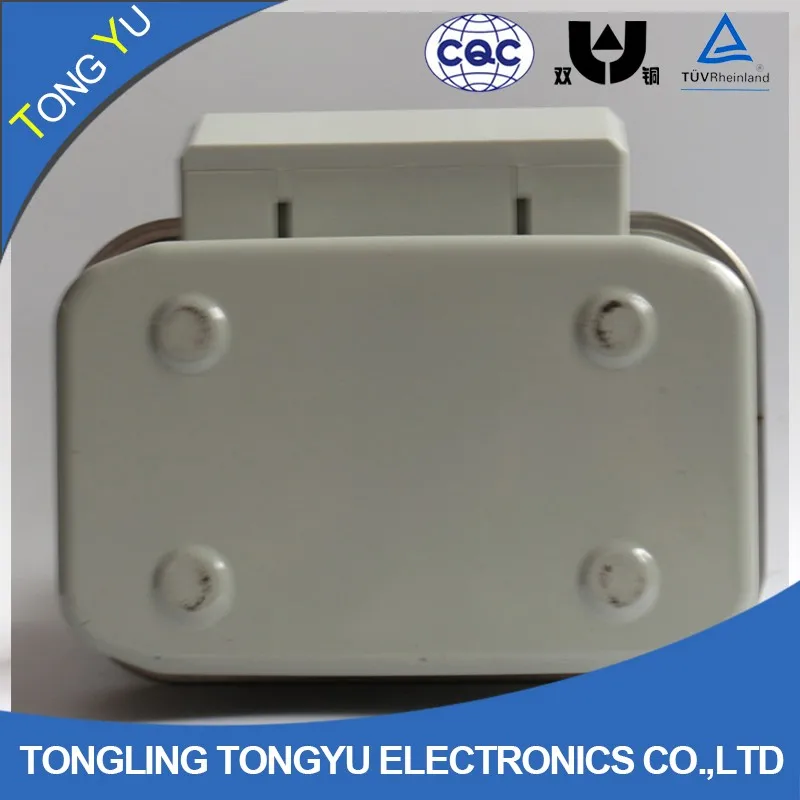

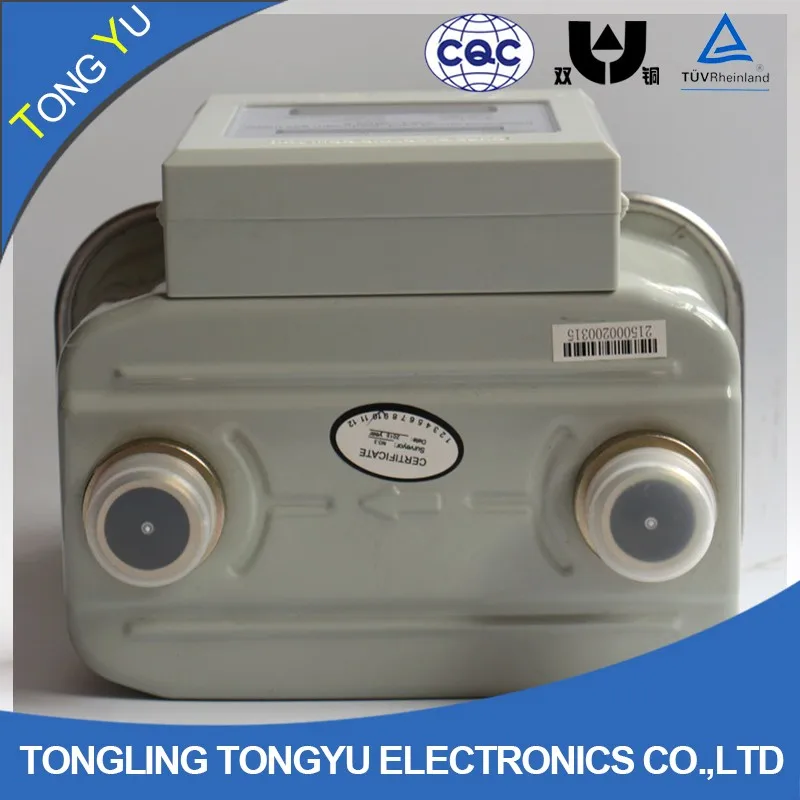

Detailed Images

Directions
1. Gas meter installed before the application of air for air tightness check, the pressure should not exceed 10Kpa. Do not use open flame on the pipeline leak detection.
2. The gas meter should be installed horizontally at the high point of the line to prevent condensate from entering the table.
3. Gas meter should be installed in a ventilated and dry place, away from the fire at least 1.5 meters, is strictly prohibited in the bedroom and bathroom.
4. Gas meter has about two types of intake, the installation should pay attention to the side of the shell side of the air flow signs, not installed anti.
5. Emptying the air inside the gas meter and the pipe before ignition. Transport and storage to drop, anti-upside down and anti-water.

Why Choose Us

1.)As a national high tech enterprise,we have 16 years exprience in capacitor industry.

2.)To ensure the product quality and consistency,we have obtained the ISO 9001 quality system certificate and CQC product certificate.

3.)We have modern factories and purification plant,the world first-class production equipment and the technical team consisted of a number of experts

FAQ

Q1:Are you a factory or trading company?
A:We are the professional factory in China.

Q2:Where is your factory located? How can I visit there?
A:Our factory is located in Tongling City, Anhui Province, China, about 6 hours bus ride from Shanghai .All our clients, from home or abroad, are warmly welcome to visit us!

Q3:What is the material of your products?
A: The material is metallized film for capacitors used Grade A+.

Q4:How can us get some samples?
A: We are honored to offer you samples. if you need!The little sample cost can be free,the large quantity samples,can be negotiable.The freight cost,the customers' pay.

Q5:How does your factory do regarding quality control?
A:"Quality is priority. All people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001;SGS;CPI authentication,We are the National High-Tech Enterprise.We have the professional technical personnel team,advanced equipments;Skilled production technology by ten years.

Q6:What is the delivery time?
A:Normally,the time is 7~15days as we can;we must do our best to do it much quickly.

Q7. Do you have a minimum order?
We ask for only a $10 minimum order.

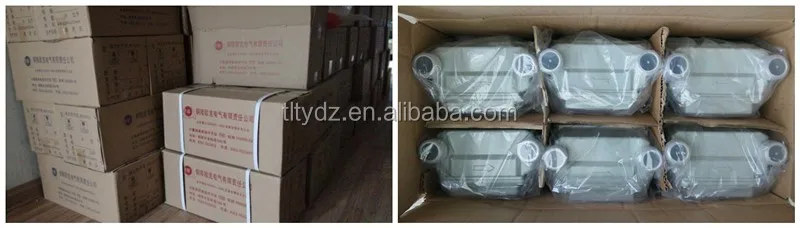

Product Packing

Packaging Details:customized
Delivery Detail:Shipped in 15 days after payment

Main Products

Digital Gas Meter


Steel Case Gas Meter


CBB65 Capacitor

Tongling Tongyu Electronics Co.Ltd was established in June 2001,the company advocating people-oriented,honesty pragmatic and cornerstone in the development of enterprise and the power,pursue the mutually beneficial business philosophy,adhering to,quality-remain costant way of winning ,is committed to let customers get the most satisfactory service,development promoted by the enterprises.
*Whole sries of products,the company specializing in the production of metallized film CBB65,CBB60,CBB61 type,three series of different specifications of the ac motor capacitor and compensation capacitance,special capacitors and other products,according to the customer's requirements,complete the design and production.
*Reliable quality,the company's products have obtained CQC,Great Wall quality system and environmental management system,occupational health and safety management system certification and the United States UL,TVE,etc products and safety certification,and more importantly,the company always adhere to excellence,the pursuit of high quality has no end.

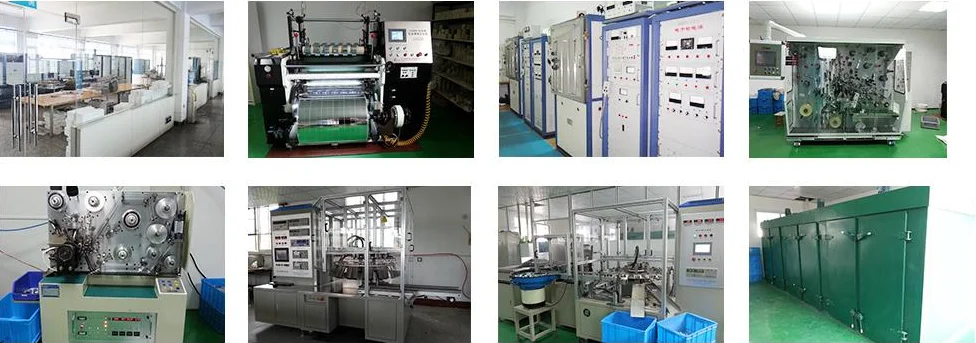

*Strong ability of production,the company has more than 4000 square meters of standard workshop,more than sets the industry first-class automated production and testing equipment,such as:cutting machine,metal spraying machine,winding machine,assigned to half a measuring machine and a measuring machine,etc.got the ultimate capacity and quality assurance,production has production capacity of five hundred thousand micro method.
