glass aluminum windows and doors

FOB Reference Price:Get Latest Price
$40.00 - $80.00 / Square Meter | 30 Square Meter/Square Meters (Min. Order)
Type:
Sliding Windows
Lead Time:
Quantity(Square Meters) 1 - 10000 >10000
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 10 Square Meters)
Customized packaging (Min. Order: 10 Square Meters)

More

Graphic customization (Min. Order: 10 Square Meters) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Wanjia
Model Number:
WJ-Alu-SW031
Frame Material:
Aluminum Alloy
Open Style:
Sliding
Opening Pattern:
Horizontal
Screen Netting Material:
Stainless Steel
Brand name:
Wanjia
Surface treatment:
Powder coated, Anodized, Electrophoresis
Color:
Can be customized
Size:
According to client specification
Fly screen:
As per client requirement
Hardware:
Famous brand in China or ROTO
Feature:
Durable,heat insulation
Use area:
Residence ,office building ,etc
Glass:
Single\double\tempering\coating\low-e
Product name:
glass aluminum windows and doors
Supply Ability
Supply Ability:
30000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
type1) inside with bubble bags , outside with wooden frame .
2) super standard wooden pallet .
Port
Guangzhou/Shenzhen
Lead Time :
Quantity(Square Meters) 1 - 10000 >10000
Est. Time(days) 25 To be negotiated
Specification
Product Name glass aluminum windows and doors
door Type70 series aluminum sliding window
Opening styleSliding
Opening PatternHorizontal
Frame MaterialAluminum
ColorCutomized(Plane Red, Pure White, Champagne, Sand Grey, Laos Rosewood, Thailand Teak, Brushed Gold, Myanmar Beech, Australia Red Sandalwood,Brazil Jade Sandalwood, America Maple(White),Rose Gold, BMW Gold...etc)
SizeCutomized
FunctionsBroken Bridge(thermal brake) or Non-broken Bridge(non-thermal brake);
Heat Insulating, Soundproof, Insect-proof, Waterproof...etc

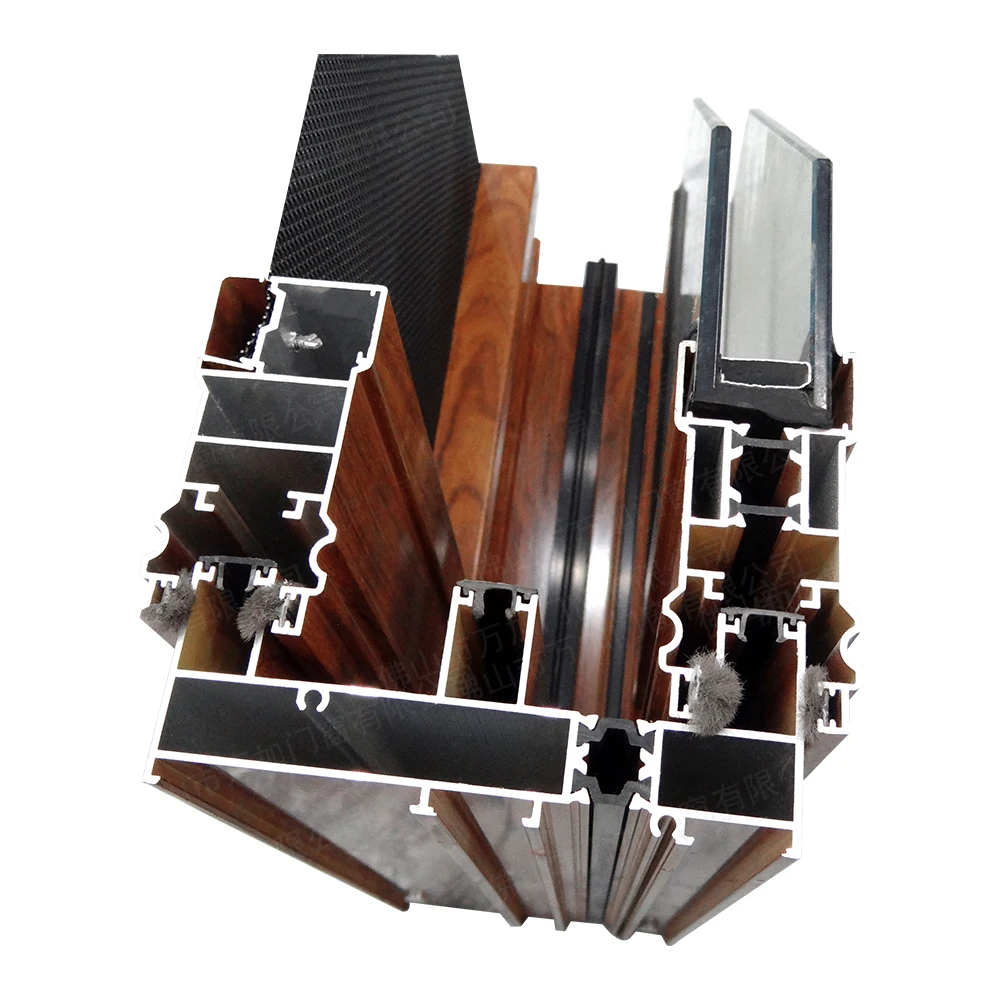

Profile

A. Aluminum alloy, 6063-T5, can be thermal break

B. Wall thickness: 1.2, 1.4, 1.6, 2.0mm, can be customized

C. Surface treatment: anodized, electrophoresis, powder coated, color can be

customized

Glass option

A. Single glass: 5,6,7,8,10,12,15,19mm Tempered Glass

B. Double glazing: 5+ 6/9/12 +5mm Tempered Glass

C. Laminated glass: 5+ 0.38/0.76/1.52PVB+5mm Tempered Glass

D. Tinted/Reflect Glass/Tempered Glass

E: Customized

Glass Type

Tempered(Toughened) Glass, Normal Glass, Clear Glass, Frosted Glass, Mirror Flower Glass, Shadow Flower Glass, Ice-flower Glass, Tinted Glass, LOW-E Glass, Laminated Glass...etc

HardwareA. Made in China
B. Made in Germany
C. Customized
Fly screenA. Stainless steel security mesh
B. Aluminum security mesh
C. Fiberglass fly screen
D. Retractable & invisible fly screen
Product Applications

A):  Real Estate Engineering Projects or Shopping Malls, Commercial

B) Buildings or Apartments, Airports or Hotels, Theaters or Coffee Shops, Schools or Hospitals, Houses or Villas...etc

B):  Interior or Exterior Place/Position; Bathroom or Toilet; Balcony or Patio; Kitchen or Living Room...etc

Packing

Bubble Bag(Wrap) / EPE Foam + Kraft Paper(Carton) / Wooden Crate
Delivery Time 10 ~ 30 Days According To Different Models & Containers
Remarks The Thickness, Specification, Finishing, Color, Glass...etc can be changed or customized, Pls contact us for providing professional service to you.

Product Displays

Product Feature

Our Services



Company Information

Production Process & Certificate



Exhibition

Engineering case



FAQ
FAQ
Q1: Are there any problems with the glass inside? Having steam or going foggy? As
       this will be a real problem .
A: Usually, we use 5mm+6A+5mm double glass, you can take easy. Our double glass is made
     professionally, no steam or going foggy between the double glass.
Q2: All these doors and windows come with frames to mount on walls?
A: Yes, all the doors & windows include frames. Installing the windows and doors on wall is OK.
Q3: The glass is broken with no reason, I’m afraid the rest will be broken.
A: The glass would be broken only because suffering from the impact force, but it won’t break itself.
Q4: Can i use 6mm single glass instead of 5mm double glass?
A: It is better to use 5mm double glass, because :
     A )Sliding door looks ugly with single glass. There is a wide space for glass, if you use
          single glass, we will fill so much silicon in it.
     B) 5mm double glass is safer than 6mm single glass.
     C ) 5mm double glass is more soundproof than 6mm single glass.
Q5: Can you use rubber instead of glass silicon?
A: Yes, but it just can be one side, the other side has to be glass silicon. Because it is not
     strong enough to use double rubber. And it is easier to fall off than the glass silicon.
Q6: What is the difference between the 90 degree and 45 degree connecting?
A: There are 90 degree and 45 degree corner connecting. 90 degree window is connected by
     screw, and we assemble the 45 degree window by corner brace. The 45 degree corner
     connecting window is new style, which is easy to overhaul.
Q7: Do you know what is U-value?
A: Yes, it simply means that every degree of temperature difference between a hotter air
     space and a colder air space, the heat energy will transfer per sq.m to the colder air space.
     For example, let say your house has a ceiling area of 100sqm, the difference in temp is
     30deg, and the amount of watts you pay for consume is 6000w. Then the U-value is
     6000w/100m 2 30k=2w/(m 2k).
Q8: What type of fly screen you could supply?
A: We have three styles of fly screen. One is roller style for casement window ,one is sliding
     style for sliding window and door, and the last one is folding style for casement door.
     Besides, the fly screen is made of 3 different materials, namely nylon, steel and Kingkong net.
Q9: PVC and aluminum, which is better?
A: It’s hard to simply say one is better. Each one has its advantages. PVC is good at
     insulation and more economic. Aluminum is better in hardness and security.
Q10: What kinds of packing do you have?
A: There are three kinds of packing, such as bubble bag, bubble bag + wooden frame,bubble
     bag + wooden case. If full container, we advise to use bubble bag, it can save more space
     and hold more goods in the same container. Usually, the packing is bubble bag + wooden
     frame. The best packing is bubble bag + wooden case, some bulk cargo and some developed
     countries, such as USA, Australia and some countries in Europe,need wooden case packing,
     because their special requirement and wooden case can protect the goods very well.
Q11: How many cubic meters would an order like this when packaged occupy in a
        container?
A: As for the container :
(1) 20 container (20GP) can pack 26 cubic meters.
(2)The 40 foot container (40HQ) can hold 54 cubic meters .So how about your idea ?
     Besides , Do you want to quote CIF or FOB or EXW price ? Please kindly let me know .
Q12: What are your payment terms?
A: Usually, our payment terms is T/T:30% deposit,the balance will be paid before delivery, but
     if you want L/C or west union, we also can accept.
