good quality China lcd display c2h4 ethylene analyzer fixed gas detector

$55.00 - $223.00 / Set | 1 Set (Min. Order)
Measurement Range:
EX CO H2S O2 CL2 H2 HCL 03 CL2 Customize other gas inquiry customer service
Accuracy:
standard option
$55.00
- +
available
standard option with LED Display
$78.00
- +
available
standard option with LED Display/Sound Light Alarm
$103.00
- +
available
All 4 Options
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
1 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Type:
gas detector
Place of Origin:
Henan, China
Brand Name:
bosean
Model Number:
gas detector fixed type
Product name:
gas detector ph3
Sensor:
High Precision Laser Sensor
Color:
Blue
Weight:
300g
Detecting Gas:
Combustible Gas
Usage:
Industrial Production
Warranty:
2 Years Under Normal
Gas:
VOC
Alarm:
light,sound,lcd
Battery:
3.6v Rechargeable Li-ion Battery

Packaging & Delivery

Selling Units:
Single item
Single package size:
22X16X12 cm
Single gross weight:
1.430 kg
Package Type:
each set Combustible gas detector will be packed with the export standard carton package or aluminum box or as per customer require
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 1 To be negotiated
Product Description

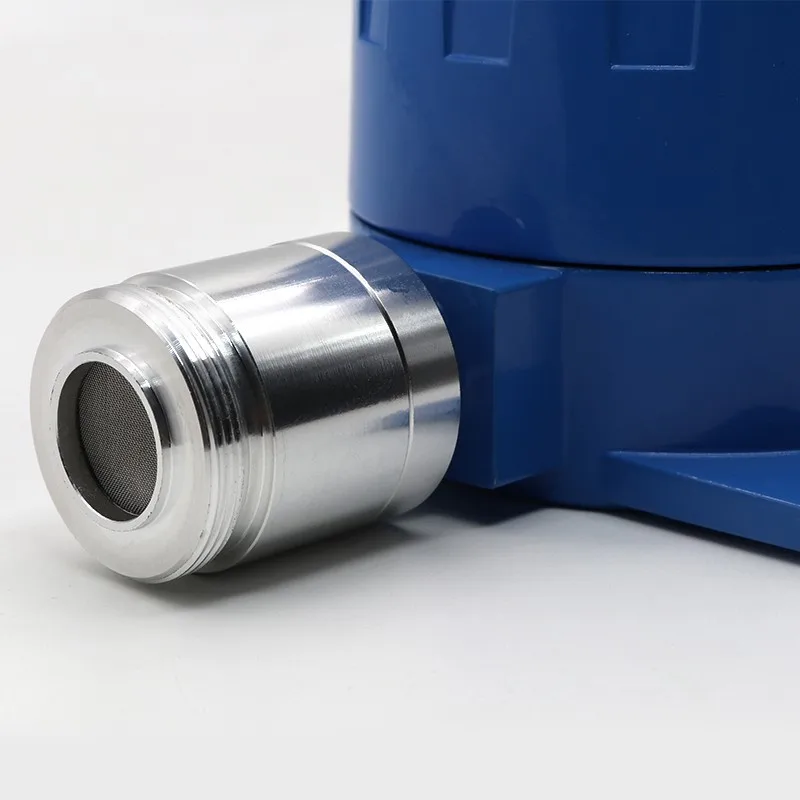

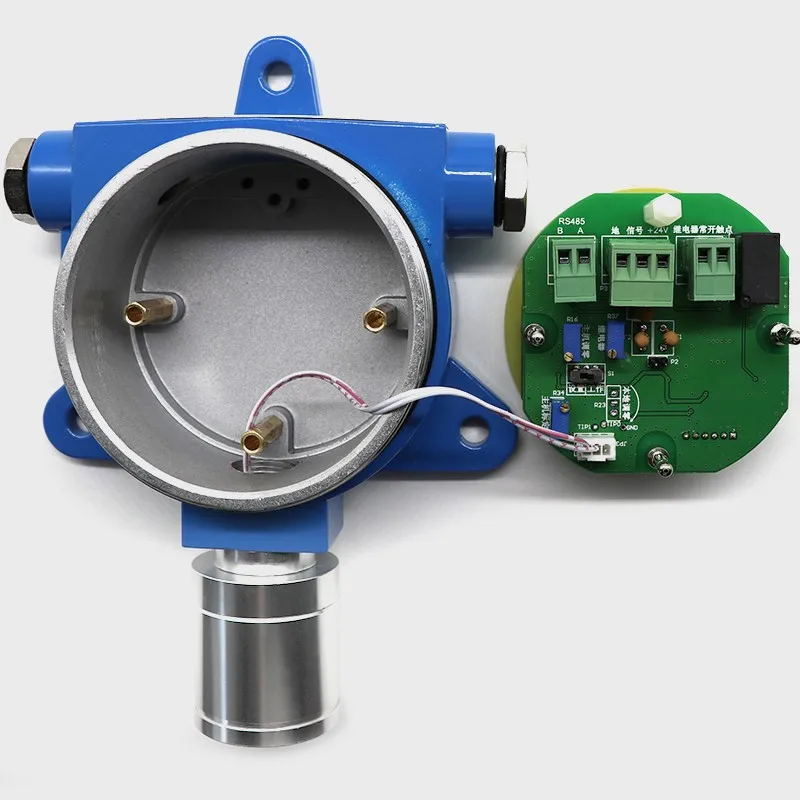

BH-60 bh-60 fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output.

Main Features

The detector working with gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting
plant and other places with gas exists.

Features:
4-20mA or RS485 output optional
EX certificate
Detailed Images
Product Name
BH-60 bh-60 fixed gas detector
Explosion proof grade
Exd ⅡC T6 Gb
Response time
<30S
Power supply
DC24V±10%
Working temperature
-20℃~50℃
Output current
4-20mA
Working humidity
0-95%RH (no dew)
Contact output
Free contact output, max power 1kW
Single input
4~20mA and RS485
Installation method
Wall-mounted
Shell material
Aluminum
Dimensions
190*150*95mm(L*W*H)
click to see more
Portable 4-in-1 gas detector
Pumping multi-gas detector
  Gas alarm controller
Application Area

Fixed gas detector is widely applied to industrial use, such as Shipping, Mining, Oil & Gas, Metallurgy, Chemical plants, Underground pipeline, gas station, wastewater plants, Landfill ,etc.

Detecting Gas
No
Detecting Gas
Gas
Measure Range
Resolution
Alarm Point
(High / Low)
1
Combustible Gas
EX
0-100%LEL /0-100%VOL
1%LEL/1%VOL
20 / 50% LEL
2
Oxygen
O2
0-25% /30%VOL
0.1%VOL
19.5% / 23.5%VOL
3
Hydrogen Sulfide
H2S
0-50/100/200/1000 ppm
0.1 ppm
10 / 20 ppm
4
Carbon Monoxide
CO
0-500/1000/2000/5000 ppm
1 ppm
50 / 150 ppm
5
Nitrogen Dioxide
NO2
0-20/50/1000 ppm
0.1 ppm
5 / 10 ppm
6
Nitric Oxide
NO
0-250/500/1000 ppm
1 ppm
50 / 150 ppm
7
Carbon Dioxide
CO2
0-5000 ppm /0-1%/5%/10%VOL
1 ppm/0.1%VOL
1000 /2000 ppm
8
Sulfur Dioxide
SO2
0-20/50/100/200/1000 ppm
0.1 /1 ppm
5 / 10 ppm
9
Chlorine
CL2
0-20/100/1000 ppm
0.1 ppm
5 / 10 ppm
10
Ammonia
NH3
0-50/100/500/1000 ppm
0.1 ppm
20 / 50 ppm
11
Hydrogen
H2
0-1000/5000 ppm
1 ppm
50 /150 ppm
12
Phosphine
PH3
0-5/20/50/100/500/1000 ppm
0.1 ppm
5 / 10 ppm
13
Hydrogen Chloride
HCL
0-20/500/1000 ppm
0.01/0.1 ppm
5 / 10 ppm
14
Chlorine Dioxide
CLO2
0-10/50/100 ppm
0.1 ppm
5 / 10 ppm
15
Hydrogen Cyanide
HCN
0-50/100 ppm
0.01/0.1 ppm
10 / 20 ppm
16
Ethylene Oxide
C2H4O
0-10/20/50/100/200/500 ppm
0.1 /1 ppm
20 / 50 ppm
17
Ozone
O3
0-10/20/100 ppm
0.1 ppm
2 / 5 ppm
18
Formaldehyde
CH2O
0-20/50/100 ppm
0.1 /1 ppm
5 / 10 ppm
19
Hydrogen Fluoride
HF
0-1/10/50/100 ppm
0.01 /0.1 ppm
2 / 5 ppm
20
Methylbenzene
0-1/10/20/50/100 ppm
0.01 /0.1 ppm
5 / 10 ppm
