great quality sugar cane shredder/plastic bumper shredder/waste clothes shredder with CE ISO

FOB Reference Price:Get Latest Price
$10,000.00 - $110,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
SX-1200
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Henan, China (Mainland), Henan, China (Mainland)
Brand Name:
Sinatural
Use:
Waste Plastic Crusher, metal can shredder
Plastic Type:
ABS, PP/PE
Shaft Design:
Double
Voltage:
380V/50Hz/3Phase
Power(W):
22*2kw
Dimension(L*W*H):
2350*1100*2050mm
Weight:
2500kg
Certification:
CE ISO
After-sales Service Provided:
Video technical support, Field installation, commissioning and training
Warranty:
1 Year, 12 Months
Type:
Metal Scrap Crushing
capacity:
2000-5000kg/h
blade specification:
400*40
No of blade:
26 pcs
hopper size:
1410*1100mm
motor:
2 set
Supply Ability
Supply Ability:
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
polywood or in container directly
Port
China Main Port
Video Description

great quality sugar cane shredder/plastic bumper shredder/waste clothes shredder with CE ISO



product description

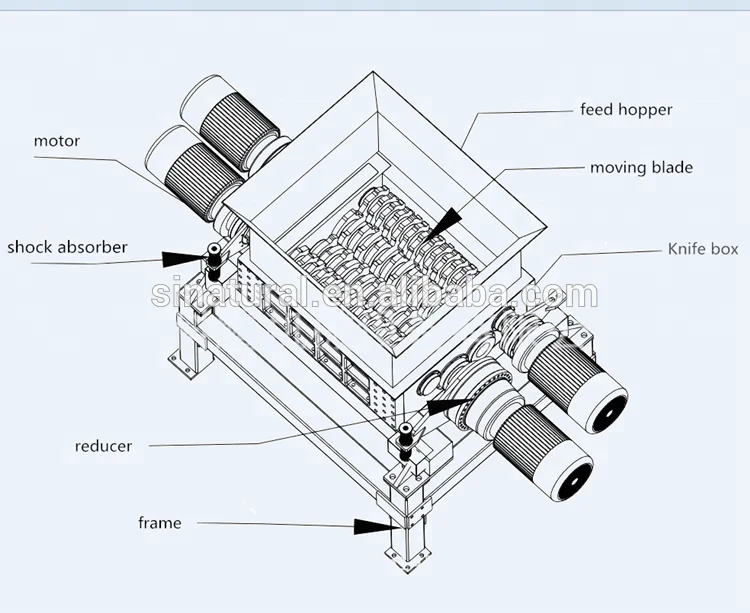

SX series double shaft shredder, also known as shear shredder,  is a kind of machine to reduce material size through shearing, tearing and squeezing.





application



1. crush plastics, rubber, fibers, paper, wood, large hollow materials (large containers such as plastic buckets).



2.  crush metal-containing wastes,



3.  pre-crushed, containing sediment, tool waste. such as: rolls of film, woven bags, televisions, refrigerator shells, wood, cars and medium-sized automobile tires and hollow barrels, cardboard, circuit boards.



Feature

1: thick and heavy knife, high crushing efficiency, the tools are all made of alloy steel casting, long service life.

2: The frame plate is thick, resistant to high torque and very strong.
3: The use of microcomputer (PLC) automatic control, set start, stop, reverse and overload automatic reverse control.
4: The equipment has the characteristics of low rotation speed, high torque, low noise, and dust that can meet  environmental standards.
5: Easy to adjust, low maintenance cost, economical and durable.
6: The thickness of the tool and the number of jaws can be changed according to different materials

7. Crushed hollow material can be equipped with a pressure device to increase production.

8. Could add another rotary screen to control the discharge size

technical parameter
Itempower(kw)capacity(kg/h)blade specificationblade pcsFeed inlet size
SX-5007.5300-800200*2024680×760
SX-60011400-100030840×760
SX-80022600-1500401000×760

SX-800

(Enlarge)

15*2800-2000401000×760
SX-100018.5*21000-3000501160×760
SX-60015500-1200300*4014850×990
SX-80015*2800-2000201010×990
SX-100018.5*21000-3000241170×990
SX-120022*21500-3500301410×990
SX-150037-45*22000-5500381900×990
SX-80018.5*21200-3000400*40201010×1100
SX-100022*21500-4000241170×1100
SX-120030*22000-5000301410×1100
SX-150037-55*22200-7000381900×1100
SX-150045-75*23000-12000600*50301900×1300
SX-200055-90*24000-18000402500×1300
SX-250075-110*25000-22000503000×1300

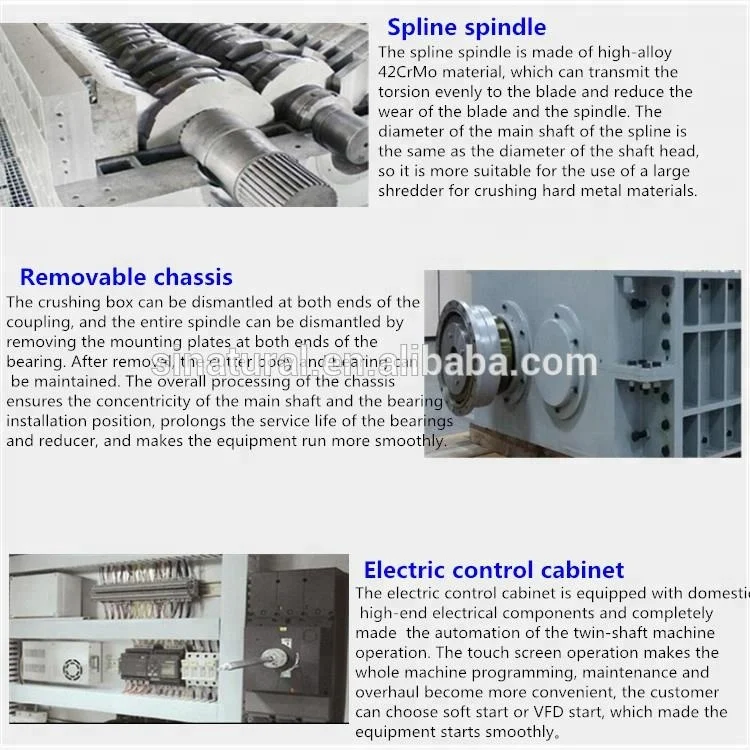

product detail

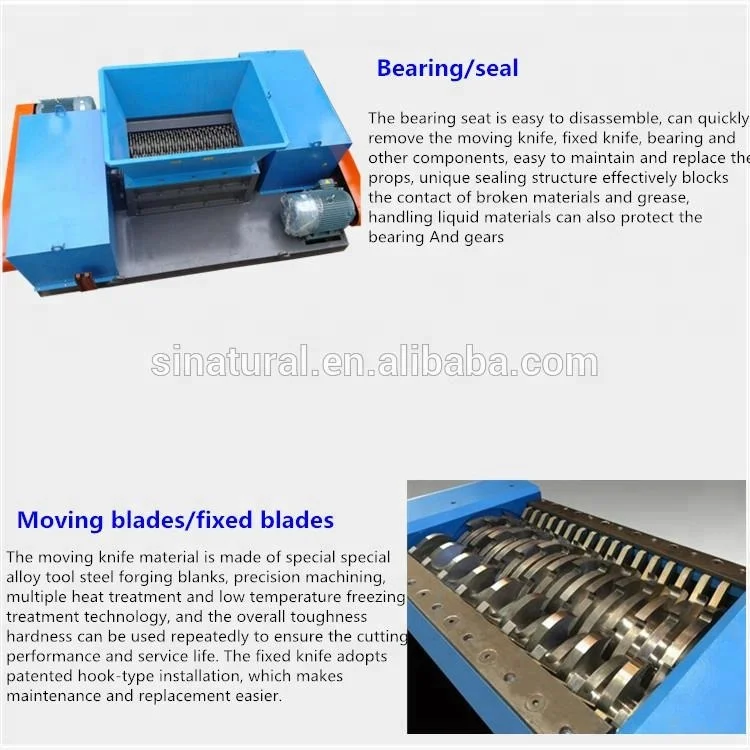

how to choose blade
