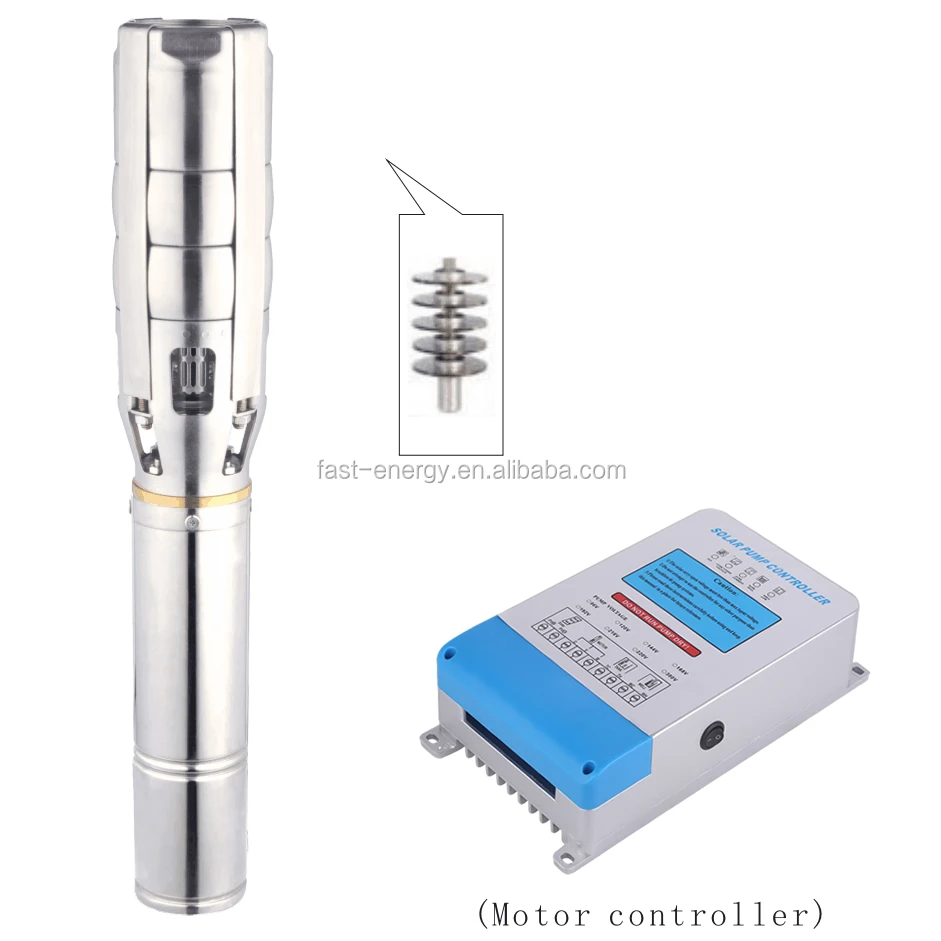

grundfos solar submersible water pump / solar powered water pump / solar water pump system with MPPT controller

FOB Reference Price:Get Latest Price
  • 1 - 99 Sets
    US $1290.00
  • >=100 Sets
    US $1090.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Fast Solar
Model Number:
6SPSC
Type:
Superseptember
Impeller:
Centrifugal (Stainless steel)
Solar array voltage (V):
96-216V
Pump Wattage (W):
1800-3200W
Solar system Voltage (V):
288V
Max Flow (M3/H):
35-78
Max Head (M):
15-63
Outlet (IN):
3-5inch
Outer Diameter (MM):
150
SupplyAbility
SupplyAbility:
1000 Set/Sets per Week
Packaging & Delivery
Packaging Details
1pcs per cartoon with wooden box
Superseptember
Port
Shenzhen/Guangzhou
Lead Time :
7-20days

24 volt 48 volt 72 volt solar submersible water pump/solar powered water pump/solar water pump system with MPPT controller



Product Description



Profile:

Adopt stainless steel screw and rubber stator,permanent Magnet Brushless motor.With combination of motor and controller.the max efficiency is over 85%,raises 25% than the traditional AC one.

2.Material:

1)Stainless steel casing,shaft core,coupling and pump boday.copper alloy connecting base,rubber stator of high-strength and wear-resistant.

2)Oil immersion style stainless stree sumersible motor.



Product feature:

1)Compact structure,high-lift,noiseless,pollution-free.complete electrical protecing controller device,agaist under-voltage.over-voltage,over-flow.overload,waterless,etc.automatic recovery.controlling water height as demand.

2)Easy installation,maintenance-free,safe and reliable. Max Head:158M   Max flow:78M³/H.



Application:

1)These electric pumps series are workable within maximum head,as there are no restrictions of BDC.with the addition of high head,high efficiency and wide high efficiency zone.they are suitable for distance water irrigation.high efficiency of incresing oxygen on aquaculture,pumping water from deep well,gardening,fountain andetc.



Working condition:

1)Non-corrosive water,the volume ratio of sand content no more than 5% particle size less than 3mm.

2)Max medium tempeature up to +40℃. PH value remains 5-10.

3)Work colse to the rated head and must be immersed in water.





ModelsImpeller

Solar

array

voltage

   (V)

Pump

Wattage

(W)

Solar

system

 Voltage

 (V)

Max

Flow

(M3/H)

Max

Head

(M)

Outlet

  (IN)

Outer

Diameter

 (MM)

6SPSC35/31-D216/1800

Centrifugal

(Stainless steel)

216180028835313"150
6SPSC35/45-D216/220021622002883545150
6SPSC35/63-D216/300021630002883563150
6SPSC49/15-D216/1800216180028849153"/4"150
6SPSC49/31-D216/250021625002884931150
6SPSC49/42-D216/300021630002884942150
6SPSC70/20-D216/2500216250028870204"150
6SPSC70/32-D216/300021630002887032150
6SPSC78/17-D216/250021625002887817150
6SPSC78/28-D216/300021630002887828150




Packaging & Shipping
