hdpe geo membrane used in lotus pond liners

  • 3000-29999 Square Meters
    $0.50
  • 30000-49999 Square Meters
    $0.30
  • >=50000 Square Meters
    $0.10
Material:
HDPE
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
8 day(s) after payment received
Customization:
Customized logo (Min. Order: 3000 Square Meters)
Customized packaging (Min. Order: 3000 Square Meters)

More

Graphic customization (Min. Order: 3000 Square Meters) Less
Contact Supplier
Samples - $0.10 /Square Meter, 1 Square Meter (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
Geomembranes
Place of Origin:
Anhui, China
Brand Name:
elite-indus
Model Number:
EltMembrane-SSHG
Width:
1m-8m
Length:
50m and 100m
Surface:
both sides smooth
products name:
hdpe geo membrane used in lotus pond liners
Density (g/cm3):
0.939
Yield elongation(%):
12
breaking elongation(%):
700
carbon black content(%):
2.0~3.0
Material:
EVA, HDPE, LDPE, LLDPE, PVC

Packaging & Delivery

Selling Units:
Single item
Single package size:
580X40X40 cm
Single gross weight:
275.0 kg
Package Type:
hdpe geo membrane used in lotus pond liners : 1, 0.5mm:5.8m x 50m/roll, about33000m2/1x20`gp. 2, 1.0mm:5.8m x 50m/roll, about19140m2/1x20`gp. 3, 1.5mm:5.8m x 50m/roll, about9280m2/1x20`gp. 4, 2.0mm :5.8m x 50m/roll, about6960m2/1x20`gp.
Lead Time :
Quantity(Square Meter) 1 - 10000 10001 - 30000 30001 - 60000 >60000
Est. Time(days) 8 10 12 To be negotiated
Product Description

                                                    hdpe geo membrane used in lotus pond liners



EltMembrane-SSHG series of geomembrane is manufactured from High Density Polyethylene resins. The surfaces of both sides are smooth.the products are manufactured by the technology of coextrusion-blown triple layer.

Thickness
0.01mm-2.5mm,
normal is :0.5mm-2.0mm
Width
 1m-8m
Length
 50m and 100m or at your request
Surface
 both sides smooth; one side textured + one side smooth ; both sides textured
Color
Black,White,Green,Blue etc..
Standard
GRI-GM13,GH-2,GH-1

Performance:

1. Excellent physical and mechanical performance, high tearing resistance;high puncture resistance;
2. High aging resistance, high UV resistance, anti-acid & alkali;
3. Excellent low & high temperature resistance, long life span;
4. Perfect water proof performance, seepage and humidity resistance.

Production

                                Materials

                               Feeding

                           Production 1

                         Production 2

                         Production 3

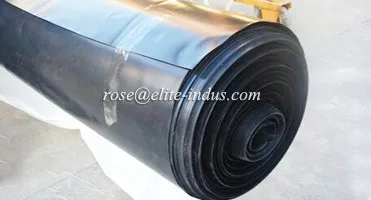

                    Geomembrane Roll

Data Sheet
Properties
Test Method
Test Value
Thickness(mm)
ASTM D5199
0.5
0.75
1.0
1.25
1.5
2.0
2.5
3.0
Density (g/cm2)
ASTM D1505
0.939
Tensile Propeties
Yield Strength(N/mm)
ASTM D6693
7
11
15
18
22
29
37
44
Break Strength(N/mm)
13
20
27
33
40
53
67
80
Yield Elongation %
Type IV
12
Break Elongation %
700
Tear Resistance/N
ASTM D1004
62
93
125
156
187
249
311
374
Puncture Resistance/N
ASTM D4833
160
240
320
400
480
640
800
960
Stress Crack Tesistance/h
ASTM D5397

300
Carbon Black
Carbon Black Content %
ASTM D1603
2.0-3.0
Carbon Black Dispersion
ASTM D5596
Carbon black dispersion(only near spherical agglomerates)for 10 different views 9 in categoried 1 or 2 and 1 in category
Oxidative Induction Time(OIT)
Standard OIT/min
ASTM D3895
100
High Pressure OIT/min
ASTM D5885
400
UV Resistance
Standard OIT retained after 1600 hrs
ASTM D3895
50
High pressure OIT retained after 1600 hrs
ASTM D5885
50

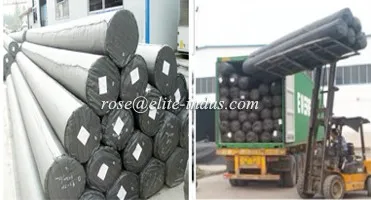

Packing & Delivery
Geomembrane

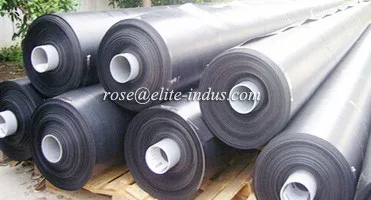

  Geomembrane Roll

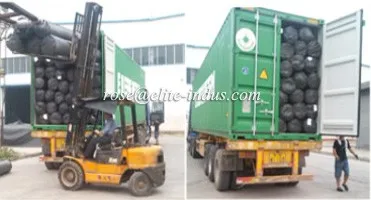

Loading into Container

Full Container

Application

Geomembrane can be widely used in areas of garbage burying, waste disposal and underground construction projects.such as below:

- Aquaculture ponds
- Ouchi root barrier membrane
- Process wastewater
- Stormwater impoundments;
- Secondary containment;

- Spill containment
- Manure and biogas tanks and covers
- Potable water tanks and covers;
- Sludge Drying beds;
- Leachate ponds

                       Aquaculture ponds

                          Landfill

                          Power Plant

                                Reservoir

                        Dam Liner

                     Biogas digester
