heavy duty 12ton battery forklift with AC Curtis electrical controller and big capacity battery and CE

  • 1 Sets
    $144,689.00
  • >=2 Sets
    $144,000.00
Model Number:
FB120
Rated Loading Capacity:
12000kg
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
15 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets)
Customize the explosion proof (Min. Order: 2 Sets)
Customize the Battery Capacity (Min. Order: 2 Sets) Less
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
3 years
After-sales Service Provided:
Video technical support, Overseas third-party support available
Place of Origin:
China
Brand Name:
FLIFT
Certification:
CE/ISO9001
Overall Dimensions:
3500*2100*2550mm
Power Souce:
AC Motor
Fork Length:
1520mm
Fork Width:
180mm
Max. Lifting Height:
4290mm-6000mm
Min. Lifting Height:
180mm
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Construction works , Energy & Mining, Food & Beverage Shops
Chinese Battery(Voltage/Capacity):
96/1250 V/Ah
Controller Manufacturer:
CURTIS/ZAPI
Color:
Blue/Red/Orange/Green/Customized
Type:
Powered Pallet Truck

Packaging & Delivery

Selling Units:
Single item
Single package size:
100X50X60 cm
Single gross weight:
68.0 kg
Package Type:
FB120 Size: 4480*2270*2810mm; Weight: 16910kg. To be fixed in the container by triangle wood/iron brackets withstand rough handling in the transit of forklifts.
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description

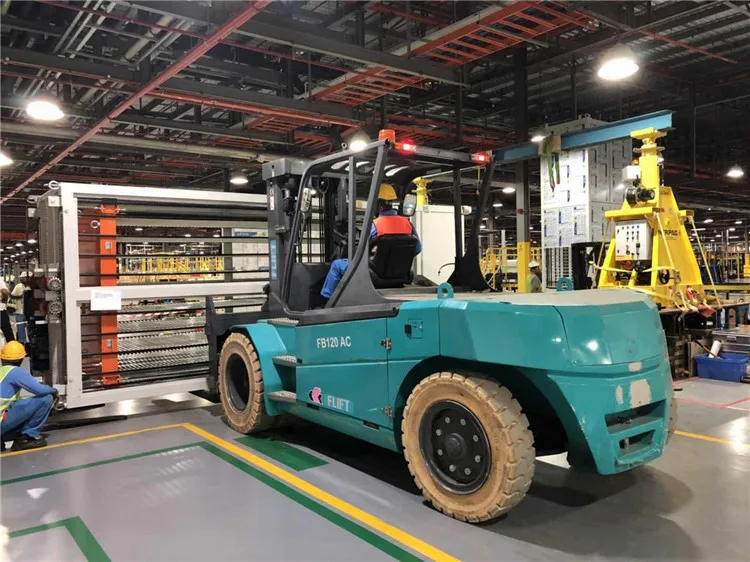

FLIFT Brand heavy duty 12ton battery forklift with electrical controller and big capacity battery

Product Description


1Model FB80FB100FB120
2Power Type ElectricElectricElctric
3Rated Capacitykg80001000012000
4Load Centremm600600600
5Lift Heightmm300030003000
6Fork SizeL×W×Tmm1220*150*701520*175*851520*180*100
7Mast Tilt AngleF/RDeg6°/10°6°/10°6°/10°
8Front Overhang (Wheel Center to fork face)mm650750750
9TreadF/Rmm1650/17001650/17001650/1700
10Ground Clearance (Bottom of mast)mm160210210
11Fork SpreadMin./Max. 300/2000515/2055515/2055
12Overall DimensionLength to face of fork(Without fork)mm368044804480
13Overall Widthmm220022702270
14Mast Lowered Heightmm260028102810
15Mast Extended Height(With backrest)mm455045504550
16Overall Guard Heightmm250026502650
17Turning Radius(outside)mm335038503850
18Min. insecting aislemm304032003200
19SpeedTravel(Empty load)km/h151515
20Lifting(Full load)mm/s275260220
21Max. Gradeability%151010
22TireFront 9.00-1698.00-209.00-20
23Rear 8.25-158.25-208.25-20
24Wheel Basemm245028502850
25Service Weightkg127801671016910
26MotorDrive Motor 2*14(BEST MOTOR)2*20(SCHABMULLER)2*20(SCHABMULLER)
27Lift Motor 2*25(SCHABMULLER)2*28(SCHABMULLER)2*28(SCHABMULLER)
28BatteryVoltage/CapacityV/Ah80/115096/125096/1250
29ControllerManufacturer CURTIS/INMOTION/ZAPICURTIS/INMOTION/ZAPICURTIS/INMOTION/ZAPI
30Type ACACAC
31Operating Pressure for AttachmentMpa17.517.517.5



Packaging & Shipping

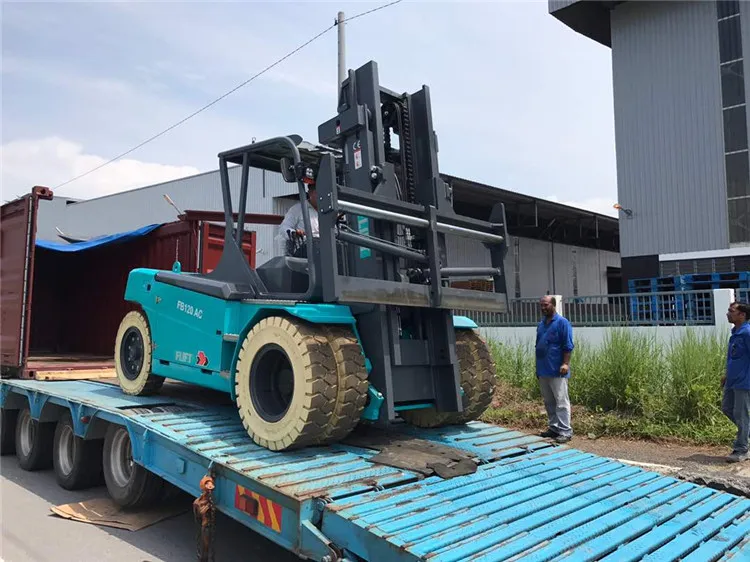

To be fixed in the container by triangle wood/iron brackets withstand rough handling in the transit of forklifts.


The Nearest Port of Loading:  Ningbo/Shanghai.  it only takes 2hours to the port.  Other Chinese ports are acceptable, too. Convenient, safe and fast Delivery!






Our Services

Pre-Sales Service

* Inquiry and consulting support.

* Photos&Videos for your order before shipment.

* Factory visiting.

After-Sales Service

* Training how to use the machine.
* Whole lifetime supply for spare parts.

Field Engineer support available (for some case).



The following items are optional:

Color:  Orange, Green or Customized.

Brand: FLIFT or your designated brand.

Power source: Diesel, Gasoline, LPG, CNG, LPG&Gasoline

Tires: Pneumatic tires, Solid tires, White non-marking solid tires.

Engine:  Mitsubishi/Xinchai/ISUZU/Xinchang/Volvo/Isuzu/Perkins/Cummins engine is optional.

Mast: Standard Wide-view 2 stage mast, Wide-view 2-stage Full free mast, Wide-view 3-stage Full free mast.

FAQ



1. Can you customize the forklift according to our request?
Yes, these items have other options: lifting height, tires, cabin, lights, fork length, colors, controller, engine, battery, charging voltage.etc



2. How long is the warranty for your products?
3 years or 2000 working hours from the date of bill of lading, subject to which comes first.


3. Can you produce the products labeled with the client's brand?
Yes, we can. Please provide us the Letter of authorization of your own brand.



4. What're your terms of payment?
It’s our practice to adopt by T/T, 30% as the deposit, 70% balance before delivery. For the big order amount, we also accept 100% confirmed irrevocable L/C payable by draft at sight.



5. How can you ensure the quality of the products?
We have joined the Trade Assurance, which protects your payment and guarantee the delivery and quality of goods. If the products have a quality problem when you received the goods, Alibaba can return your full payments.

6. What's the delivery time?
Standard 3ton forklifts are in stock. The customized forklift is from 7 days to 28 days.



7. What's the Certificate do you have?
CE/ISO; EPA Approved Engine.



Company Information

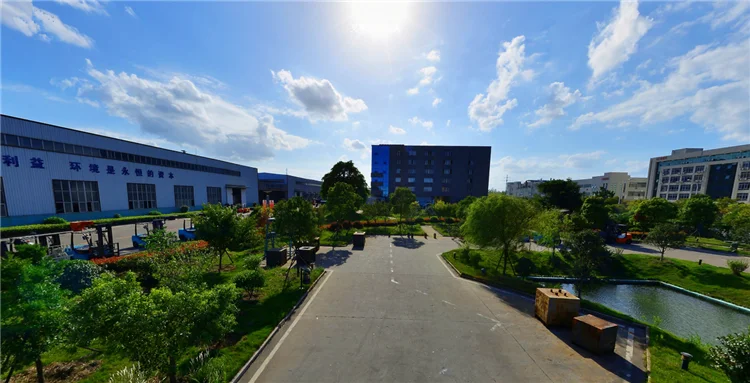

HENAN JINGCHENG XIANDAI FORKLIFT CO., LTD. is the leading and professional supplier of forklift trucks in China. The company began production&sales of forklift in 2007 from 1-48ton. Nowadays, FLIFT has grown up as a large-scale enterprise manufacturing a comprehensive range of material handling equipment including 1-48ton I.C. forklift,1-12ton Electric forklift, side loader forklift, towing tractor, and other warehouse equipment.

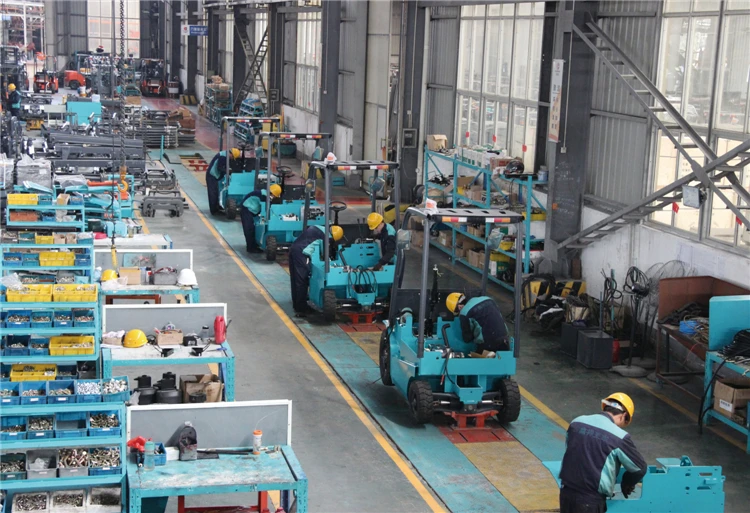

The company equipment includes laser cutting machine, CNC plasma cutting machine, NC flame cutting machine, welding robots, sandblasting line, stoving vanish painting line, PRC testing line, etc. So far, FLIFT annual output of forklift trucks over 17000 units.

.jpg
The company is ISO9001:2000 certified and SGS approved, the products passed European CE certificate, North American EPA certificates and Russia GOST certificate.
The forklift sales network in domestic covers national wide, exporting over 123 countries till the latest statistics in 2018.

FLIFT people are committed to providing even greater satisfaction to our customers and business partners through continuous improvement of product quality and higher levels of services.
