hemp seeds cake flour pin mill machine

  • >=1 Sets
    $3,200.00
Model Number:
CWF
Lead Time:
Quantity(Sets) 1 - 15 >15
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Output (kg/h):
50 - 5000 kg/h
Application:
Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing, food/chemical/pharmaceutical
Condition:
New
Type:
Grinder
Product Type:
PERFUME
Place of Origin:
China
Dimension(L*W*H):
Subject
Certification:
ISO,CE,BV
Weight (KG):
600 KG
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
Key Selling Points:
High Safety Level
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, other, Advertising Company
Local Service Location:
None
Showroom Location:
None
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 Year
Core Components:
Motor
Model:
CW-
Material:
Stainless Steel 304/316 or Carbon steel
Finess:
10-200mesh
Surface treatment:
polished or Brushed
Dust collect device:
Optional
customer design service:
accept
Product name:
Universal Pulverizer
Function:
Powder Flour Grinding
Capacity:
as per order
Product Certification certification
CE Certified.
Valid from 2017-06-05 until 2022-06-06
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1. The inner packaging:stretch film; outer packaging:standard export fumigation-free wooden box
2. According to customer requirements
Port
Qingdao Guangzhou Shenzhen Shanghai Ningbo Suzhou Dalian Rizhao Tianjin Yingkou
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 15 >15
Est. Time(days) 15 To be negotiated
Video Description
Product Description
The machine uses the high-speed relative motion between movable gears to crush materials through the impact between gears, friction and impact between materials. The utility model has the advantages of simple structure, firmness, stable operation and good crushing effect. The crushed material can be directly removed from the grinding chamber of the main engine, and the particle size can be obtained by changing the screen with different apertures.
                                                          CWUP-series universal crusher
Model
Capacity (kg/h)
Speed (rpm)
Feed size(mm)
Crush size (mm)
Power (kw)
20
20-150
4500
6
12-120
4
30
30-300
3800
10
12-120
5.5
40
40-400
3400
12
12-120
7.5
50
80-500
2900
12
12-120
11
60
100-600
2400
15
12-120
22
80
200-1000
2200
15
12-120
37

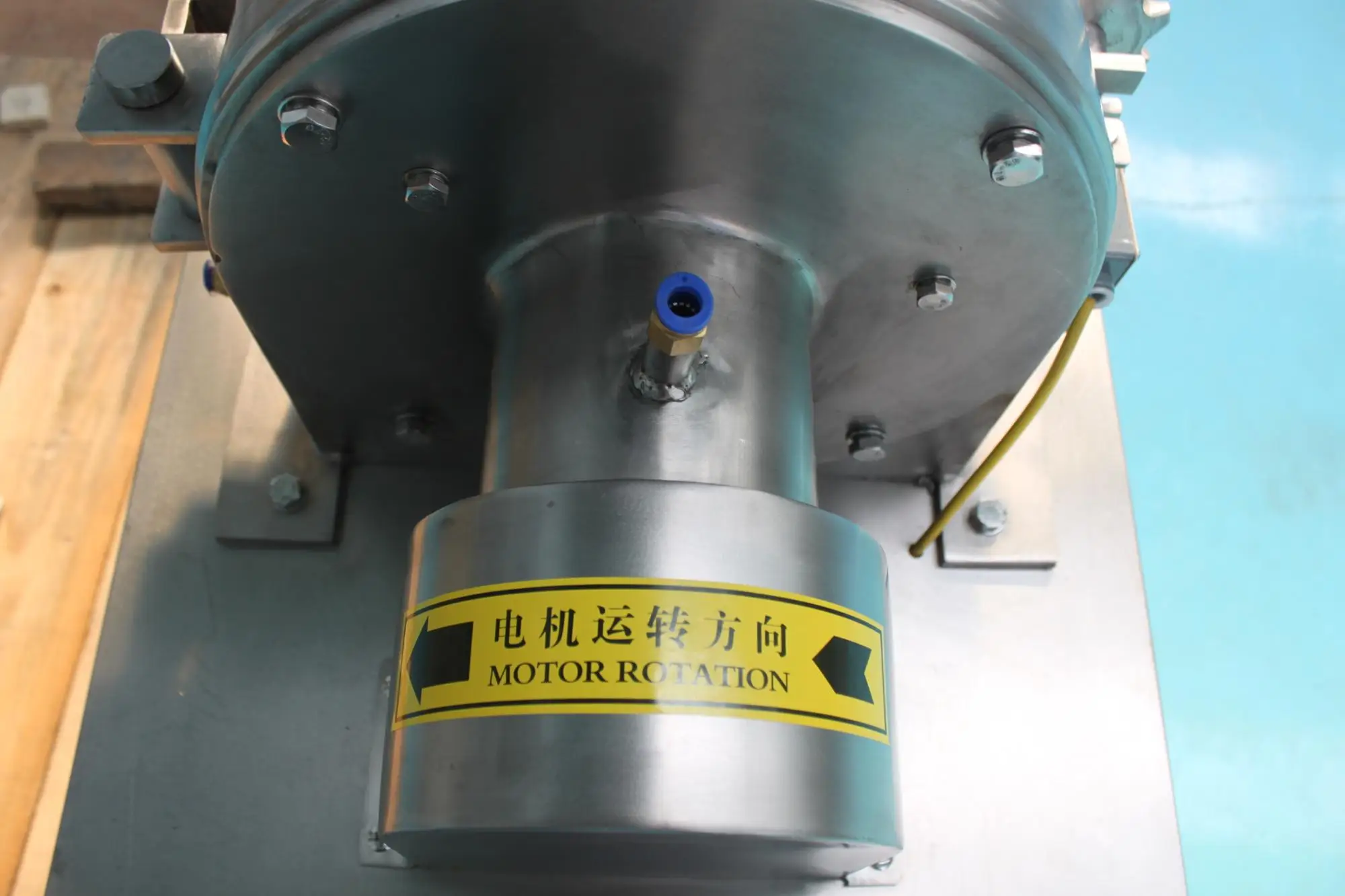

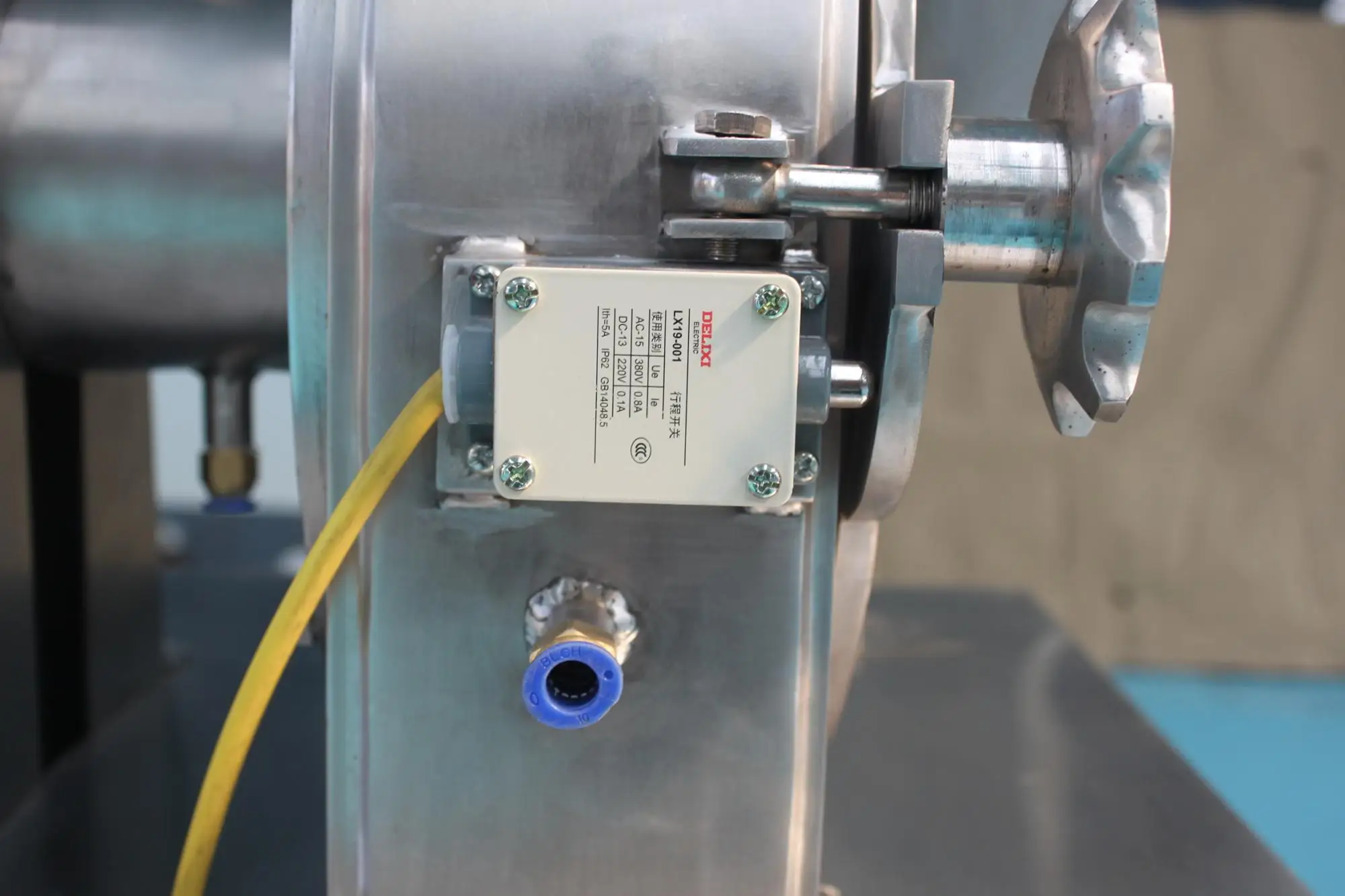

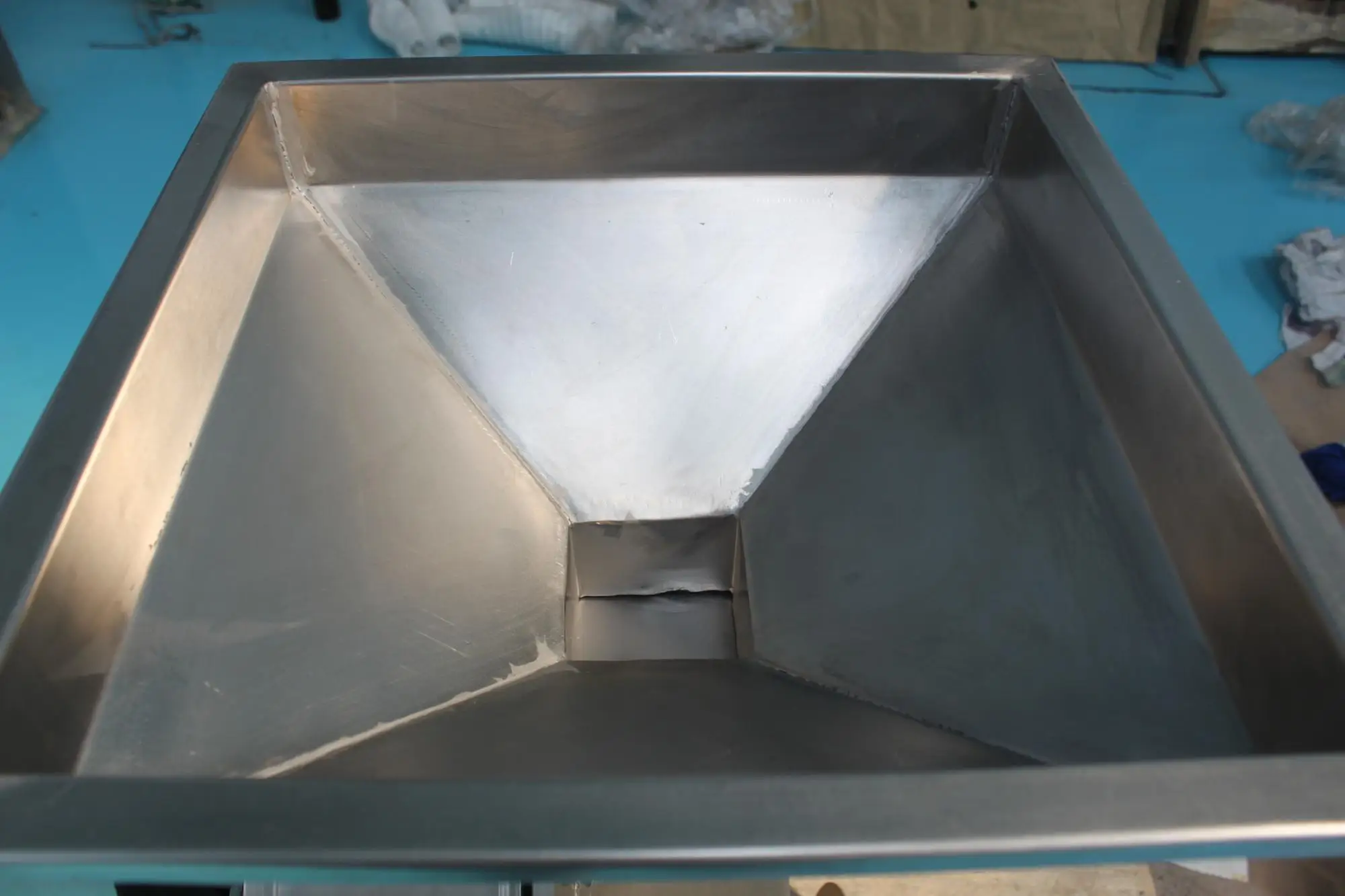

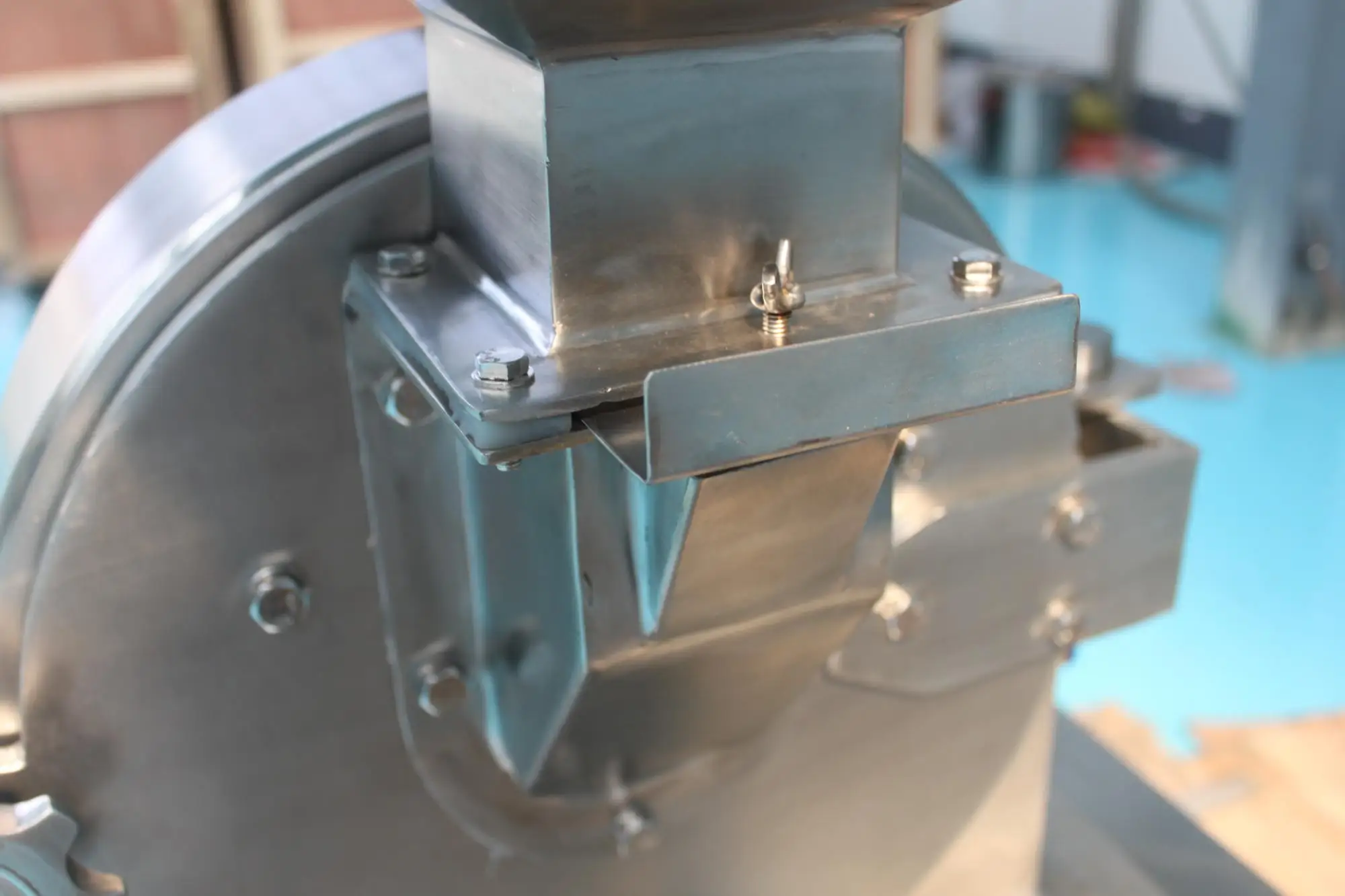

Detailed Images
Inside the machine there are several groups moving knives (or prisms or hammerheads) in rotary wheel, and a group fixed knives in gear ring. Within the cutting and collision of moving knives and fixed knives, the material was crushed. At meanwhile the grinding chamber has produced airflow, which put heat and the finished product outflow together from the sieve and discharge.
Stainless steel screen, Pin mill for spicy, rice, seed, nuts crushing to 20-120 mesh for capacity to 5 ton per hour.

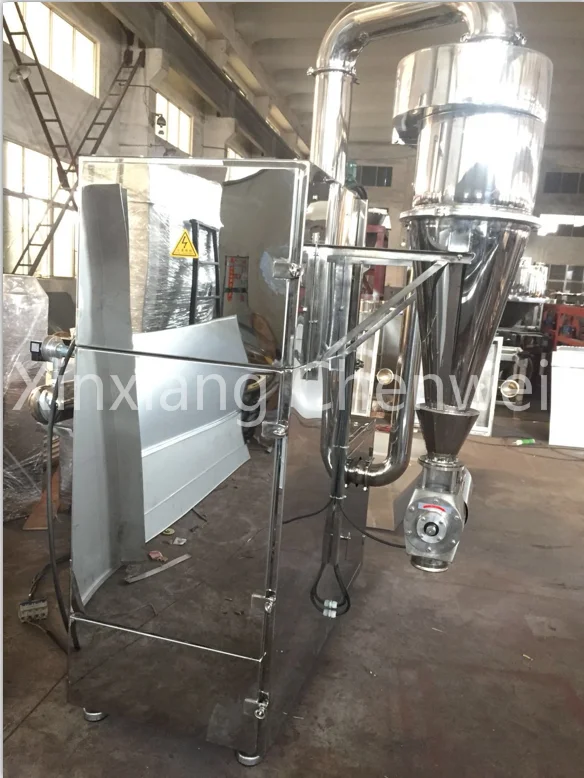

Inspection machine

Every product is checked for normal operation before shipment. This is the guarantee we provide to our customers. The following scene is the scene of wheat bran test machine.

Main Features and application

1. The  Universal pulverizer may be widely applied in industries, such as medicine, chemical and food,etc., for grinding of dry and fragile materials. Materials with low softening point and big viscosity are not appropriate for this machine.
2. Components of this machine which have contact with materials to be crushed are all made of stainless steel with good anti-corrosive property. The housing is in a full enclosure for the convenience of cleaning. The interior walls are all treated to achieve evenness and smoothness of the surface, thus to ensure production of such materials as medicine, food and chemical in better conformity with the national "GMP" standard.
Related Products

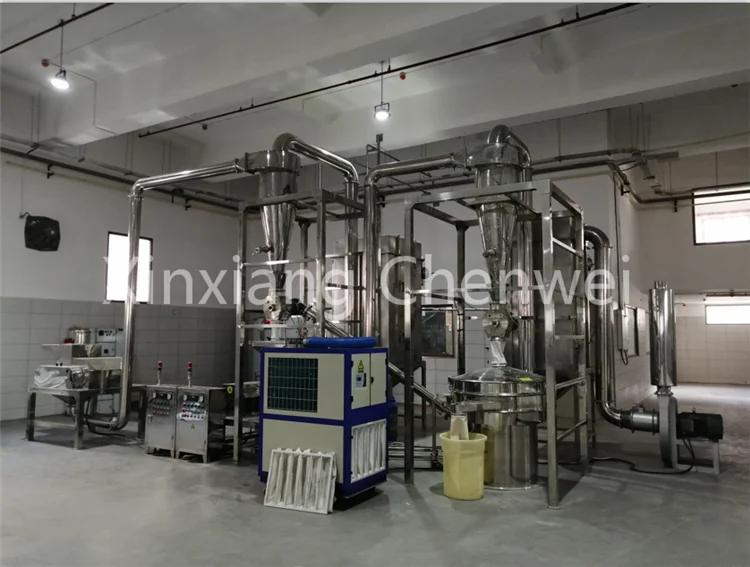

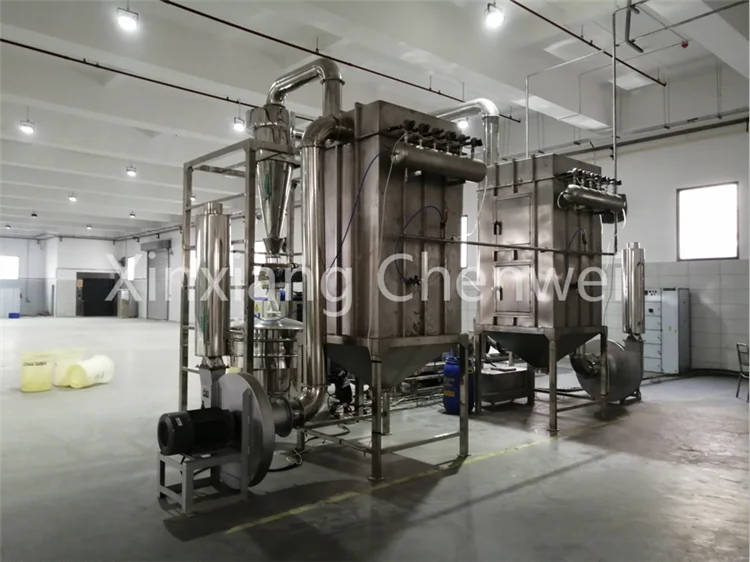

Customer use site, please refer to
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the     machine.
* Engineers available to service machinery overseas.

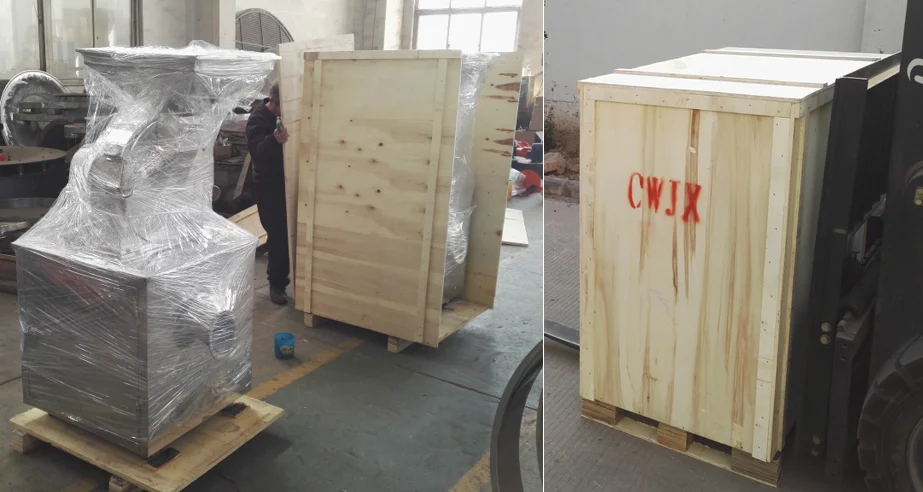

Packing & Delivery
Our Company

Xinxiang Chenwei Machinery Co., Ltd. is an innovative enterprise that integrating technology R&D, processing, manufacturing and trade services. Our company is mainly devoted ourselves to the design, fabrication and installation of screening, conveying, mixing, crushing and other related products. We have 10 years of overseas after-sales experience, provide 24-hour online service, 365-day machine warranty, and have more than 50 patented technologies.
FAQ

Q: What is the actual delivery time of your factory? A: 7-15 days for general series products, 30-60 days for batch products and customized products according to different situations. Q: How do you guarantee the quality of the product? A: Generally, our equipment is the most durable in the industry. With our experienced quality control team, we are working hard to provide most customers with products with bset quality. However, we do recognize that a small number of products may fail or be damaged for different reasons. Q: If the product is damaged, what will your after-sales service do? A: Within 12 months of warranty period, our general after-sales service is replacing damaged parts for customers, but if the damage can be repaired with a small amount of cost, we will wait for the customer's repair bill and pay the part again (Note : Consumables are not included) Q: How can I believe your promise? A: You can view the assessment of Bureau Veritas certification on our website.
We are happy to offer you the best products at competitive prices.
There are also quotations for other models of our production, please feel If you have any requirements, you can contact us at any time.
