high efficiency 3030 warm white 1 watt led diode 2700k

FOB Reference Price:Get Latest Price
  • >=1 Pieces
    $0.022
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Epileds
Model Number:
lz-3030
Type:
smd led diode
Package Type:
Other
Max. Forward Voltage:
3.0-3.4V
Max. Reverse Voltage:
5V
Max. Forward Current:
350mA
Max. Reverse Current:
1uA
Voltage:
2.5-2.8V
Current:
350mA
warranty:
3 yeas
lifespan:
50000H
power:
1W
lm/w:
30lm/w
Chip Brand:
Sanan
chip size:
20*34*2
smd size:
3.0*3.0mm
Supply Ability
Supply Ability:
10000000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
4000pcs per reel high efficency 180lm 190lm cool white 3030 smd led
Port
shenzhen
Specification

high efficiency 3030 warm white 1 watt led diode 2700k

smd 3030 led    3030 1w led

Setting Information
Item
3030 led chip
Voltage
2.8V
Current
350mA
light color
white
Chip Brand
Sanan
Power
1.0w
Certification
CE RoHS
Warranty
3 years
Product Description

Product Details

 LM-80 6000 Hours Tested 3030 SMD LED

 size:3.0*3.0*0.7mm

 1.High Lumens Output & Low Brightness Decay
 2.Stable Performance & Great CCT Inity.
 3.Wid Color Temperature Range
 4.High CRI More Than 95 available
 5.good raw materials
 6.Taiwan Epistar, Xianmen San'an chips

Product Material

high efficiency 3030 warm white 1 watt led diode 2700k

1. 99.9% gold wire

2.Taiwan red copper holder good cooling

3.high brightness Sanan Epistar led chip

Original factory formal chip more stable

4.High refractive index silicone


Initial Electrical/Optical Characteristics (TA=25±5ºC)high efficiency 3030 warm white 1 watt led diode

high efficiency 3030 warm white 1 watt led diode 2700k
Symbol
Item
Units
Min.
Typ.
Max.
VF
Forward Voltage
V
3.0
-
3.4
IF=300mA
IR
Reverse Current
uA
-
-
1
VR=5V
Viewing Angle
º
-
120º
-
IF=300mA
ø
Luminous flux
lm
120
-
130
IF=300mA
TC
CCT
K
2700
-
7000
IF=300mA

Electrical / Optical characteristics high efficiency 3030 warm white 1 watt led diode 2700k

Absolute Maximum Ratings (TA=25ºC) high efficiency 3030 warm white 1 watt led diode 2700k
IFP Conditions : 1/10 Duty Cycle, 0.1 msec Pulse Width.
Item
Symbol
Absolute Maximum Rating
Unit
Forward Current
IF
300
mA
Pulse Forward Current
IFP
400
mA
Reverse Voltage
VR
5
V
Power Dissipation
PD
1200
mW
Operating Temperature
Topr
-40ºC To +85ºC
°C
Storage Temperature
Tstg
-40ºC To +85ºC
°C
Soldering Temperature
Tsld
Reflow Soldering: 260ºC
Hand Soldering : 350ºC
for 10sec.
for 3sec.

LZ-LED is a professional manufacturer for led chip package.

The main product lines:3v/6v/9v/18v smd3030 0.2W 0.5W 1.0W Sanan Epistar 3030 led chip

SMD LED (3528, 2835, 5050, 3030, 5730, 0.06-1W, CRI up to 90, up to 120- 130LM/W)

3v/6v/9v/18v/24v and different color available

High Power LED (1-3W, 360-850nm, CRI up to 95, up to 150LM/W) RGB, R, G, B, Y/Amber)
LED COB/Module (1-200W, CRI up to 90, up to 120-130LM/W)

Ralated chip whole sale high efficency 180lm 190lm cool white 3030 smd led

The smd3030 led chip we can offer 0.2w 0.5w 1.0w for different color.3v 6v 9v 18v 36v available.
The high voltage type xcept the white color we can also supply the blue / green / pink /Amber /Ice blue/ pink purple etc.

CRI70 80 90 95+ ,can do normal 100lm/w high lument reach 140lm/w 160lm/w 180lm/w.

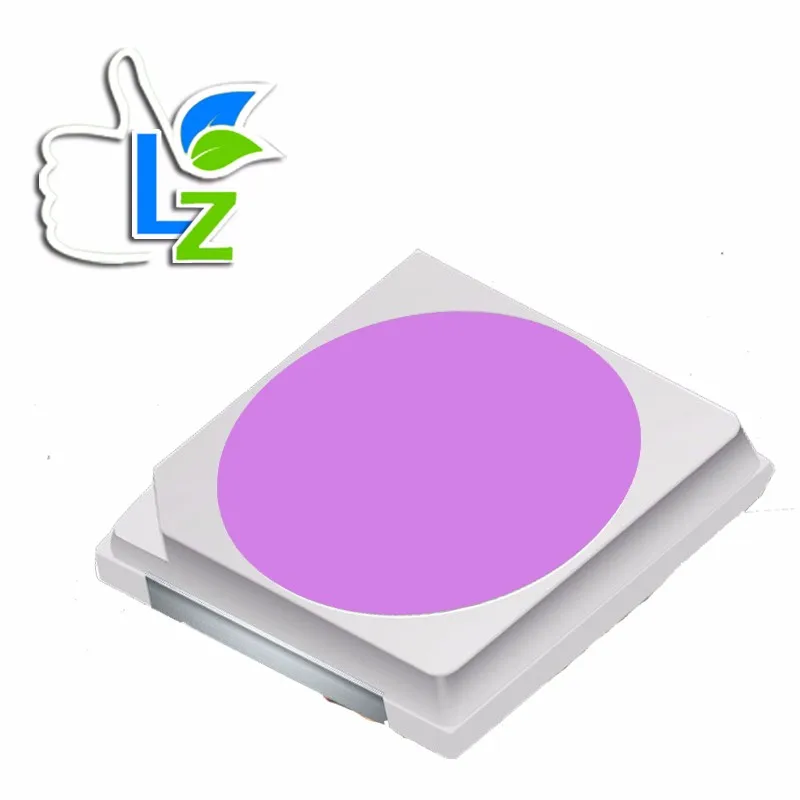

LZ-SMD3030-Purple

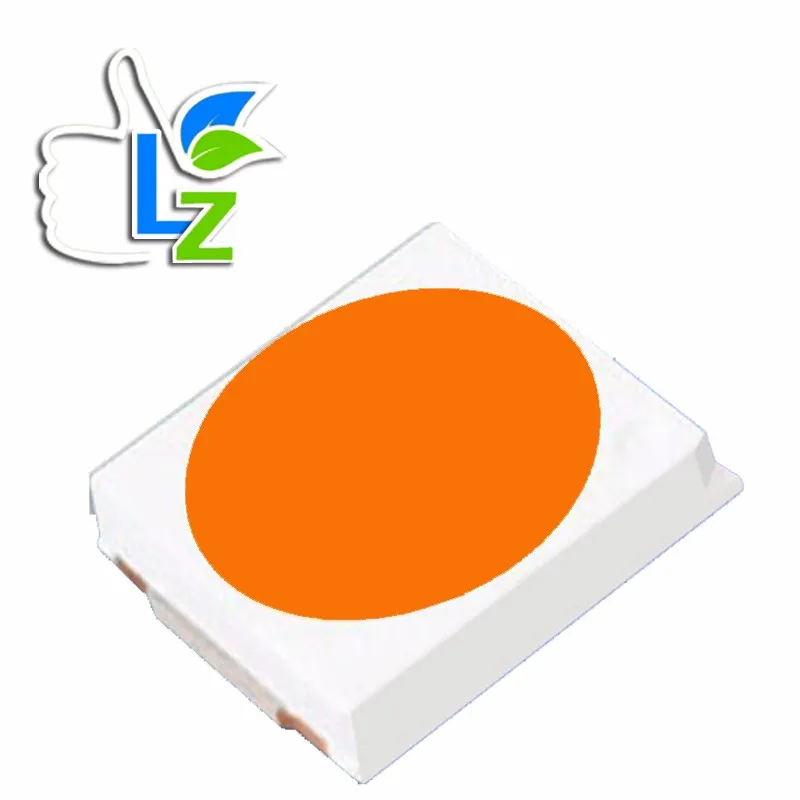

LZ-SMD3030-Amber

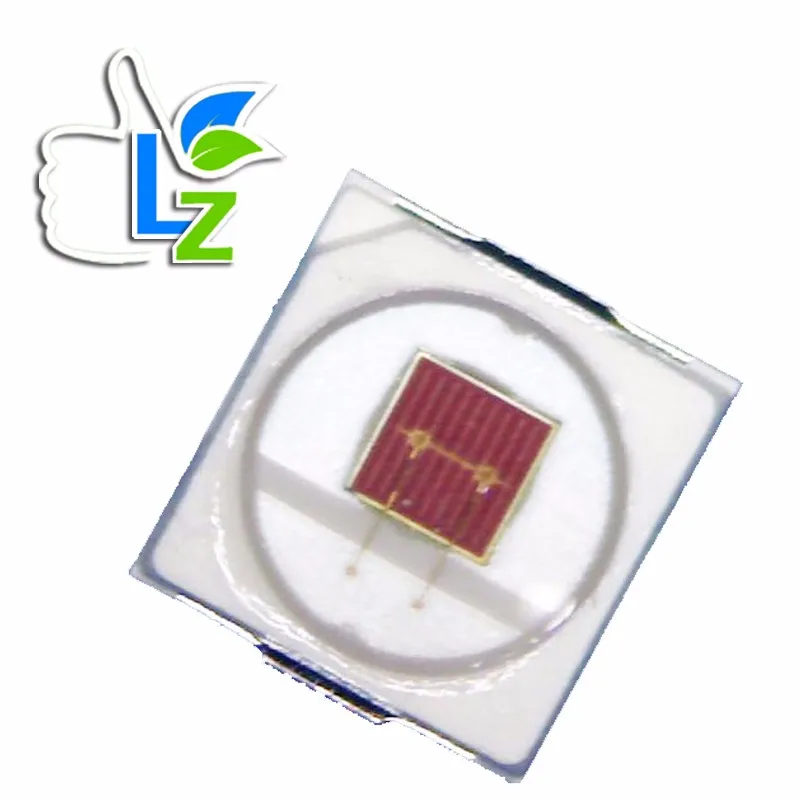

LZ-SMD3030-Red
LZ-SMD3030-Green
SMD 3030
SMD 3030
SMD 3030
SMD 3030
         0.2W/0.5W/1W
0.2W/0.5W/1W
0.2W/0.5W/1W
02W/0.5W/1W
3V/6V/9V/18V
3V/6V/9V/18V
3V/6V/9V/18V
3V/6V/9V/18V
Application

Applications of 3030 SMD LED chip:

All kinds of strip and tube.
Switches, keys backlighting
Electronic display panel light
Marker lights,reading lamps.
Outdoor backlighting displays.
External and internal automotive lighting.
Panel light,candle light,downlight ,bulb lights.
Emergency lighting,signal and symbol luminaire, Ect.

Our Advantage: 4

Free samples are availale,3 years guarantee time.
Perfect production line to guarantee perfect quality.
Own the LED special dust-free, anti-static workshop.
Formed a number of world-class United States ASM automatic machine crystalline solid,
ASM automatic soldering machines, H120 automatic LED light colour scanner make sure the quality.

Company Information
Quality Control

QA/QC Introduction

Quality is our life,we always regard quality as the top important thing,so we have full system about quality.
1.Complete tem about IQC,IPQC,FQC,OQC,and calibration center.
2.Certified by SGS LM-80 CE RoHS.
3.Every work know how to check the product at his own stage. and also can check the last step quality.

Our Service
Packing & Delivery
FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 2-5 years warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
