high frequency PVC air bag blister packing welding machine

FOB Reference Price:Get Latest Price
$2,000.00 - $3,500.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
CHENGHAO
Model Number:
CH-5KW-STQY
Voltage:
110V/220V/380V/Customize
Frequency:
27.12KHz
Welding Area:
200*300mm
Dimensions:
1850*1220*1550mm
Usage:
PVC Welding
Input Power:
8KVA
Oscillation Tube:
7T85RB
Max Pressure:
800KG
Gap of Electrode:
170mm
Application:
PVC,PET,APET,PETG
Function:
plastic Welding
Certificate:
CE
Machine type:
single and turntable high frequency machine
stations:
two stations
Type:
Manual and pedal
Weight:
450KG
After-sales Service Provided:
Engineers available to service machinery overseas
Power:
5KW
Supply Ability
Supply Ability:
50 Set/Sets per Week
Packaging & Delivery
Packaging Details
strong wooden case packing
Port
Shenzhen|Guangzhou
Lead Time :
stocks

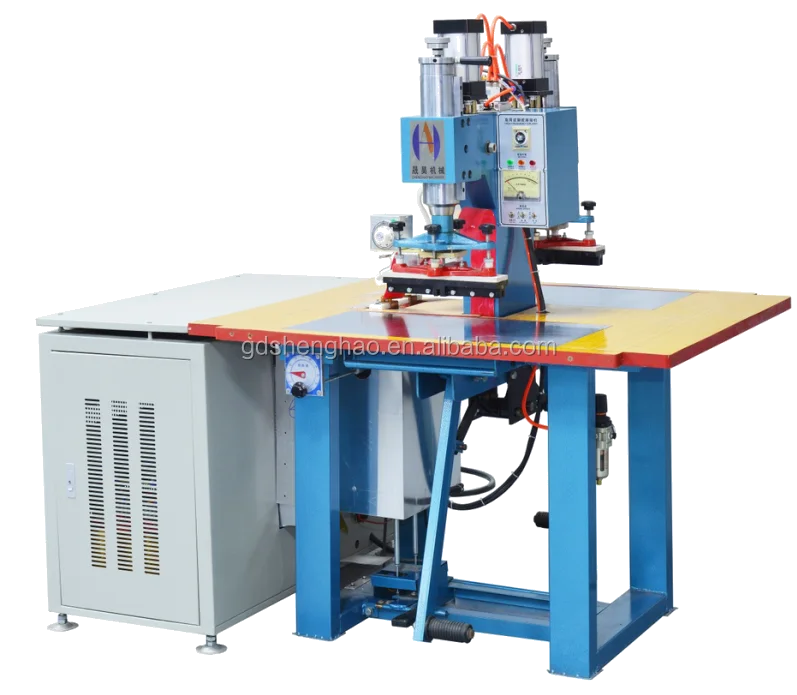

Machine Details

Machine Working Principle:

High frequency (HF) welding process, consists of amalgamation of material by supplying HF energy in the form of an electromagnetic field which is normally applied between two metal electrodes, plates or mould. HF welding is accompanied with certain pressure on the material surfaces to be joined. For this purpose the HF welding machine are constructed.

Model

ZY-8KW-XSRD

ZY-10KW-XSRD

Output Power

8000W

10000W

Voltage

380V 3P 50/60Hz

380V 3P 50/60Hz

Input Power

15KVA

18KVA

Frequency

27.12Mhz

27.12Mhz

Oscillation Tube

TOSHIBA 7T69RB

TOSHIBA E3069

Anti-Spark System

NL-5557

NL-5557

Max Pressure

10Ton

10Ton

Gap of Eletrode

160MM

160MM

Size of Upper Electrode Size

450*350MM

450*350MM

Working Table Size

600*400MM

600*400MM

Machine Dimension

2160*1450*2250MM

2160*1450*2250MM

Machine Net Weight

1050KG

1150KG

Packing Dimension

950*1450*2250MM

950*1450*2250MM

CH-5KW-STQY
CH-8KW-STQY
Output Power

8000W

10000W

Voltage

380V 3P 50/60Hz

380V 3P 50/60Hz

Input Power

15KVA

18KVA

Frequency

27.12Mhz

27.12Mhz

Oscillation Tube

TOSHIBA 7T69RB

TOSHIBA E3069

Anti-Spark System

NL-5557

NL-5557

Max Pressure

10Ton

10Ton

Gap of Eletrode

160MM

160MM

Size of Upper Electrode Size

450*350MM

450*350MM

Working Table Size

600*400MM

600*400MM

Machine Dimension

2160*1450*2250MM

2160*1450*2250MM

Machine Net Weight

1050KG

1150KG

Packing Dimension

950*1450*2250MM

950*1450*2250MM

5KW
8KW
Voltage
380V 3P 50/60Hz
380V 3P 50/60Hz
Input Power
8KVA
10KVA
Frequency
27.12Mhz
27.12Mhz
Oscillation Tube
TOSHIBA 7T85RB
TOSHIBA 7T69RB
Anti-Spark System
NL-5557
NL-5557
Max Pressure
800KG
800KG
Gap of Eletrode
170MM
170MM
Working Table Size
200*300MM
300*400MM
Machine Dimension
1850*1220*1550MM
1850*1220*1550MM
Machine Net Weight
450KG
500KG
Packing Dimension
1760*1150*1730MM
1760*1150*1730MM

The Machine Feature:

The machine have strong output power, reliable performance, using low-loss oscillation system, and special design oscillation tuner, so machine output power very strong and material can be welded in short time, automatic worktable help to improve production.


Using high sensitivity America-Imported anti-spark triode tube, which is useful for protect mould and products once machine over current. Adopting famous brand OMROM relay and CKC timer, greatly extend the life of the machine, reduce the machine failure.

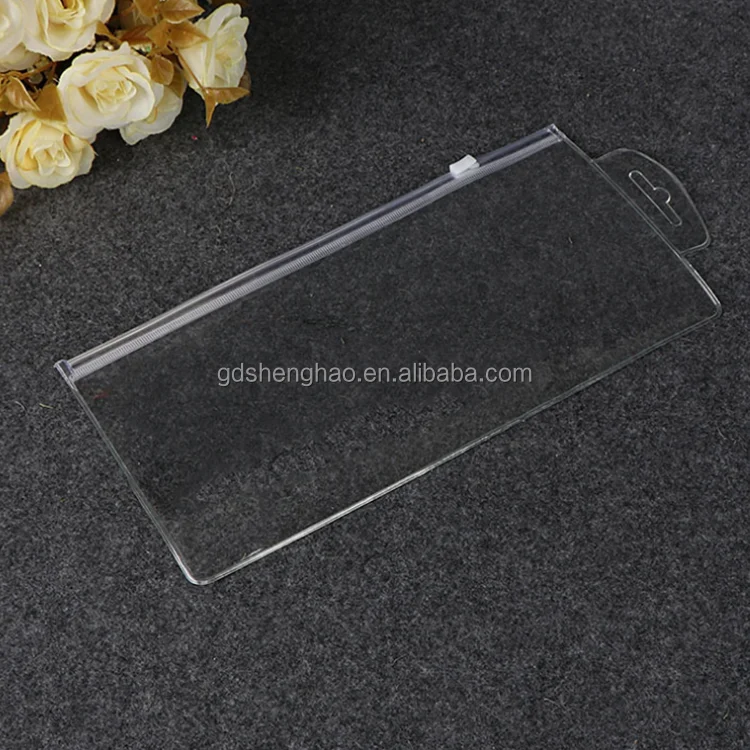

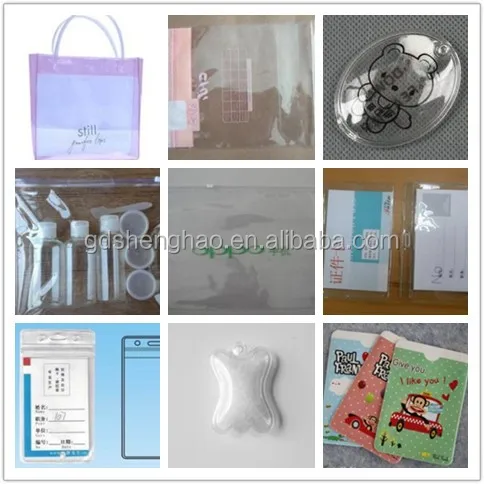

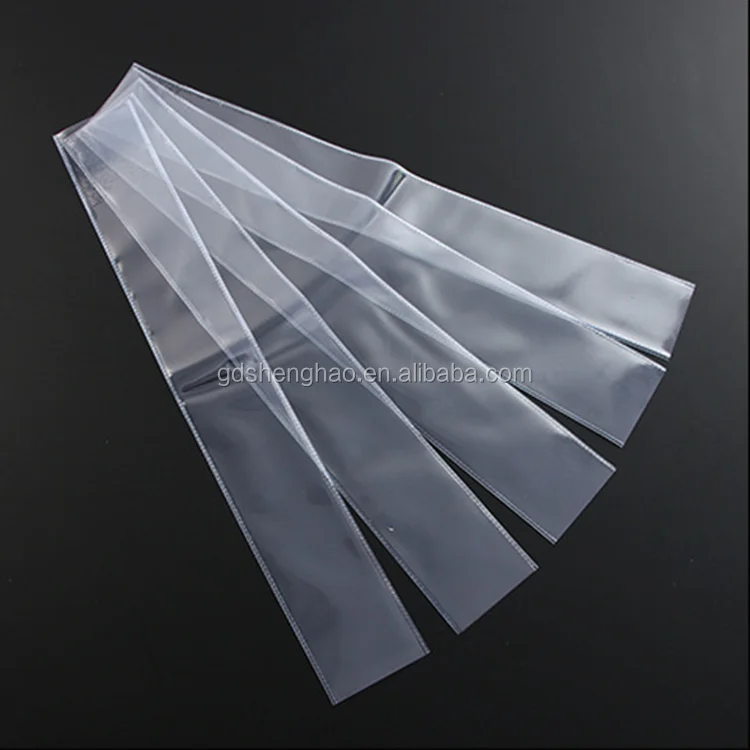

Product samples

Machine Application:

Double head  high frequency mainly used to welding two pvc\tpu\eva\pet plastic.Such as used in pvc rain coat making ,pvc tube sealing,Bubble stick embossing and cutting,Leather mark indentation,and others pvc welding;pvc blister packing,such as :stationery packaging, electronic product packaging, MP3, MP4, MP5 plastic packaging, toothbrush packaging, toy packaging, gift packaging, hardware tool packaging, U disk packaging and other plastic packaging paper packaging, can also be used for PVC  box embossing ,pvc  plastic welding , PVC processing and so on.

Our Customers

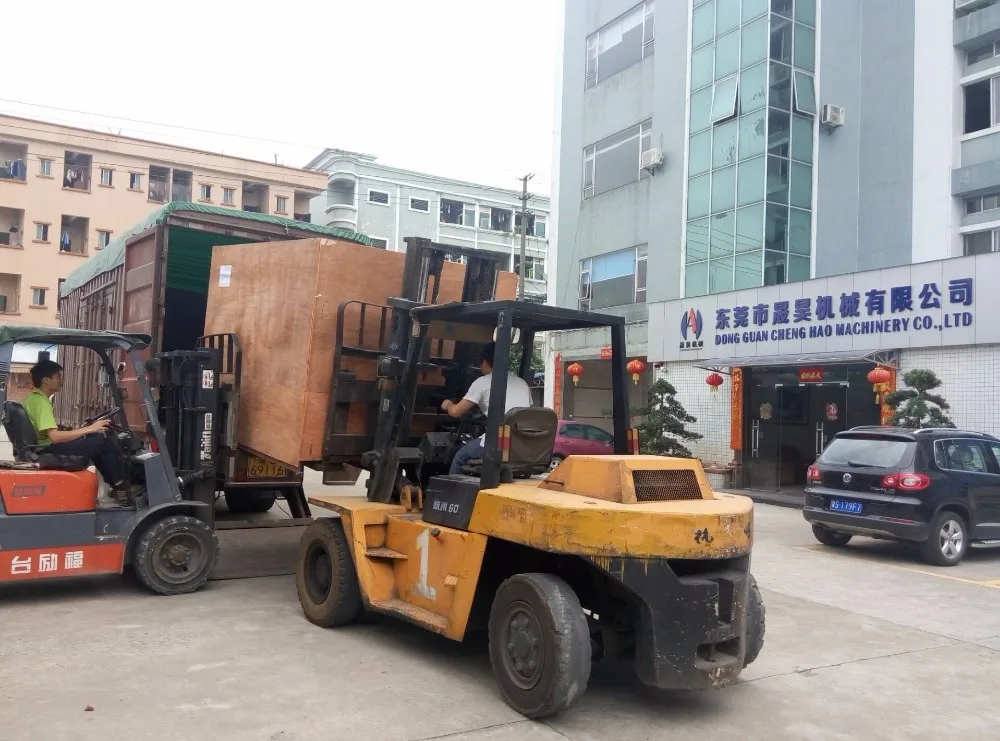

Packing & Delivery

Packing:

We use ply-wood case for packing machines, it will meet export standard like safty, protection requirment and durable performace in long time shipping by sea or air, our package no need fumigation.

Delivery:

For machines are big and heavy parcel, and different country with different delivery cost,so we suggest below delivery solution:
1. Over 1CBM or 100KG, we suggest send by Sea.
2. Below 1CBM or 100KG, we suggest send by Air.
3. Below 0.5CBM or 50KG, we suggest send by Express.
The price show on our website just the machine EXW price, please contact us before you place order.

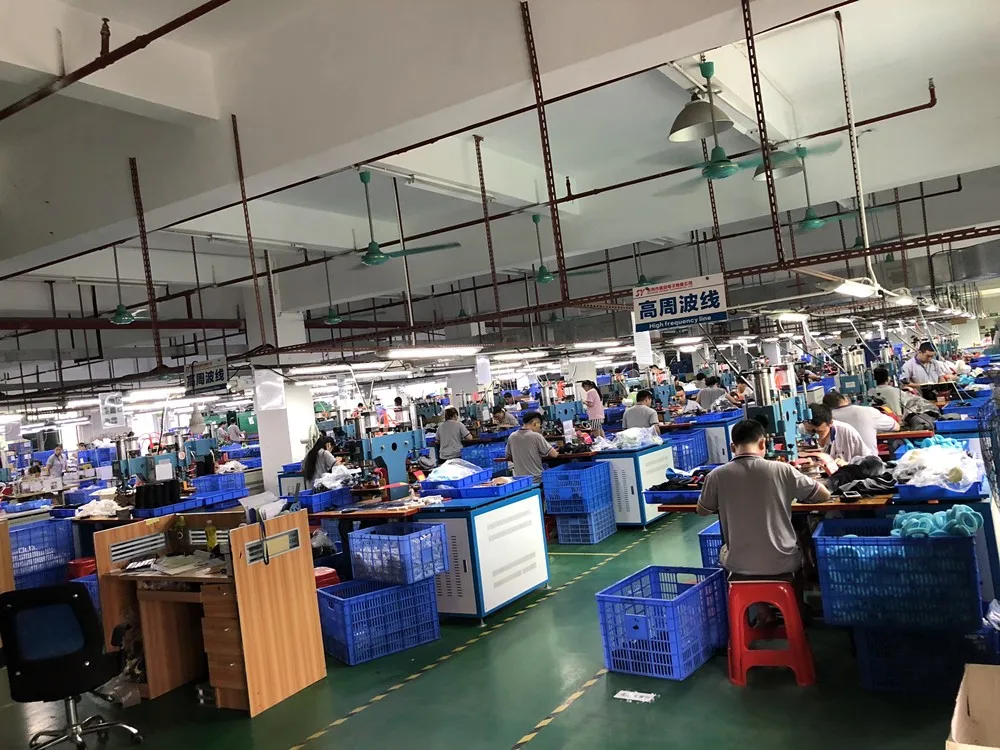

Our Company

Our Company:

Dongguan Chenghao Machinery Co., Ltd. has been committed to R&D, production and sales of the plastic welding field ever since its establishment in 1995.


We are professional designer and manufacturer of High Frequency Welding Machine, Ultrasonic Plastic Welding Machine, Blister Forming Machine, Tube Sealing and Filling Machine and other Packing Machine with over 20 years.


We welcome both new and regular customers at home and abroad to visit us and cooperate with us to achieve mutual profits and create a better future. We are convinced that your partnership with us can help your business scale a new high.

Our Certifications

Best Machinery:

Since its inception, CHENGHAO MACHINERY has been devoted to optimization and integration of developing, producing, sealing, and application of technology of high frequency and ultrasonic machinery. After almost twenty years of unremitting efforts,  CHENGHAO MACHINERY with high quality products, excellent technical support and perfect after-sales service has established a good reputation among the customers, and also gains a number of provincial and national honnors.

FAQ

Q: Are you trading company or manufacturer ?

A:Yes,We are factory,all machine is made by ourself and we can provide customize service according to your requirement.

Q: How long is your delivery time?

A: Generally it is5-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What about your warranty ?

A: Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
