high precision and low cost small weight angular posit sensor from shenzhen manufacturer.

FOB Reference Price:Get Latest Price
$85.00 - $86.00 / Piece | 1 Piece/Pieces (Min. Order)
Samples:
$120.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Shipping:
Support Sea freight
Lead Time:
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 7 Negotiable
Customization:
Customized logo (Min. Order: 5000 Pieces)
Customized packaging (Min. Order: 5000 Pieces)

More

Graphic customization (Min. Order: 5000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
RION
Model Number:
SCA126T
Usage:
Position Sensor
Theory:
MEMS
Output:
Digital Sensor
measuring axis:
XY
Measuring Range ::
±1~±90° optional
Accuracy::
refer to the technical data
Wide voltage input::
9~36V
Wide temperature working::
-40~+85℃
Resolution::
0.01°
protection class:
IP67
Highly anti-vibration performance:
>2000g
size ::
90*40*26mm(customized)
Output mode:
RS232/RS485/RS422/PWM/CAN (optional)
Supply Ability
Supply Ability:
5000 Set/Sets per Month
Packaging & Delivery
Packaging Details
CARTON
Lead Time :
Quantity(Pieces) 1 - 5 >5
Est. Time(days) 7 To be negotiated
Product Description

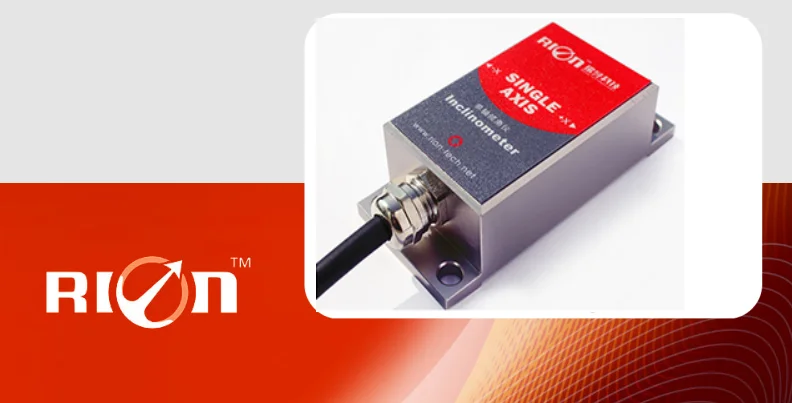

SCA116/126T MEMS Digital Type Single/Dual-Axis Inclinometer


General Description

SCA126T is a serial output dual-axis inclinometer launched by RION company to the field of industrial control, built-in high-precision A / D differential converter, through 5 filtering algorithm, which can measure the angle of sensor output relative to the horizontal tilt and pitch tilt. The output interface RS485, RS232, RS422, TTL, CAN,MODBUS are optional.
Because of Built in ADI company's high precision digital temperature sensor that can correct the sensor temperature drift in accordance with the changes of the built-in temperature sensor, to ensure high repeatability of the product in the low-temperature and high-temperature environment. The output frequency response standards up to 18Hz, for higher response frequency Division we can customize according to the user requests. The products are truly industrial-grade products, reliable performance, scalability, and a variety of output options. Suitable for a variety of harsh industrial control environment.


Feature

●Dual-Axis Inclinometer

●Measuring Range :±1~±90° optional
●Accuracy: refer to the technical data

●Wide voltage input: 9~36V
●Wide temperature working: -40~+85℃

●Resolution: 0.01°
●IP67 protection class

●Highly anti-vibration performance >2000g

●Direct lead cable interface

●Small size :90×40×26mm(customized)
●Output mode RS232/RS485/RS422/PWM/CAN (optional)

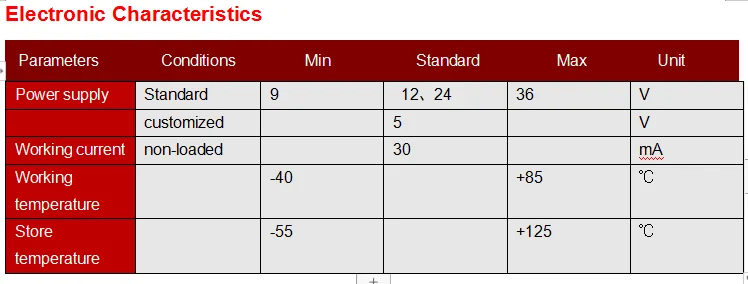

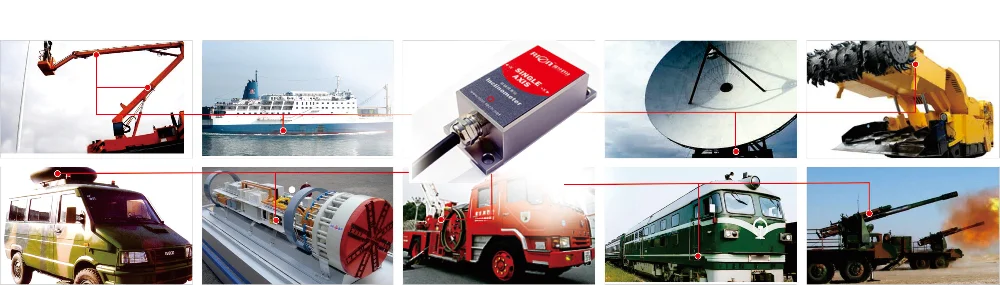

Application

●Satellite positioning Search                                                                   ●Rail-mobile monitoring
●engineering mechanical measurement of dip angle                   ●oil-well drilling equipment
●Radar detection of vehicle platform                                                      ●Underground drill posture navigation
●Gun Barrel angle measurement in early shooting                           ●Based on the angle direction measurement

 ●Satellite communications vehicle posture detection                   ●Shield pipe jacking application
●Ship's navigation posture measurement                                            ●Geological equipment inclined monitoring

Detailed Images


Technical Data:

Parameters
Conditions
SCA126T-10
SCA126T-30
SCA126T-60
SCA126T-90
Unit
Measuring range
±10
±30
±60
±90
°
Measuring axis
X,Y
X,Y
X,Y
X,Y

Resolution
0.01
0.02
0.03
0.04
°
Absolute accuracy
0.02
0.05
0.08
0.1
°
Long term stability
0.05
0.05
0.05
0.05

Zero temperature coefficient
-40~85°
±0.006
±0.006
±0.006
±0.006
°/℃
Sensitivity temperature coefficient
-40~85°
≤100
≤100
≤100
≤100
ppm/℃
Power on time
0.5
0.5
0.5
0.5
S
Response time
0.05
0.05
0.05
0.05
s
Output rate
5Hz,15Hz,35Hz,50Hz can be setting
Output signal
RS232/RS485/RS422/TTL/PWM/CAN/MODBUS
EMC
According to EN61000 and GBT17626
MTBF
≥50000hours/times
Insulation Resistance
≥100M
Shockproof
100g@11ms,3Times/Axis(half sinusoid))
Anti-vibration
10grms,10~1000Hz
Protection glass
IP67
Cables
Standard 1M length,wearproof,grease proofing,wide temperature,Shielded cables 4*0.4mm2
Weight
120g(without cable)
*This Technical data only list ± 10 °, ± 30 °, ± 60 °, + 90 ° series for reference, other measuring range please refer to the adjacent parameters.

Key words:
Resolution:Refers to the sensor in measuring range to detect and identify the smallest changed value.

Absolute accuracy:Refers to in the normal temperature circumstances,the sensor absolute linearity, repeatability, hysteresis, zero deviation, and transverse error comprehensive error.

Long term stability : Refers to the sensors in normal temperature conditions, the deviation between the maximum and minimum values after a year's long time work.

Response time:Refers to the sensor in an angle change, the sensor output value reached the standard time required.


   Mechanical Parameters

○ Connectors:1m lead cable(customized)

○ Protection glass:IP67

○ Enclosure material :Aluminum Oxide

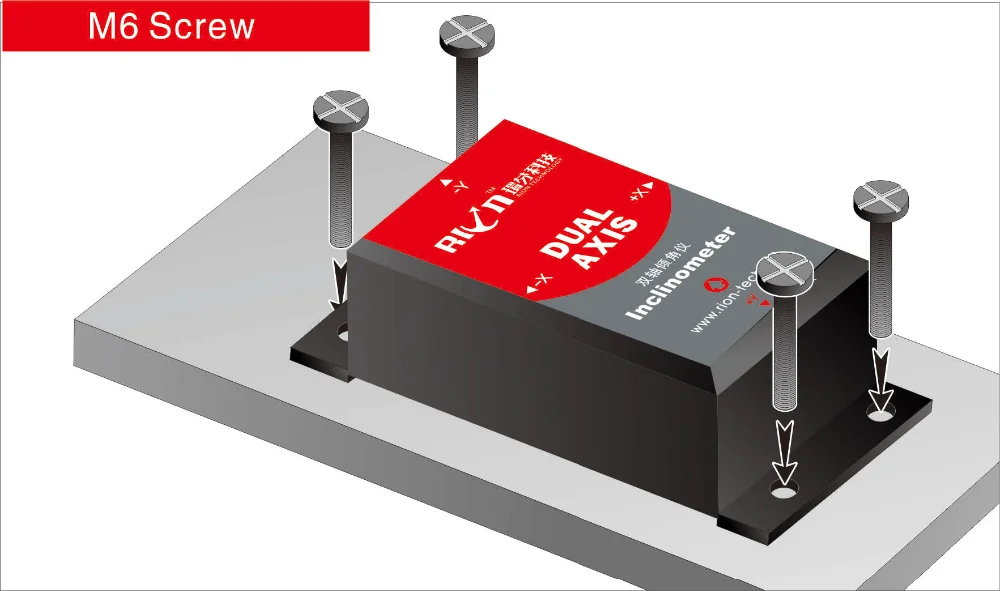

○ Installation :4*M6 screws

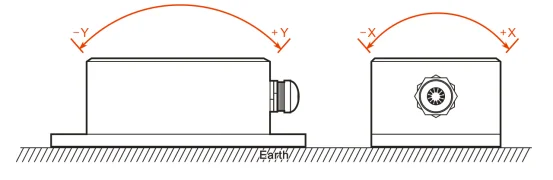

Measuring Directions&Fix


The installation must guarantee the product bottom is parallel to measured face,and reduce the influence of dynamic and acceleration to the sensor. This product can be installed horizontally or mounted vertically (mounted vertically selection is only applicable to the single axis), for installation please refer to the following scheme.

Production installation notes:

Please follow the correct way to install tilt sensor, incorrect installation can cause measurement errors, with particular attention to the "surface", "line"::

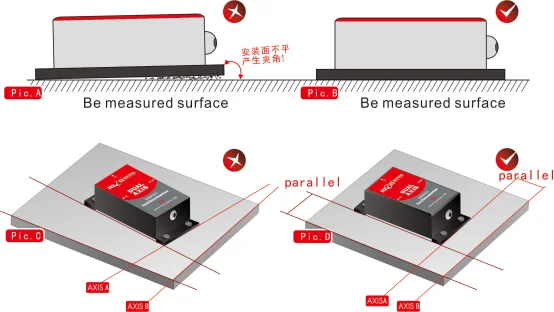

1)The Sensor mounting surface and the measured surface must be fixed closely, smoothly, stability,if mounting surface uneven likely to cause the sensor to measure the angle error. See Figure Pic.AB

2) The sensor axis and the measured axis must be parallel ,the two axes do not produce the angle as much as possible. See Figure Pic.CD

Our Company


Our Certifications

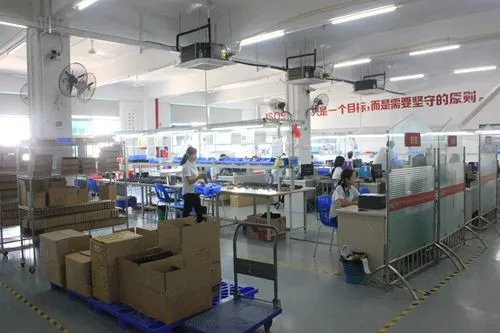

Our Factory
