high quality auto multi-station hexagon and hexagon socket allen bolt forging heading machine

FOB Reference Price:Get Latest Price
$21,900.00 - $23,500.00 / Set | 1.0 Set/Sets (Min. Order)
Model Number:
DA6-70
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 >5
Est. Time(days) 15 45 Negotiable
Customization:
Customized logo (Min. Order: 20 Sets)
Customized packaging (Min. Order: 20 Sets)

More

Graphic customization (Min. Order: 20 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
YUHAI
Machine Type:
forging machine
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
Hot Product 2019
Warranty of core components:
1 YEAR
Core Components:
PLC
Voltage:
380V
Power:
7.5kw
Dimension(L*W*H):
3.60m*1.40m*1.45m
Weight:
5850kg
Certification:
CE
Key Selling Points:
High Productivity
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Showroom Location:
Egypt
Applicable Industries:
Manufacturing Plant
Local Service Location:
Egypt
Max cut off diameter:
9mm
Max cut off length:
70mm
capacity:
90-110 pcs/min
P.K.O stroke:
25mm
K.O stroke:
90mm
stroke:
125mm
motor power:
10HP;7.5KW
normal size of bolt:
3-9mm
weight:
5850kg
volume:
3.60m*1.40m*1.45m
Warranty:
1 Year
Supply Ability
Supply Ability:
30 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
Wooden cases/pallets, plywood cases/pallets,plastic film,etc.
Port
Foshan or shenzhen or guangzhou
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 >5
Est. Time(days) 15 45 To be negotiated
Video Description

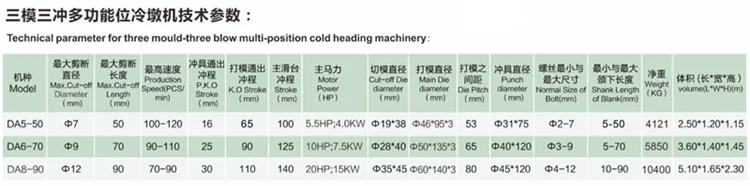

Overview
Place of Origin
Guangdong, China (Mainland)
Main motor
10HP;7.5KW
Brand Name
YUHAI
Weight
5850kg
Model
DA6-70
Capacity
90-110PCS/min
 Max. cut-off Diameter
9mm
Volume(L*W*H)
3.60m*1.40m*1.45m
Max.cut-off Length
70mm
After-sales Service Provided:
Engineers available to service machinery overseas
Products Show
Function

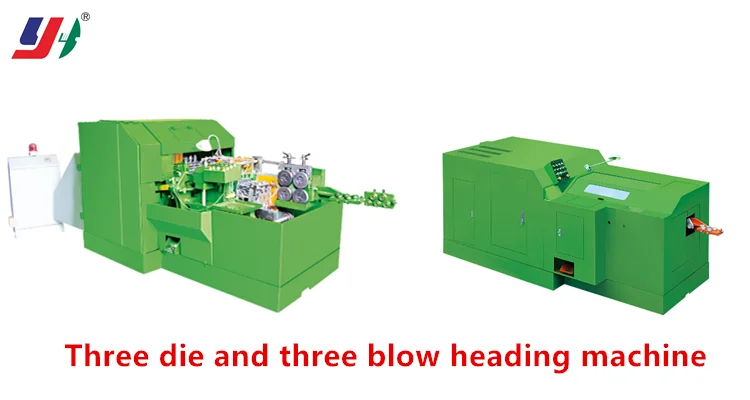

Functions of heading machine:
(1). The machine belong to the cold heading machine, the function is the first molding and the second punching products, which is mainly used for forming the heads of the screw products, the work principle is line materials calibration, accessing lines, sending materials to the main mold, first punching initial forging, and second punching the formed blank materials and withdraw. The work gets done without any letup, the production capacity can be up to about 150-180pcs per minute, which belongs to the more advanced products in the current technology.

(2). Upsetter various materials: Common steel, carbon steel, stainless steel, copper, aluminum, and alloy steel etc with widely functions. (For the stainless steel and alloy steel, can heat them to the appropriate temperature with the heater, and can upsetter.)

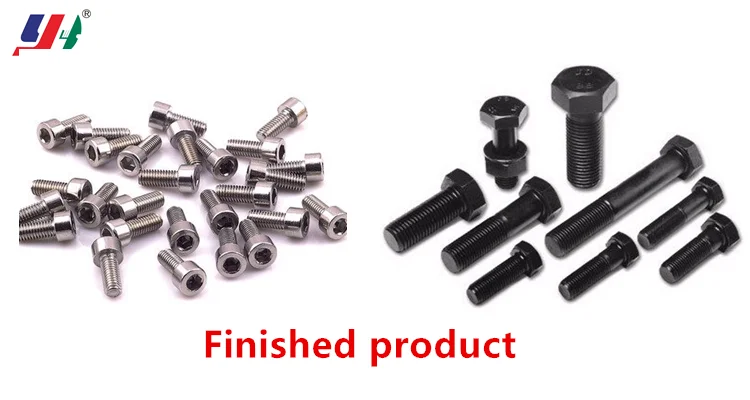

(3). The machine can make the common products such as the common self-tapping screw, electric screw, micro-screw, socket head cap bolts, self drilling screw, fiber plate screw etc. For an example PKO can upsetter other non standard abnormal hardware and metal products.

Apply:
Rivet making machine, semi-tubular rivet making machine ( Screw making machine, bolt making machine , rivet maker) being of precise and stable structure.

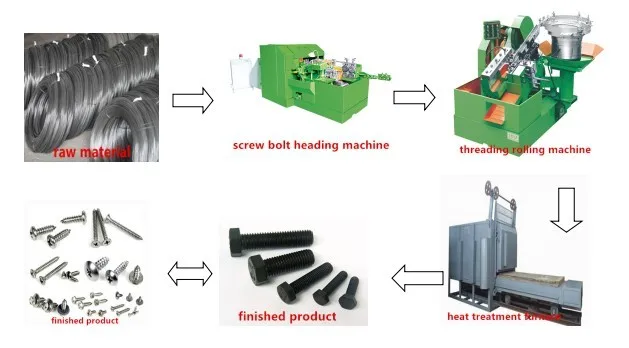

Production Flow

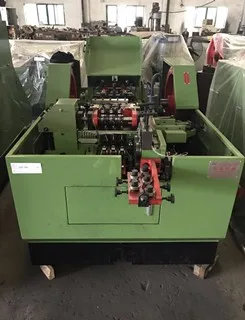

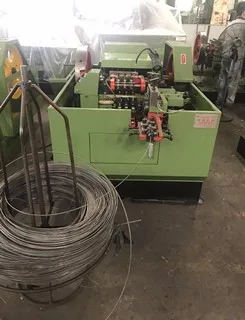

Machine details

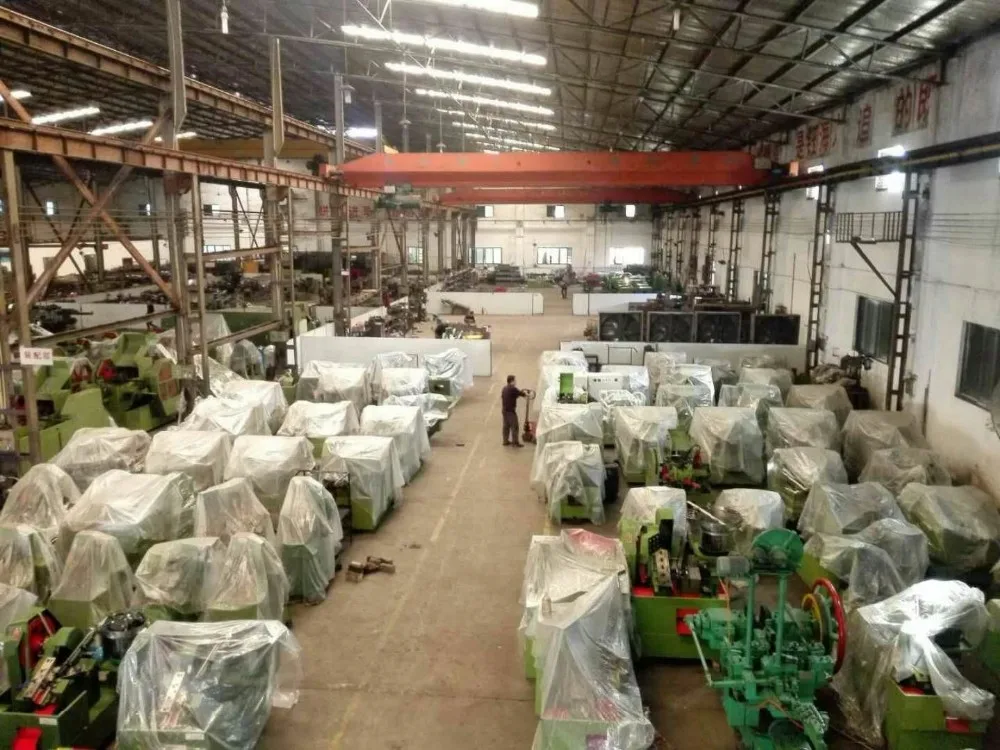

Our Company

Foshan nanhai district Yu Hai Screw machinery manufacturing Co.,Ltd is especial in screw machinery production for a dozen of year's. The company has excellent R & D capabilities and experience, Widely absorbed in advanced technology from Taiwan ,Japan and German and combining with modern screw industry requirement in depth, the latest processing technology is widely adopted to let us always adhered to the principle of continuous quality improvement. With the precise debugging and assembly technology, our strictly quality control ensures our products are in precious quality and stable performance.

Our Certifications
FAQ

1.Why do we choose Yuhai screw machines ?

-We are professional manufacturer of various kinds of screw, nail,rivets making machines located in Foshan city of Guangdong province , Which has over 18 years experience for producing screw production line. Not only have rice experience to produce high quality machine , but also with strong technical team as basis.

2.Have you exported machine to overseas market ?

Yes . We has exported machine to Russia , Malaysia , Pakistan , India, Vietnam , Indonesia, , South Africa , etc.

3.Is there any quality warranty and after service ?

The warranty of mechanical portion of the equipment shall be a year after you received the equipment; And help buyer installation and commissioning the equipment , and free training operator.

4.If there any quality problem of your machine and spare parts , what should I do ?

within one years, if machine have any quality problem. we will repaire for free.But if damaged parts wil be replaced by offered of charge .we provide lifelong tracing service, supply equipment parts and relevant maintenance at favorable prices, and give user technical guidance free of charge.

After sell service

Before sales

Our professional technical recommend the right machine,also customise special machine as customer's requirement and special parts.

Sales following

During machine production, watching the machine quality and testing machine.and take pictures or make video for customer checking.

After Sales
We will send technical to customer's factory to install and testing machines.

We have after-sell service to supply all life-time machine maintance and repairment service.

Welcome to visit our factory, we also can take you visit our client's factory that you can clear for each process. we can provide you the most advanced technology in the world.please feel free to contact us if you are interested.
