high quality low price 0.06W 3528 red led chip diode 3 years warranty

$0.01 / Piece | 20000 Pieces (Min. Order)
Model Number:
WEJT28ARV-9BCP02
$0.01
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
7 day(s) after payment received
Contact Supplier
Samples - $0.01 /Piece, 1 Piece (Min. Order): Buy Samples
Loading... Add To Cart
Report Suspicious Activity
Overview
Quick Details
Type:
SMD LED
Chip Material:
AlGaInP
Emitting Color:
RED
Luminous Intensity:
0
Luminous Flux(lm):
270-350mcd
Optical Attenuation(%):
3
Power:
0.06W
Power Dissipation:
120
Viewing Angle(°):
120
Color Rendering Index(Ra):
70
Color Temperature:
..
Operating Temperature(℃):
-25 - 85
Storage Temperature(℃):
-45 - 100
Place of Origin:
Guangdong, China
Brand Name:
WEJ
Certification:
RoHS
Named:
high quality low price 0.06W 3528 red led chip diode 3 years warranty
Chip Brand:
Sanan Chip
Warranty:
3 Years
Lifespan:
50000H-100000H
Voltage:
1.8-2.4V
Application:
lighting

Packaging & Delivery

Selling Units:
Single item
Single package size:
24X22X14 cm
Single gross weight:
2.0 kg
Package Type:
high quality low price 0.06W 3528 red led chip diode 3 years warranty 2000pieces /roll. Inner package: antistatic bag Outer package: Carton
Picture Example:
package-img
package-img
Lead Time :
Quantity(Piece) 1 - 20000 >20000
Est. Time(days) 7 To be negotiated
Product Description
high quality low price 0.06W 3528 red  led chip diode 3 years warranty

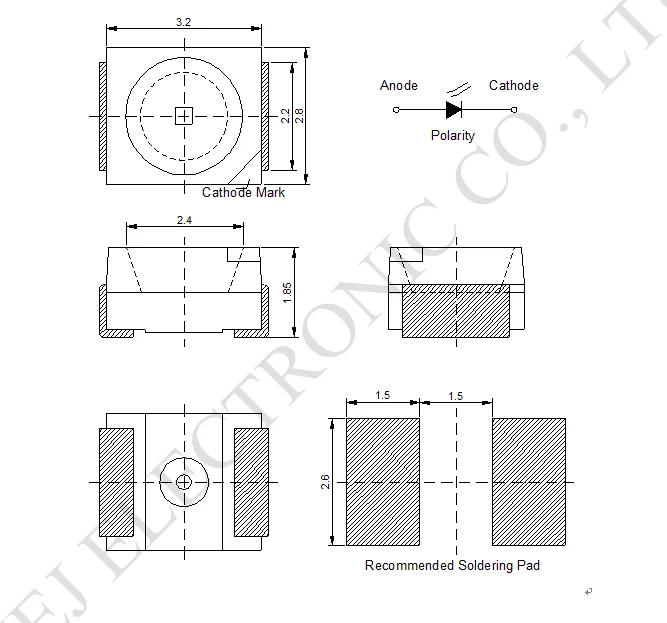

Electrical Characteristics datasheet
Par No.Emitted ColorResin ColorViewing Angle
WEJT28ARV-9BCP02 REDWATER CLEAR120°

Absolute Maximum Ratings at Ta=25℃

ParamaterSymbolValueUnit
Power disspationPd75mW
DC Forward CurrentIf30mA
Peak Forward CurrentIfp100mA
Reverse VoltageVr5V
Electro-Static-DiscahgeESD1000V
Operating TemperatureTopr-25℃ to + 85℃ ℃
Storage TemperatureTstg-40℃ to + 100℃ ℃
Lead Solder TemperatureTsol260℃ for 5sec ℃



Notes:

1. 1/10 duty cycle,0.1ms pulse width

2. The products are sensitive to static electricity and must be carefully taken when handling products.



 Electrical /Optical Characteristics Ta=25 ℃

ParamaterSymbolConditionValueUnit
MinTypMax
Forward voltageVfIf=20mA1.82.02.4V
Luminous IntensityIVIf=20mA270350--mcd
Dominant wavelengthλdIf=20mA620623630nm
Peak wavelengthλpIf=20mA -- 635 --%
Reverse CurrentIrVr=5V-- -- 10 uA



Notes:

1. Forward Voltage: ±0.1V

2. Color temperature: ±5%

3. Luminous Flux:±10%

                                                     Bin Range of Technical Data Sheet

Voltage codeIntensity Code
GroupForward VoltageGroupLuminous Flux
Min(V)Max(V)Min(lm)Max(lm)
J1.82.09270350
K2.02.2 350460
L2.22.4 460600





high quality low price 0.06W 3528 red  led chip diode 3 years warranty Application
1.Indoor and outdoor commercial lighting
2. Architectural Lighting
3. General lighting, Craft flashlights, headlights,
4. Automotive lights,Traffic Light,Reading light,
5. Mood Lighting, LED module, LED display, LED torch
6. LCD TV / monitor backlights
7. Security&Protection,CCTV system,CCTV camera, CCTV Lens

high quality low price 0.06W 3528 red  led chip diode 3 years warranty
Features
1) long lifespan
2) Better light emits consistently
3) Resistance to high current and high voltage
4) Low power consumption
5) High reliability and stability.
6)Flexibility in optical design and mechanical design.
