high speed water jet loom with double nozzles

FOB Reference Price:Get Latest Price
$6,000.00 - $8,500.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
YF822
No. of Tapes:
50
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 30 Negotiable
Customization:
SIZE (Min. Order: 1 Sets)
Report Suspicious Activity
Overview
Quick Details
Power(W):
1.5~4.5kw
Dimension(L*W*H):
1*3*2
Weight:
1.5-2.5tons
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
YUEFENG
Application:
polyester
Certification:
ISO9001 Certificate
Type:
Water Jet Loom
Production Capacity:
98%
Applicable Industries:
Home Use, Advertising Company
After-sales Service Provided:
Engineers available to service machinery overseas, Free spare parts, Video technical support
let-off type:
machine/electronic
take-up type:
machine/electronic
advantage:
energy-saving
feature:
light type
Shedding:
Plain/ dobby/ cam
Reed width:
150,170,190,210,230,250,280,340,360cm
Nozzle:
Single&double
Heald frame:
plain shedding max 8/cam max14/dobby max16pcs
Speed:
Maximum 900RPM (Working speed according to fabric specification)
Warranty:
one year
Supply Ability
Supply Ability:
500 Set/Sets per Month
Packaging & Delivery
Packaging Details
FILM PACKING
Port
Qingdao port
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 30 To be negotiated
Product Description

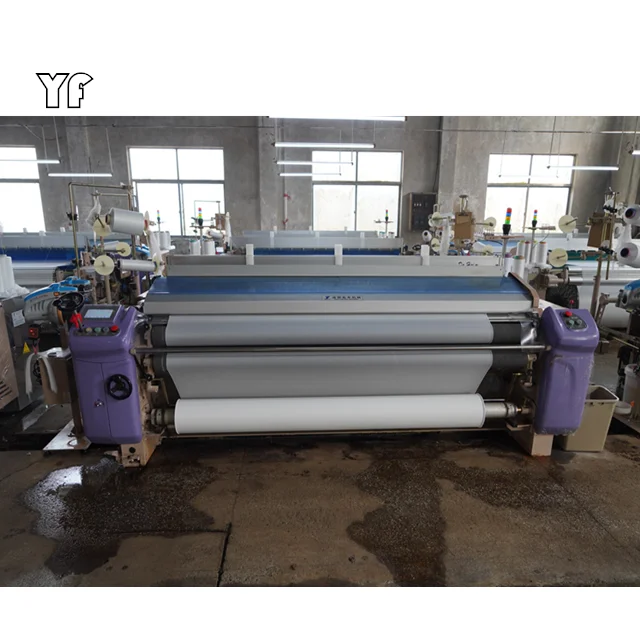

YF822 HIGH SPEED WATER JET LOOM WITH DOUBLE NOZZLES
YF822 model is based on 851 model and to configure dual jet free weft storage models, which is applied to fabric textile production, such as high twist yarn ammonia-coated wire, the product have good performance to weaving high density fabrics
Details Images
Product Paramenters
ITEM
SPECIFICATION
Reed Width(cm)
150, 170, 190, 210, 230, 260, 280, 320, 340, 360
Nozzle
Single nozzle/ Double nozzle/ Three nozzle/ Four nozzle
Installed Power
1.5kw~4.5kw
Speed
600~1200rpm/min(Actual speed depends on the specifications of fabric)
Held Frames
standard for 4,6 pieces frame
Shedding
Plain/ Cam/ Dobby
Let-off
Mechanical Let-off/ Electronic Let-off
Take-up
Mechanical / Electronic Take-up
Power Source
380v
Weft insertion rate
2280m/m
Weft density
5-80picks/cm
Cutter
Mechanical Cutter
Leno Device
Planetary Gear Type
Drying
By Suction Blower Device

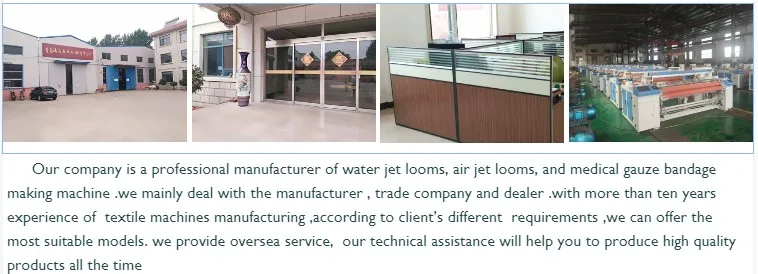

Company Profile
