high voltage aluminum conductor armored power cable 4x4mm2/4mm/5x4mm2/

FOB Reference Price:Get Latest Price
$0.10 - $10.00 / Meters | 500 Meter/Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Beijing, China (Mainland)
Brand Name:
ZLRC
Model Number:
ZLRC-6-35kv
Insulation Material:
XLPE
Type:
Medium Voltage
Application:
Construction
Conductor Material:
Copper
Jacket:
PVC
Product name:
high voltage aluminum conductor armored power cable 4x4mm2/4mm/5x4mm2/
Voltage:
6-35kv
Cross section:
1.5mm2-800mm2
Insulation::
XLPE
Max working temperature::
90℃
Conductor:
Copper or Aluminum
Certificate:
UL,TUV,KEMA,,BV,PSB,SABS, ABS,ISO,CCC,OHSAS,etc
Standard:
IEC60502
Armour:
unarmoured or steel tape armoured,steel wire armoured
cores:
1,2,3,4,5,3+1,3+2,4+1,
Supply Ability
Supply Ability:
1000000 Meter/Meters per Month Electrical cable/Power cable
Packaging & Delivery
Packaging Details
insulated power cable export wooden steel drums package
Port
Tianjin port
Lead Time :
3-5 days for insulated power cable
Product Description

high voltage aluminum conductor armored power cable 4x4mm2/4mm/5x4mm2/

We can also produce flame retardant cable,water blocking cable,low-smoke low-halogen cable and low-smoke halogen free cable,and also can design and  produce cables according to the requirement of our clients.

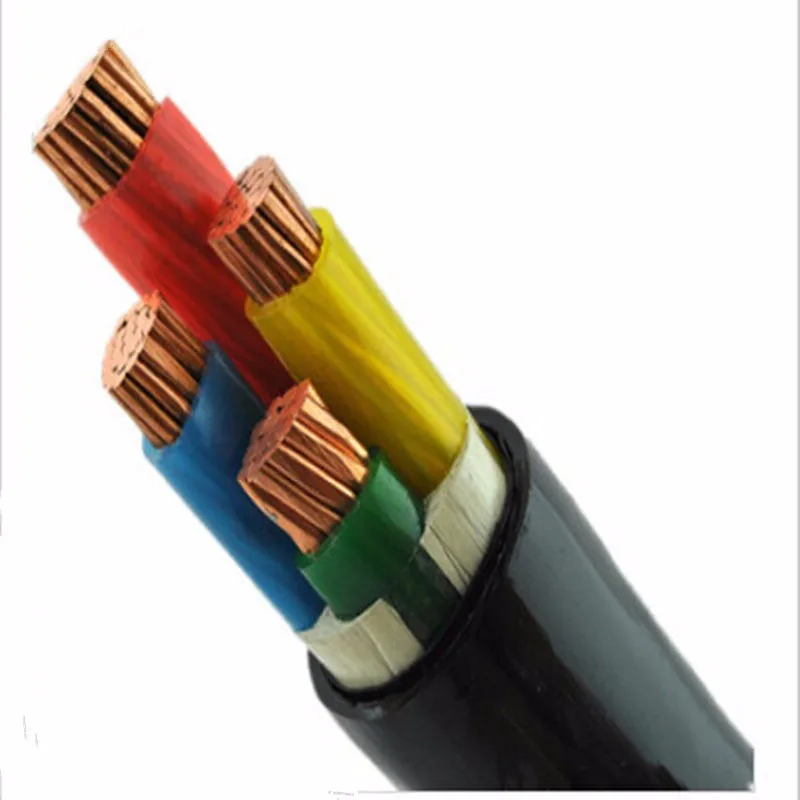

Structure
Conductor: Solid or stranded copper/Aluminum
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)
Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Armouring: Single Core: AWA (Aluminium Wire Armour)
Multi Core: SWA (Steel Wire Armour) STA (Steel Tape Armour)
Sheath: Polyvinyl chloride (PVC)

Characteristics

Normal area
(mm2)
Structure
(mm)
Insulated
thickness
(mm)
Overall dia.
(mm)
Normal area
(mm2)
Structure
(mm)
Insulated
thickness
(mm)
Overall (mm2)
dia. (mm)
2x0.50
28/0.15
0.50
5.20
4x1.00
32/0.20
0.60
8.00
2x0.75
24/0.20
0.50
6.40
4x1.50
30/0.25
0.70
9.20
2x1.00
32/0.20
0.60
6.60
4x2.50
49/0.25
0.80
10.90
2x1.50
30/0.25
0.70
7.60
4x4.00
56/0.30
0.80
12.80
2x2.50
49/0.25
0.80
9.40
4x6.00
84/0.30
0.80
15.40
3x0.50
28/0.15
0.50
5.50
4x10.00
126/0.32
1.00
17.60
3x0.75
24/0.20
0.50
6.80
4x16.00
126/0.40
1.00
21.10
3x1.00
32/0.20
0.60
7.20
5x1.50
48/0.20
0.70
10.70
3x1.50
30/0.25
0.70
8.50
5x2.50
49/0.25
0.80
12.80
3x2.50
49/0.25
0.80
10.00
5x4.00
56/0.30
0.80
14.50
3x4.00
56/0.30
0.80
11.70
5x6.00
84/0.30
0.80
16.40
3x6.00
84/0.30
0.80
13.00
5x10.00
126/0.32
1.00
20.10
3x10.0
126/0.32
1.00
16.10
5x16.00
126/0.40
1.00
24.40
3x16.0
126/0.40
1.00
19.40
Type
Designation
Applications
VV
Copper conductor,PVC insulated, PVC sheathed power cable
For laying indoors,in tunnel or cable  trench, unable to bear external  mechanical forces. Single core cable is not  allowed to laid in magnetic duct.
VLV
Aluminum conductor,PVC insulated, PVC sheathed power cable
VY
Copper conductor, PVC insulated, PE sheathed power cable
VLY
Aluminum conductor, PVC insulated, PE sheathed power cable
VV22
Copper conductor,PVC insulated, steel tape armoured, PVC sheathed power cable


For laying indoors,in tunnel in cable trench, or direct in ground,able to bear external  mechanical forces. Single core cable is not  allowed to laid in magnetic duct.
VLV22
Aluminum conductor,PVC insulated, steel tape armoured,PVC sheathed power cable
VV23
Copper conductor,PVC insulated, steel tape armoured,PE sheathed power cable
VLV23
Aluminum conductor,PVC insulated, steel tape armoured,PE sheathed power cable
VV32
Copper conductor,PVC insulated, steel wire armoured,PVC sheathed power cable



For laying indoors,in tunnel cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force.
VLV32
Aluminum conductor,PVC insulated, steel wire armoured,PVC sheathed power cable
VV33
Copper conductor,PVC insulated, steel wire armoured,PE sheathed power cable
VLV33
Aluminum conductor,PVC insulated, steel wire armoured,PE sheathed power cable

Application:

    This product is applicable to power lines with rated voltage of 1kV and below and 3KV and below.Suitable for laying in hotels, stations, chemical industry, oil platforms, mines, power stations, subways, tunnels, high-rise buildings, etc.

1. Long term working temperature for the cable with PVC insulated is 70℃;
    Long term working temperature for the cable with XLPE insulated is 90℃
2. Short circuit temperature
     For PVC insulated cable ,the highest conductor temperature is not more than160℃. (lasting time not over 5 seconds).
     For XLPE insulated cable ,the highest conductor temperature is not more than250℃. (Lasting time is not over 5 seconds).
3. Laying temperature not less than 0℃ and the drop height is out of consideration.
4. The cable with chemical stability, anti- acid, anti-alkali, anti-oil, anti-organic solvent, not easy to be burning.
5. Easy for installation, easy bending and light.

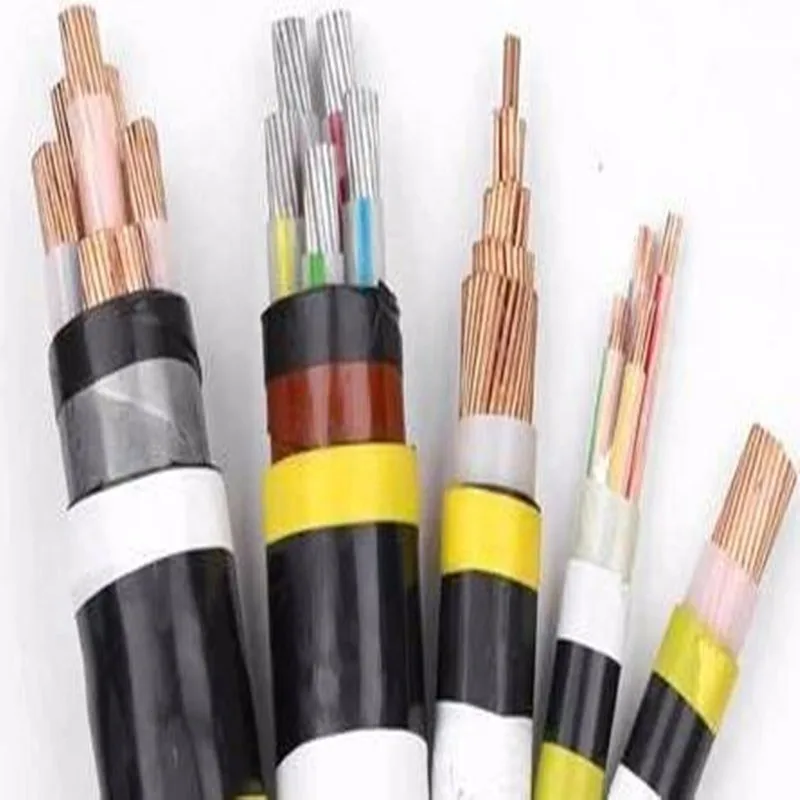

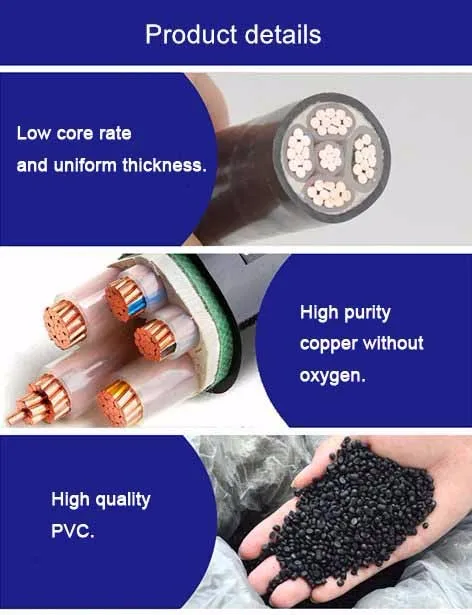

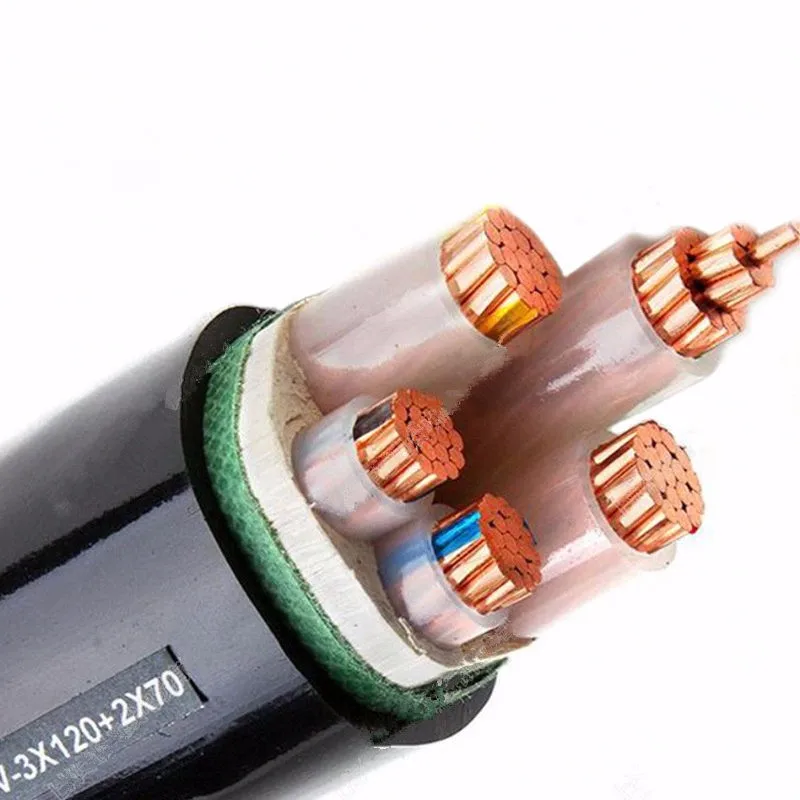

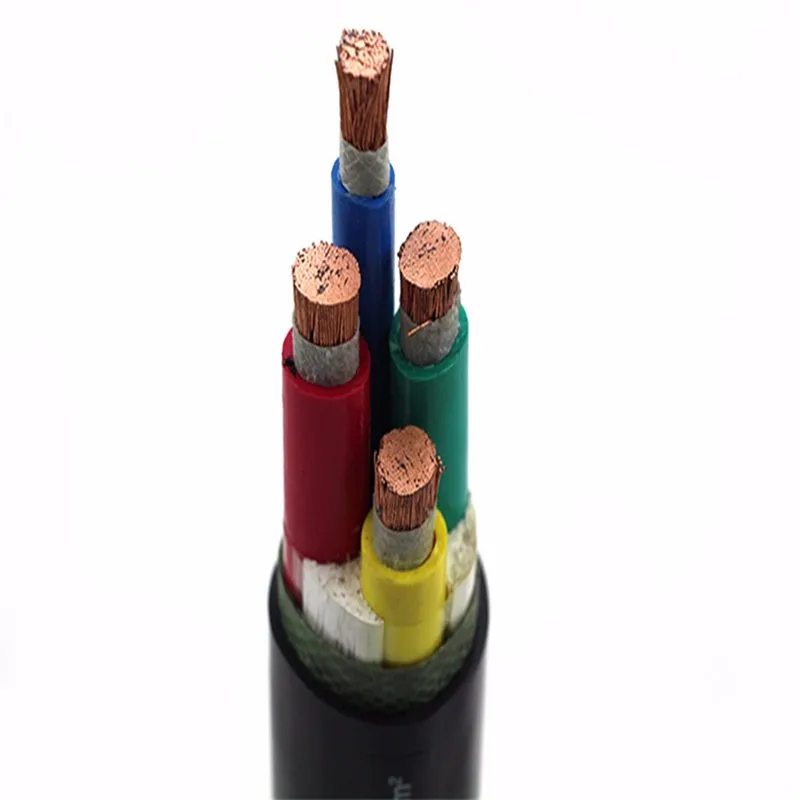

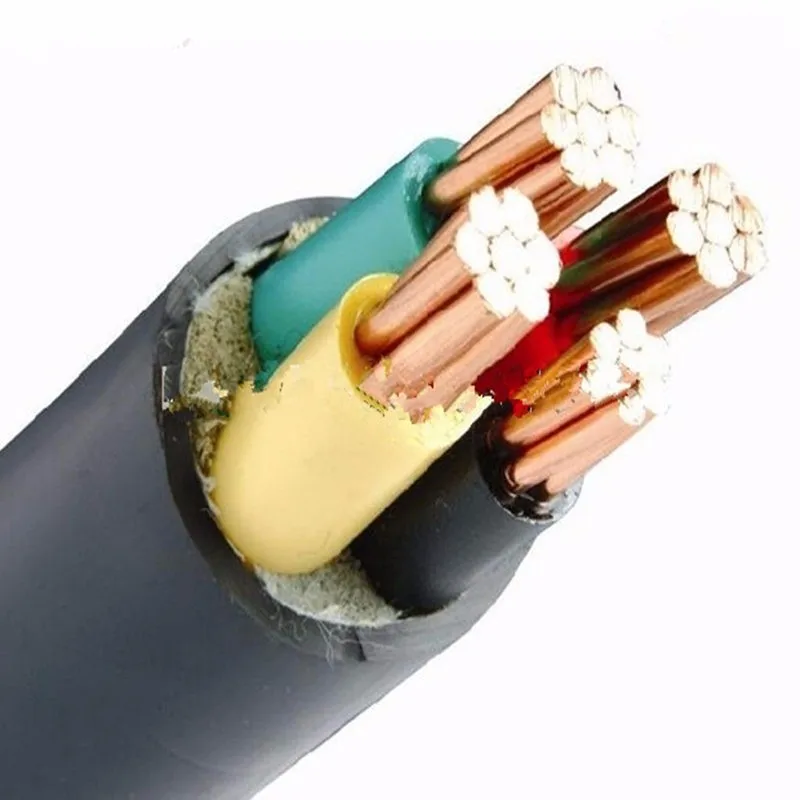

Detailed Images
Packing & Delivery
Certifications
Our Service
FAQ

1. Q: Are you trading company or manufacturer ?

     A: We are factory.

2. Q: Do you provide samples ? is it free or extra ?
    A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

3. Q: How long is your delivery time?
     A: Generally it is 10 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.

4. Q: What is the regular shipping port?

    A: Tianjin Port.

5. Q:What is your terms of payment ?

     A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 50% T/T in advance, the balance should be paid before shippment.
