horizontal high chrome cast single stage slurry pump for mining goal

FOB Reference Price:Get Latest Price
US $500-5,000 / Sets | 1 Set/Sets pump for mining goal (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China (Mainland)
Brand Name:
aier machinery
Model Number:
slurry pump
Theory:
Centrifugal Pump
Structure:
Single-stage Pump
Usage:
Water
Power:
Electric
Standard or Nonstandard:
Standard
Fuel:
Diesel
Pressure:
Low Pressure
Application:
mining, slurry transfer, steel waste
Product name:
High chrome alloy single stage sol
Head:
10-80m
Feature:
anti-wear/anti-abrasive
Certificate:
ISO9001 CE TUV
Material:
high chrome alloy
Shaft Seal:
Mechanical Seal
Motor:
diesel engine or electrical motor
Impeller:
high chrome alloy
Driving type:
V-belt,Elastic coupling, Gear redu
Warranty:
1 Year
Supply Ability
Supply Ability:
200 Set/Sets per Month pump for mining goal
Packaging & Delivery
Packaging Details
Export wooden box or steel plate
Port
Tianjin, Qingdao, Shanghai
Lead Time :
within 15-10 days after the payment

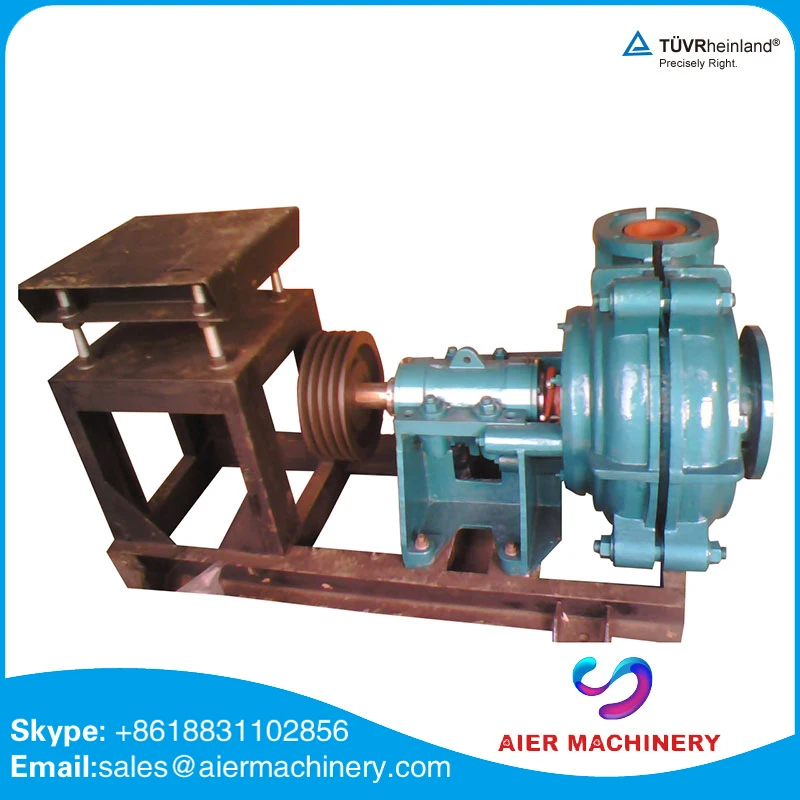

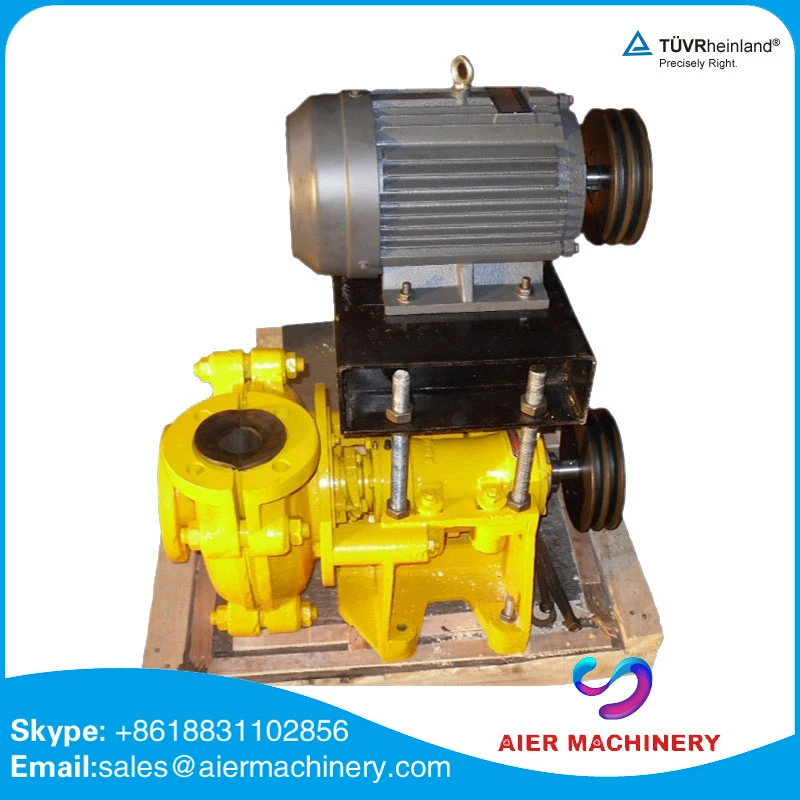

horizontal high chrome cast single stage slurry pump for mining goal

Product Description

WA series are cantilevered, horizontal, natural rubber or hard metal lined centrifugal slurry pumps.



They are designed for handling abrasive, high density slurries in the metallurgical, mining, coal, power, building material and other industry department.

Specifications

Pump range: 25mm to 450mm (1’’ to 18’’)

Capacity: 4-5400m3/h

Head: 5-118m

Wet part material commonly is 27Cr white iron alloy or rubber

Other material can be produced as per your specific application

Features

1. Double casings design centrifugal slurry pump, wide passage for solids;

2. Bearing assembly & frame: Both standard & high capacity typies available.  A large diameter shaft with a short overhang minimizes deflection and vibration. Heavy duty roller bearing are housed in a removable bearing cartridge. Pump body is fastened with the frame by minimum bolts. Impeller adjustment is provided in a convenient position below the bearing assembly.

3. Impeller & liner material: high chrome white iron, rubber, etc.

4. High efficiency impeller available: up to 86.5% for certain type

5. Interchangeable wet parts material: High chrome alloy metal: PH: 5-12; natural rubber: PH: 4-12;

6. Shaft seal: Packing seal, centrifugal seal, mechanical seal;

7. Discharge branch: 8 positions in each 45°;

8. Driving type: V-belt, flexible coupling, gearbox, hydraulic coupler





 -02_02


Application

Alumina,Copper mining,Iron ore,Gas oil,Coal ,Electric industry,Phosphate,Bauxite,Gold,Potash, Wolfram,Water sewerage utilities,Sugar,Tobacco,Chemical fertilizer .
