horizontal high chrome cast single stage slurry pump for mining goal

FOB Reference Price:Get Latest Price
US $500-5,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shandong, China (Mainland)
Brand Name:
FINE
Model Number:
AH
Theory:
Centrifugal Pump
Structure:
Single-stage Pump
Usage:
Mining, Coal Washing,Ore,Sand,Coal,Slag,Ash slurry, etc
Power:
Electric or diesel engine
Standard or Nonstandard:
Standard
Fuel:
Electric or diesel
Pressure:
High Pressure
Application:
Mining, Coal Washing,Ore,Sand,Coal,Slag,Ash slurry, etc
casing:
double casing
Seal:
mechanical seal, packing seal, impeller sealing
Material:
Cr27, rubber, cast iron, cast steel, stainless steel
Lubrication:
grease or oil
Product name:
horizontal high chrome cast single stage slurry pump for mining goal
Supply Ability
Supply Ability:
300 Set/Sets per Month
Packaging & Delivery
Packaging Details
Fumigated Wooden Case / As customer required for horizontal high chrome cast single stage slurry pump for mining goal
Port
Qingdao,Guangzhou,Shanghai or as customer required
Lead Time :
7 days after payment

1.horizontal high chrome cast single stage slurry pump for mining goal98.jpg


2.Production Description

AH centrifugal slurry pump is used for delivering slurry with strong abrasion and high concentration for metallurgy, mines, coal and power plant, etc.

The kind of pump has innovation in the design of structure. Wet parts are made of abrasion resistant high-chromium alloy or rubber material, with characteristics of high efficiency, energy saving, wear resistant, reliable running etc.

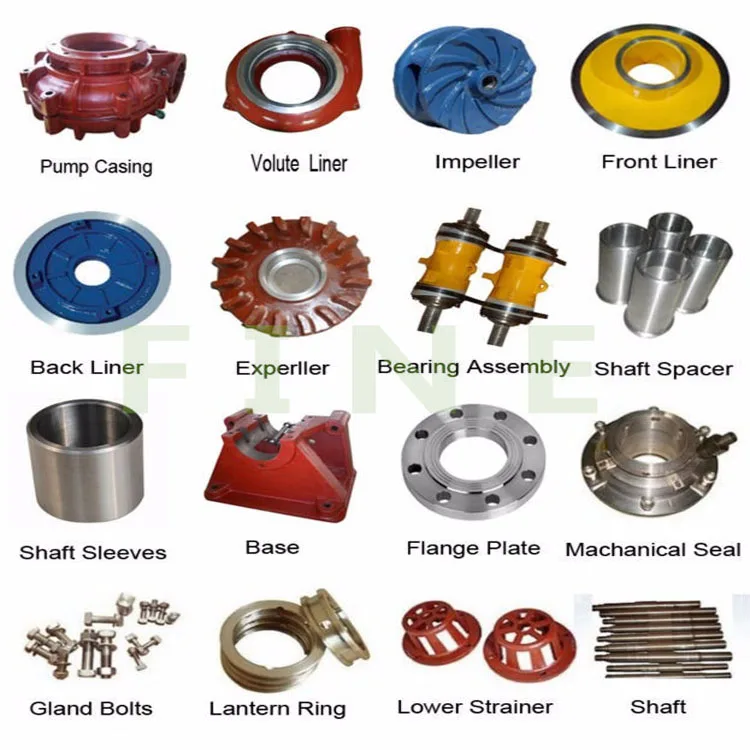

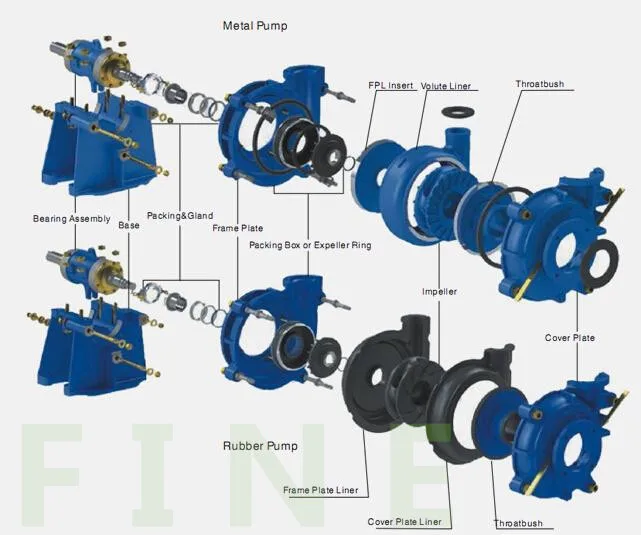

3.PUMP  PARTS  MATERIAL

.jpg




4.Features

a)Cantilever, horizontal centrifugal slurry pump



b)Better wear-resistance and corrosive resistance



c)Frame plate for type pumps have replaceable wear-resistant metal ( high chrome alloy ) liners or rubber liners. Impeller material : high chrome alloy or Natural rubber.



d)In allowable pressure range, it can be used in series in stages and allowable maximum working pressure is 3.6Mpa.



e)Expeller seal, mechanical seal and packing seal are available.



f)The discharge branch can be positioned at interval of 45 degrees by request and oriented to any eight positions to suit installations and applications.



g)To adapt to convey heavy abrasion, high concentration dreg ,  slurry pump's body is used double-deck construction , in other words, being made of inside lining and outside shell.

5.Technical parameter and structure

 a) Diameter: DN25-DN400mm

 b) Flow:12-50400m3/hr

 c) Head:5-90 m

 d) Rotate speed:300-3800r/min

 e) Motor power:2.2-55 KW

 f)  Working temperature: ≤80°C




6.Main advantages of AH centrifugal slurry pump

Main advantages of AH centrifugal slurry pump

a) Adopts horizontal,medium open type double pump shell structure, lining for cemented carbide or rubber has good wear-resisting, corrosion resistance and high reliability.

b) This kind mining slurry pumps have High efficiency hard alloy, and low NPSH.

c) To meet the different operation conditions,adopted the brief type structure bearing parts.

d) Through adjusting the clearance between protection board and impeller, ensuring the pump efficient operation.

e) Using packing seal, impeller sealing,mechanical seal to adapt to different operating requirements.

f) Mining surry Pump can choose straight league transmission,triangle, hydraulic transmission device coupled transmission,reducer drive.

g) The outflow direction can be installed by eight Angle rotation to adapt different site installation conditions

h) Available to use multipole series, to satisfy the long-distance transmission requirements.
