hot sale construction hydraulic auger drilling rig / pile driving machine / screw pile driver

  • 1-4 Sets
    $25,549.00
  • 5-6 Sets
    $25,000.00
  • 7-9 Sets
    $24,875.00
  • >=10 Sets
    $24,700.00
Model Number:
HW-600L Pile driver
Power:
85kw
$
- +
available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
5 day(s) after payment received
Customization:
Customized logo (Min. Order: 1 Sets)
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Piling Speed(m/min):
2.7M/min
Efficiency:
High
Warranty:
1 year
Condition:
New
After-sales Service Provided:
Video technical support, Online support, Field installation, commissioning and training
Place of Origin:
Shandong, China
Brand Name:
Hengwang
Weight:
150000
Certification:
CE/SGS
Dimension(L*W*H):
10500*2500*3200mm
Applicable Industries:
Construction works
UNIQUE SELLING POINT:
High operating efficiency
Name:
Hydraulic Pressure Static Pile Driver
Pile length:
6m
Engine power:
85Kw
BOOM LENGTH:
7.6m
Starting Voltage:
24V
Rotation angle:
360 Degree
Effective press pile stroke:
0-6000
Track shoe width:
350mm
Operating Speed:
90s/per pile
Gradeability:
0-35 °
Product Certification certification
CE Certified.
Valid from 2019-03-06 until 2024-06-03

Packaging & Delivery

Selling Units:
Single item
Single package size:
420X210X290 cm
Single gross weight:
4000.0 kg
Package Type:
container for solar pile driver/construction hydraulic static pile drive
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 7 >7
Est. Time(days) 5 12 15 To be negotiated
Product Description

Product Application

The hydraulic pile driver is a kind of multifunctional highway guardrail pile construction machinery, with different configuration it can accomplish many functions, such as piling, pile extracting, and drilling on the stable layer of road before piling

Crawler walking,high walking and climbing ability .The frame can be moved back and forth,bit can be adjusted,high piling position accuracy.

SPECIFICATIONS
Model
HW600L
Hammer Model
750
Impact Rate
400-800 BPM
Pile length (C shape or H shape all is ok)
0-6000mm
BOOM LENGTH
7.6m
Duplex gear pump pressure
25
Hydraulic system pressure
20 Mpa
Main valve flow
150 L/min
Diesel engine power
85 kw
Rated Speed
2400 r/min
Starting Voltage
24v
Power head max.rotary torque
8000N.M
Rotation angle
360°
Effective press pile stroke
0-6000mm
Track shoe
350mm
Walking motor rated pressure
18 Mpa
Walking motor output torque
11500 N.M
Walking motor rotate speed
35 r/min
Drilling Diameter
0-300mm
Drilling Depth
0-6000mm
Operating Speed (m/min)
90s/per pile
Number of impacts / strokes per 1 minute
400-800times/min
Walking speed
2.5 km/h
Gradeability
0-35°
Diesel oil tank capacity
60L
Hydraulic tank capacity (L)
170L

Main Features

1) Pile Driver is composed of the chassis, guide rail, hydraulic arm, hydraulic system, hydraulic hammer, diesel engine, electrical, cooling and control systems, pile extracting equipment and pile drilling equipment. Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency .

2).Oil province,is a common driver uses around half of a year can be a driver left money for you.

3).Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.

4).Crawler walking,high walking and climbing ability
5).The frame can be moved back and forth,bit can be adjusted,high piling position accuracy.

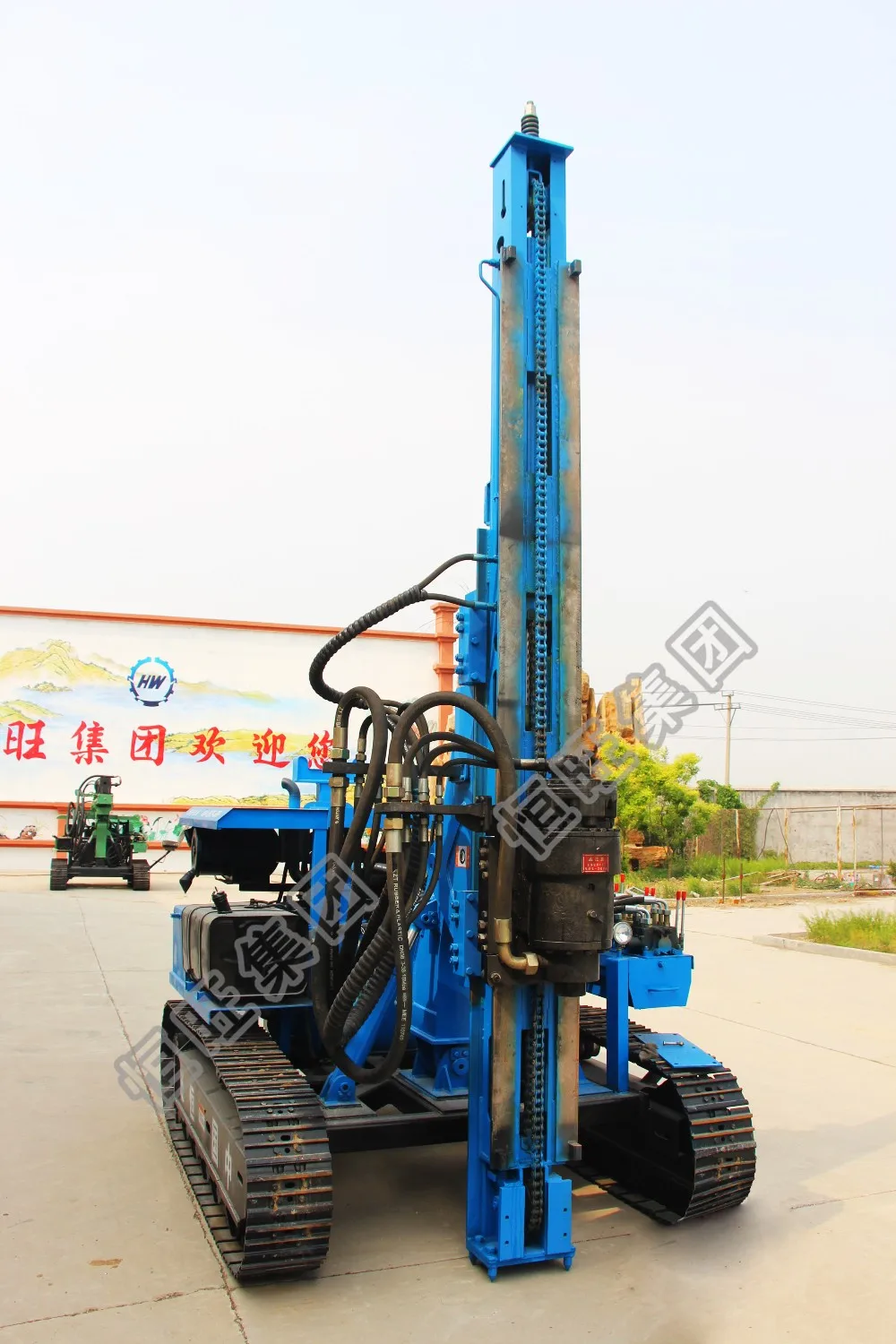

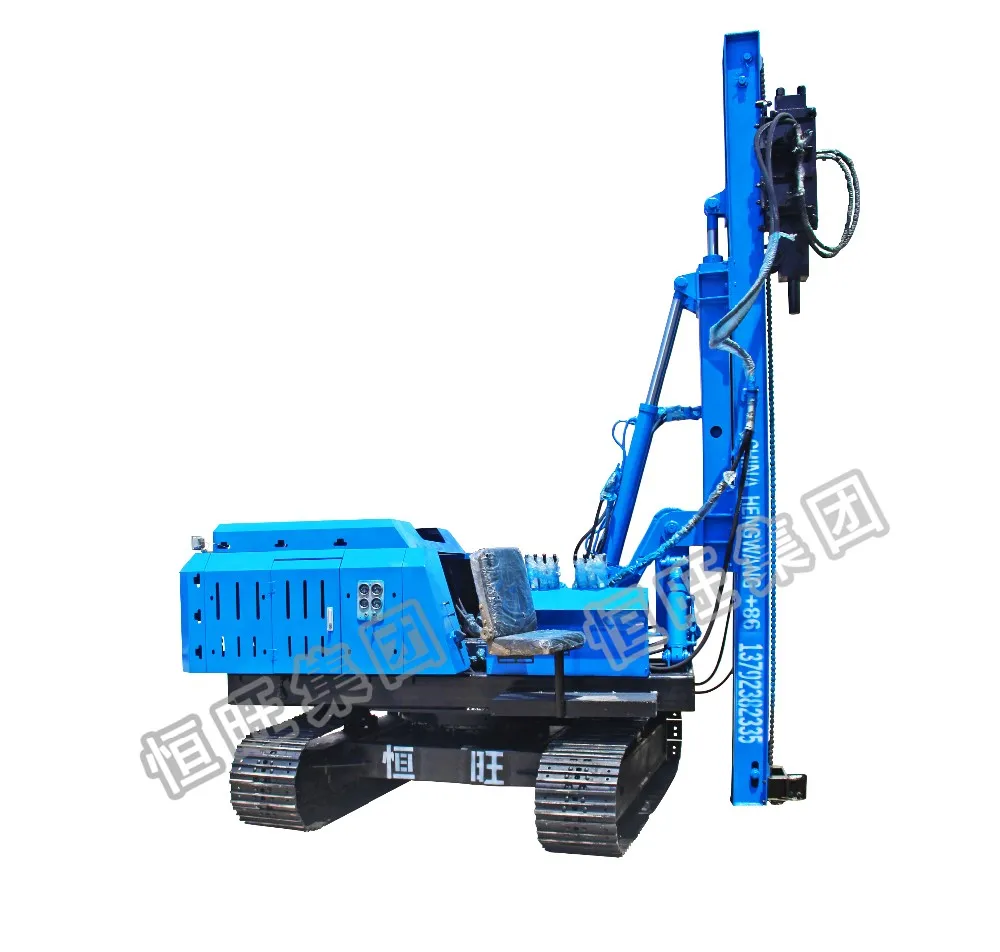

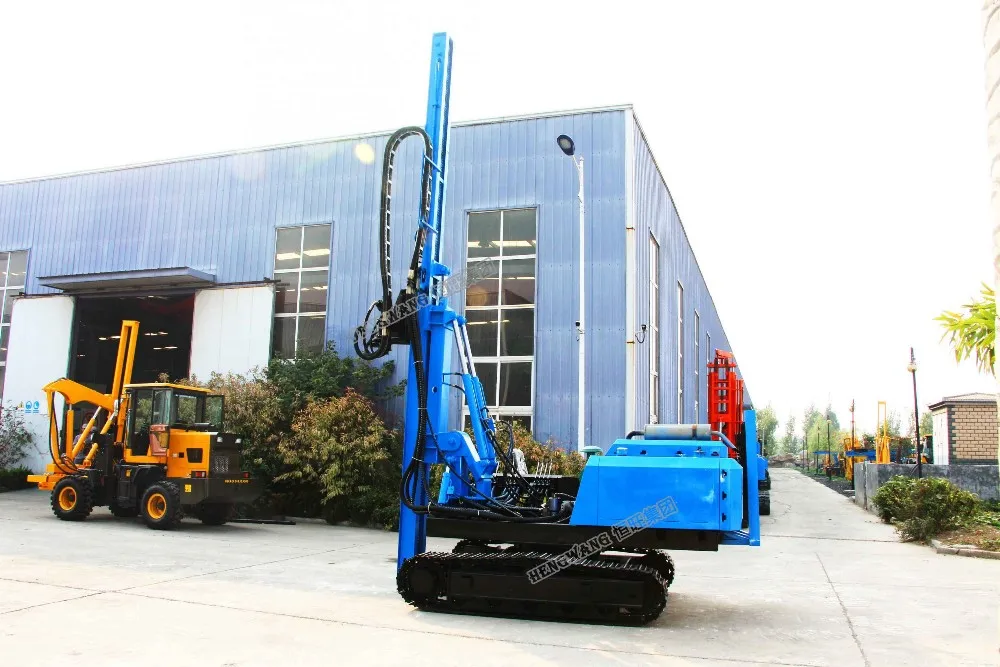

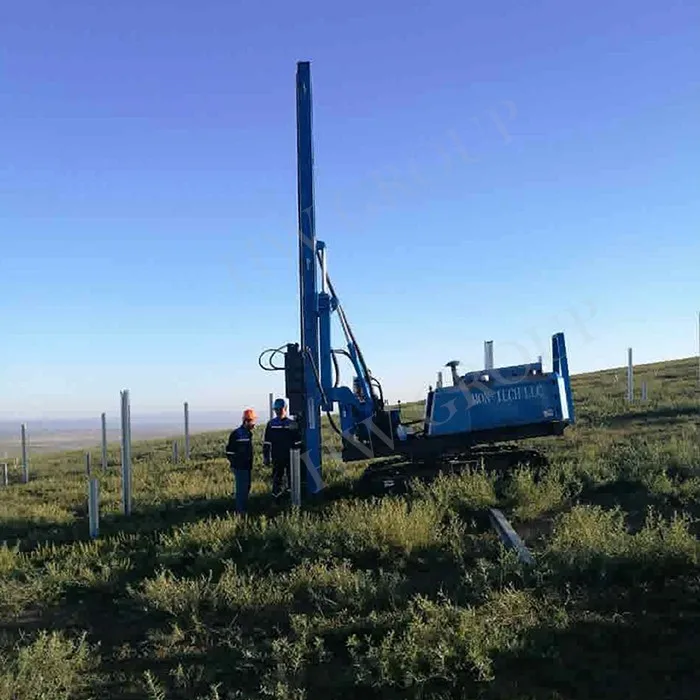

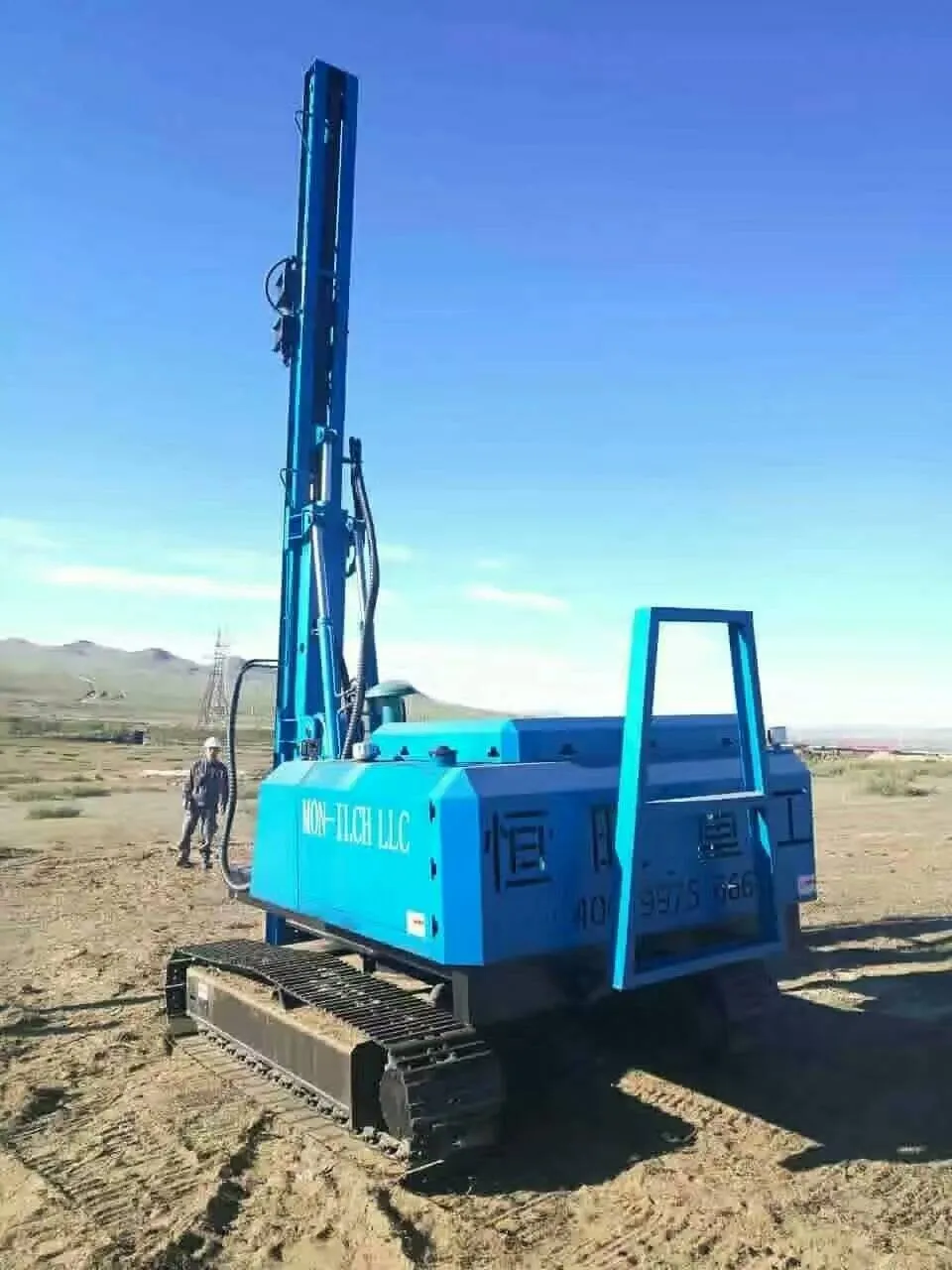

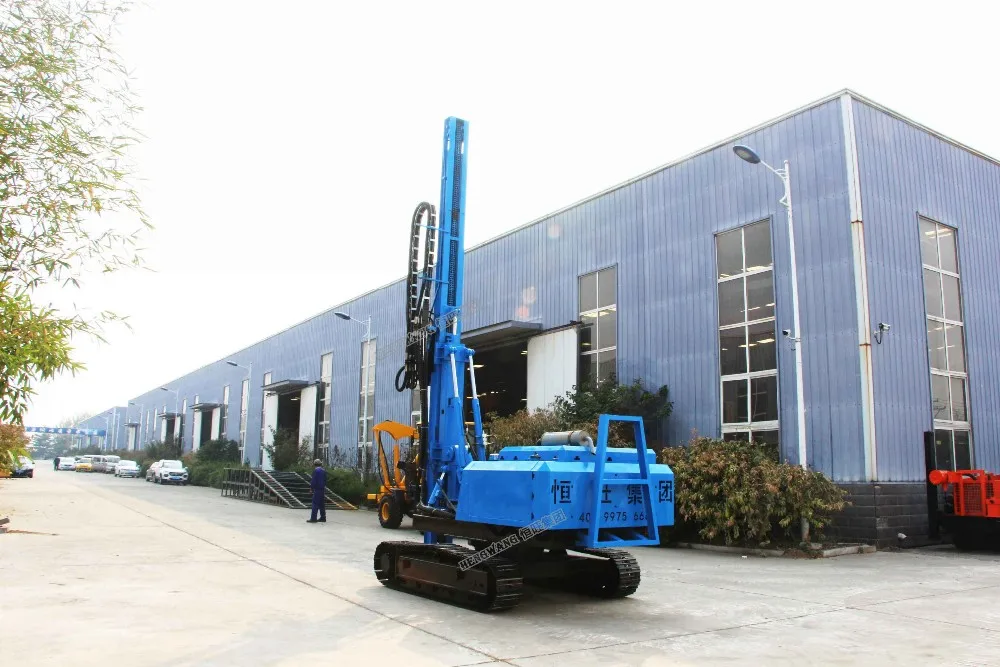

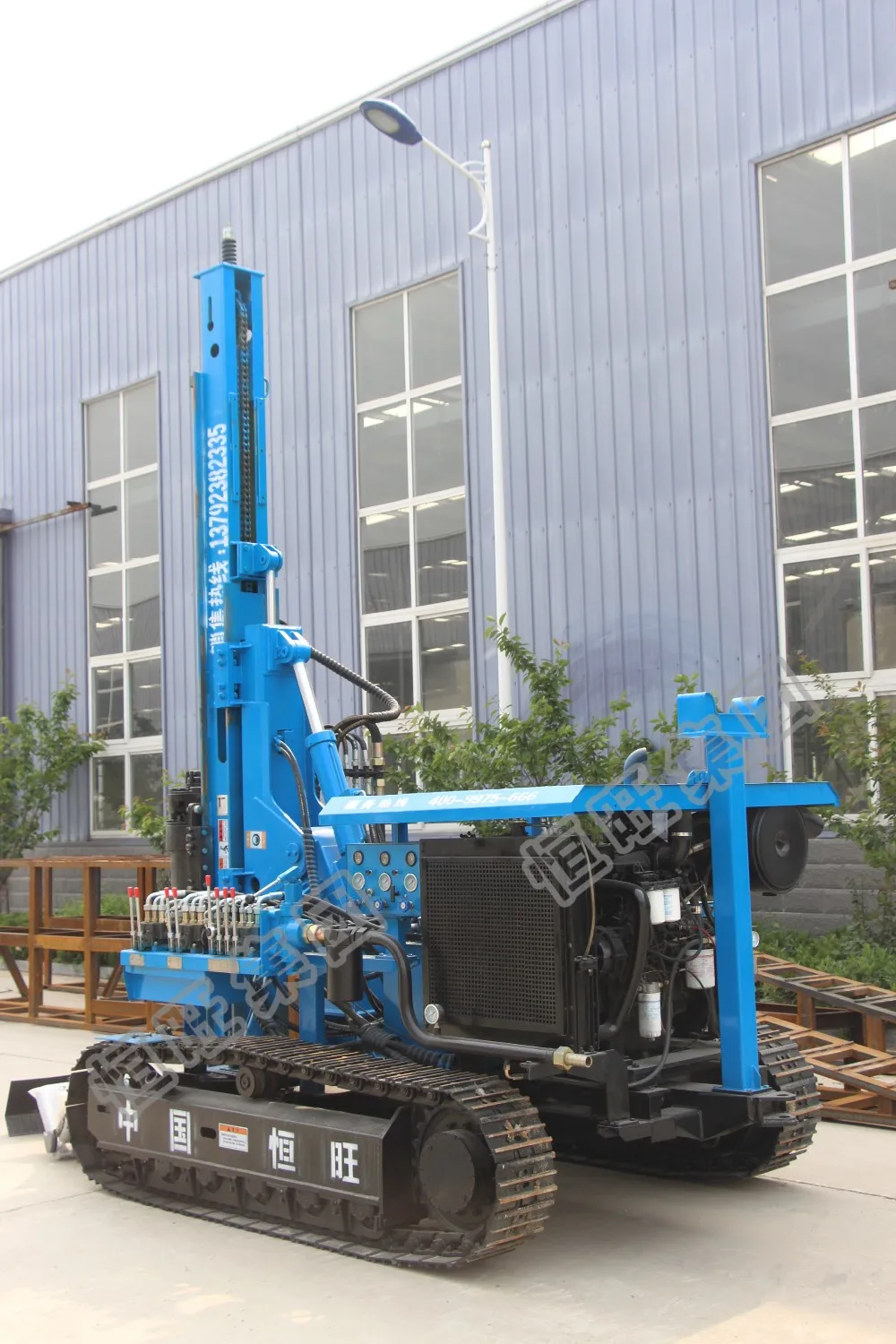

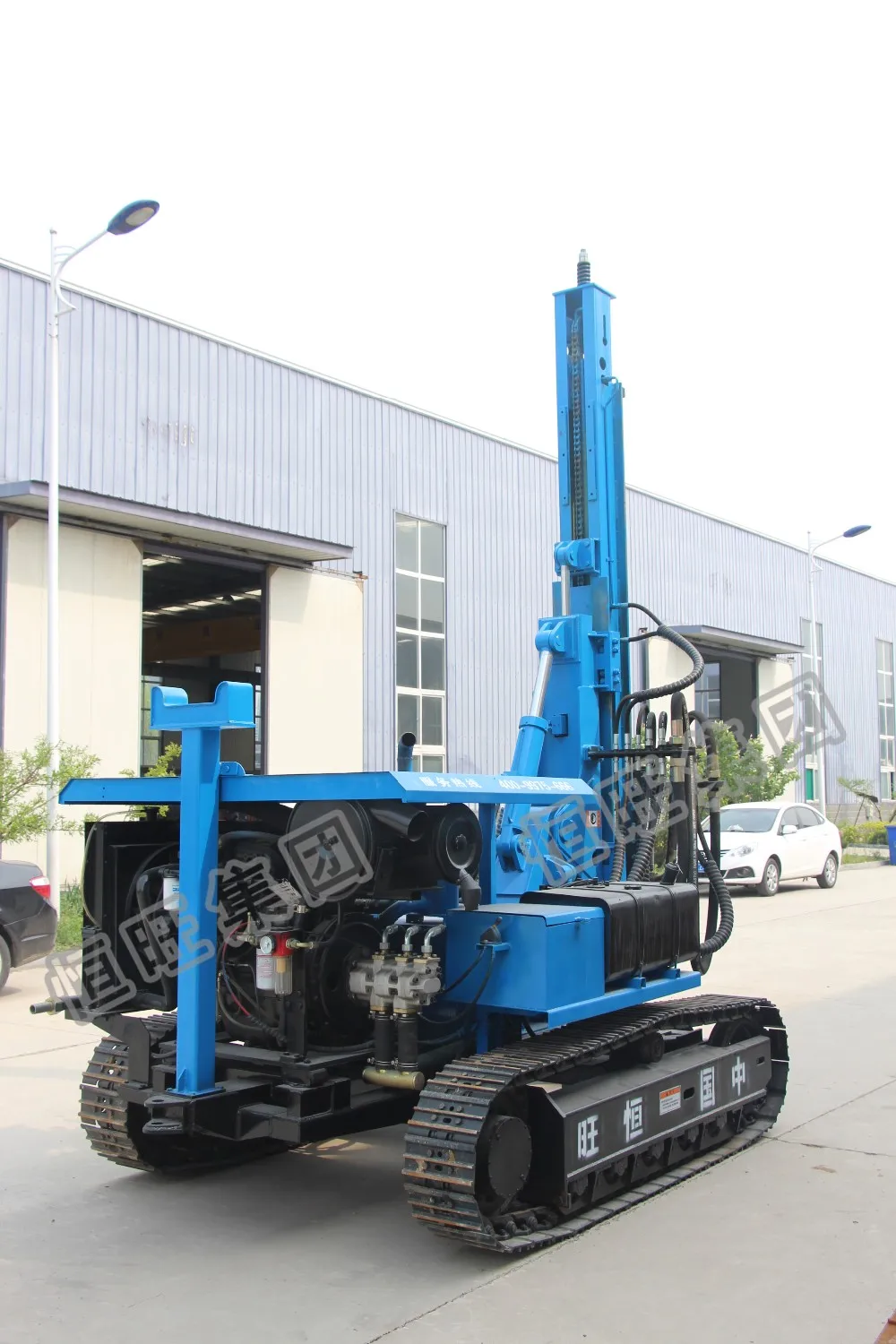

Detailed Images
