huidu 3d text led pharmacy cross display controller HD-E61

  • 5-24 Pieces
    $13.00
  • >=25 Pieces
    $11.50
1 batch = 5 Pieces
Quantity:
- + Pieces available
0piecesselected, US $in total
View Details
Shipping fee:
Depends on the order quantity.
Lead Time:
2 day(s) after payment received
Contact Supplier
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Huidu
Model Number:
HD-E61 P10 led display controller
Brand:
HD brand LED Display Controller
Control range:
Single color 1024W*32H,Dual color:512w*32
Port:
1 of hub08, 2 of hub12
Luminance adjustment:
Supporting 50 levels of luminance adjustment
Memory:
2M or 8M (and also can be expanded)
Function:
text,animation,temperature,clock,time etc
Warranty:
2 Years
Languages:
support all languages
brightness:
adjusted automatically or set up by software
Voltage:
4.2-5.5V
Display Function:
Text
Usage:
indoor outdoor semi-outdoor

Packaging & Delivery

Selling Units:
Single item
Single package size:
12X8X10 cm
Single gross weight:
0.8 kg
Package Type:
Anti -static bag+ carton
Lead Time :
2



 HD Brand LED Display Controller HD-E61( LAN +USB PORT)



      Advantages:Communication distance 80meters, also can manages more displays

      Also can control display by mobile APP

      Showing text,animation,photo,office file,Clock etc

     Used indoor outdoor display like P10 P12 P16 etc







 E61





 E613

1. Mainly Features





Types of control card

Single Color/ Dual Color /Tricolor

Control range

Single color:1024W*32H

Dual color:    512W* 32H   1024W*16H



Scan modes

Static, 1/2, 1/3,,1/4, 1/5 ,1/6,1/8,1/16 common modes etc

Communication type

LAN + USB Port

Power supply

+4.2-5.5V

Power consumption

≤0.5W

Work environment

-40--75

Installation dimension

96(W)* 66 (H)(mm)

Application Range

Used indoor outdoor, semi-outdoor, Led Pharmacy Cross signs

Showing text, animation, time, clock etc

Languages

Support All languages

Communication distance

10-30 meter

Application Software

Software HD2016



Details Parameter

Details Parameter



Flash Capacity

2M Byte(Can be expand 8M)

Communication Port

U-Disk to edit and updated programs

Signal Port

2 OF HUB12 , 1 OF HUB08

Program Quantity

1000pcs Programs. also can change program by button or remote if weld sensor (Remoter can select1-999 Programs)

Area Quantity

8 areas with separate zone, and separated special effects and border

Display Showing

Text, Hypertext (GIF, Picture, Animation Character,SWF,Video),Excel, Time, Count, Digital, Temperature, Humidity, Brightness ,Background etc

Program Modes

Playing by Sequence or by Remoter or by Button

Display effects

1.Support all languages(Software :HD2016)

2.Support 7 color effects and 64 colors Gray level (HD-W62/W63/W64)

3. Border functions of Program border, area border and Custom design border.

4.Add Countdown /Count up, Button Countdown / Count up

5.Add Text Rotation of 90°,180°, 270° for display

Text function of Hollow,Stroke etc

6.Add payment collection function

7.Updated program by U-disk

8. More than 200 types showing effects

9.Support Second develop SDK

10.More high brightness, more moving speed ,more refresh

Time / Clock /Count Function

1. Support Digital Clock/ Dial Clock / Lunar Time/

2. Countdown /Count up, Button Countdown / Count up

3. The font,size,color and position can be set freely

4. Support multiple time zones

Digit Function

1.Used in Parking place,Scoring device,Calculate by piece.

2.From Minimum to Maximum, from Maximum to Minimum

Expand function

Remote function,temperature,humidity,brightness etc. (If weld sensor) .Remoter can select1-999 Programs

Brightness Control

Brightness setting by Custom,Automatic(weld sensor) ,

by time period regulation

Automatic close /open display

Support close /open display by time automatically





2.The packing details

5PCS HD-E61 + 5PCS  CD of software





3.Controller working with software HD2016



1) Working ways : by LAN Port , Communication of LAN  signal automatically  recognized in HD2016

  E612



 2) Another Working ways: use U-disk(or pen drive )  udapted program ,no need putting lines,

 no need PC



  E613

  a. Edit the program in software HD2016



  b. Then click software  “to U-disk",the program import to your flash memory( U-disk)



  c. Pull out the Flash memory ( U-disk) to the USB port of controller, the program updated



3) Also can use mobile APP to edit and send Program,but it need connect WIFI router like attached

  E61+



 4.The mobile APP it can download in website www.huidu.cn



 The mobile APP name :LedArt( also aftered download,also can share to frineds)









 5. Company Ability,Certificate and LED Fair in Guangzhou



 1-750X800CE ROHS -750X800

 _02

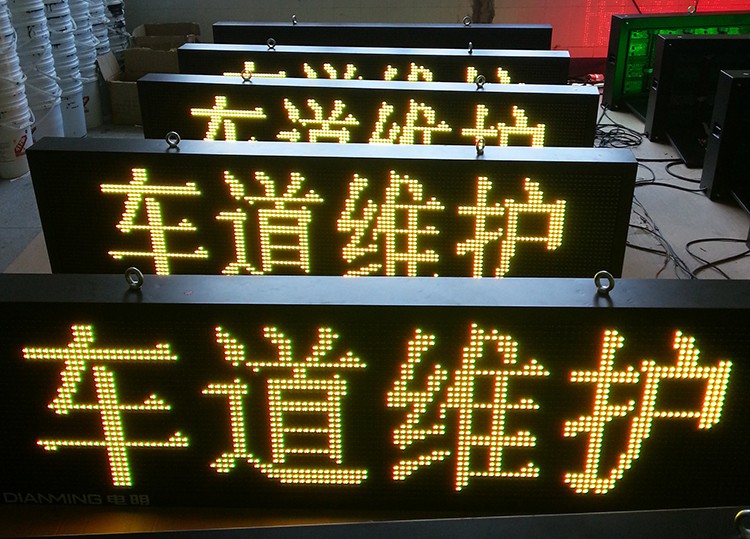

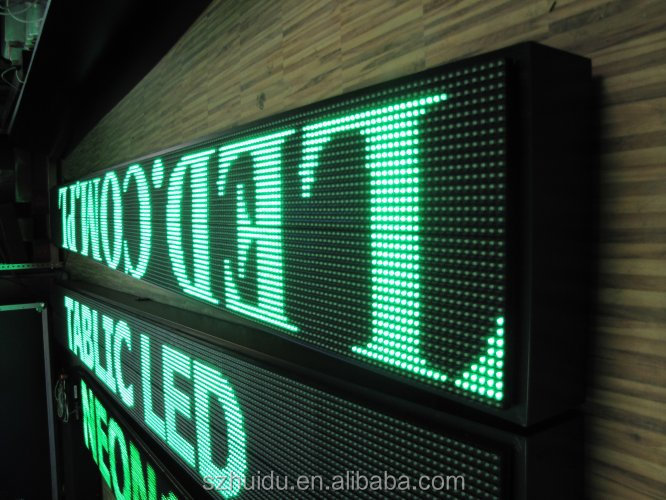

5 .Showing effects

 1P10 led module single color.jpg

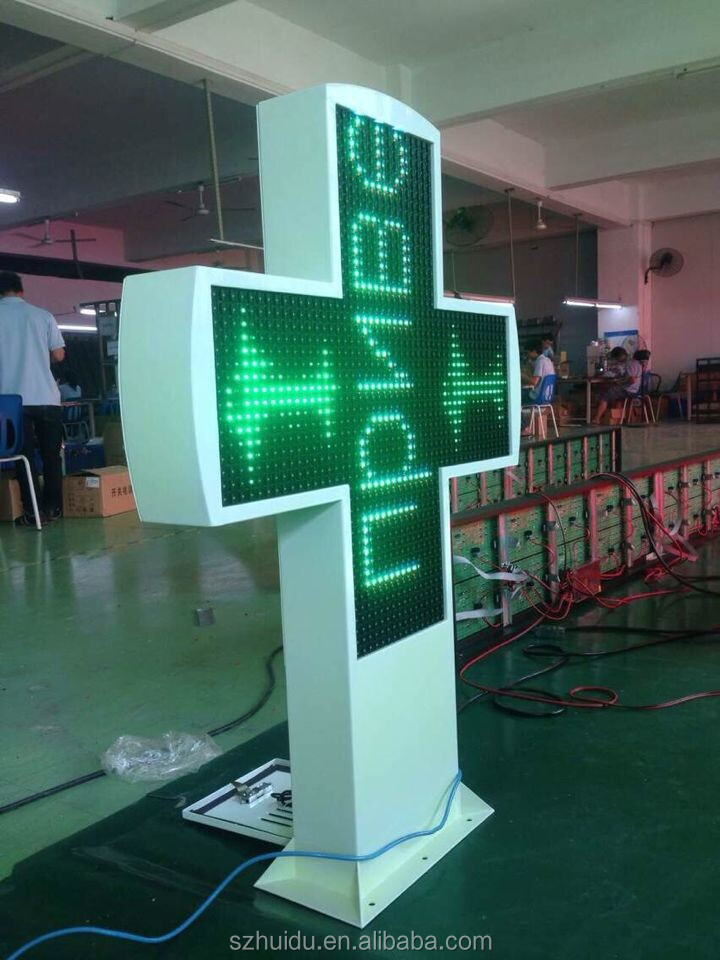

 cross signs1

 -2

 skywen
