hydraulic cnc press break machine with tooling mould holder dies blades foot pedals switch and multi v block

FOB Reference Price:Get Latest Price
$10,200.00 - $15,600.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
WE67K
Report Suspicious Activity
Overview
Quick Details
Length of Working Table (mm):
2200-8000
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
Bamboo
Material / Metal Processed:
Brass / Copper, Stainless Steel, ALLOY, Carbon Steel, Aluminum
Automation:
Automatic
Extra Services:
Hydraulic Press Brake
Certification:
ce
After-sales Service Provided:
Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Engineers available to service machinery overseas
Warranty:
2 Years
Machine Type:
Press Brake
Raw Material:
Sheet / Plate Rolling
Capacity:
80Ton
Controller:
Delem DA52 From Holland
Hydraulic System:
Bosch Rexroth Germany
Main motor:
Siemens from Germany
Electrics:
Schneider from France
Ball Screw:
Hiwn From Taiwan
Voltage:
220V/380V/400V(Customer Optional)
Power:
Hydraulic
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
W67Y-80T/2500MM promotional Hydraulic CNC press brake/bending 20GP Container
Port
Shanghai
Video Description
Product Description

Main Features

1.CNC Series machines redesigned based on users preferences to become a unique machine with its individual electronic and  mechanical features.
2.CNC Series are among the highest rated machines which will help you increase your productivity and keep costs at minimum level
3.with its user friendly CNC controller and low cost hydraulic maintenance.
4. New CNC is exactly what you need for your production where complicated, sensitive, single or multiple bends on high speed are  paramount.
5.High quality and repetitive bending is obtained by using synchronized cylinders and valves.

6.Automatic utilisation of all axes on startup.
7.Rigid upper beam runs on 8-point bearings with bending precision of 0,01 mm.
8.Well-known top and bottom tool brands are long lasting hardened and provide precise bending.
9. All Bamboo machines are designed using SOLID WORKS 3D programming and made with enhanced ST44-1 quality steel using the latest Technology.

Product Type:
CNC Synchronized Hydrualic  Press Brake
Bending Material:
Metal/ Stainless Steel /Carbon Steel /Aluminum
Blade Material
9 Crsi/6CrW2Si(Optional)
Backgauge range
20-1000mm(Optional)
Safety Standard
Europe CE/South America NR12
Control Axes:
Y1 + Y2 + X + W-axis Crowing( Standard)
Controller
Delem DA52  from Holland (Up to 4 Axis)
After-sales Service
Engineers available to service machinery overseas

Technical Parameter

Control Unit

Delem DA-52s

• Quick, one page programming
• Hotkey navigation
• 7" widescreen color TFT
• Up to 4 axes (Y1, Y2, and 2 auxiliary axes)
• Crowning control
• Tool/material/product library
• USB, peripheral interfacing
• Advanced Y-axis control algorithms for closed
• loop as well as open loop valves
• Panel based controller with optional housing

Delem DA-56S


• 2D graphical  programing
• 10.4" LCD TFT colour display
• Bend sequence determination

• Developed length calculation
•Crowning control, USB peripheral interfacing
•Advanced Y-axis control algorithms for closed -loop as well as open-loop valves.

Delem DA-66T

• 2D graphical touch screen programing mode
• 3D visualisation in simulation and production
• 17" high resolution colour TFT, Full Windows application suite
• Delem Modusys compatibility (module scalability and adaptivity)
• USB, peripheral interfacing
• User specific application support within the controllers multitasking environment
•Sensor bending &correction interface

Detail Images

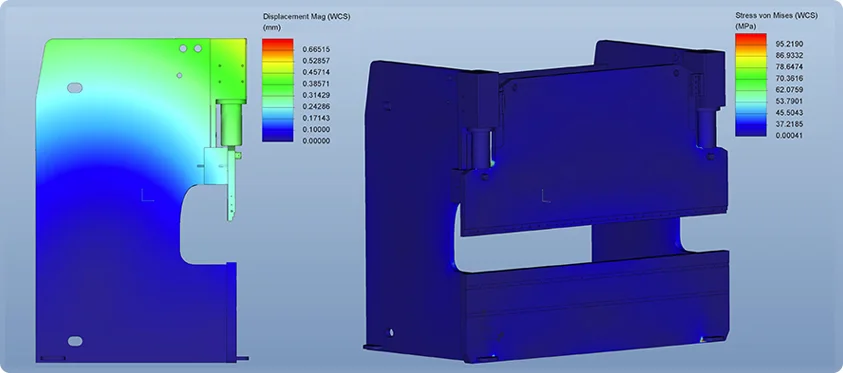

Machine Block

The frame steels are German origin,ultrasonic controlled & ST-44 material. Machine welding is made by welding aparatus & welding robots. After the welding,we make stress relief process by vibration system. After the stress relief process machine frame goes to CNC 2 axes machining centers for accuracy,. All reference surfaces and connection holes are machined. By all this processes machine frame sensivity is protected for a long life time.

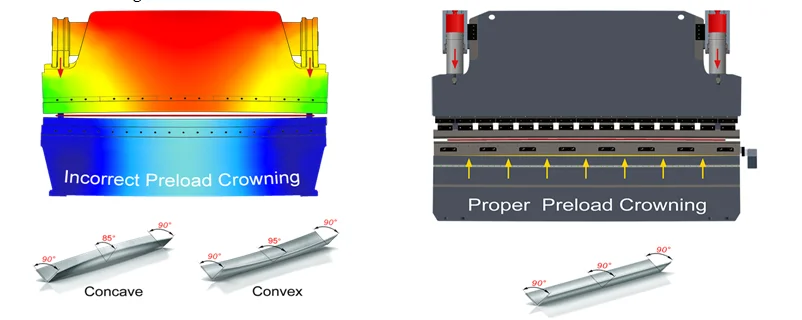

Table hydraulic crowning system

This system enables the user to offset deformations of the beam while bending.Thus, the angle is keeping constant along the entire plate length.

Tools clamping device

The speed grip system reduces the time spent changing tools by 8.5 times compared with traditional systems.

--Up punching dies will be cut into section as the requirement as below:
--25mm 30mm 40mm 45mm 50mm 170mm 100mm right 100mm left.
--The equipped standard Dies, special non-standard mold is available under client's requirement according to real workpiece situation


Simens motor


Using Siemens motor guarantees the machine service life, and reduce the noise when woking

Bosch Rexroth Hydraulic System

--Adopt integrated hydraulic control system, more reliable and easy for maintenance.
--Reduced noise: the particular installation choices allow to obtain especially moderate noise levels both on machines of average capacity
--Overload overflow protection is outfitted to hydraulic system,which can assure no leakage,and the oil level can be read or seen directly.


Ball Screw+Linear Guide of Hiwin From TaiWan


--High Precision Backgauge is equipped with fine ball screw and guide linear
--Backgauge adopts horizontal installation shell structure with high stability,singe shell double guide rail, high precision,X-axixs drive, automatioc CNC sytem


Electric of Schneider From France

Stable France Schnerder Electrics Taiwan DELTA Frequency Converter to penvent X-Axis Swinging When Positioning

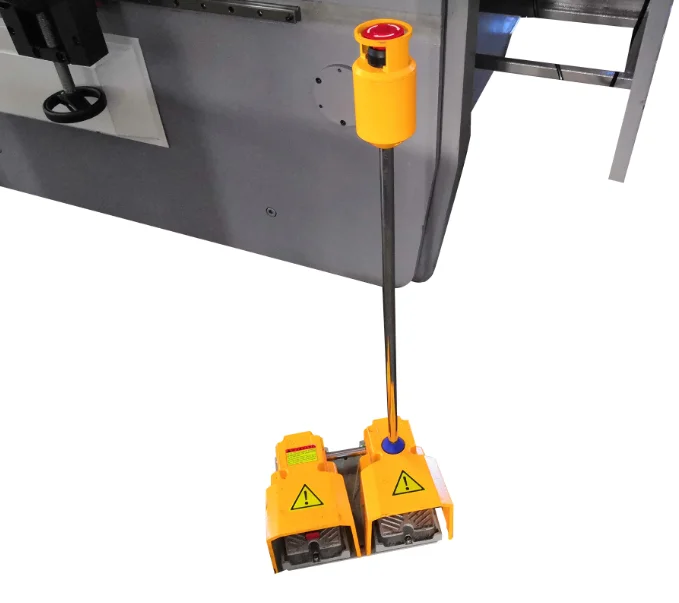

Foot Switch of  Karcon from South Korea


Foot switch, easy to operate

The brand Karcon, enhacing the service life and operational sensitivity.

Company Profile

BAMBOO CNC MACHINERY TECHNOLOGY CO., LTD

BAMBOO is a leading manufacturer and global supplier of sheet metal working machinery specializing in the production of CNC press brake,Hydrualic Shearing Machine ,Hydraulic Press .Power Press ,Iron worker and Laser cutting macine.etc

BAMBOO With 10 years of experience in a 2000 m2 modern production facility by a qualified team of 220 people adopting efficiency and quality as primary principles besides leading Sheet Metal Processing Machines sector via its powerful R&D structure.

Bamboo With Customer
FAQ

Q1:How Can i calculate the Machine Capacity?
A: Just send me the Max thickness and Length .Engineer will tell us the capacity directly

Q2:How about the machine warranty?Is the whole machine?
A:We canoffer 2 years warranty for the following parts :
--Hydraulic System with pump and Valve
--Hydraulic Cylinders
--Electric units
--Hydraulic Cylinders
--Gasket Ring( We will send you extra with the machine also )
--Tube Connector
--Control Button
--Limit Switch
--Controller
During the warranty period we provide any accessories for free

Q3: What is your MOQ?
A:To let more customer know our quality, we accepty trial order service,So the MOQ is 1 set.
Q4: what is your delivery time?
A:We supply prompt delivery time:25-30days.
Q5:What kind of payment does your company support?
A:T/T, L/C , Cash, Western Union are all accepted

Packing & Delivery

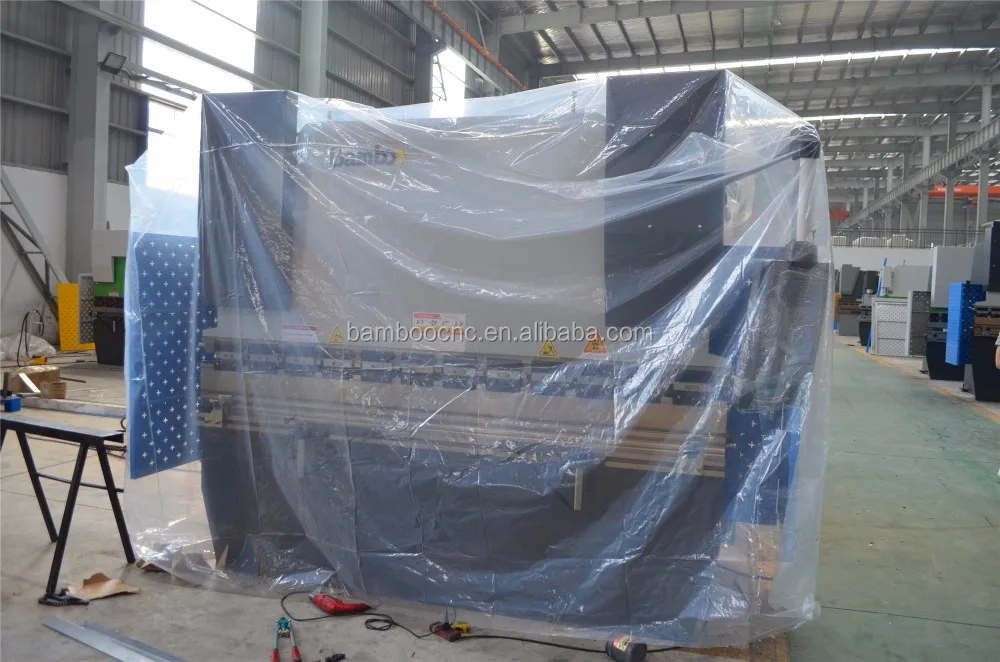

Bamboo CNC Press Brake before Loading

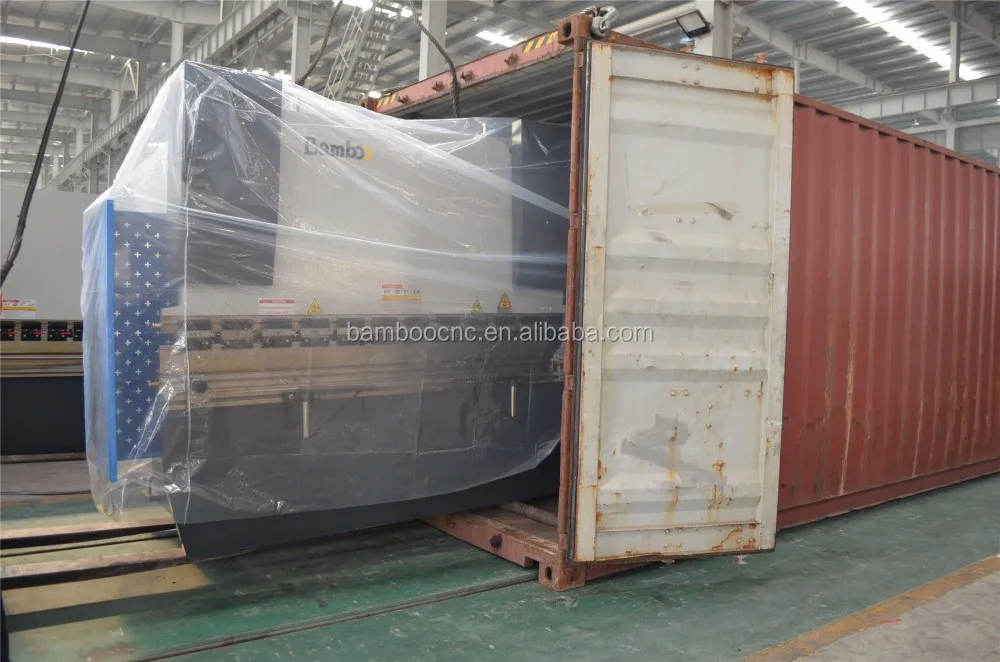

Bamboo CNC Press Brake Loading in 40HQ Container
