hydraulic punch shearing machine ironworker for sale

FOB Reference Price:Get Latest Price
$5,000.00 - $10,000.00 / Set | 1 Set/Sets punch shearing ironworker (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
yuanyi
Model Number:
Q35Y-20
CNC or Not:
Normal
Power Source:
Hydraulic
Dimension(L*W*H):
1950*900*1950
Certification:
CE ISO
Voltage:
380V/220V Optional
Function:
Punching and notching
Application:
hole punching and metal forming machine
Max punching diameter:
30mm
Flat bar shearing:
20*330 10*480
Max cutting thickness:
20mm
Punch depth:
20mm
Angle shear:
Slider stroke:
80mm
Name:
hydraulic punch shearing machine ironworker for sale
Warranty:
12 Months
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
7.5KW
Weight:
2.4t
Supply Ability
Supply Ability:
10 Set/Sets per Month hydraulic punch shearing machine ironworker for sale
Packaging & Delivery
Packaging Details
Hydraulic punch shearing ironworker is usually plastic film wrapped or as client's requirements.
Port
Shanghai
Lead Time :
7 workdays after accountant confirm the deposit of ironworker

hydraulic punch shearing machine ironworker  for sale



Product Descripiton

The series of Q35y muti-funciton hydraulic ironworker machine is a latest product of  punching and shearing machine which can punch,die cut ,shear and bend all kinds of meterials such as plate,flat bar,square bar,round bar,equal,angle,channel,I-beam and so on.The machines have been get European Union certification and ISO quality system certification. The hydraulic system is activated by two shielded foot controls for two operator utilization. one operating the punch end cylinder, the other operating the shear end cylinder.The shear cylinder provides the power to the three shearing and the notch stations.Easy for maintenance with centralized lubrication system.

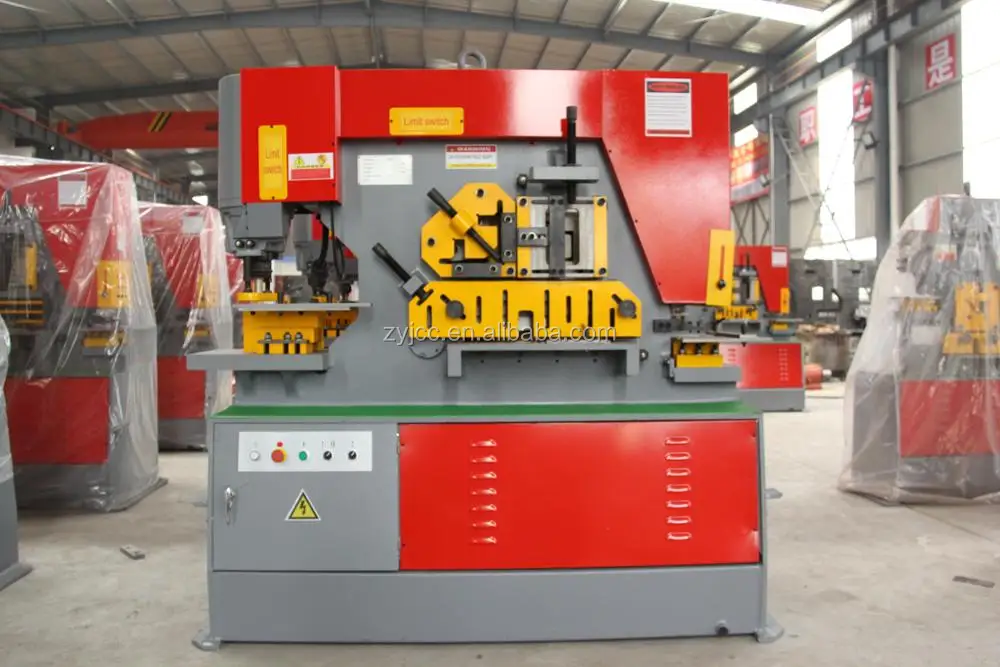

 hydraulic punch shearing machine ironworker for sale.JPG



Main Features

1)Robust and accurate steel frame8)Power inching on all 5 work stations
2)Large punch table with scales9)Plate shear support table and notching table
3)Removable bolster for punching flanges and channel and beam10)Ajustable stroke controls with indicators on both cylinders
4)2 independent hydraulic cylinders11)punching machine: Movable work light
5)2 separate die openings for oversized punching12)Overload protection on hydraulic system
6)2 shielded foot controls13)Electric back gauge
7)5 working stations for wide applications14)Optional bending attachment

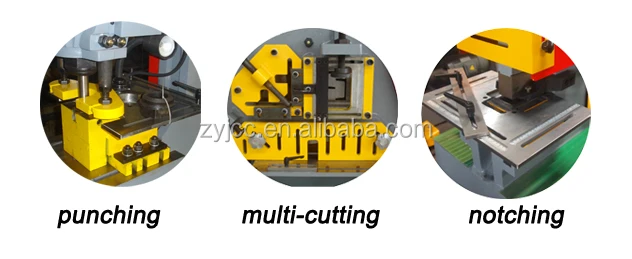

Main function section as follows

hydraulic punch shearing machine ironworker for sale

1.Punching section

Including punching hole ,suqare hole ,waist shaped slot machining and bear the mold ( optional Hitachi SDK11 imported materials),widely used in iron to bridge construction,ship fittings,steel structure other industry.

Note:In the punching station,through the mold can be achieved with special features of bending and impact blinds.



 2. Multi-function shearing

The shear type steel including channel steel,angle steel,I-beam steel ,suqare steel and so on sheat port level.Goods are available in all varieties and simple operation.The angle shear has the ability to cut angle at 45° both top and bottom leg.

Otherwise. we can modify the shear plate's size according to actual needs of users.



3.Notching section

The notching section of this hydraulic ironworker is perfect for notching out metal plate,angle iron and much more.The notching station alse has an oversized table with material stops.This section of the machine can also be outfitted with the optional vee notcher.



Note: The throat depth , worktable, automatic press  and other special configuration can customize according to customer's needs.



Technical Parameters Of Series Q35Y



MODELQ35Y-12Q35Y-16Q35Y-20Q35Y-25Q35Y-30Q35Y-35Q35Y-40
Processing Capacity (KN) 350600 9001200  1600 2000 2500
Material Tensile Strength( Mpa ) <450

<450

<450<450 <450 <450<450
Flat Shearing



Max Shearing Capacity

( thickness* width) (mm)

12*16016*25020*33025*33030*33540*33550*300
6*300 8*40010*480 16*60030*600 30*60030*750
Bar    ShearingSquare Bar ( mm ) 304050 50 5560 65
Round Bar ( mm ) 354550 60657080
I-Bar ( mm ) --120*5160*6 200*9280*10.5 300*13320*13
Angle Shearing90° Shearing ( mm ) 86*8120*12140*12 160*14180*16200*18 200*18
45° Shearing ( mm ) --50*570*10 60*680*8 80*10100*10
Hole Punching

Max Punching diameter

( diameter*thickness)mm

  Φ25*12Φ25*16  Φ30*20Φ35*25  Φ38*28  Φ40*35Φ45*40

Motor ( KW )

45.57.5111518.518.5

Dimension

 ( mm )

Length 95017401950 2355280029003200
Width 550810900 9601050 11001440
Height  180018301950 209024502500  2500
Weight ( t ) 1.21.82.4 4 6.47.5 9.3



Special customized machine



Our Services

1.Advanced technology

Our company is a professional manufacturer of producing hydraulic ironworkers, and have obtained a number fo domestic patents obout ironworker machines .

2,Installation

We could send technician to your factory of  installing and trial operation of  our machine.

3.Training

Our technicians are sent to your factory and offer the training of how to operate  the machine which you buy.

4.Quality guarantee

We arrange a complete test to inspect our machine before shipment, to make sure our machine in a good condition and without any potential problem.We are committed to one year warranty about our machines.

5.Cost saving

We are directly manufacturer,so there are no middle costs involved.



Why  choose us ?

* We are 100% original manufacturer,we do OEM for domestic and abroad trading company.

*About 10 yars professional manufacturing experience.We have our own factory and brand not trading company,so there are no middle costs involved.

*ISO9001 and CE certificates holder.

*Competitive price,trustable maintance and instant service.e

*Alibaba assessed 9 years Gold supplier

*Our products are sold almost without maintenance throngh these years of feedback.



Packing Delivery

Usually,the inner packing is plastic,the outer packing is adopt wooden cases or according to customers' requirement.



Factory View

   Anhui Zhongyi Machine Tool Manufacturing Co.,Ltd located is known as"China blade mold machine" reputation first rural town of Bowan--Maanshan eastern outskirts of Economic and Tehnological Development Zone industrial Park Bowang,from the Nanjing Lukou international Airport is only 26KM and strategic ,traffiic is developed.

   The main products named "Yuanyi" hydraulic ironworkers have been desighed and built to the highest quality standards in the industry.We always stick to our core value--"Quality of build quality,casting brand integrity",and try our best to serve better.Our company has many  successful experience of producing multi-function hydraulic ironworker,its products are sold throughout china and more than 20 countries and regions.In adidtion,we have been highly recognized by our partners and clients all over the wold.

hydraulic punch shearing machine ironworker for sale



Visiting customers

 hydraulic punch shearing machine ironworker for sale





Certificate

 hydraulic punch shearing machine ironworker for sale.jpg







FAQ

Q:How about your machine quality?

A:Our machines distribute wordwide to about 50 countriies where there are metal plate industry.And where there are our machines,there are good reputation and wonderful user experience.

Q:The machine price can be more discount?

A:We think our price level matched our product quality and after-sale service we provided. There will be a acceptable discount if we get more cooperation, we also expect get long-term cooperation with you.

Q:Where is your factory?

A:We located in Ma'anshan City,our factory is particular close to Nanjing. If you are to visit our factory,we'll pick you at the Lukou Airport. Welcome to visit our company.
