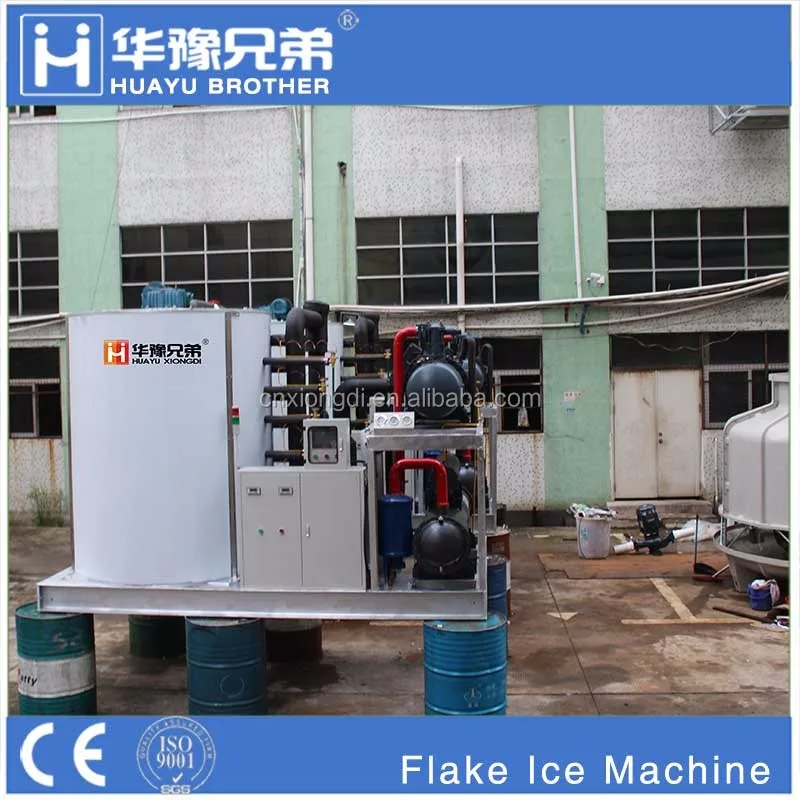

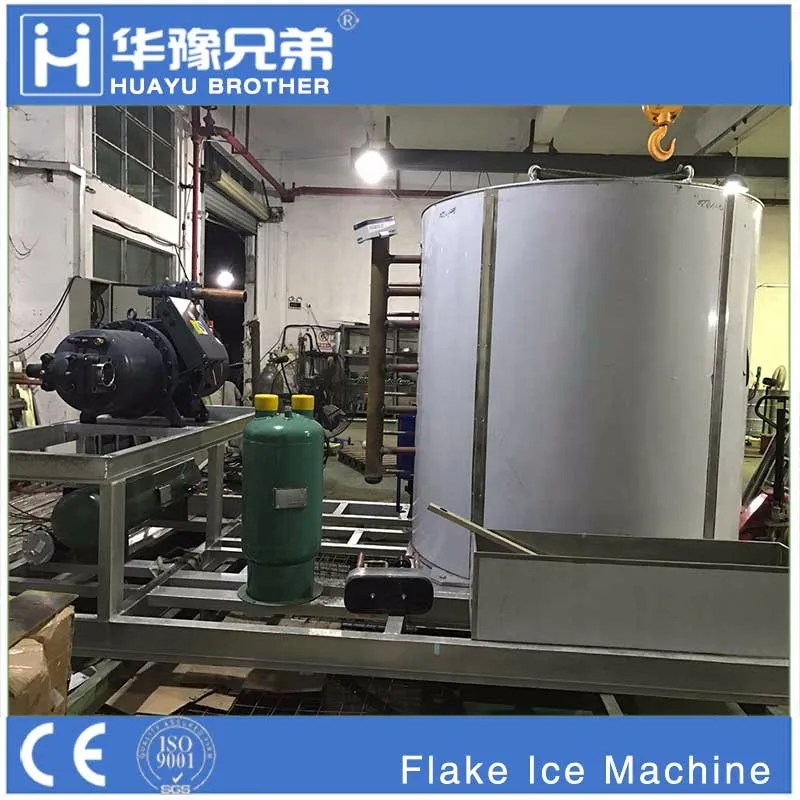

ice making machine industrial ice manufacturing plant 20T/day flake ice maker with water cooler

FOB Reference Price:Get Latest Price
$20,000.00 - $40,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Power(W):
64.5kwh
Ice Shape:
Flake Ice
Dimension(L*W*H):
3300*2100*2200mm
Condition:
New
Capacity:
20000kgs/day
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Huayu Brother
Model Number:
BIF-20TW
Voltage:
380V/220V three phase, can be custom
Weight:
2800kgs
Certification:
CE
Working:
Automatic
Flake ice thickness:
1.5mm
cooling model:
Water cooling, air cooling is optional
Freezing wall material:
Carbon steel, SUS304 or SSL316L optional
Compressor:
Screw compressor or Bitzer
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12months
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood case
Port
Shenzhen
Lead Time :
35days after receive deposit
Product Description

Product Application

Produce ice flakes for cooling application, the ice maker adopt intelligent control system and strong quality parts assured the machine can continue working (7x24hrs) and make ice.

GENERAL INFORMATION OF BIF-20TW
Name:
20tons ice maker
Capacity:
20tons per 24hours
Install power:
64kwh
Install size:
3300*2100*2200mm
Water request:
0.1Mpa-0.5Mpa
Working method:
One key start/stop.
Full Automatic working, continue make ice.
Ice sanitary class:
For normally use only (cooling application), NOT suit mix into food.

Main Features

1) Full automatic working
PLC system built in, all parts keep in running order, No workers need monitor the machine during its working. Once there is an failure happen, machine will automatic stop working and power off in case deeper hurt, meanwhile it will alert you by sound and light. On the control panel, red light will show you which part failure.

2)  Reliable
HUAYU BROTHER ice machine designed for commercial and industrial use, heavy duty and stable for 7x24hrs working, all refrigeration system related parts we sourcing from world top brand and make precision matching that provide stable working and cooling capacity delivery to evaporator for ice making.

3) High performance
Ice generator, as the core part of an ice machine, also is our hit product: the freezing wall process with state of art equipment and go through special heating process enforce its hardness and other physical features, all our freezing wall provide 5 years full warranty, double walled ice generator, gas recycle inside the walls, compare traditional copper gas tube, its high heat exchange efficient and never worry gas leakage.

Machine Parameters
Name
Spec.
Capacity
20T/24h
Cooling capacity
130.5kW
Evaporating temp.
-20℃
Condensing temp.
40℃
Standard environment temperature
25℃
Standard water temperature
20℃
Power install
64.5KW
Compressor
55.9KW
Reduction gear
0.75KW
Water pump
0.75KW
Condensing pump
5.5KW + 1.1kwh
Power supply
380V/50Hz/3P
Water pressure
0.1Mpa-0.5Mpa
Refrigerant
R404a
Ice temperature
-5℃
Flake ice thickness
1.8mm
Water pipe
2*3/4”
Net weight
4300kg
Machine size
3300*2100*2200mm
Model
Capacity(24hours)
Install power
Ice maker size
BIF-20T
20T
64kw
3000*2000*2050mm
BIF-25T
25T
81kw
3000*2000*2250mm
BIF-30T
30T
91kw
3300*2100*2450mm
Remark:

1, All ice maker can make with air or water cooling.

2, All ice maker can make split type.

3, Freezing wall material carbon steel, SUS304, SSL316L available.

4, Ice bin optional.
Ice Flakes Feature

Flake ice features and advantage.


1) Appearance length about 10-40mm irregular size, thickness 1.5mm, very dry, temperature -5℃.


2) Flake ice is small chips, no sharp edges, will not break mixture or processing machine.


3) When the flake ice use for food fresh keeping, due to the large contact area with food, can fast reduce food temperature, meantime, can moisturizing food keep fresh.


4) When the flake ice use for material rapid cooling down, the flake ice add to processing machines, melt rapid and take the heat away.

Detailed Images

Main Parts

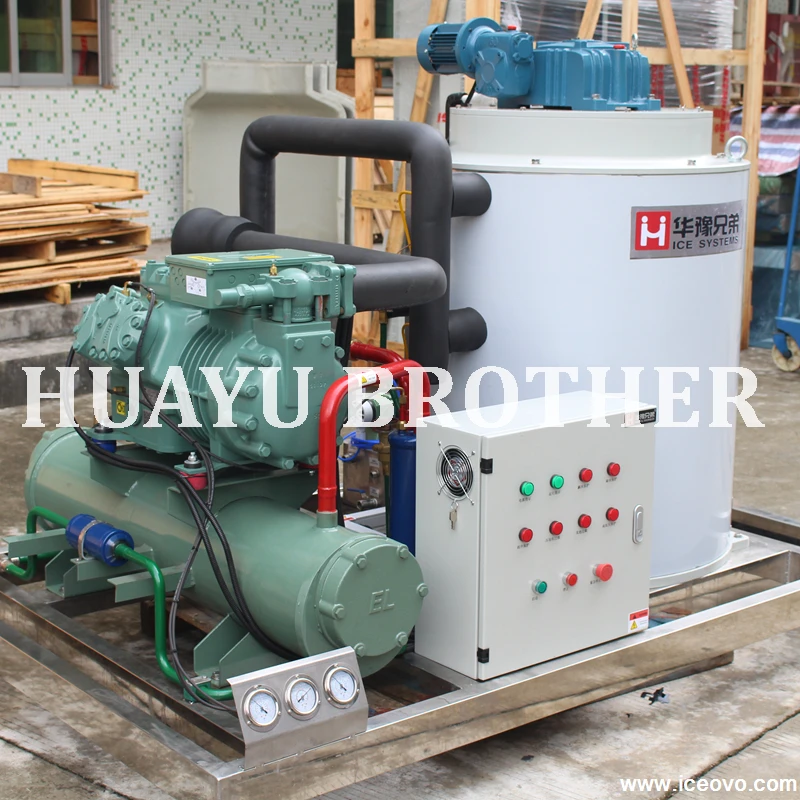

Name: Compressor

Brand: Bitzer  or  Hanbell Screw

Original: Germany / Taiwan

World famous brand semi-hermetic compressor, stable working.

Water recycle system

Name: Water pump
Brand: Newdose
Original: Joint venture
Delicate designed water recycle system and water feed/recycle pump installed, all water use for ice making, no waste.

Core Parts

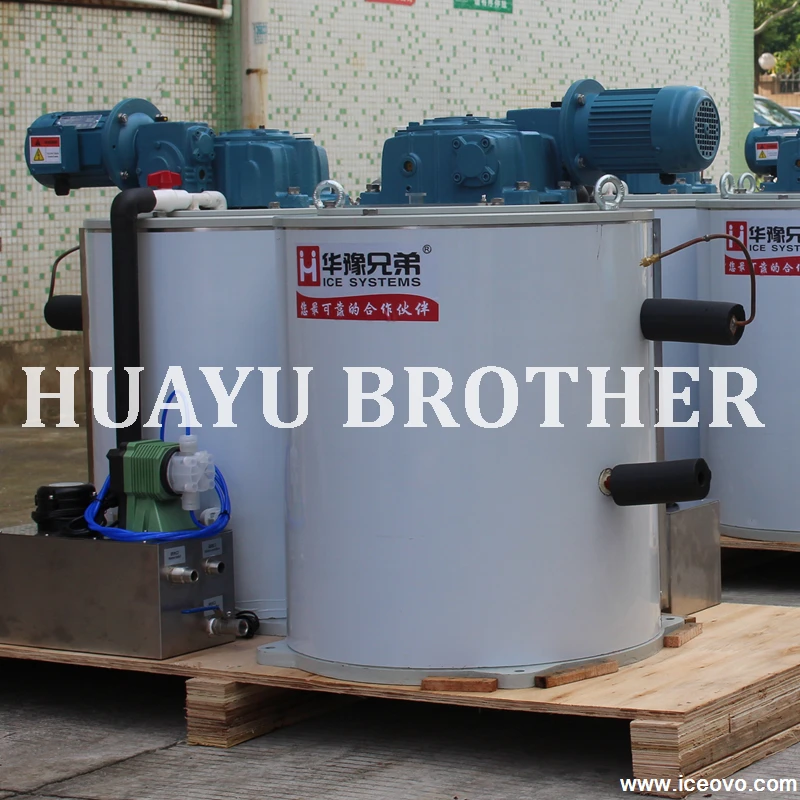

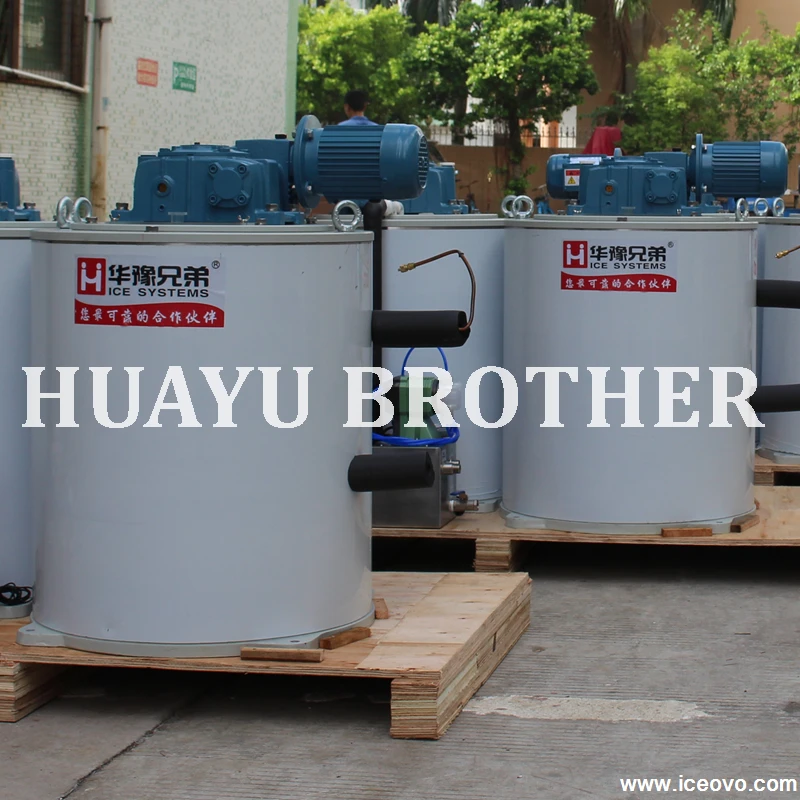

Name: Flake ice generator
Brand: Huayu Brother
Original: China
Double walled ice generator made by Huayu Brother, high reliable working and freezing wall provide a 5 years warranty.

Electric parts.

All refrigeration system parts sourcing from world 1st class brand such as ALCO,DANFOSS etc.


Provide 1 year full warranty.

Intelligent controller.

PLC system built in, the ice maker full automatic working and produce ice,storage in ice bin.

*ice bin full, automatic stop working.

*water lack,automatic stop working.

*Parts failure,automatic stop working.

*Phase wrong,automatic stop working.

*H/L pressure problem,automatic stop working.

For all  failures, the ice maker will stop working and waiting fix, in cause further hurt.

Our Service

Custom your idea ice maker.

1) Ice maker voltage custom.
220V, 380V, 400V,415V, 480V, 570V, 600V etc. as per your local voltage, we provide suitable machine to you.

2) Ice maker structure custom,
Integrated structure, split type, ice maker size request, ice bin size request etc. tell us your idea and we give suggestions.

3) Key parts brand.
Compressor, expansion valve, dry filter, gear motor, material etc. all can be custom.

4) OEM

Packing & Delivery
Packaging
Packing Size(mm)
Ice maker:
20GP
Ice bin: Optional
Weight
Ice maker: 3000kgs
Ice bin: /



Packaging Details
Machine surround by PE film, and packing into plywood case.
Fumigation-free plywood case.

Or nude in container
