infrared heat lamp,flavor wave oven parts 1300W,15CM

FOB Reference Price:Get Latest Price
$1.00 - $22.00 / Piece | 2 Piece/Pieces (Min. Order)
Support Dimmer:
Yes
Color:
Wattage:
Other
Emitting Color:
White
Model Number:
white coated infrared lamp
Lead Time:
Quantity(Pieces) 1 - 50 51 - 100 101 - 500 >500
Est. Time(days) 7 9 12 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 100 Pieces)

More

Graphic customization (Min. Order: 100 Pieces) Less
Samples:
$12.00 /Piece | 1 Piece (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
YUANDA, OEM
Color:
White
Specification:
H1
Material:
Glass
Certification:
CE
Lamp Luminous Flux(lm):
126
Lamp Luminous Efficiency(lm/w):
56
Working Lifetime(Hour):
5000
Beam Angle(°):
360
Heating response time:
1S
Power source::
Electricity
Shape::
Linear, Round, C, U type
Type::
Electric Heater Parts
Lifetime:
5000 hours
Type of sale:
Factory Outlet
Mounting::
Vertical and Horizontal
Product name:
Quartz Halogen Infrared Heating Lamp
Supply Ability
Supply Ability:
50000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Packed outside in professional standard wooden case and inside with soft foamat,quartz infrared heating elements
Port
lianyungang /qingdao/shanghai
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 50 51 - 100 101 - 500 >500
Est. Time(days) 7 9 12 To be negotiated
YUANDA
 Filament
Tungstan
Lamp reflecter
 Clear,White,Gold
Wavelength
1.3um
Voltage
24-600V
Power
50-5000W
 Color Temp
2450K
Tube diameter
10mm,11mm,or customzied
 Life Time
>5000hrs

The top quality of filament can let the lamp keep long time life

*High efficiency.

*Economical to run.
*Have a fast response switching on and off time.

*Effectively transmit and focus heat on materials.

High purity99.99% qurtz glass tube

*Is totally transparent at IR radiation.

*quartz is used in halogen bulbs because it can withstand high temperatures. Quartz also ensures against heat shock.

The advantage of different reflecter

WHITE REFLECTER

The half  reflecter can reflecting the power to the needes side, can save energy 80%,
Customzied can produce half white reflecter, doube sides white reflecters, 240 degree white reflecer.
With professinal process.
The white relfeter coating is stable,long time working not easy to  to fall off.

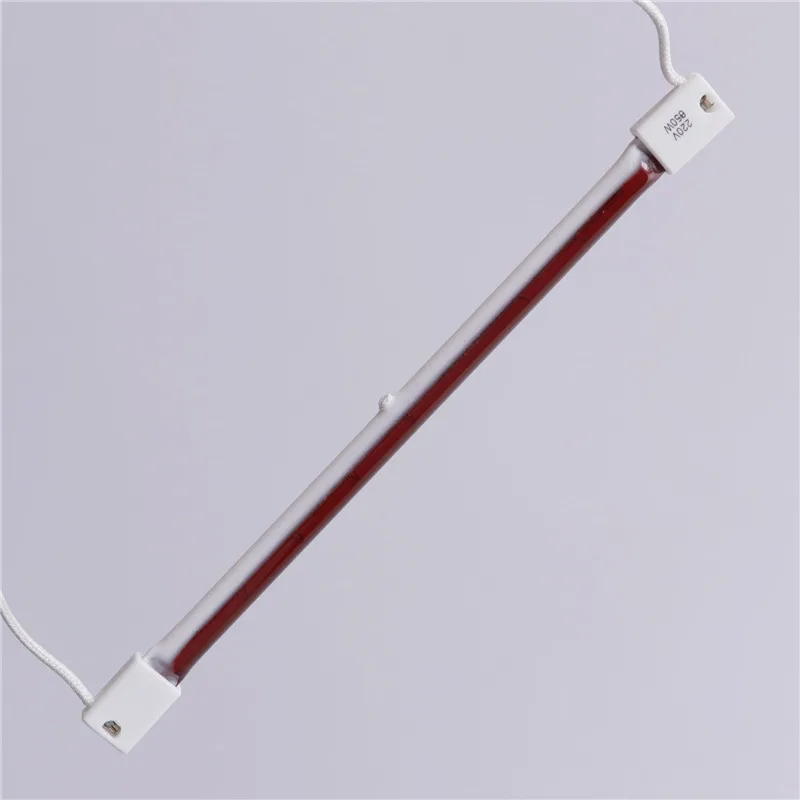

RUBY

Reduce the brightness of visible light.

The lighting is soft rose ,reduce wavelength, increase heat.

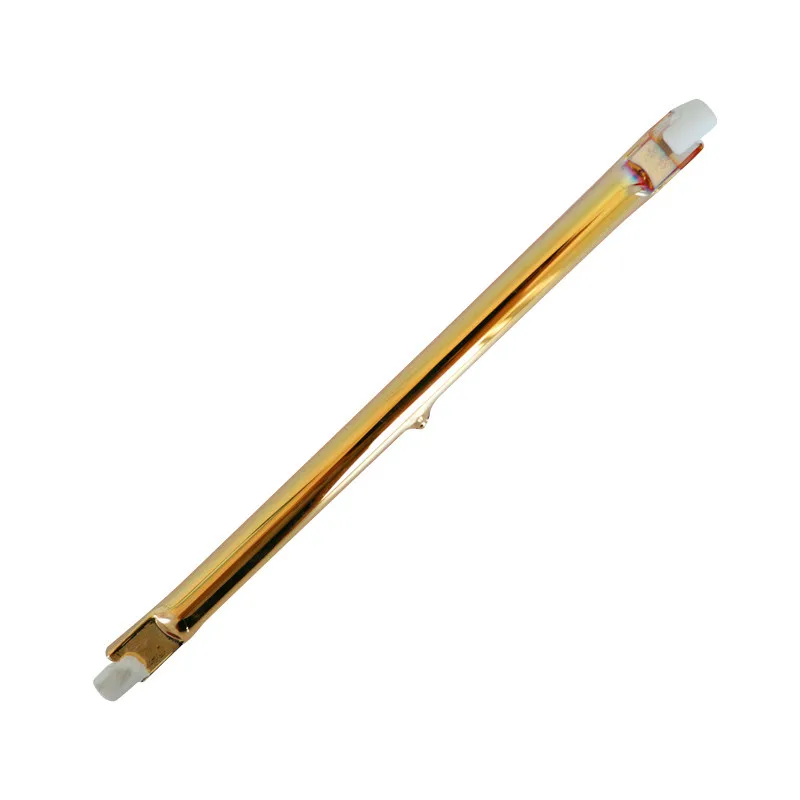

GOLD REFLECTER

Reflect heat use,Stronger reflection efficiency.                   Fast response, reaching 100% power after be electrified and fast to reducing the temperature
HERE ARE HOT SALE SIZES FOR YOUR REFERENCE,IF YOU WANT GET FAST REPLY OR CUSTOMZIED OTHER SIZES CLICK HERE TO GET THE BEST PRICE .
Hot Products

EASY FIXED THE LAMPS

SAFETY

SAFETY PRECAUTIONS :

1. Components are allowed to work under the following conditions:
A. The relative humidity of the air is not more than 95 percent.
B. There is no flammable, explosive, corrosive gas and conductive dust in the surrounding environment.
C. Without violent impact and vibration;
D. The working voltage should not be greater than 1.1 times the rated value, and it can also be effectively grounded.
E. Insulation resistance ≥ 1MΩ Dielectric strength: 2KV/1min.
2. The electric heating pipe should be well positioned and fixed. The electric heating pipe is generally equipped with corresponding metal pipe clamps and ceramic pipe clamps according to the porcelain seats at both ends.
When the operating temperature exceeds 200 degrees Celsius, a high-temperature wire and screw connection that withstands 400 degrees or more is used.
3.Insulating material of infrared electric heating tube The quartz glass is a brittle material. When installing and using it, it should be safe and use it according to the specific conditions of the heated object.
Take necessary protective measures to avoid mechanical damage

Company Profile
Infrared lamps for Industrial applications
Support(zone)
Application
Suggest the ir lamp type
Plastics
• Bottle blowing    • Thermoforming
• Plastic forming  • Welding
• Serigraphy          • Strapping
Half white reflecter infrared lamp
Paper
• Drying                 • Copying

• Offset printing  • Ink jet

• Serigraphy
Clear short wave heat lamp
Half white heat lamp
Food
• Food catering • Food processing
Ruby heat lamp. round halogen oven lamp
Wood & Composites
• Drying    • Curing   • Powder coating
white reflecter infrared heat lamp
Gold relfetcer heat lamp
Shoes & Fabrics
• Drying • Curing
White relfecter/gold reflecter/clear/ruby
Metal
• Strapping     • Coil coating
• Powder coating
Gold relfetcer heat lamp/twin tube ir lamp
Paint
• Automobile repair shops • Powder coating
Ruby jacked heat lamp/relfecter lamp
Animal care
• Breeding and rearing of animals • Veterinary clinics, zoos,pet shops and beauty parlors
Ruby ir lamp.
